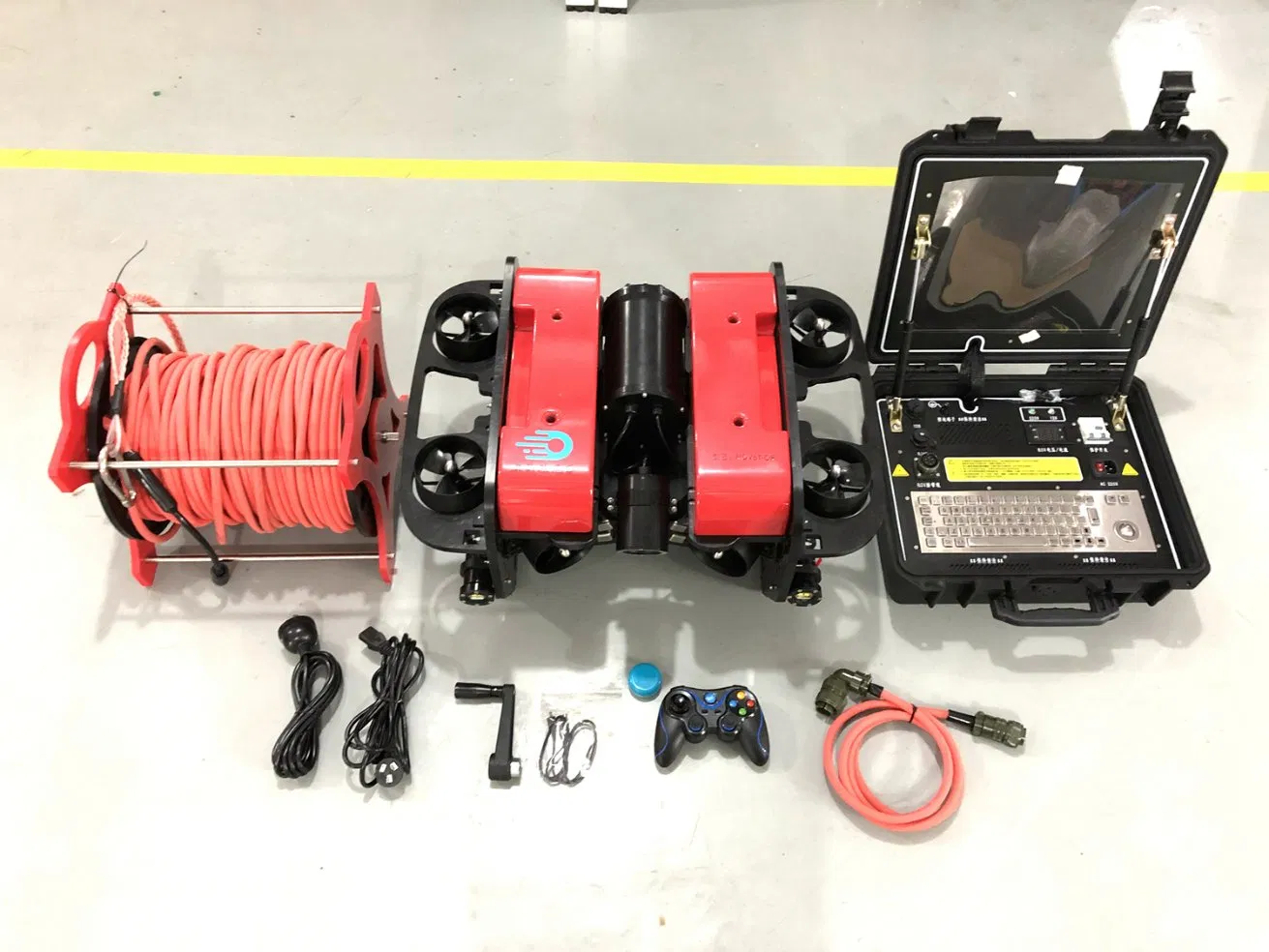

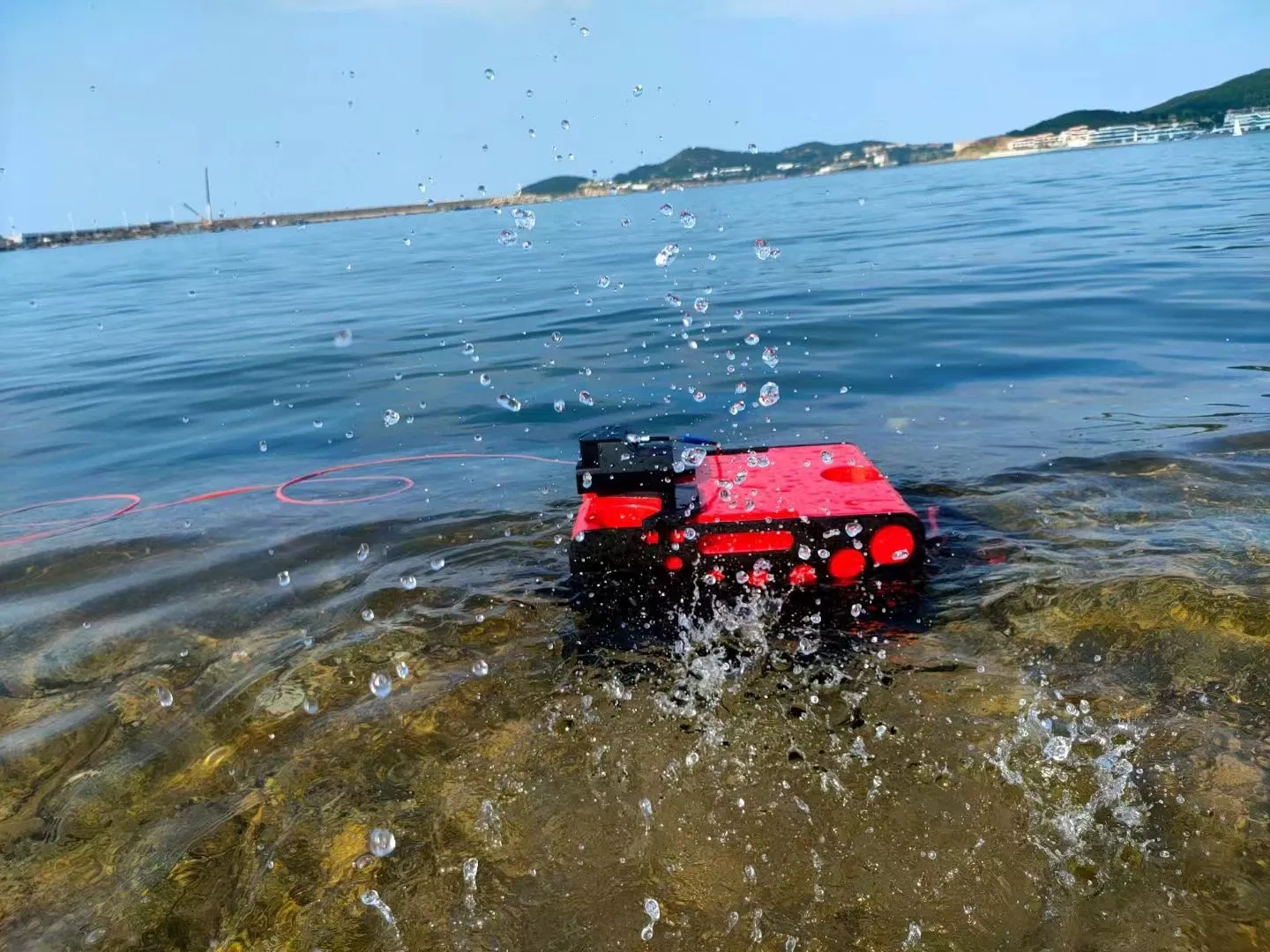

Multi-Functional Underwater Robot Rov High Definition Inspection Camera Water Rescue Equipment Salvage Deep Sea Detection Engineer Fish Farming

Still deciding? Get samples of $ !
Order Sample

Product Description

💠 Basic Information
Model NO.ROV-5T
MaterialAluminum Alloy, Optical Quartz Glass
TypeRobot
Using FieldAquatic
Operating Depth100~200m
Propulsion5 Propellers
ColorRed / Yellow
Weight18kg
Power SupplyHigh-Voltage (1500W)
Forward Force13kg
Vertical Thrust19kg
Cable Length100m (Customizable)
🔍 Product Description

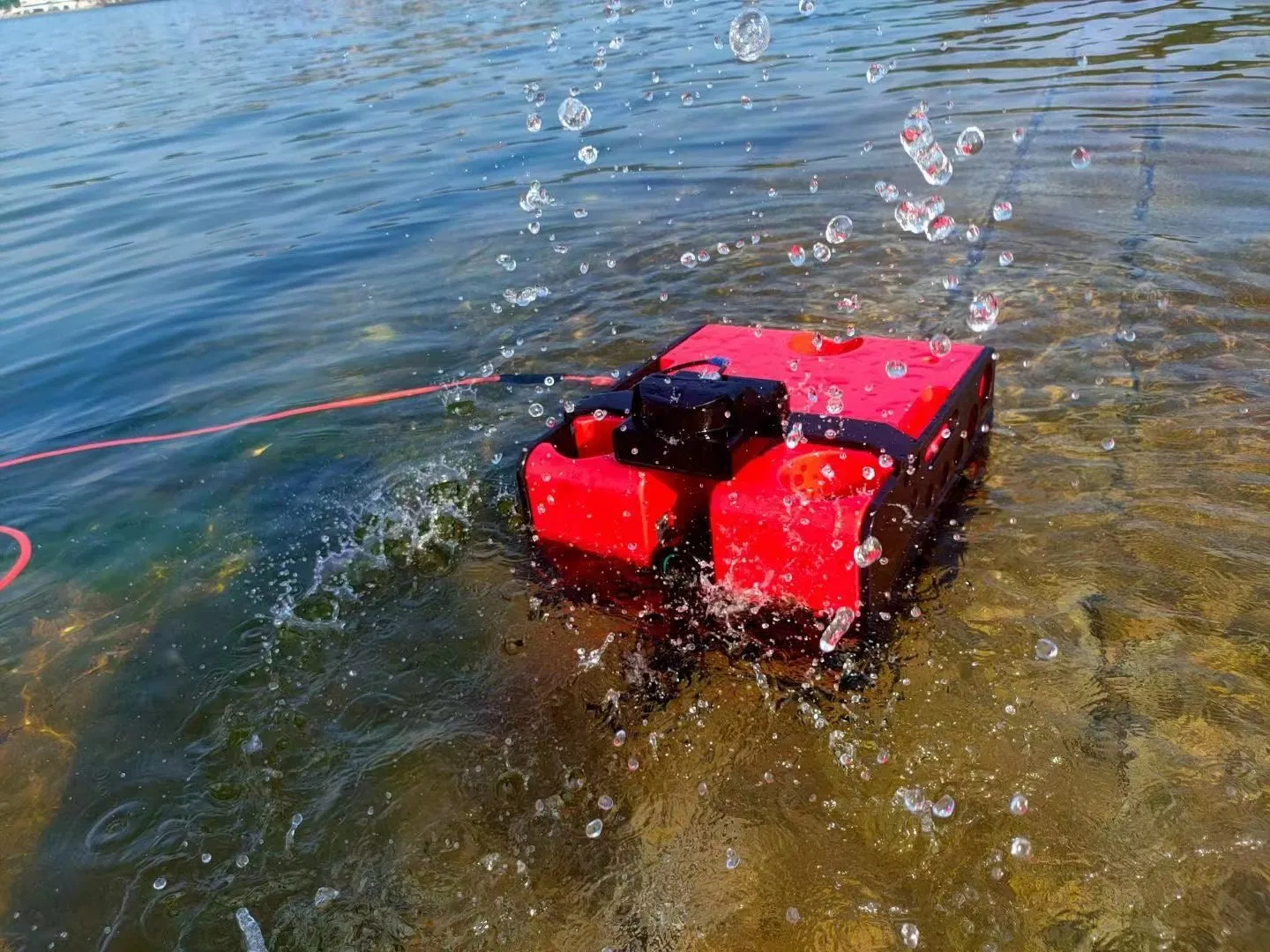

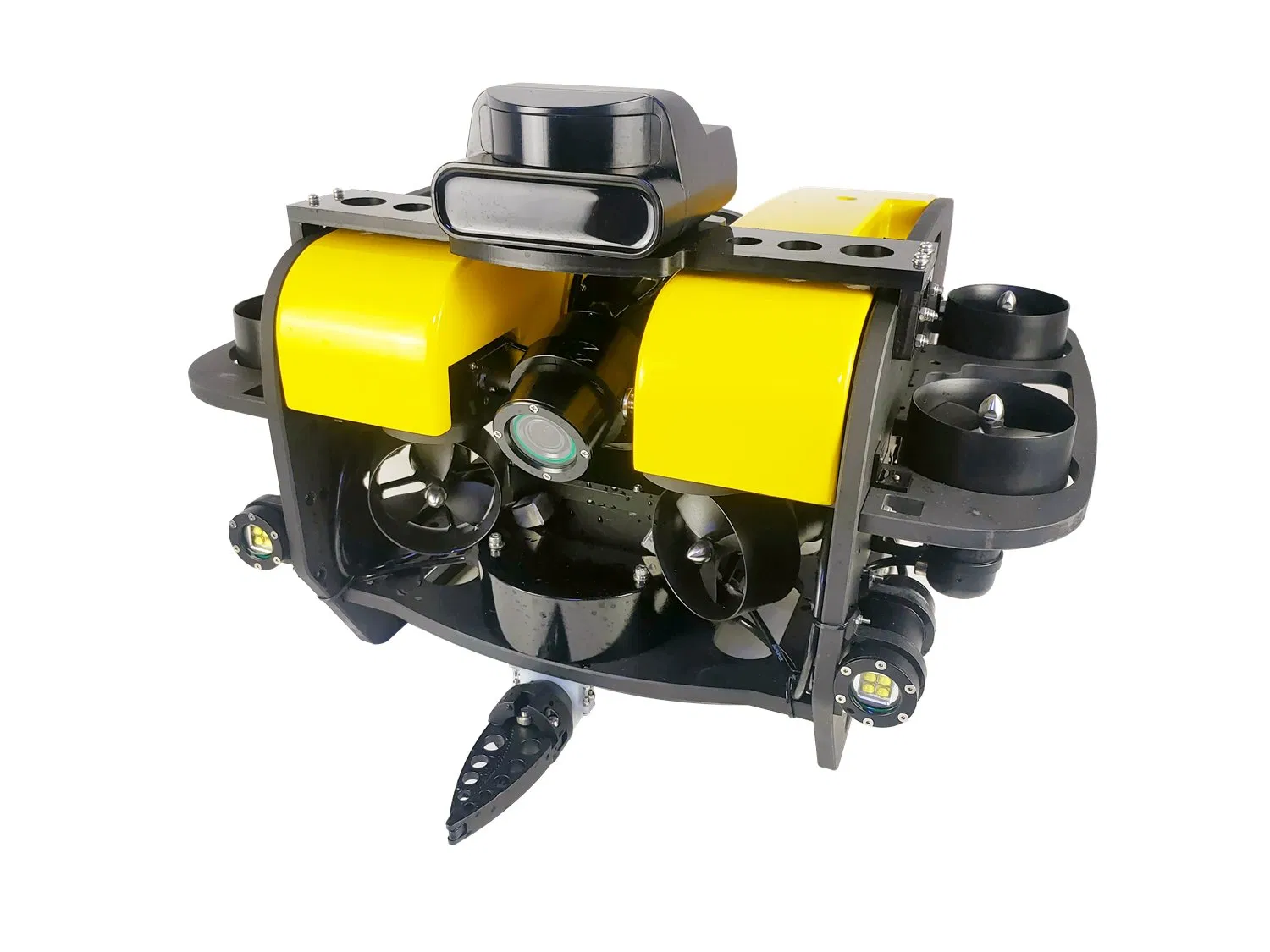

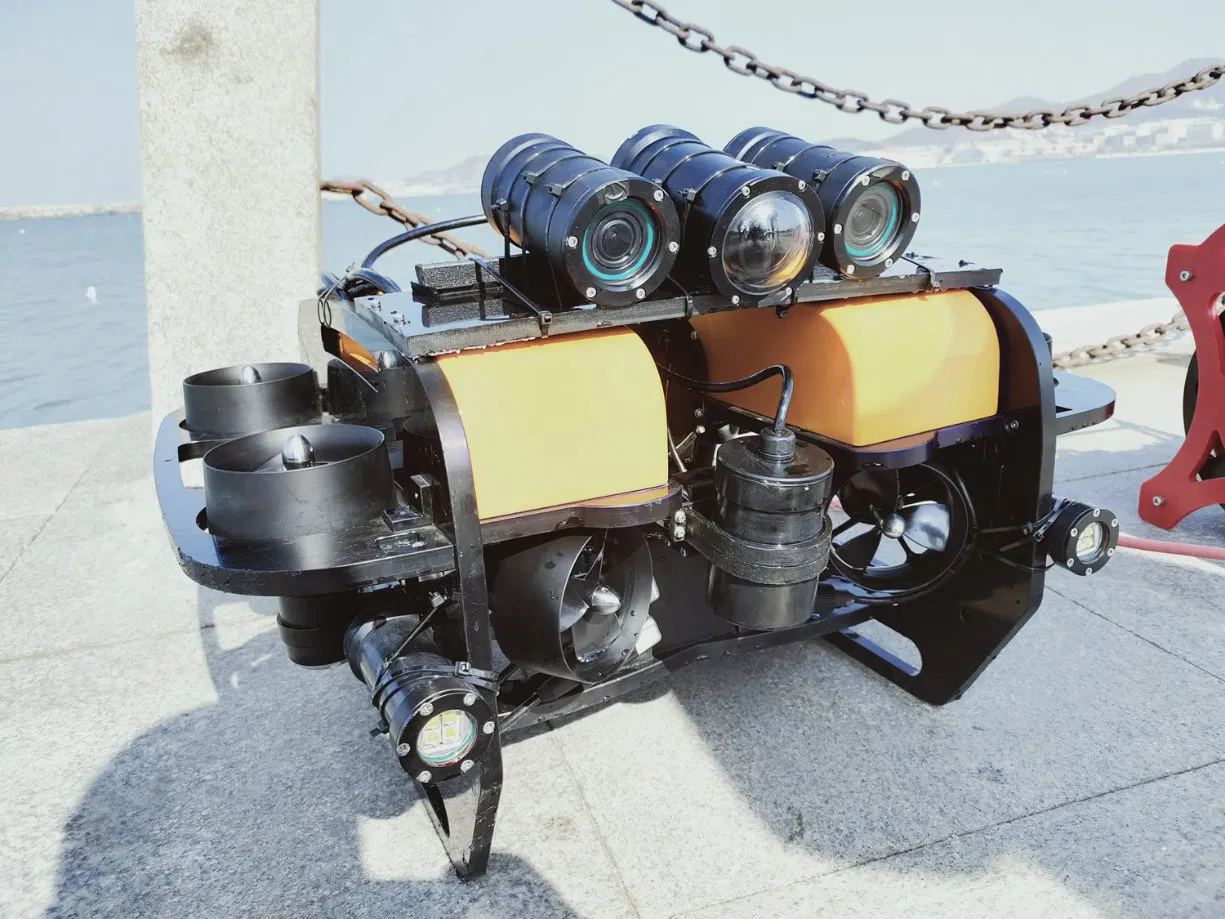

Underwater Robot Description

This robot is mainly used for underwater operation and inspection in deep water. With 5 or 8 propellers, it displays high flexibility. The high-definition network cameras and 2~4 1500 lumens high brightness LED lights on it offer clear, real-time imaging even in murky water. The shore-based DC high-voltage power supply ensures long-time working stability. The modular design makes it easy to carry manipulators, sonar, and other equipment.

⚙️ Product Features
  • The shore-based power supply ensures long-time work without interruption.
  • Equipped with fixed-depth hovering and directional navigation capabilities.
  • Uses zero buoyancy cable as an abrasion and tensile-resistant transmission medium.
  • Optional manipulator made of marine aluminum with superior corrosion resistance.
  • Can be optionally equipped with sonar systems for enhanced detection.
  • Fully customizable materials and functions to suit specific mission requirements.
📊 Technical Parameters
Parameter Specification Parameter Specification
Model No. ROV-5T Size 500mm*420mm*320mm
Operating Depth 100~200m Weight 18kg
Forward Force 13kg Vertical Thrust 19kg
Sensors Depth, Temperature, Compass Power Output 1500W
Cable Breaking Strength 2.0KN Cable Length 100m (Customizable)
🌊 Application Scenarios
Application Scenarios
  • Underwater engineering and maintenance
  • Flaw detection and ship overhaul
  • Emergency water rescue and salvage
  • Water quality inspection and monitoring
  • Aquaculture and fish farming inspection
  • Underwater photography and filming
  • Education and scientific research
  • Commercial diving support
📜 Certificates
Certificates
ISO 9001
ISO 14001

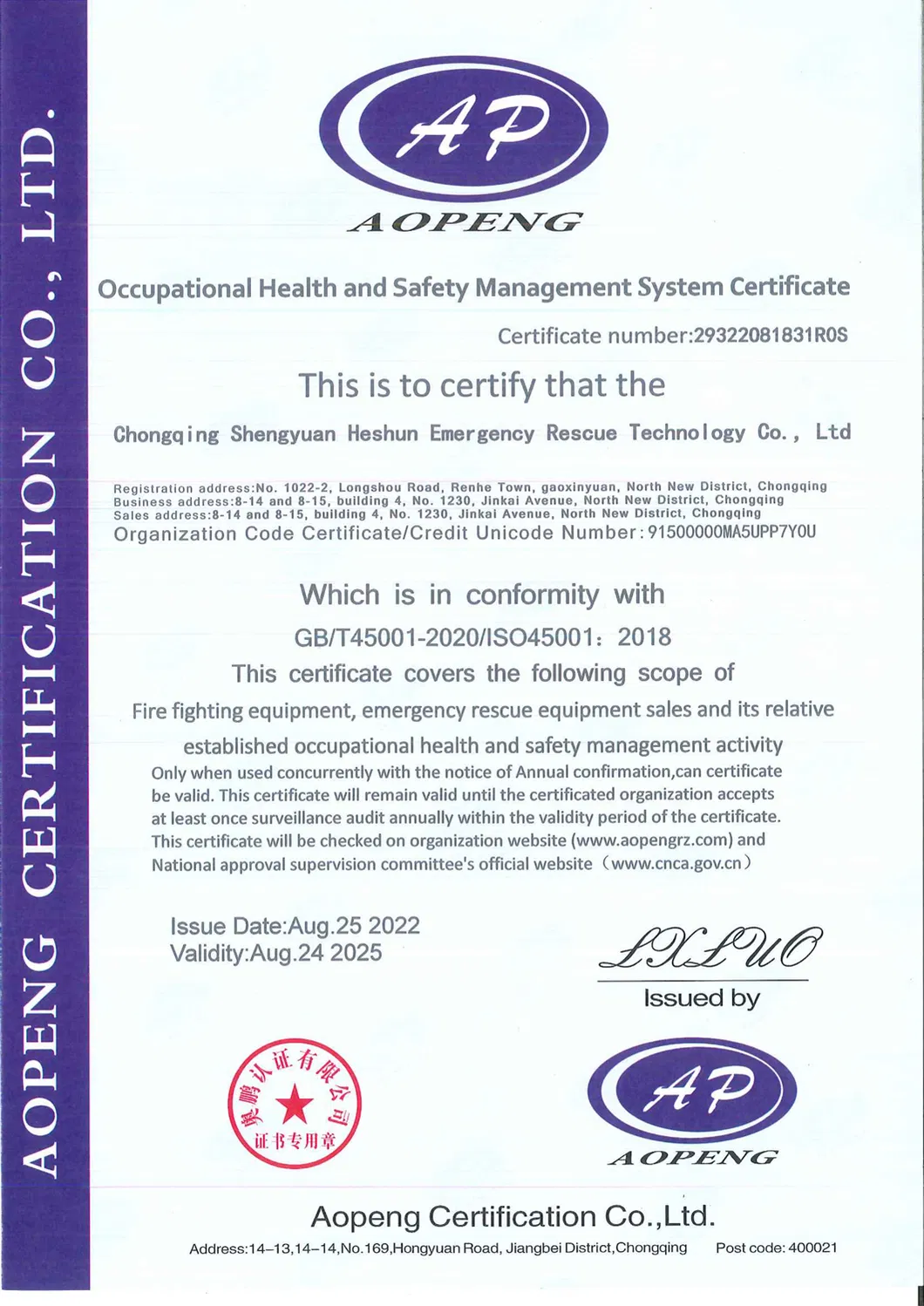

ISO 45001
🏭 Workshop

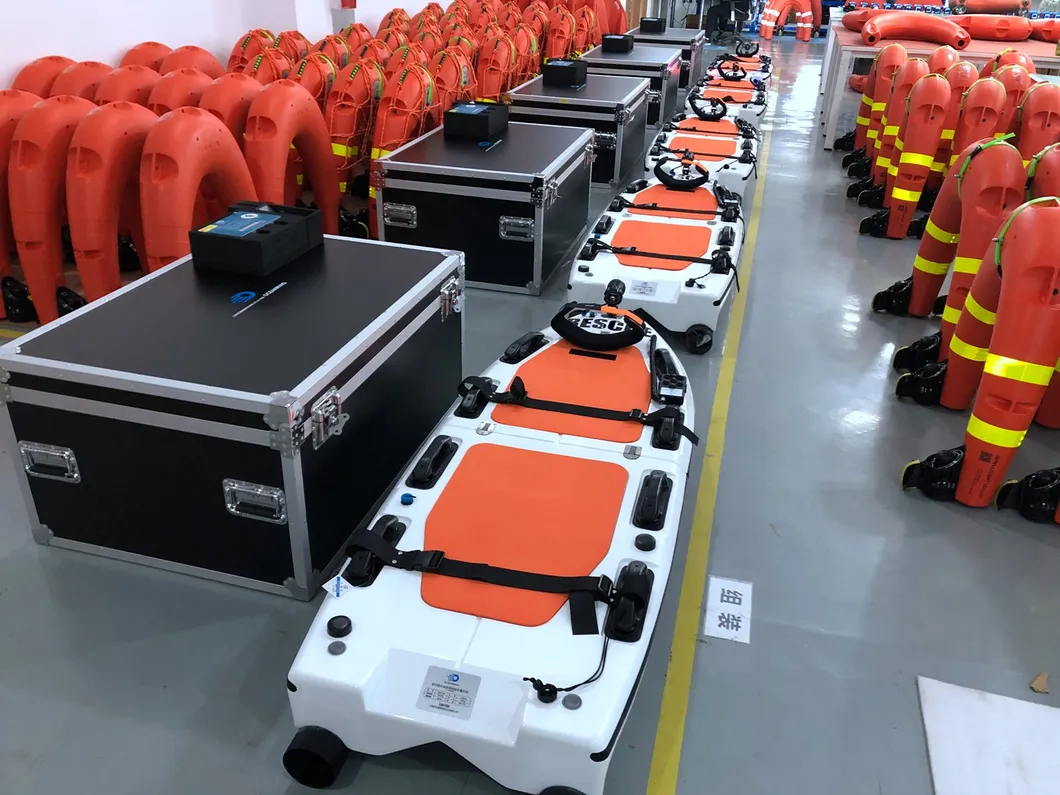

Workshop 1

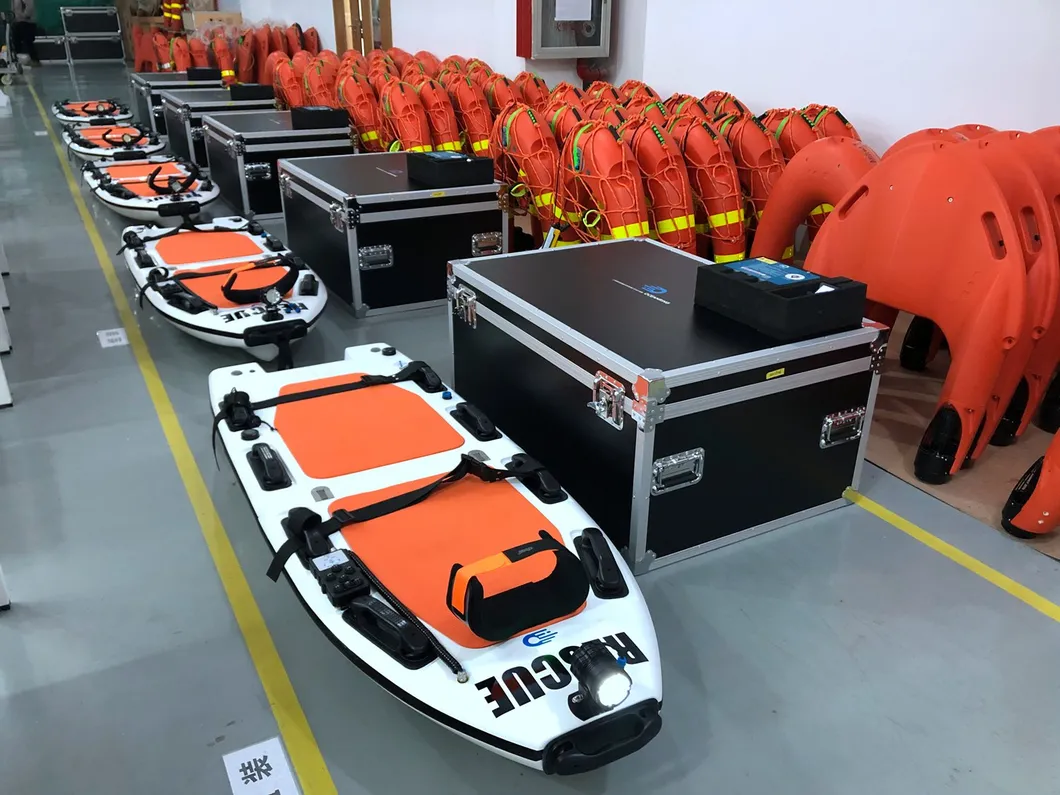

Workshop 2

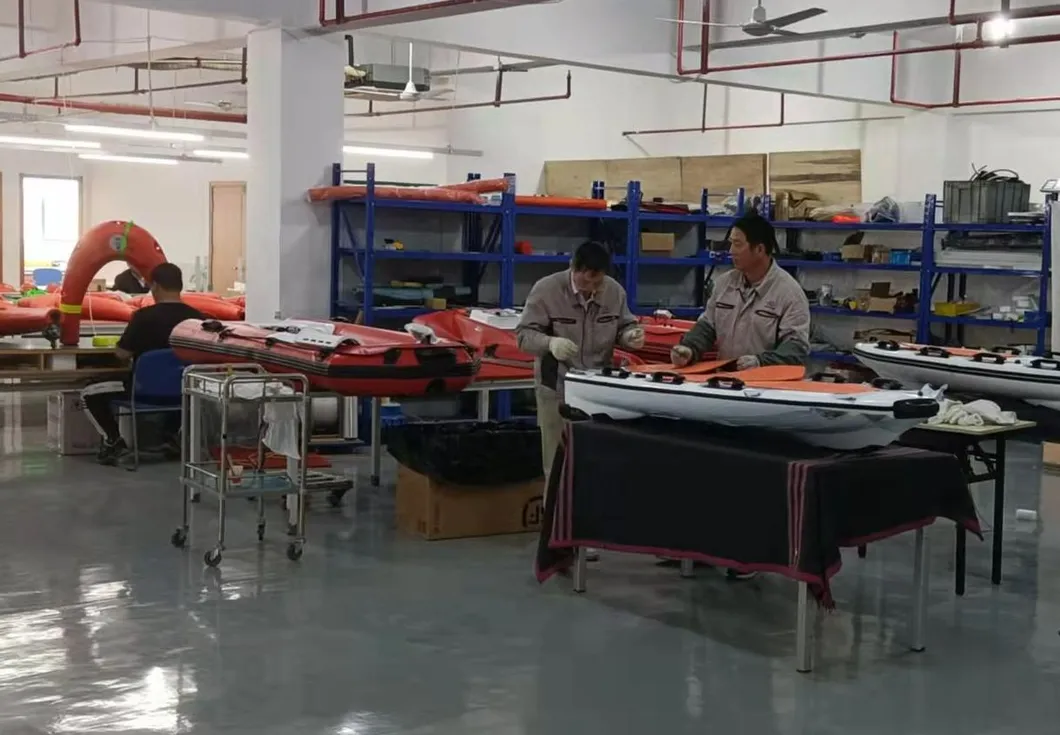

Production 1

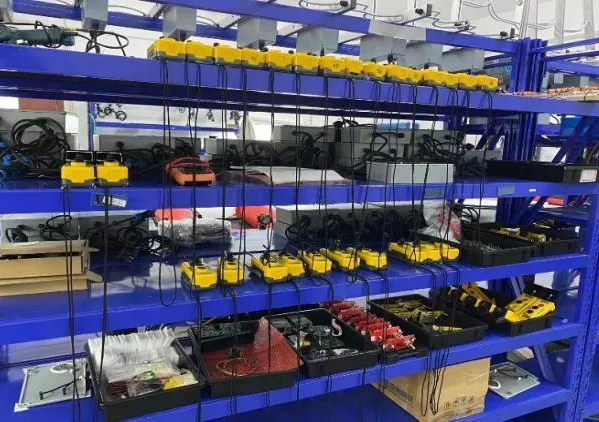

Production 2

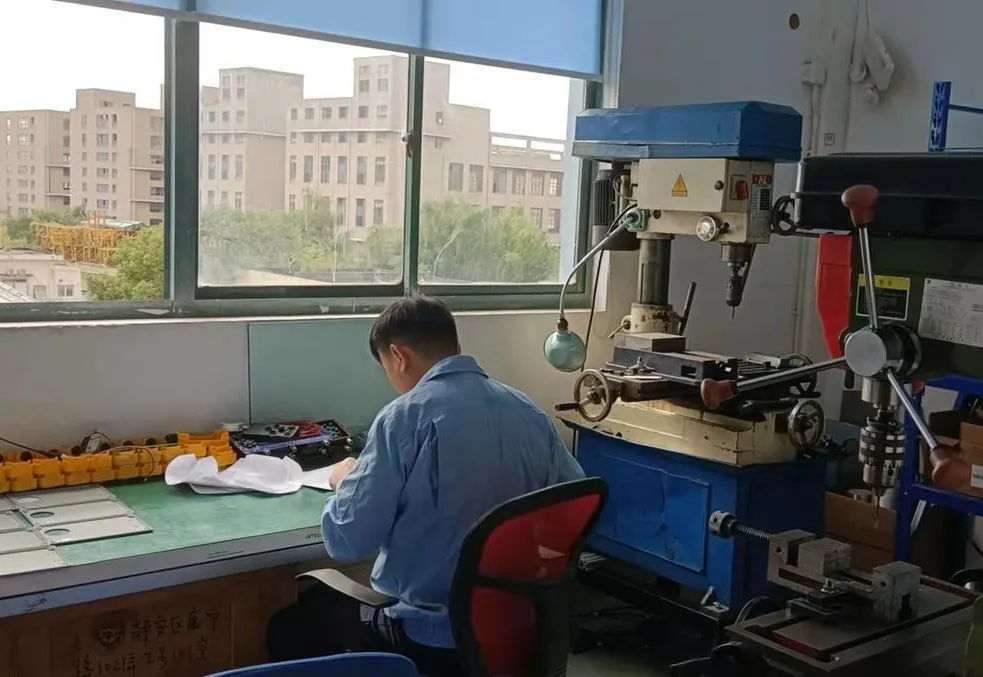

Production 3
🏢 Company Profile
Profile

As a comprehensive solution provider in the safety and emergency rescue industry, this high-tech enterprise specializes in R&D, production, sales, and related services for emergency rescue equipment. Main products include water rescue equipment, forest fire prevention tools, urban firefighting products, and simulation training facilities. With expertise and a sense of responsibility, the enterprise has received significant praise from domestic and international customers.

Exhibition 1
Exhibition 2
Exhibition 3
Service 1
Service 2

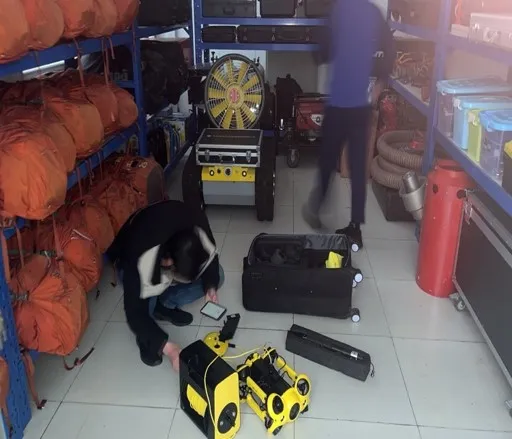

Service 3
⭐ Our Advantages
  • Whole industry product coverage
  • High-quality, durable equipment
  • Professional technical team
  • Free technical consultation
  • Comprehensive after-sale services
Advantages
Patents
Credentials
❓ Frequently Asked Questions
Q1: What is the maximum operating depth of the ROV-5T? A: The ROV-5T is designed to operate efficiently at depths ranging from 100 to 200 meters.
Q2: How is the robot powered during long missions? A: It utilizes a shore-based DC high-voltage power supply (1500W), which allows for continuous, long-duration underwater operations without the need for frequent battery changes.
Q3: Can the cable length be customized? A: Yes, the standard cable length is 100 meters, but it can be customized according to specific project requirements.
Q4: What kind of imaging equipment is integrated? A: The robot is equipped with high-definition network cameras and multiple 1500 lumens high-brightness LED lights to ensure clear imaging in deep or murky water.
Q5: Can it carry additional tools like a mechanical arm? A: Absolutely. The modular design supports the attachment of a mechanical arm (manipulator), sonar, and other specialized detection equipment.
Q6: What sensors are included in the basic configuration? A: The standard configuration includes high-precision sensors for depth, temperature, and an electronic compass for accurate navigation.
