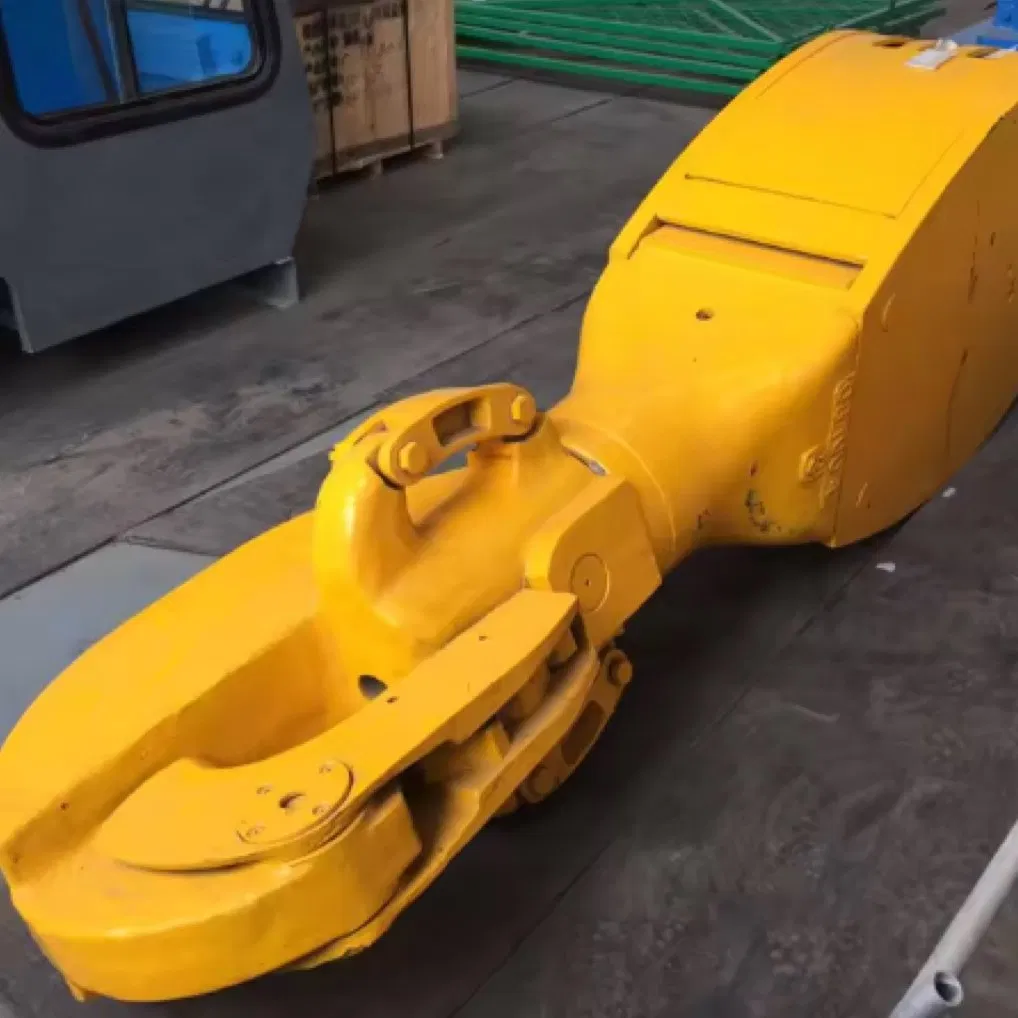

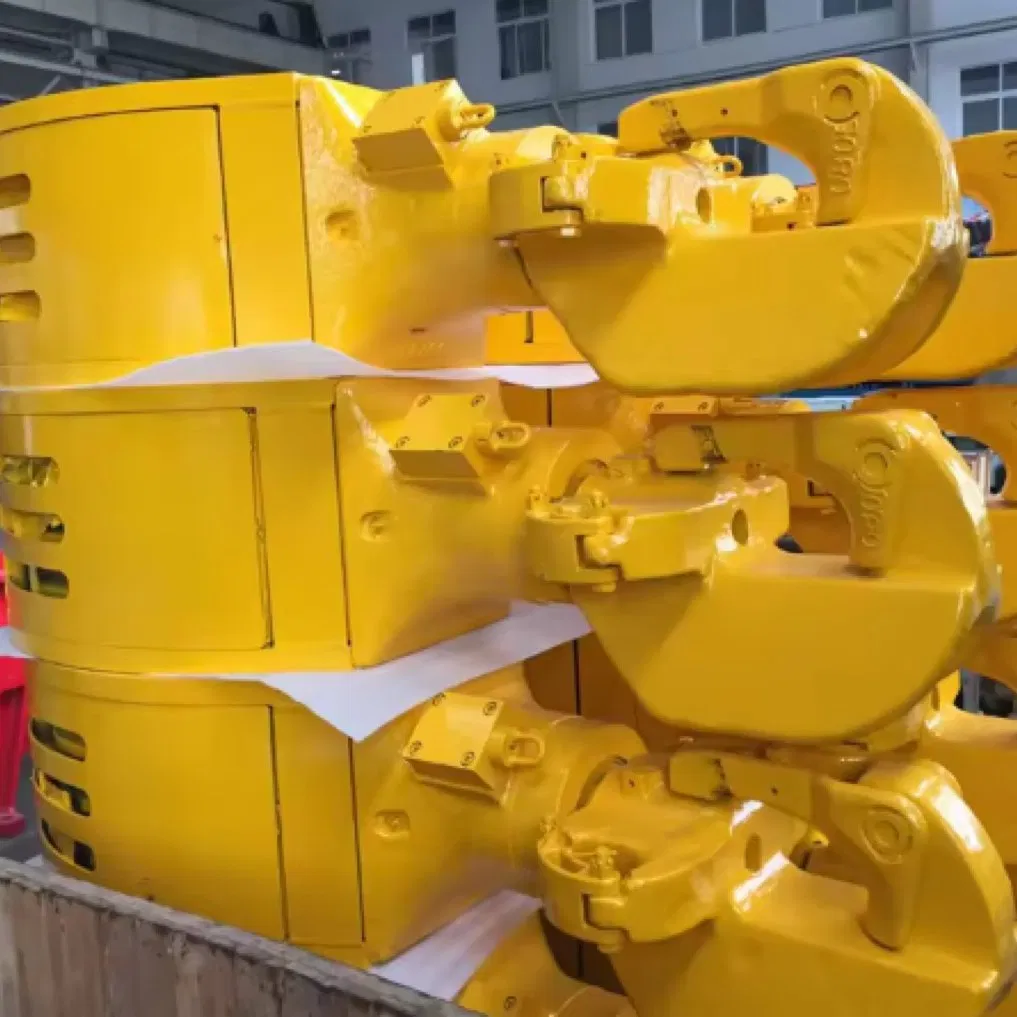

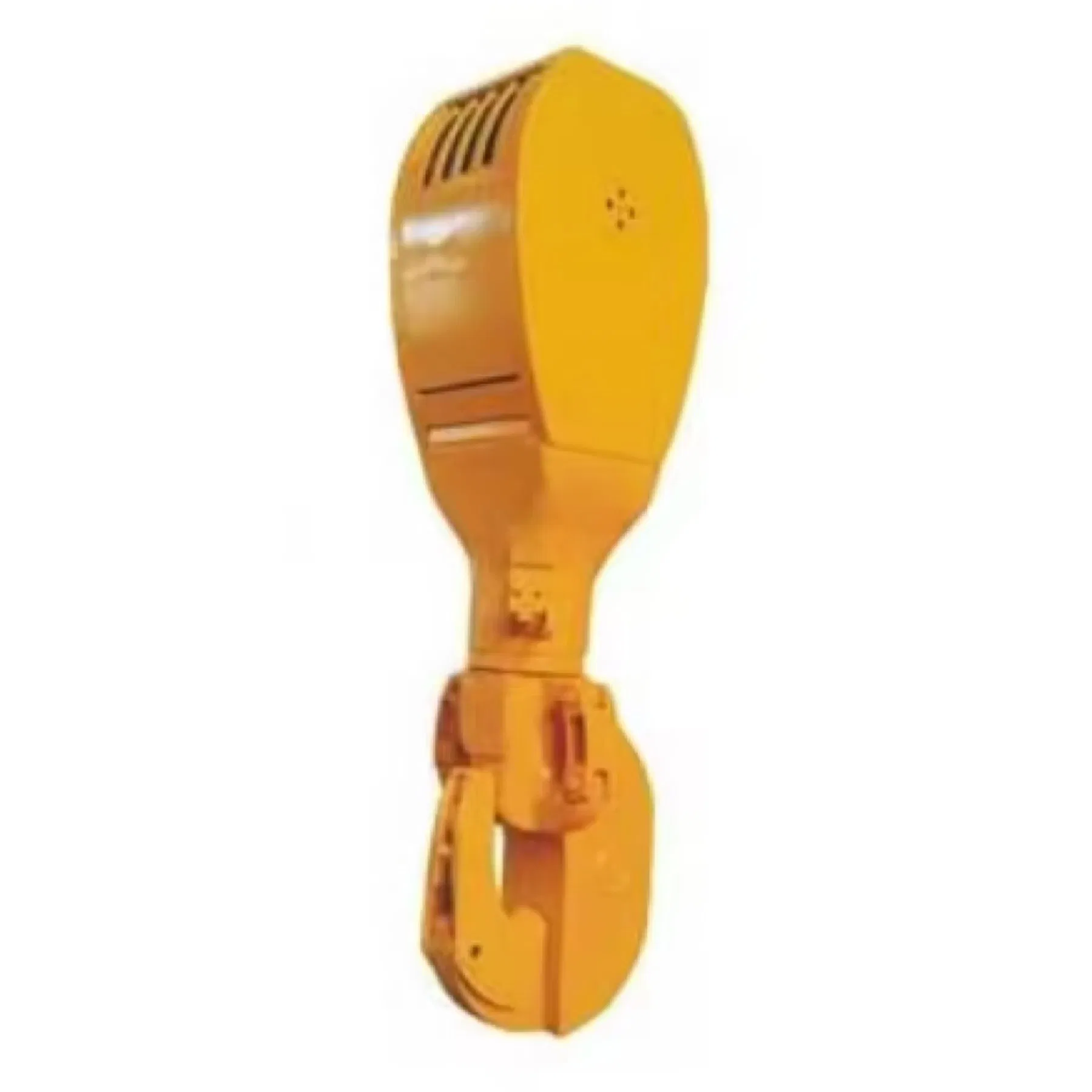

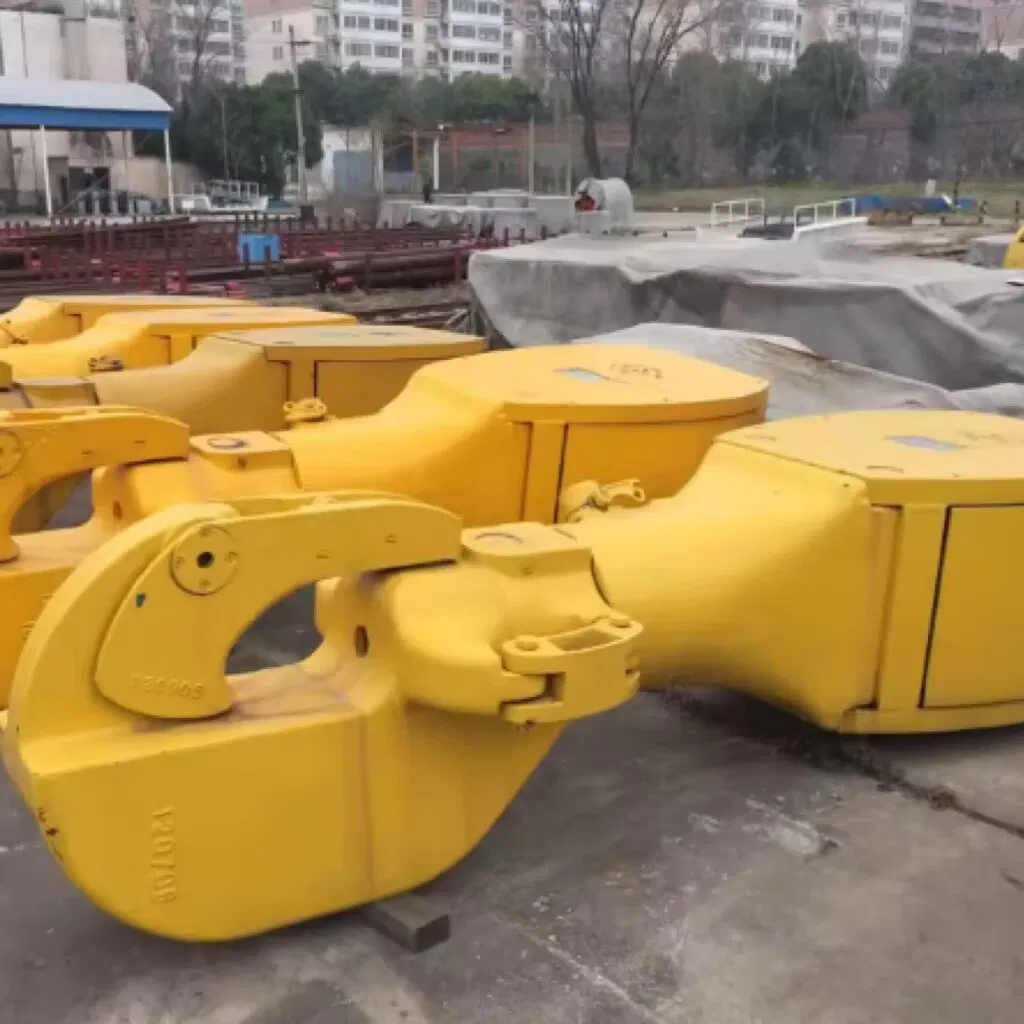

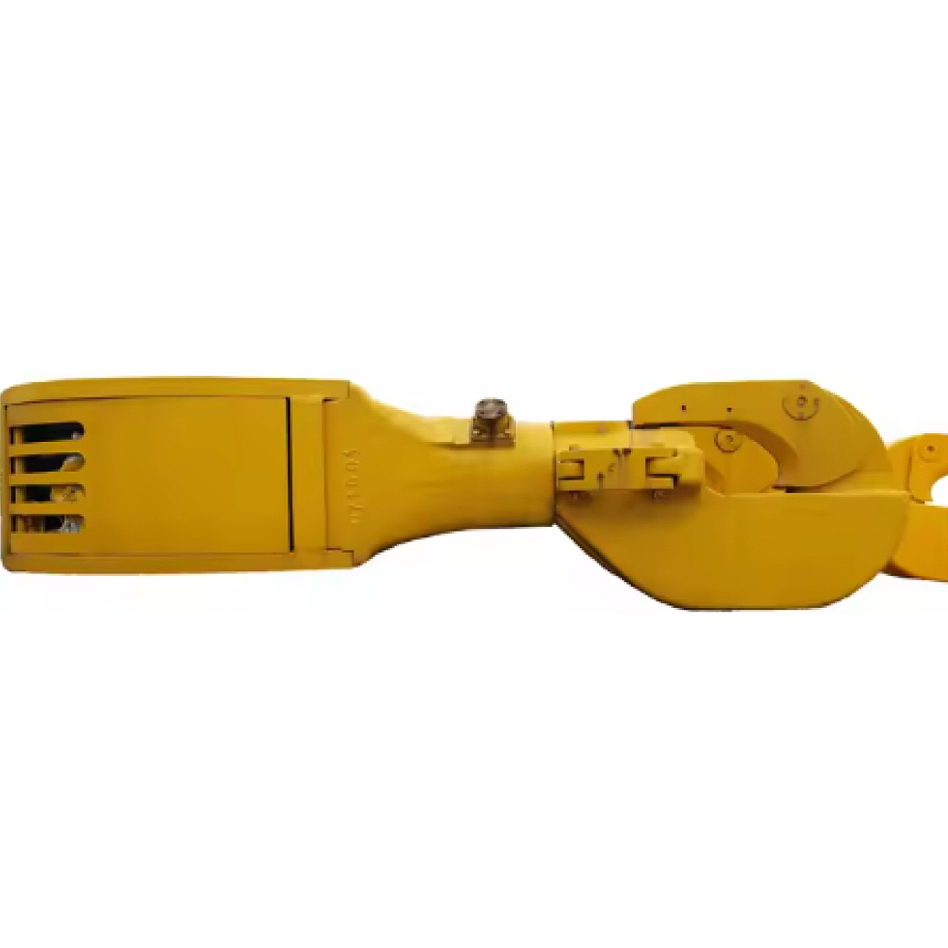

Rig Drilling Yg60 Travelling Hook Drilling Equipment Oilfield Equipment

After-sales Service: Yes
Warranty: Yes
Manufacturing Process: Forging

Product Description

📋 Basic Information
Model NO.:
YG60
Surface Treatment:
Spray-Paint
Operation Pressure:
Atmospheric Pressure
Material:
Stainless Steel
Application:
Petroleum Exploration, Oilfield Drilling
Core Material:
High-Strength Alloy Steel
Specification:
YG225 / 250
HS Code:
8431431000
Product Specifications
Specification YG100 YG150 YG170 YG250
Rated Capacity (kN) 890 1350 1700 2250
Sheave Qty/Dia (mm) 3/609.6 4/915 5/915 5/915
Hook Style 3-hook 3-hook 3-hook 3-hook
Wire Line OD (mm) 25.4 26/29 29 32
Weight (kg) 1010 3590 4585 4732
💡 Product Description

YG series traveling block and hook are essential lifting equipment for petroleum drilling rigs and workover rigs. Featuring an integral design, these units significantly shorten the distance between the traveling block and the hook, optimizing the traveling space within the lifting system. All units are manufactured in accordance with API Spec 8C PSL1 standards.

Advanced heat treatment processes, including carburization, are applied to critical components to ensure high strength and an extended service life. The sheave grooves are quenched using intermediate frequency induction to enhance surface hardness and reduce wear on wire lines.

Core Material: High-strength alloy steel (corrosion-resistant, wear-resistant).
Safety Features: Anti-drop buckle design, compliant with oilfield operation safety standards.
Protection Level: Acid-alkali resistant and high-temperature resistant for harsh oilfield conditions.
Installation: Modular quick installation, compatible with mainstream drilling equipment interfaces.

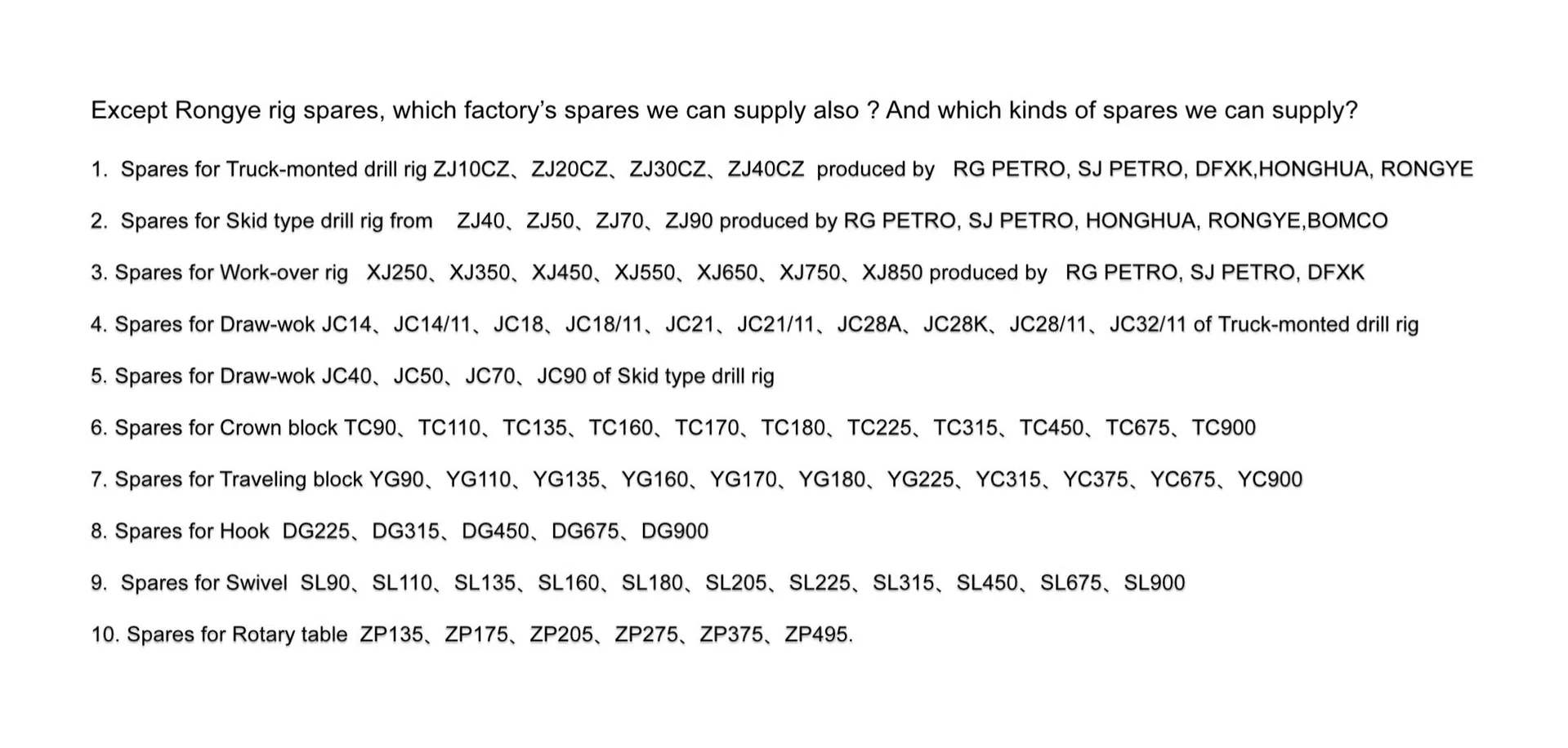

Technical Drawing
📦 Packaging & Delivery
Package Type:
Wooden Box
Package Size:
80.00cm * 80.00cm * 106.00cm
Gross Weight:
5080.00kg
Lead Time:
20 days (1-1 Pieces)

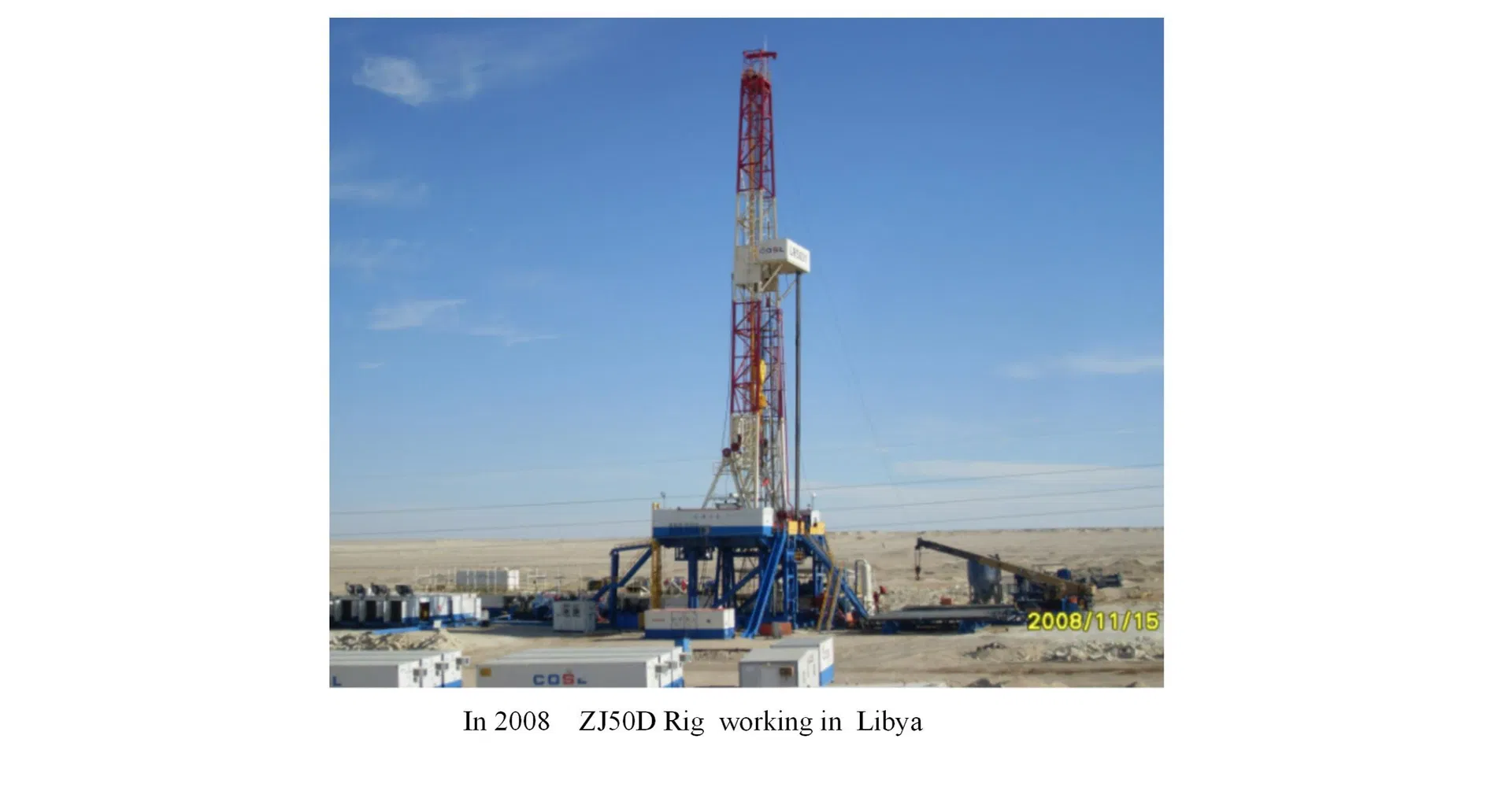

Equipment View 1
Equipment View 2

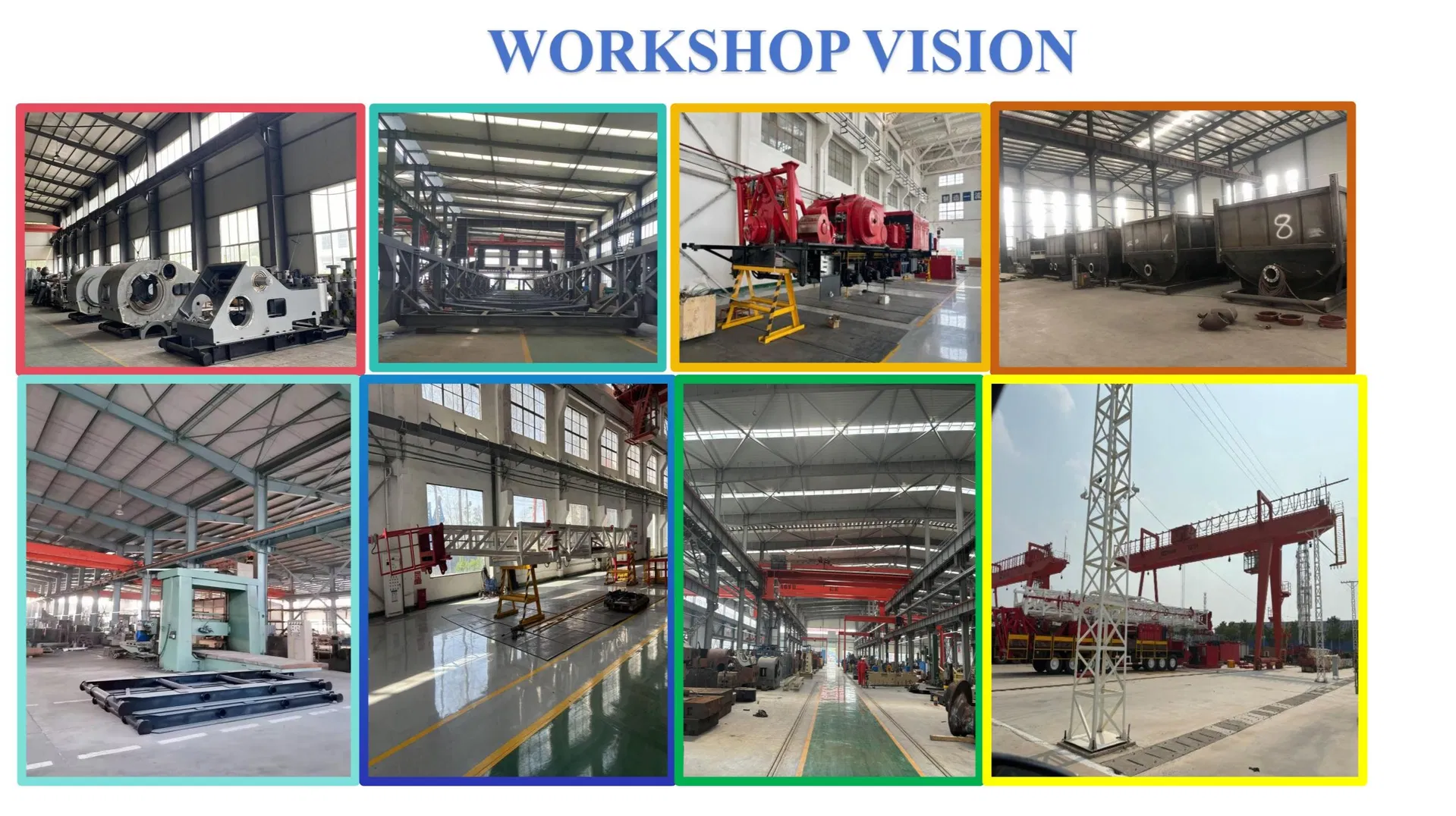

Equipment View 3
Frequently Asked Questions
Q1: What are the primary applications for the YG series traveling block and hook? A1: It is primarily used for petroleum exploration, oilfield drilling, and various drilling & production operations to suspend and connect heavy drilling equipment.
Q2: What materials are used in the construction of these hooks? A2: The equipment is manufactured from high-strength alloy steel, which provides excellent corrosion and wear resistance in harsh environments.
Q3: Does the equipment meet international safety standards? A3: Yes, the design includes an anti-drop buckle and is compliant with API Spec 8C PSL1 oilfield operation safety standards.
Q4: How does the "integral design" benefit drilling operations? A4: The integral design shortens the total length between the traveling block and the hook, maximizing the available traveling space in the lifting system for more efficient operations.
Q5: Can this equipment withstand extreme oilfield conditions? A5: Yes, it is specifically designed to be acid-alkali resistant and high-temperature resistant, ensuring durability in harsh working environments.
Q6: What is the rated capacity range for these models? A6: The rated capacity ranges from 890kN (YG100) up to 2250kN (YG250), catering to different load requirements for various drilling depths.
