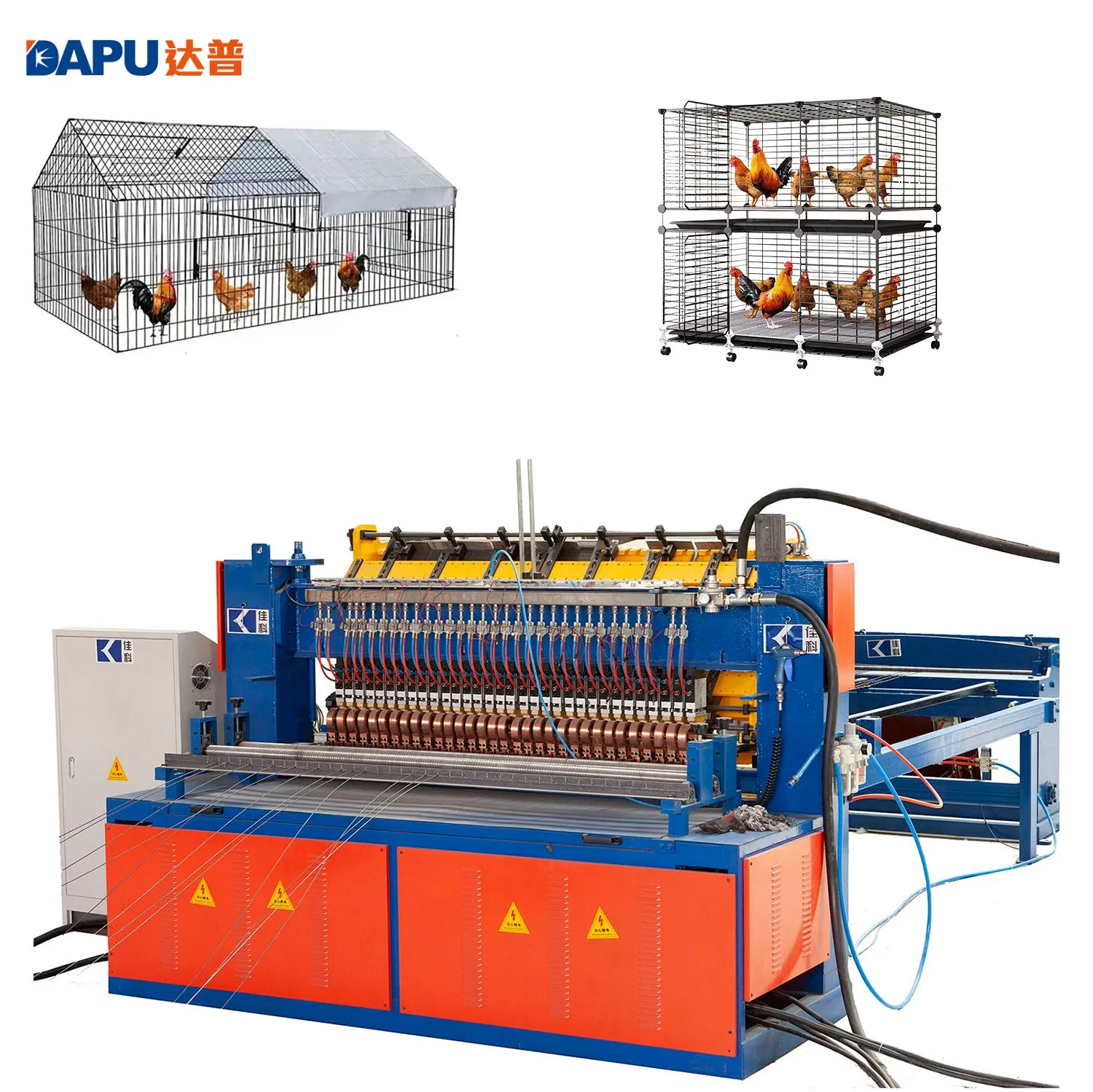

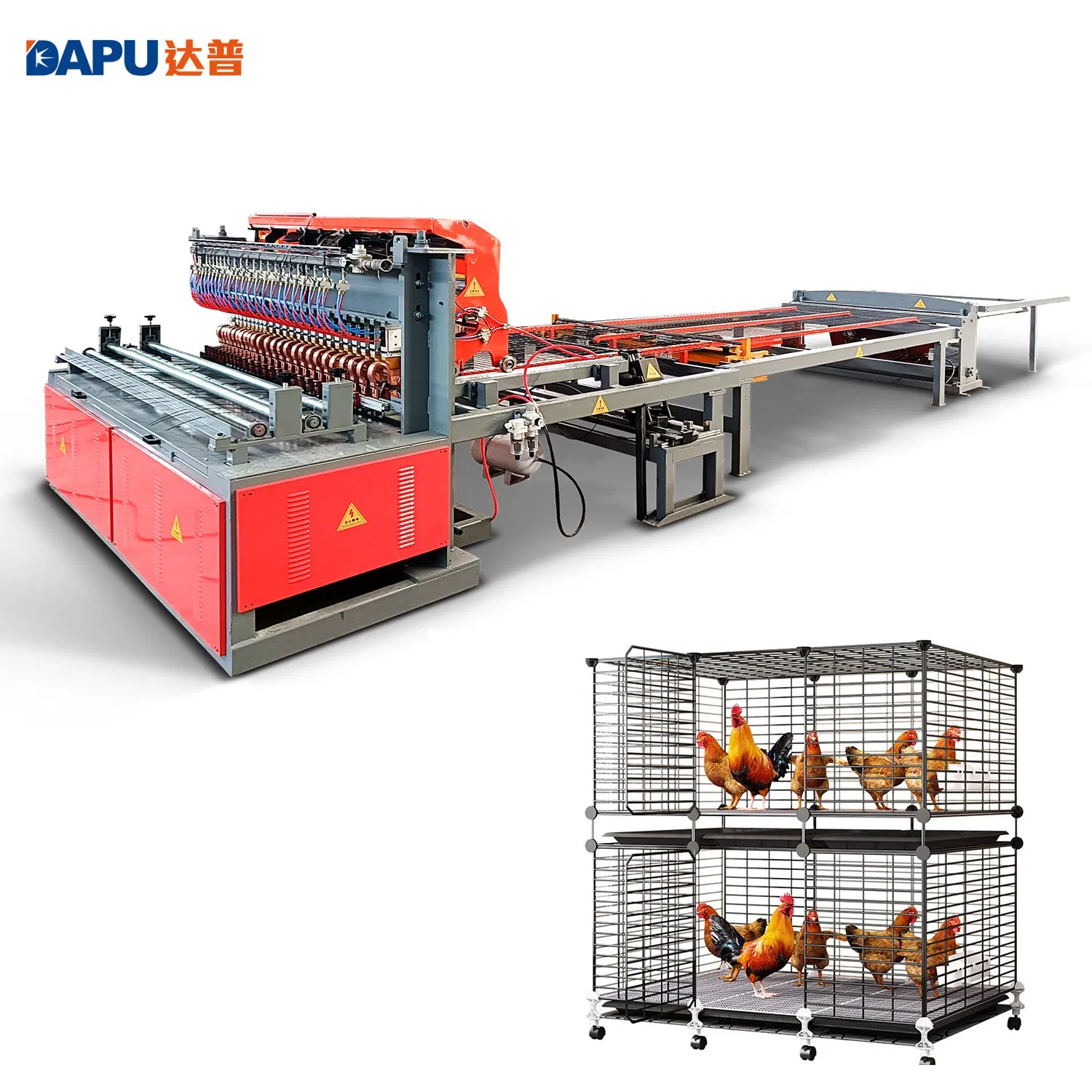

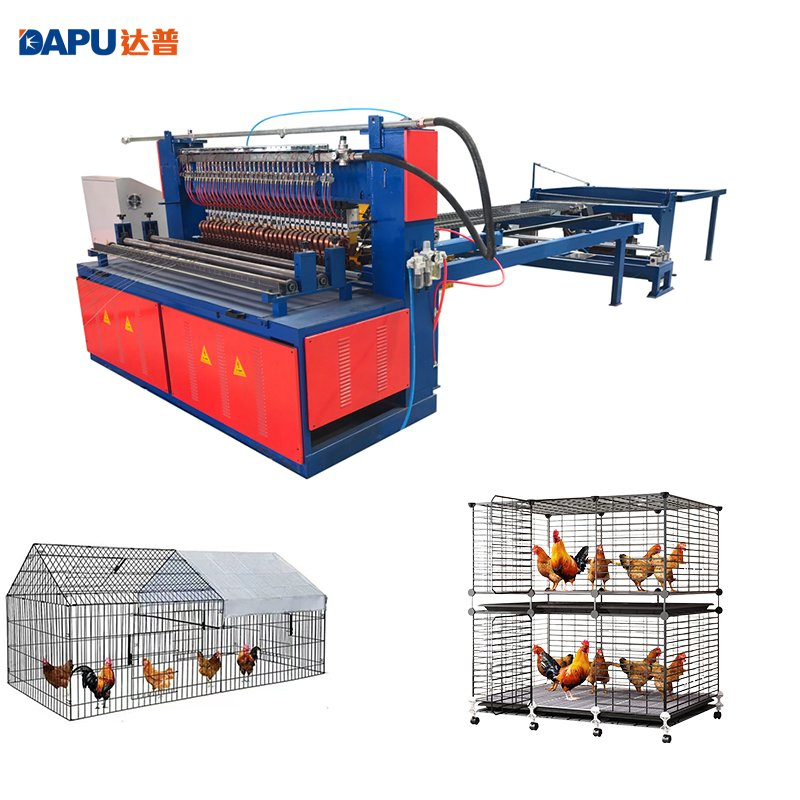

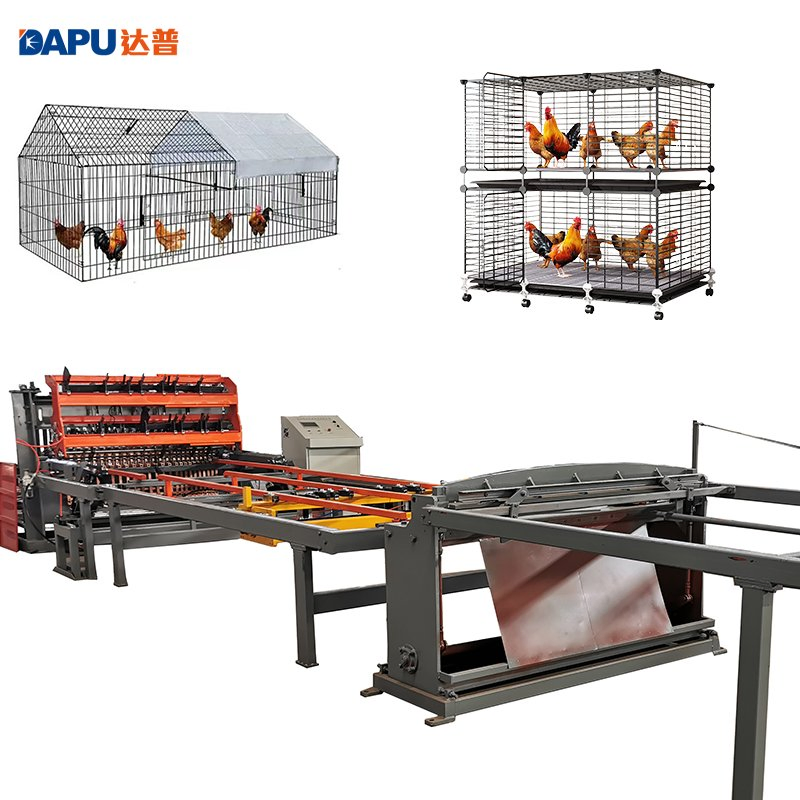

Poultry Cage Mesh Welding Machine for Chicken Holding Eggs
Poultry Cage Mesh Welding Machine for Chicken Holding Eggs
Poultry Cage Mesh Welding Machine for Chicken Holding Eggs
Poultry Cage Mesh Welding Machine for Chicken Holding Eggs
Poultry Cage Mesh Welding Machine for Chicken Holding Eggs
1 / 5
Poultry Cage Mesh Welding Machine for Chicken Holding Eggs
Poultry Cage Mesh Welding Machine for Chicken Holding Eggs
Poultry Cage Mesh Welding Machine for Chicken Holding Eggs
Poultry Cage Mesh Welding Machine for Chicken Holding Eggs
Poultry Cage Mesh Welding Machine for Chicken Holding Eggs

Poultry Cage Mesh Welding Machine for Chicken Holding Eggs

Customization: Available
Cooling Way: Water Cooling
Control: PLC
Send Inquiry

Product Description

Basic Specification
Style:
Vertical
Welding Way:
Resistance Welding
Type:
Pneumatic
Machine Model:
Dp-Aw-1200h
Wire Diameter:
2-3.5mm
Longitude Wire Space:
50-200mm
Cross Wire Space:
25-200mm or Smaller
Mesh Width:
Max.1.2m/1.5m
Mesh Length:
Any
Welding Speed:
Max.140 Times/Min
Welding Transformers:
125kVA*3PCS
Guarantee Time:
2 Years
Certificate:
CE
Usage:
Chicken Cage or Construction Mesh
Production Capacity:
200 Sets Per Year
HS Code:
8515809090
Product Features

Automatic Layer Poultry Chicken Cage Livestock Machinery Wire Mesh Welding Making Machine

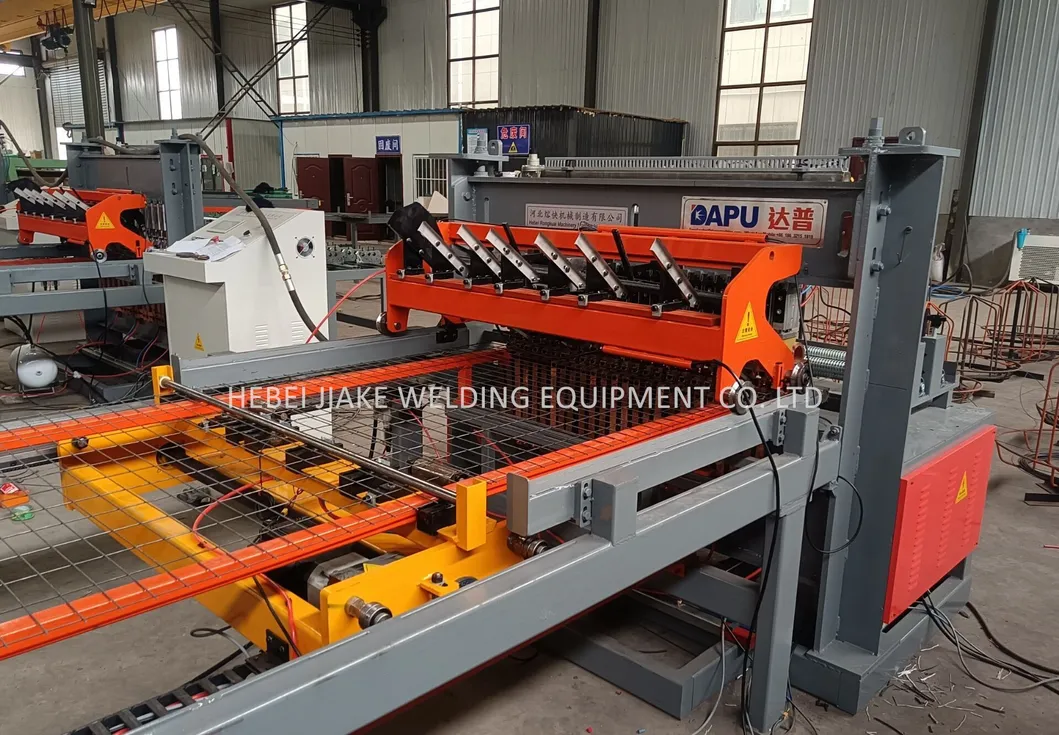

Poultry Cage Mesh Welding Machine
  • Pneumatic welding, controlled by SMC (Japan) air cylinders, high-speed performance reaching 120 times per minute.
  • Panasonic servo motor for mesh pulling, ensuring cross wire space is easily adjustable via PLC.
  • Equipped with cast water-cooling transformers for a significantly longer service life.
  • Automatic longitude wire feeding from wire coils.
  • Automatic cross wire feeding using pre-straightened and pre-cut wire feeder system.
Technical Parameters
Model DP-AW-1200H DP-AW-1500H DP-AW-1600H
Wire diameter 2-3.5mm / 2-4mm
Longitude wire space Mostly 50-200mm (Min. 25*25mm customizable)
Cross wire space Min. 25mm or smaller (PLC control)
Mesh width Max.1200mm Max.1500mm Max.1600mm
Welding electrodes 25pcs 32pcs 32pcs
Welding transformer 125kva*3pcs 125kva*4pcs 125kva*4pcs
Welding speed Max. 130 times/min
Space needed 12 * 5m
Weight 3100kg 3600kg 3840kg
Electric Control Cabinet & Components

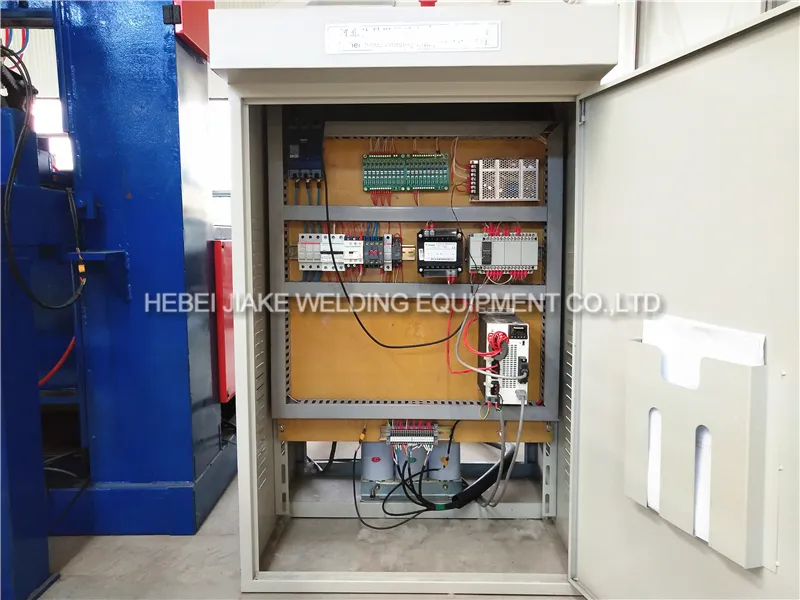

Electric Control Cabinet
  • Panasonic (Japan) PLC & Servo Drive
  • Weinview (Taiwan) Touch Screen
  • ABB (Switzerland) Switch & Omron Power Supply
  • Phoenix (Germany) Wire Terminal
  • Infineon (Germany) SCR
Welding Details & Auxiliary Equipment

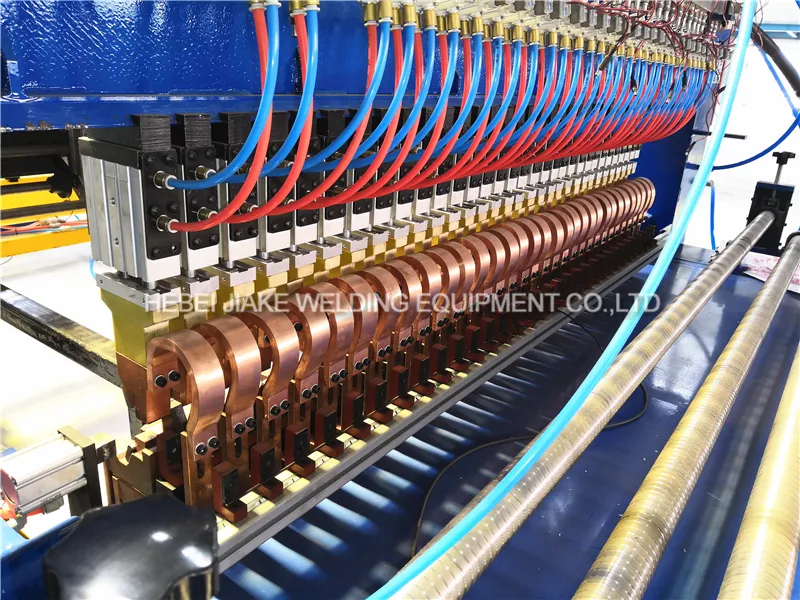

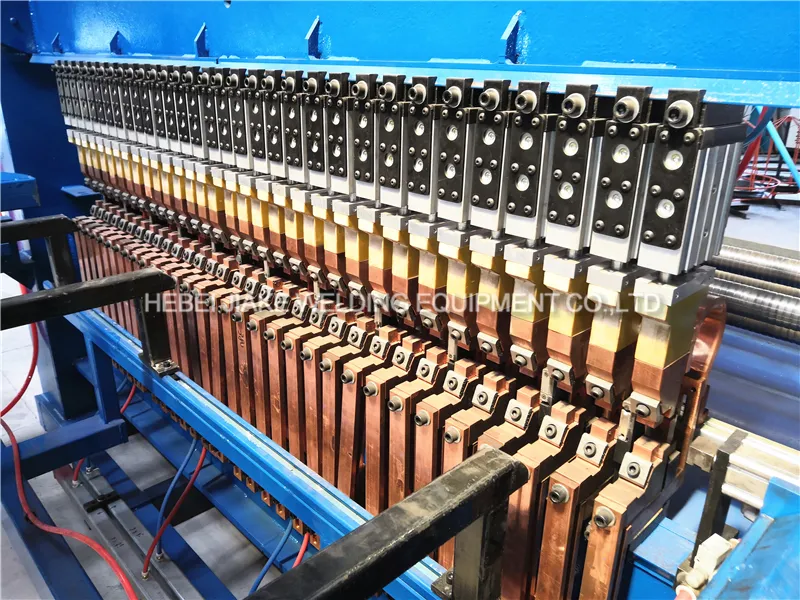

Welding Part 1 Welding Part 2

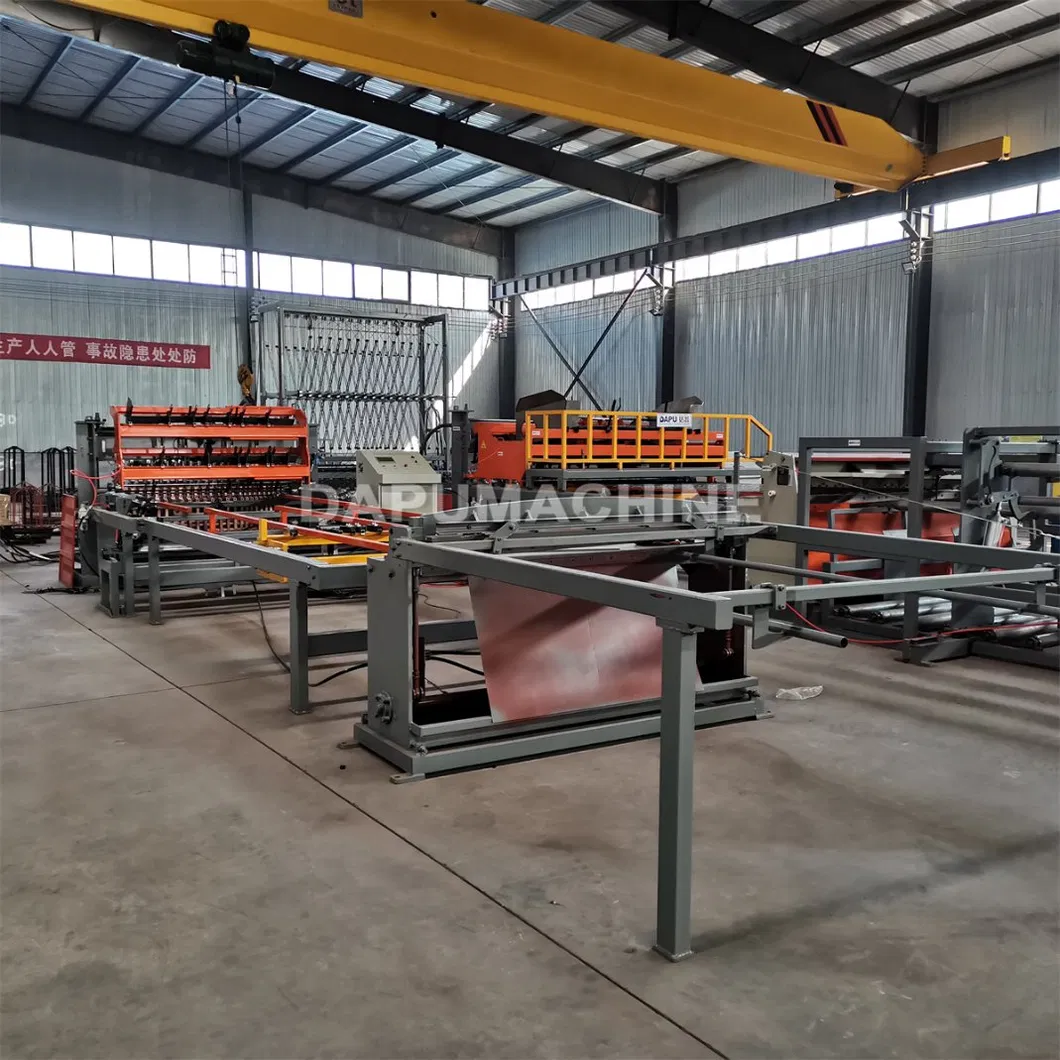

Mesh Sample

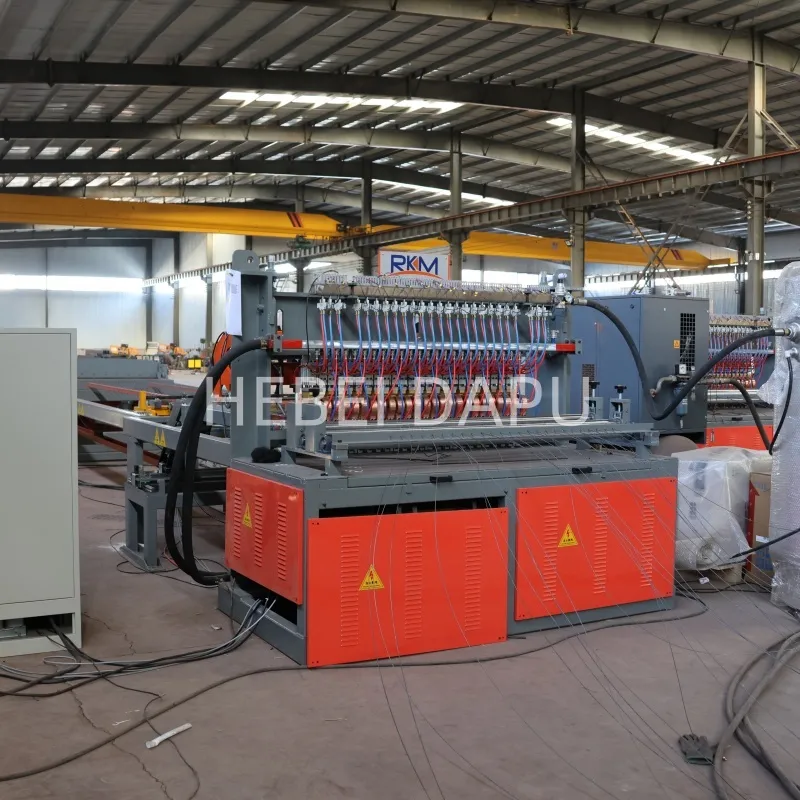

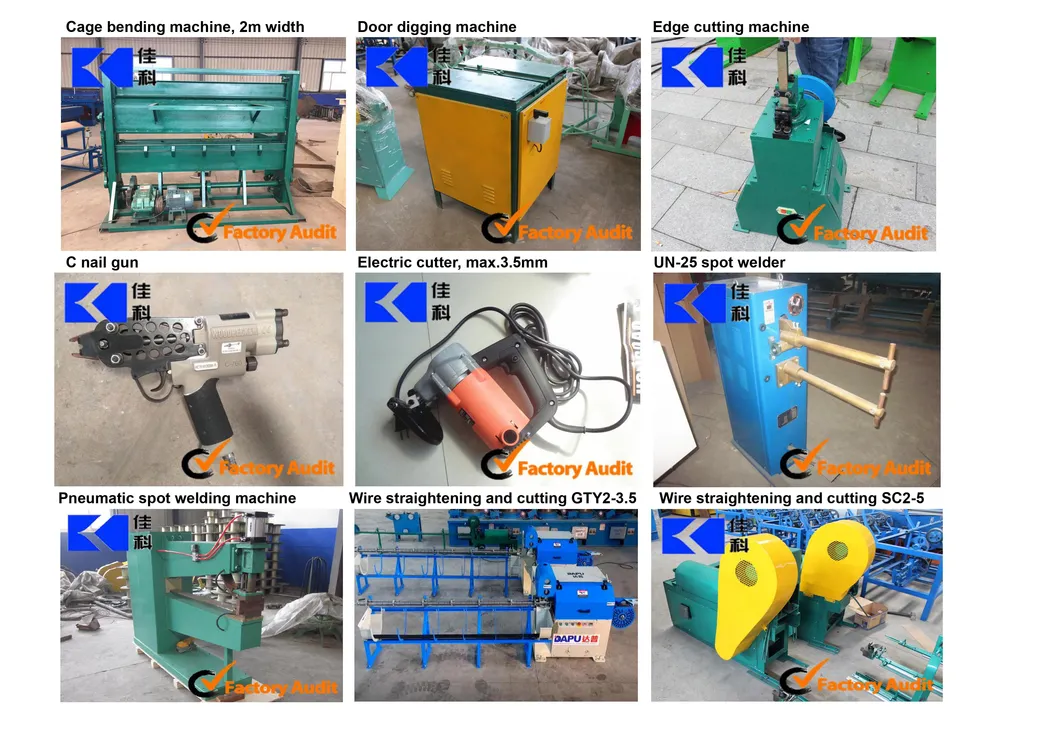

Production View Auxiliary Equipment
Frequently Asked Questions
What is the maximum welding speed of this machine?
The machine can reach a maximum welding speed of 140 times per minute, while the standard operating speed for pneumatic welding is approximately 120 times per minute.
What range of wire diameters can the machine handle?
The machine is designed to work with wire diameters ranging from 2mm to 3.5mm, with some models capable of handling up to 4mm.
Is the mesh size adjustable?
Yes, the cross wire space is controlled by a Panasonic PLC system, allowing you to change to whatever size you need easily through the touch screen.
What are the main applications for the produced mesh?
The produced wire mesh is ideal for manufacturing poultry chicken cages, livestock housing, and various construction mesh requirements.
What world-class components are used in the control system?
The machine integrates high-quality components including SMC (Japan) cylinders, Panasonic (Japan) PLC and servo drives, ABB switches, and Infineon (Germany) SCR.
How is the wire fed into the machine?
The longitude wires are fed automatically from wire coils, while the cross wires are pre-straightened and pre-cut, then fed automatically by a specialized cross wire feeder.
