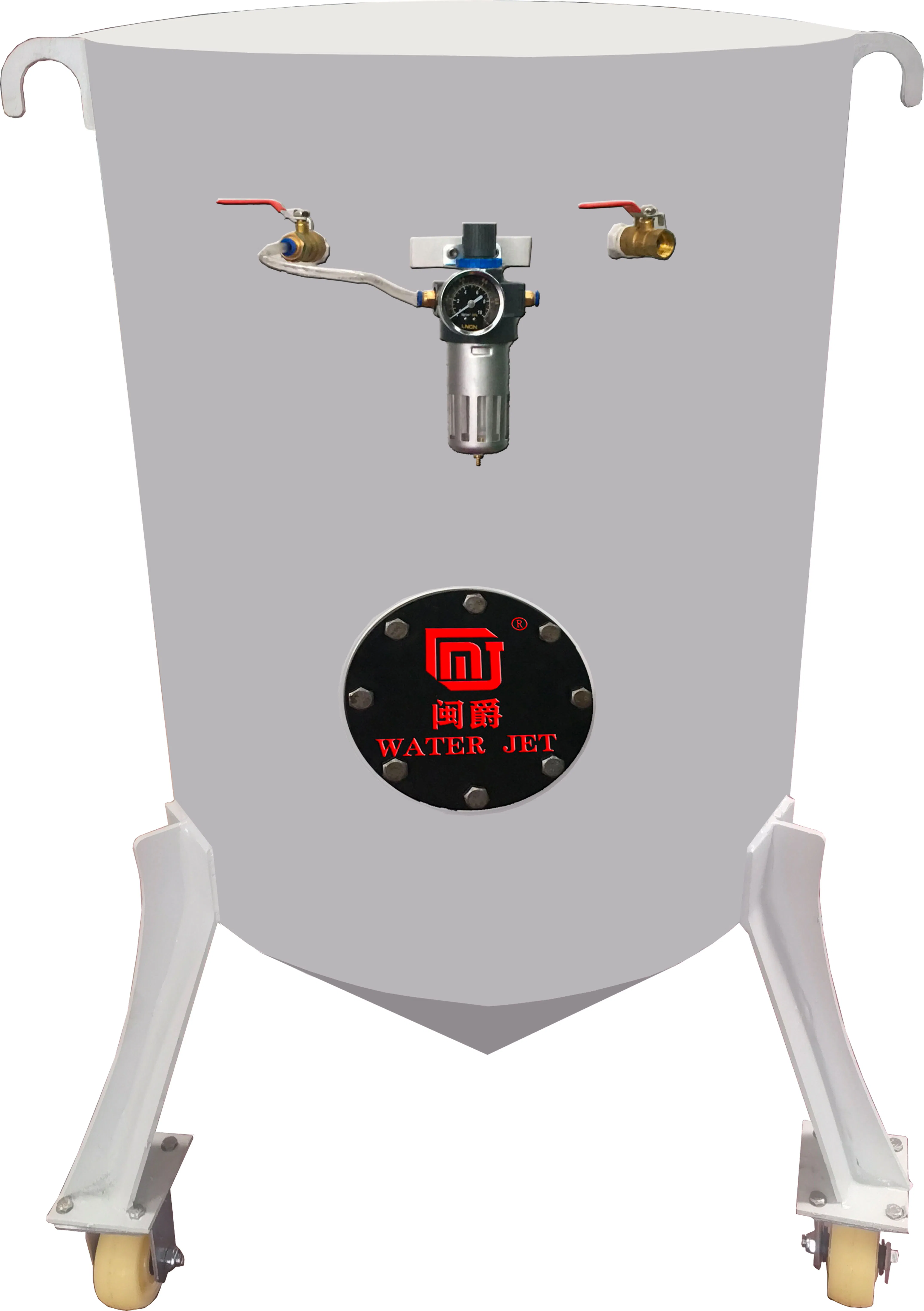

Intelligent Adaptive Waterjet Cutting Machine Equipment

1 / 5

Intelligent Adaptive Waterjet Cutting Machine Equipment

Customization:	Available
After-sales Service:	Provided
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

AC2515

Type

Hydraulic Cutting Machine

Usage

Ceramics, Glass, Jadestone, Granite, Marble

Application

Machinery, Art & Craft, Construction, Stone Industry

Source Voltage

220V/380V

Automation

Automatic CNC

Cutting Ability

High Speed Precision

Certification

ISO, CE

HS Code

8456500000

High-Precision CNC Waterjet System

This advanced waterjet cutting system integrates ultra-high-pressure technology (350-400 MPa) for fast cutting speeds, achieving 10-20% higher efficiency than conventional systems through energy-saving intensifiers. It consumes 17-22 kWh/hour, significantly reducing electricity costs. Featuring precision sand-control, it saves 2-3 bags of garnet abrasives (25kg/bag) every 10 hours. Equipped with 0.33mm gemstone nozzles, it delivers superior cold-cutting performance for metals, composites, and ceramics without thermal deformation.

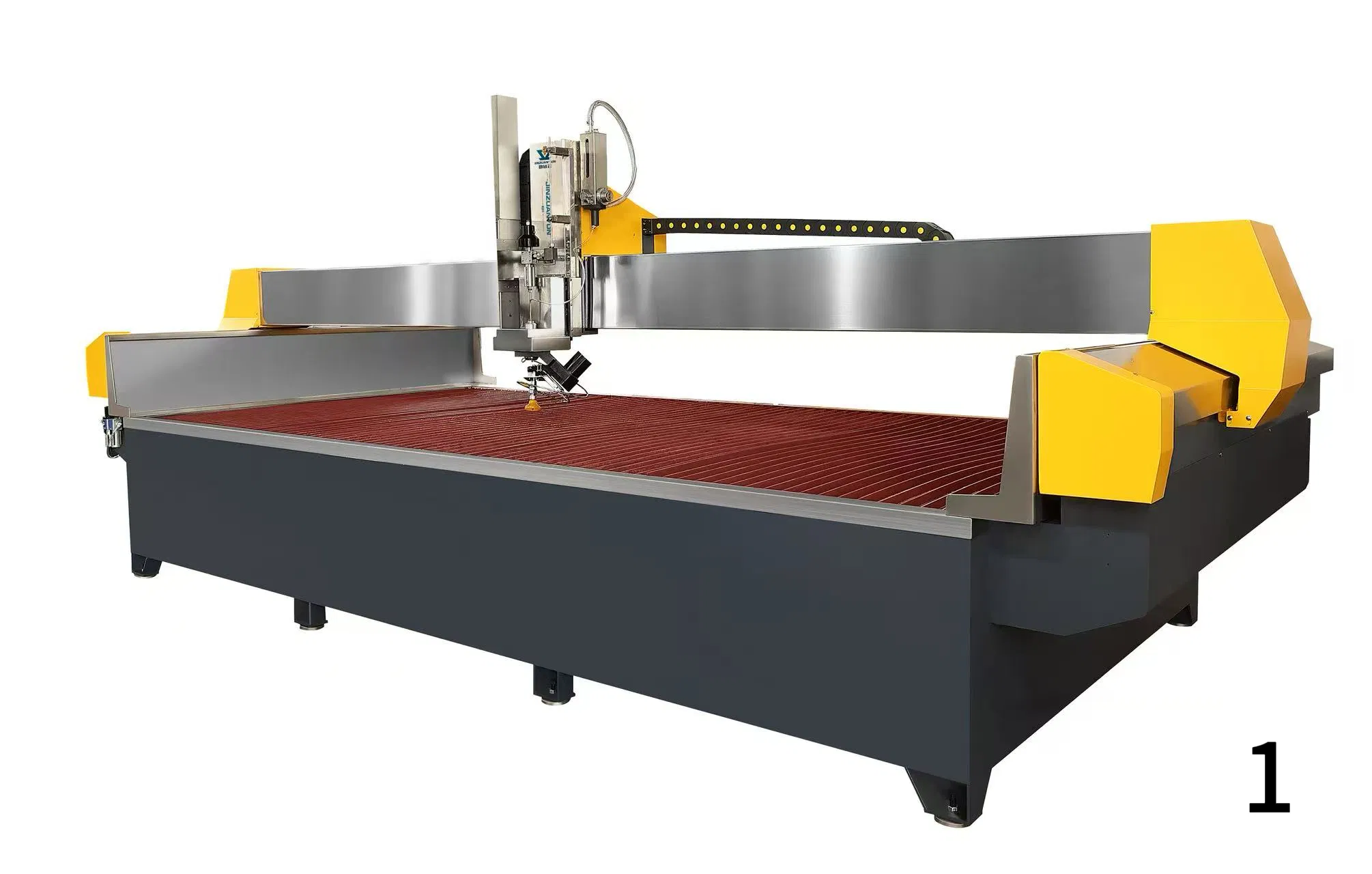

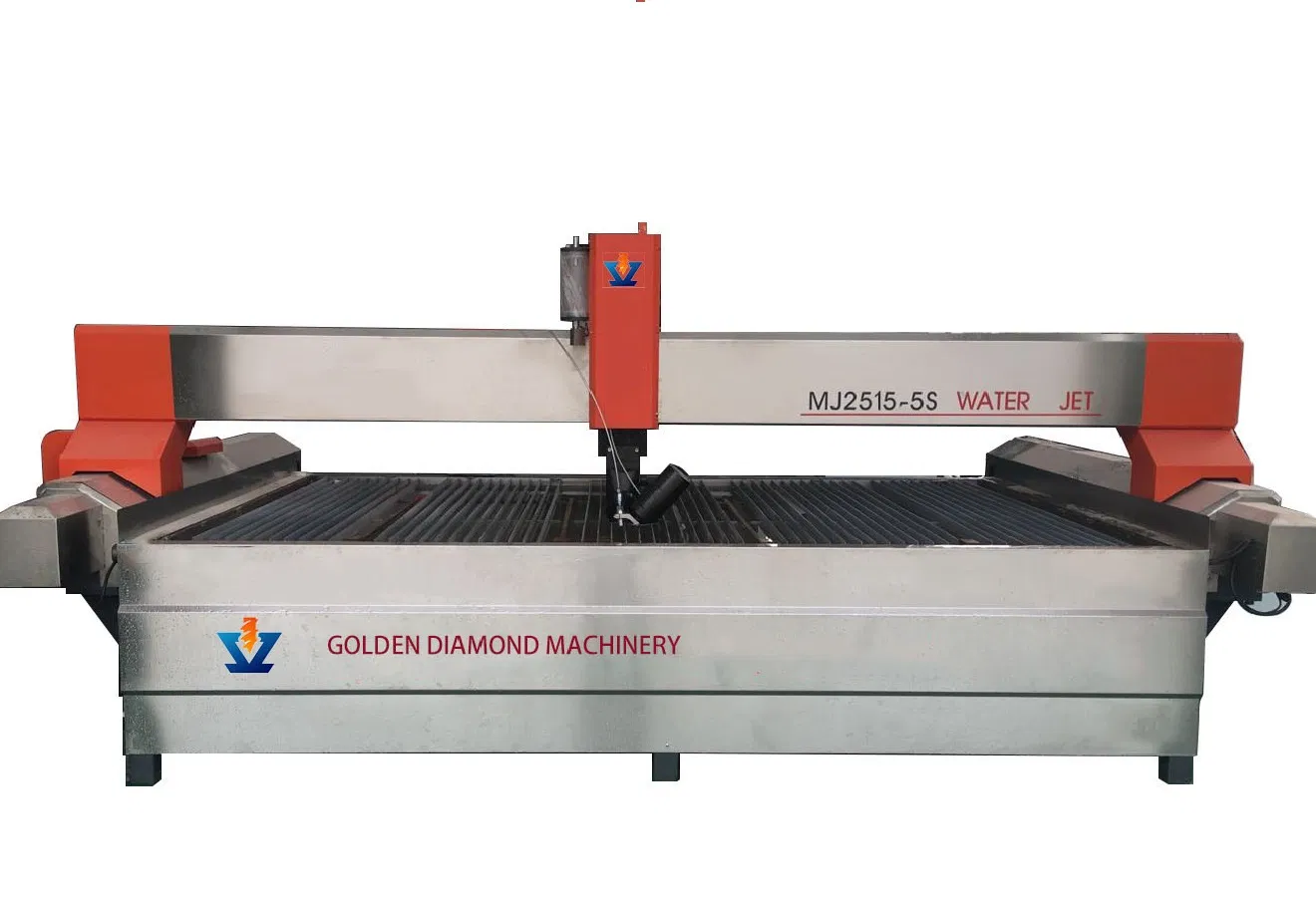

Intelligent Adaptive Waterjet Cutting Machine

Technical Parameters

Cutting Dimensions	2500*1500mm
Feed Height	110mm
Rotation Range (Knife Head AB)	±10°
Cutting Accuracy	±0.1mm
Processing Speed	0.5 - 3.5 M/min
Positioning Repeatability	0.05mm
Max Feed Rate	3500mm/min
Control System	Weihong Bus

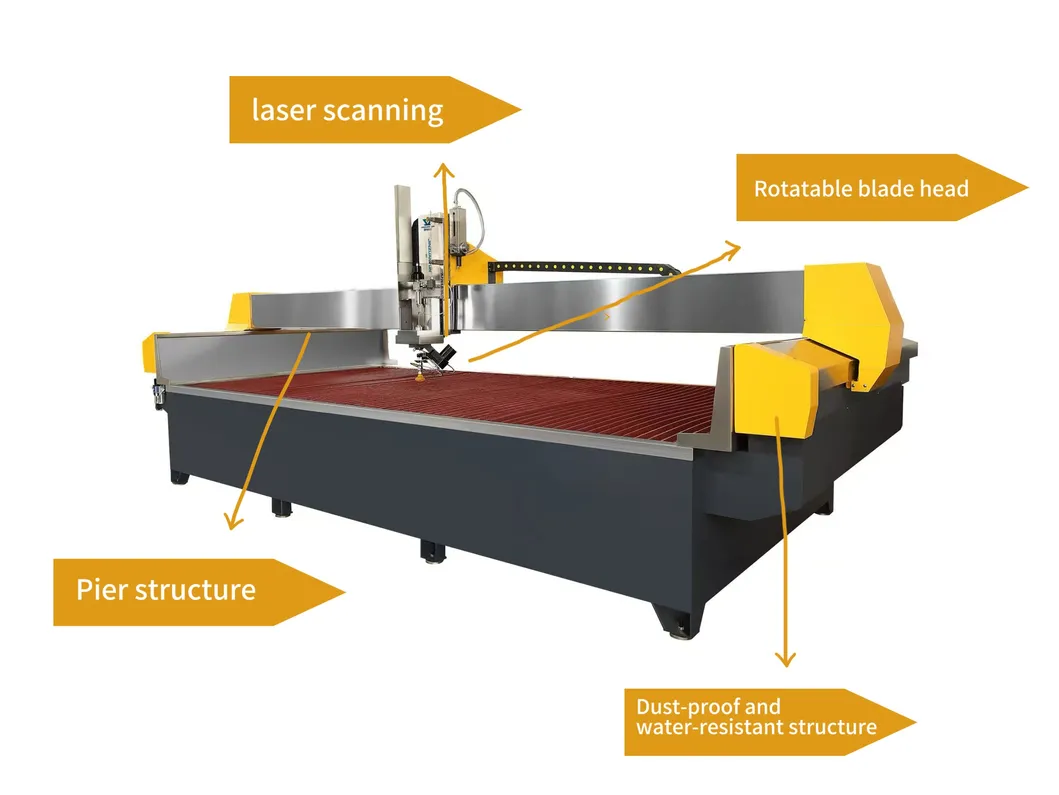

Core Advantages

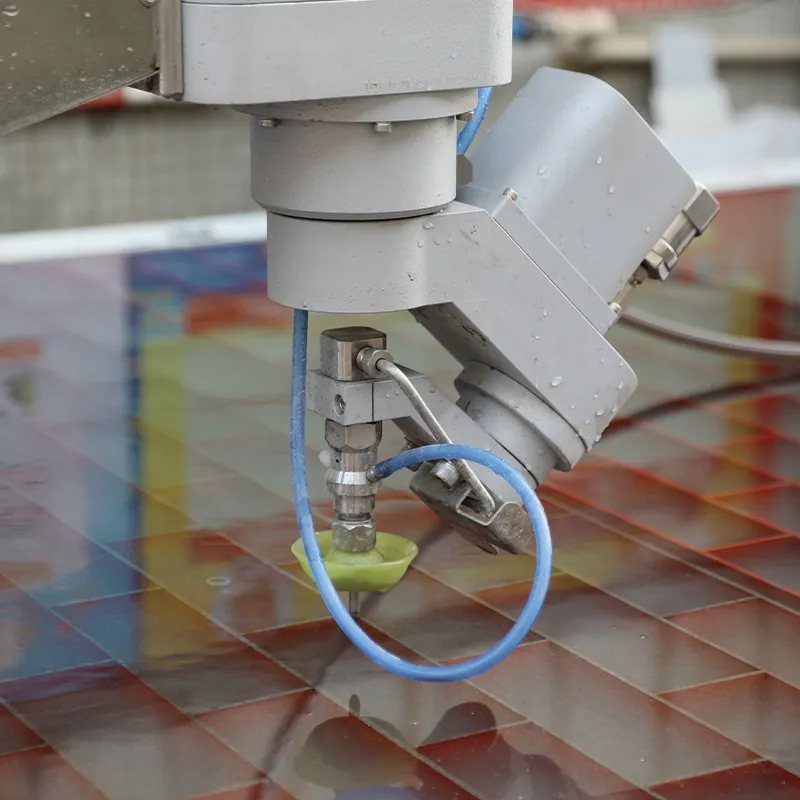

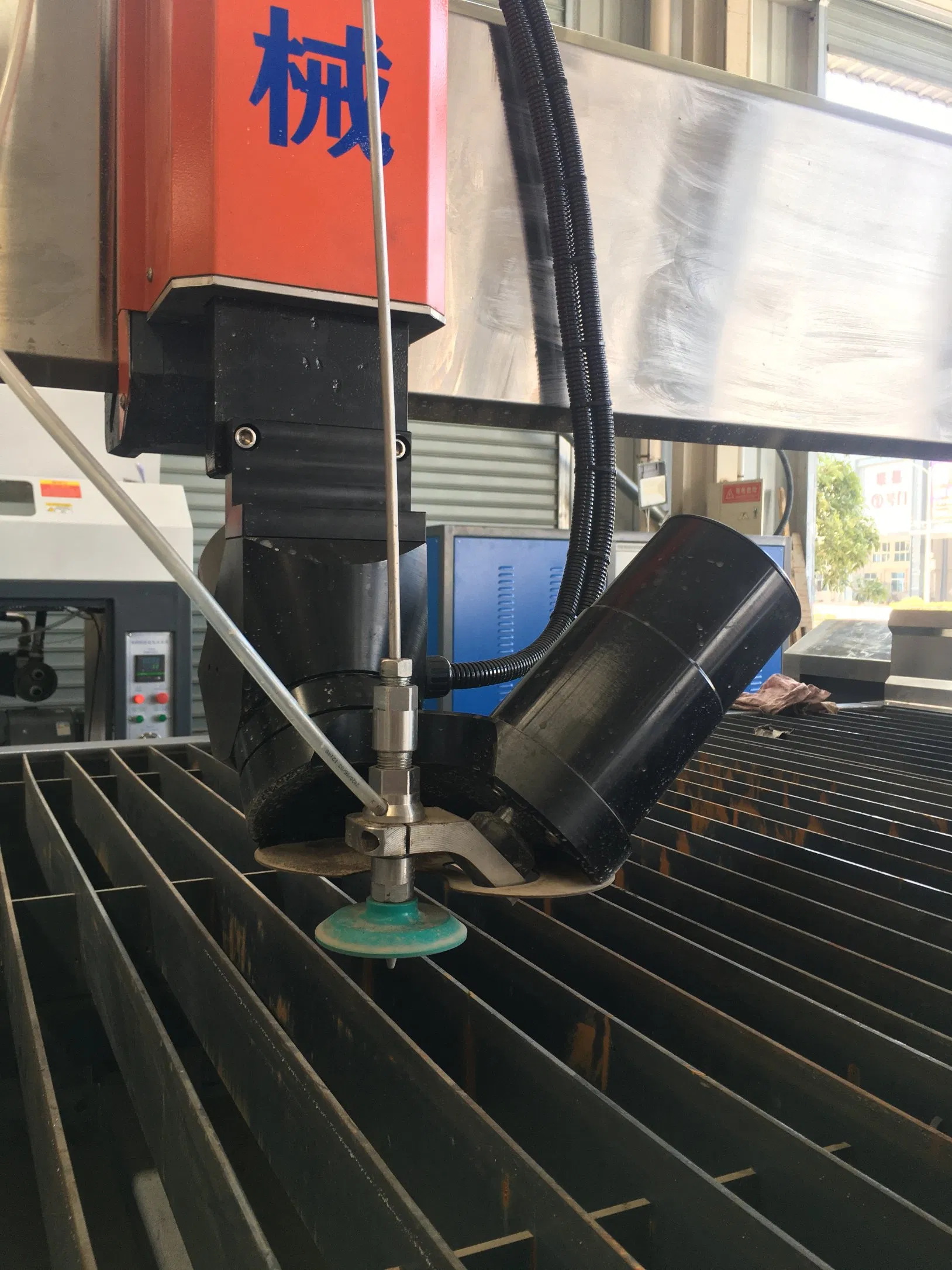

1. AC Five-axis Cutter Head

Can be cut at any angle from 0 to 60 degrees. The cutting spindle is equipped with a German imported scanner, ensuring accuracy within ±0.1mm.

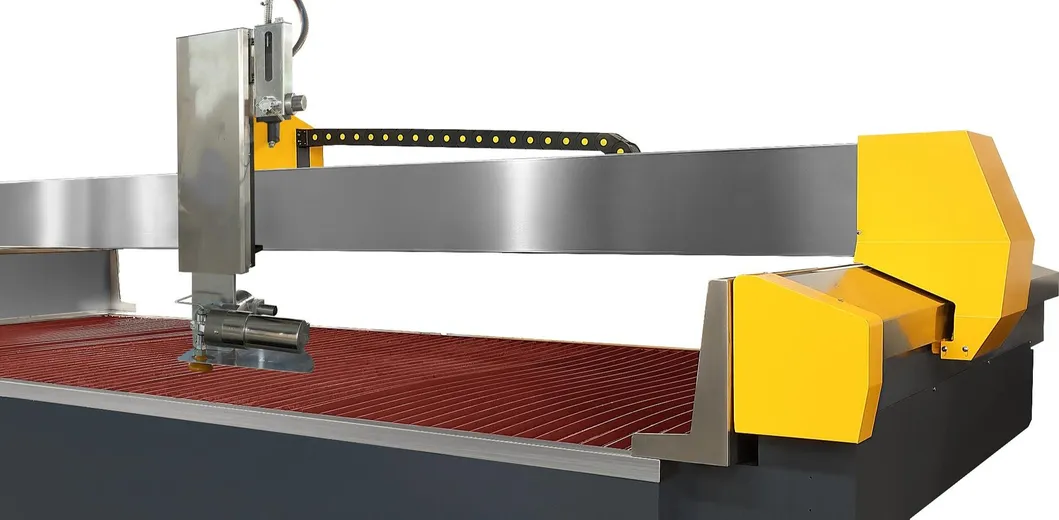

2. Pier-style Structure

Gantry type oil-immersed structure with imported TBI screw and guide rails. Features oil-immersed tracks that are dust-proof and waterproof for longevity.

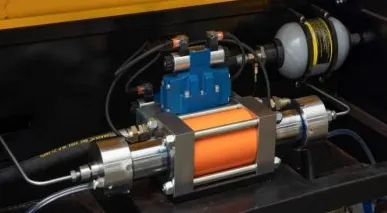

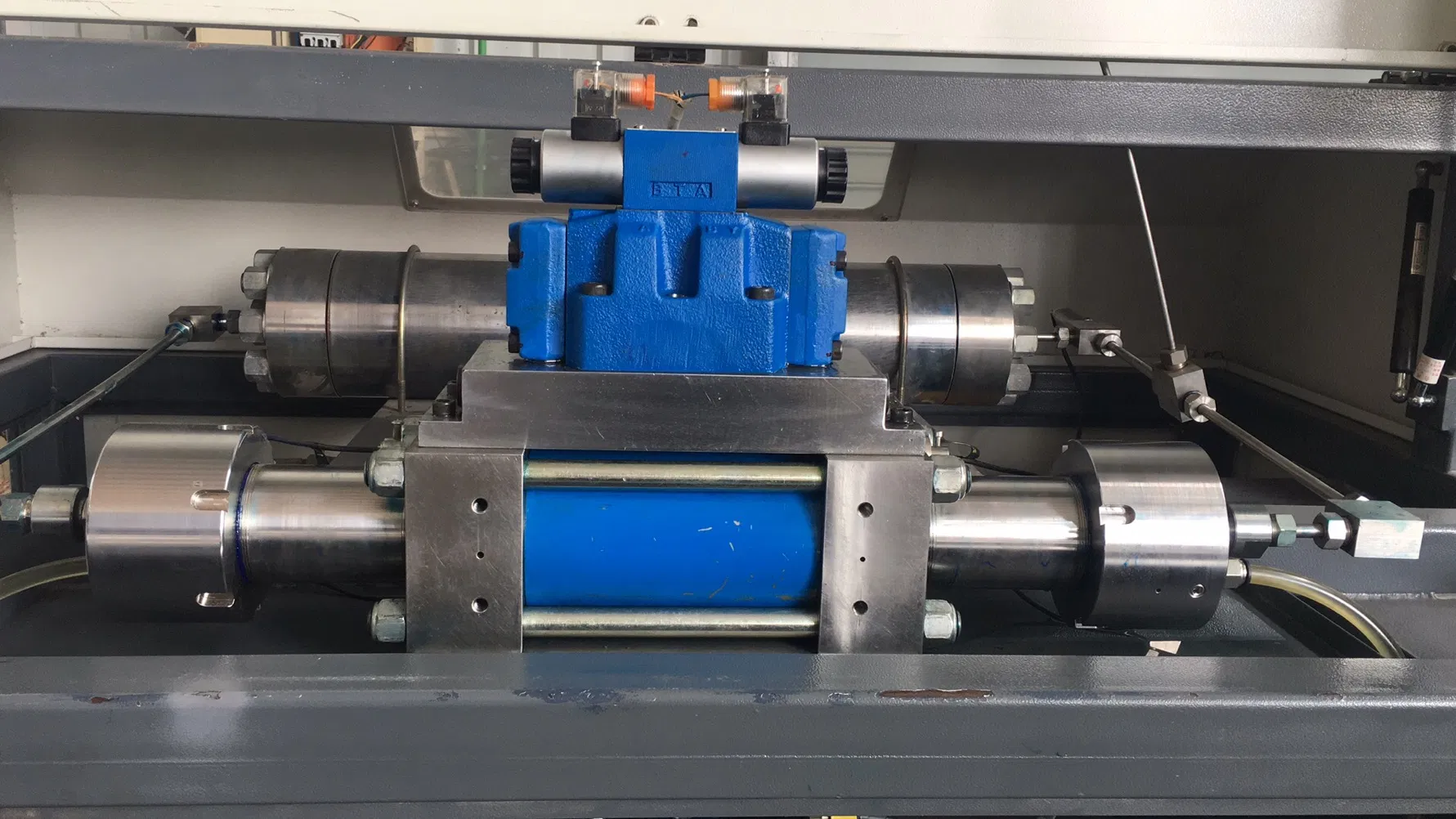

3. Energy-Saving High Pressure Pump

Independently developed booster unit paired with a 22KW motor. Achieves continuous pressure ≤ 380MPa, with maximum peaks up to 450MPa.

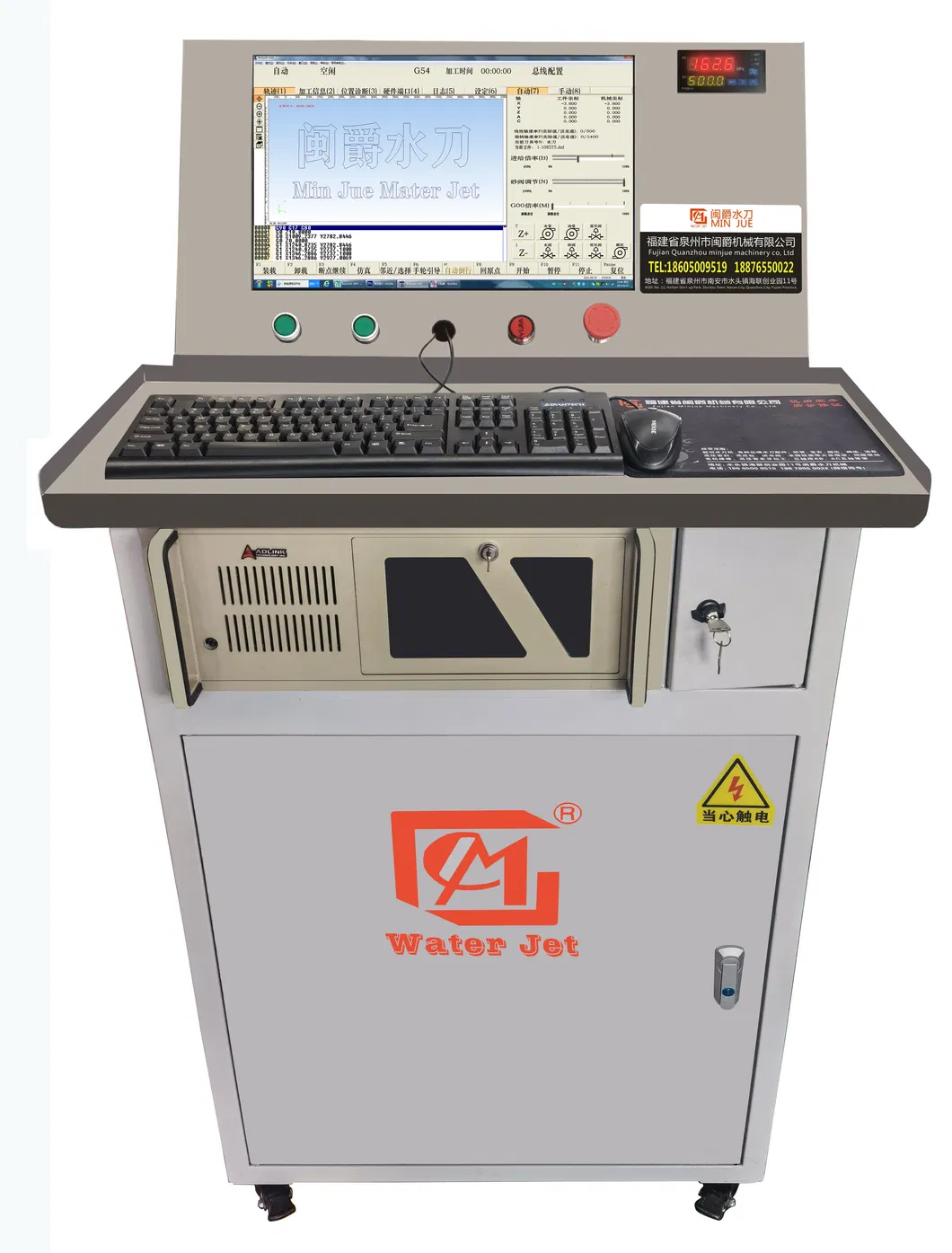

4. Numerical Control System

Equipped with professional Weihong water jet control software. Reliable operation with comprehensive interface for complex industrial applications.

Industrial Applications

⚙️

Function Customization: Functions can be increased or reduced based on specific processing requirements to meet unique industrial workflows.

Service & Logistics

Our expert team provides consulting support and custom installation. Equipment is fully protected with anti-rust, moisture-proof, and impact-resistant packaging to ensure damage-free arrival.

Frequently Asked Questions

What materials can this CNC waterjet cut?

It is ideal for cutting metal, stone, glass, ceramics, and composites. Because it is a cold-cutting process, there is no thermal deformation.

What is the standard payment process?

The standard terms are TT: 30% as a deposit and the remaining 70% paid before shipping.

How long does production and shipping take?

Production time is approximately 30 days. Shipping duration depends on the destination port from Xiamen.

What kind of technical support is provided for installation?

We provide 24-hour online support via messaging apps, English manuals, and instructional videos for installation and maintenance.

Can the cutting head perform angled cuts?

Yes, the AC five-axis cutter head allows for precision cutting at any angle from 0 to 60 degrees.

How is the equipment protected during international transport?

The equipment undergoes a specialized packaging process involving anti-rust and moisture-proof treatments, and is boxed to resist pressure and impact.
