Basic Information
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Milling Machine
Control Method
Open-Loop Control
Processing Precision
+-0.02mm
Performance
Excellent Wear Resistance
Production Capacity
5000kg/Mon

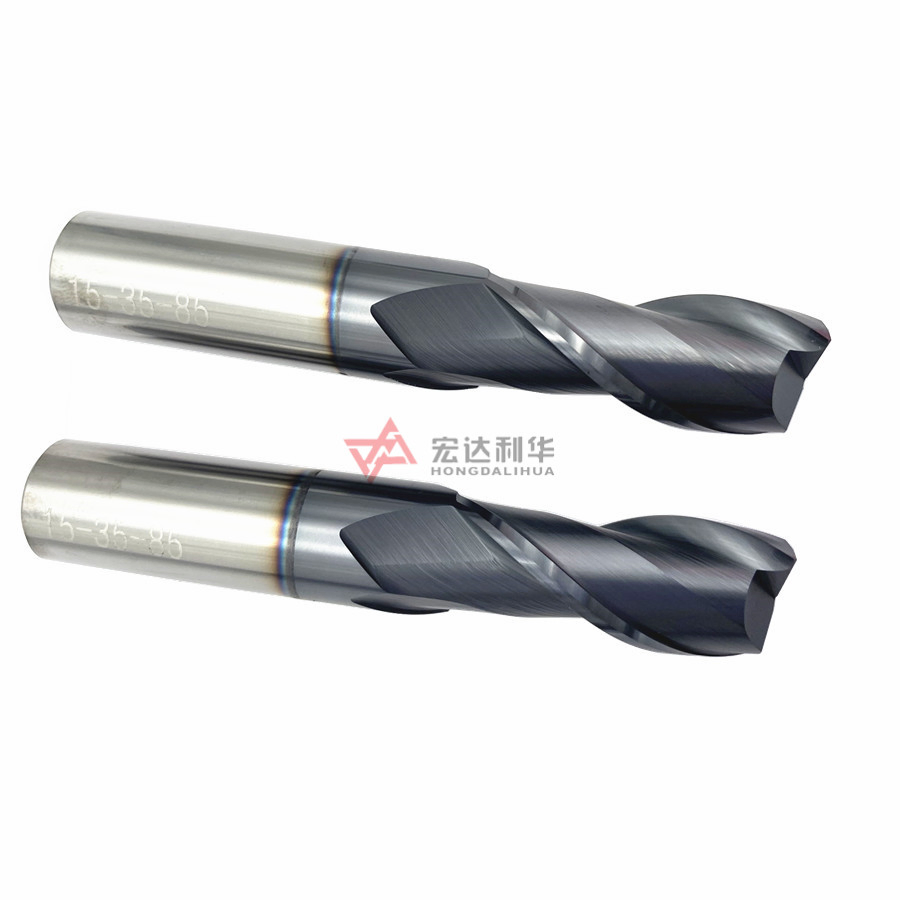

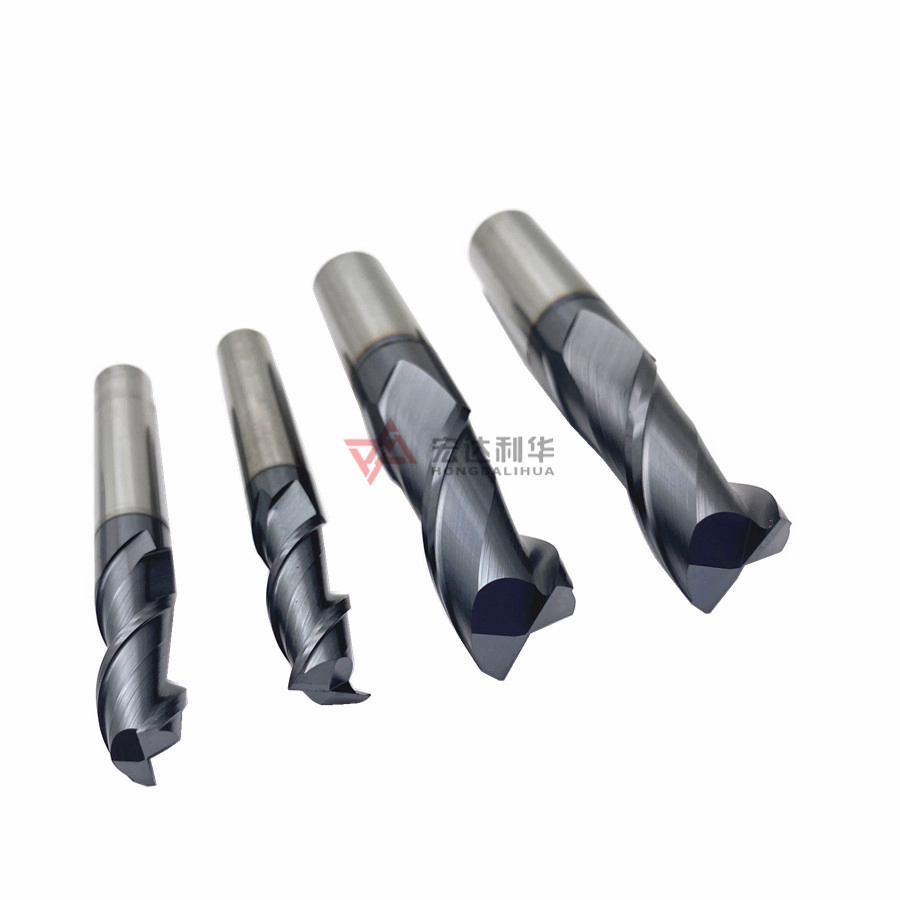

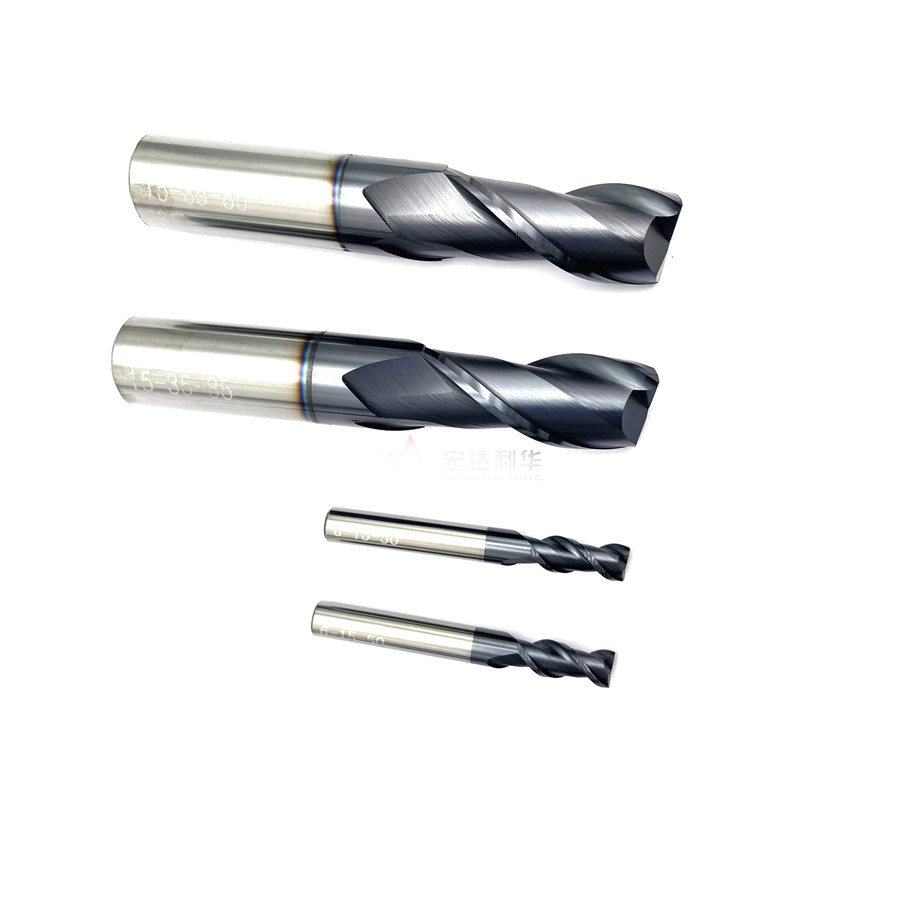

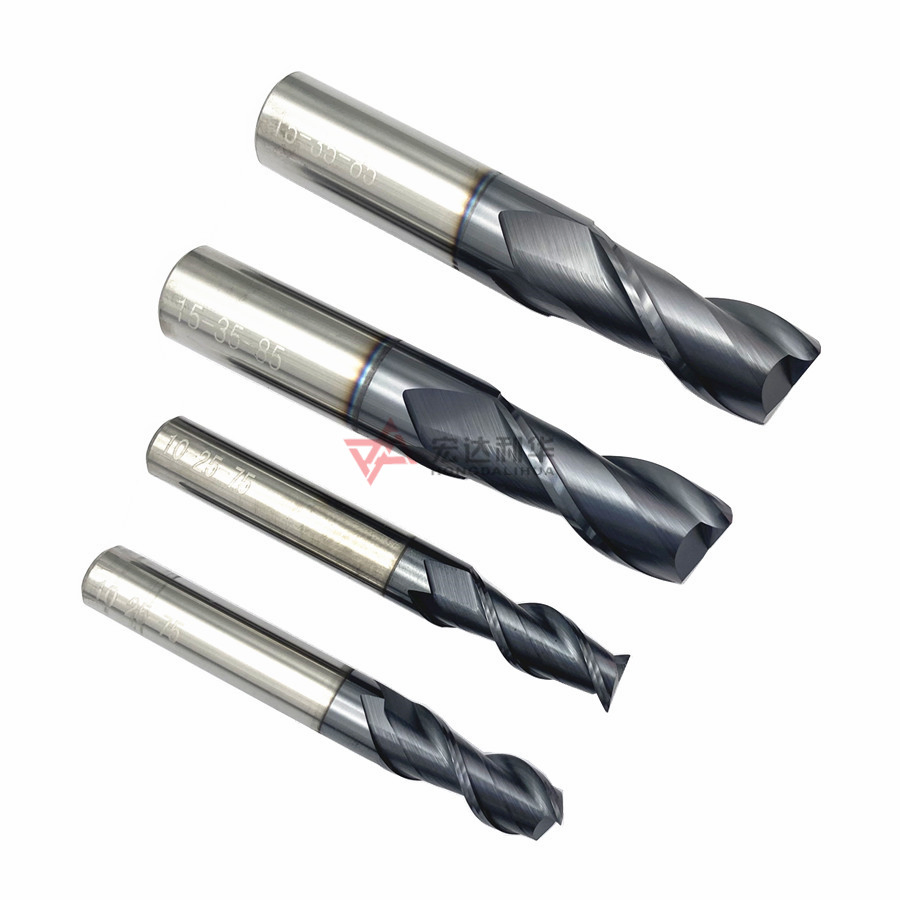

Product Description

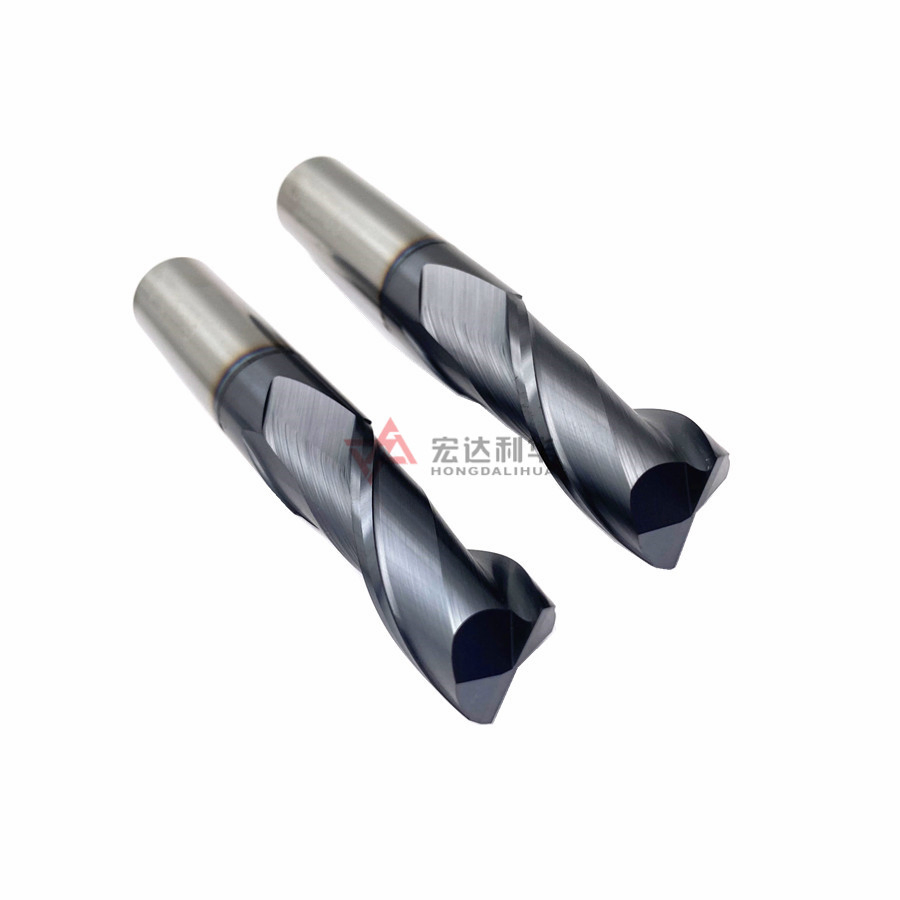

Tungsten carbide drills with two coolant holes D8.5X61XD10XL103mm
💡 Specifications:
- ✓ Hardness: HRC45/50/55/60/65
- ✓ Flutes: 2 flutes or 4 flutes
- ✓ Helix Angle: 35 degree
- ✓ Workpiece material: Steel, mould steel, low alloy, hardened steel, stainless steel
- ✓ Coating: TiAlN / Tool body: Tungsten solid carbide

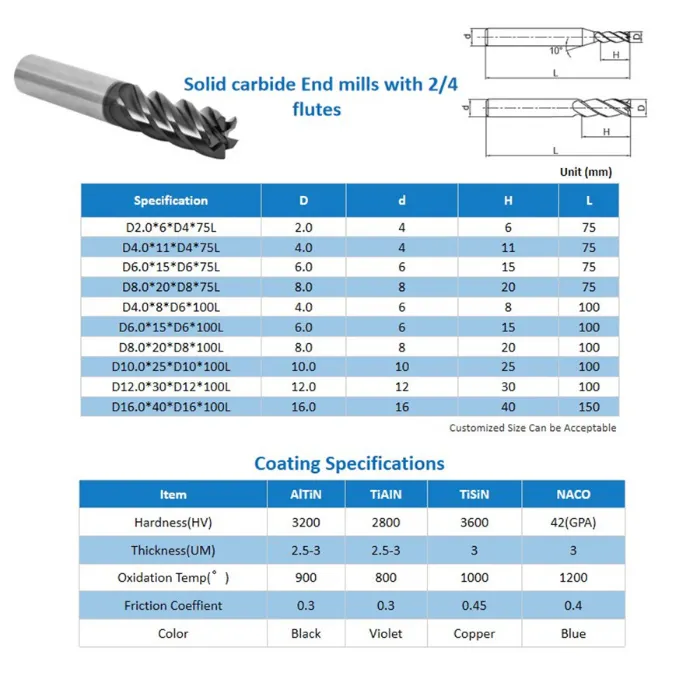

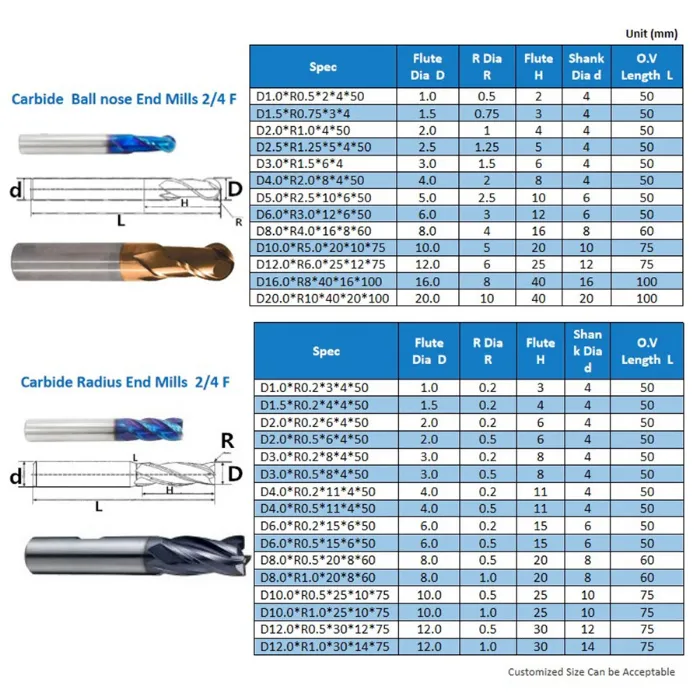

Technical Parameters
| Specification |
Cutting Dia |
Shank Diameter |
Flute Length |
Overall Length |
| D2.0*6*D4*75L | 2.0 | 4 | 6 | 75 |
| D4.0*11*D4*75L | 4.0 | 4 | 11 | 75 |
| D6.0*15*D6*75L | 6.0 | 6 | 15 | 75 |
| D10.0*25*D10*100L | 10.0 | 10 | 25 | 100 |
| D16.0*40*D16*100L | 16.0 | 16 | 40 | 150 |
Super Raw Material & Coating
| Grade |
Grain Size |
Co% |
Flexural Strength |
| HRC45 (YG10X) | 0.7um | 10% | 3320N/mm2 |
| HRC55 (WF25) | 0.6um | 10% | 4000N/mm2 |
| HRC65 (H10F) | 0.5um | 10% | 4300N/mm2 |

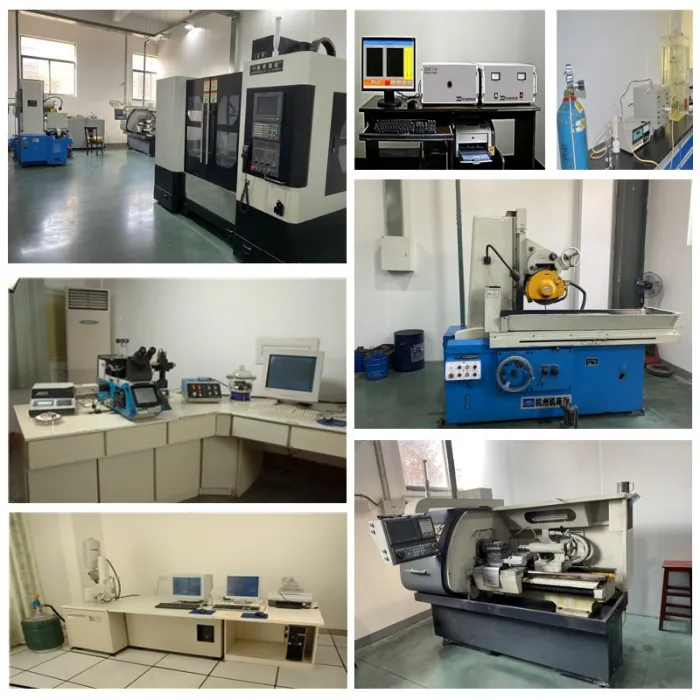

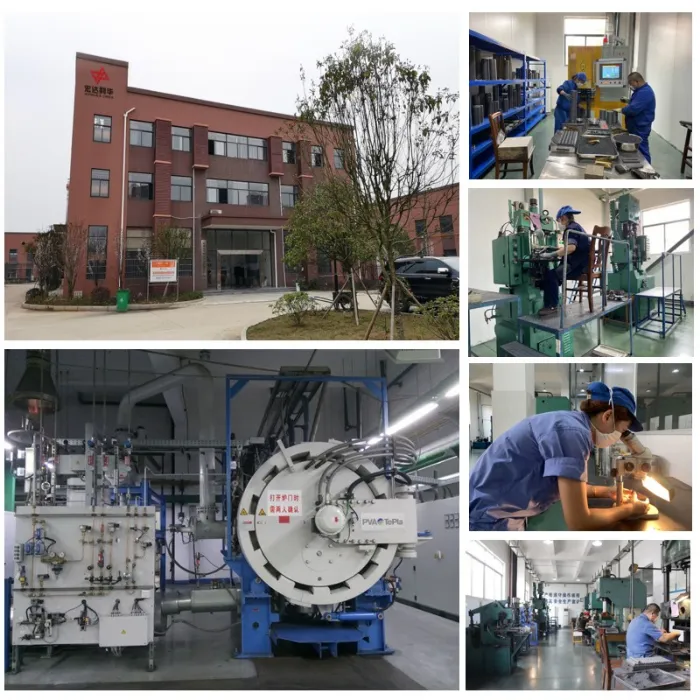

Manufacturing Excellence
Monthly Capacity: 15 Ton
Equipped with Sintering Furnaces, Automatic suppress Machines, and professional QC teams following ISO9001:2008 standards to ensure high-quality output.
Frequently Asked Questions
What materials can these carbide end mills process?
Our tools are designed for steel, mould steel, low alloy, hardened steel, stainless steel, and various other metal alloys.
What is the processing precision of these tools?
The processing precision reaches up to +-0.02mm, making them suitable for high-end CNC machine tasks.
Do you offer customized specifications?
Yes, we accept customized orders for special specifications. Customized samples can typically be ready in 3-5 days.
What types of coatings are available?
We offer several high-performance coatings including AlTiN, TiAIN, TiSiN, and NACO with oxidation temperatures up to 1200°C.
How is the quality controlled?
We maintain a strict QC system following ISO9001:2008, covering raw material inspection, production processes, and final packaging.
What is your monthly production capacity?
Our factory has a production capacity of up to 15 tons per month for various tungsten carbide products.
