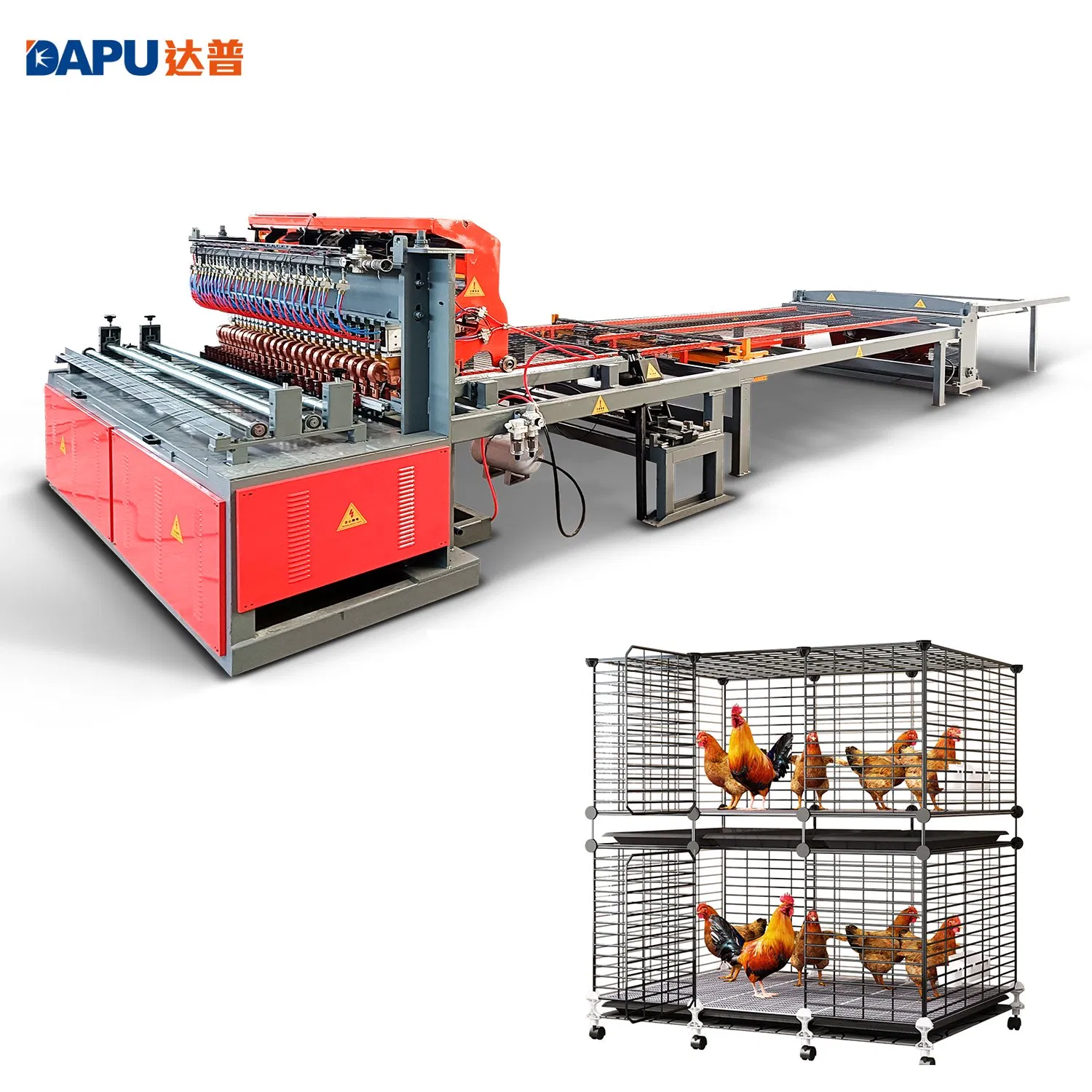

Chicken Cage Mesh Welding Machine Most High Speed to 150times Per Minute
Chicken Cage Mesh Welding Machine Most High Speed to 150times Per Minute
Chicken Cage Mesh Welding Machine Most High Speed to 150times Per Minute
Chicken Cage Mesh Welding Machine Most High Speed to 150times Per Minute
Chicken Cage Mesh Welding Machine Most High Speed to 150times Per Minute
1 / 5
Chicken Cage Mesh Welding Machine Most High Speed to 150times Per Minute
Chicken Cage Mesh Welding Machine Most High Speed to 150times Per Minute
Chicken Cage Mesh Welding Machine Most High Speed to 150times Per Minute
Chicken Cage Mesh Welding Machine Most High Speed to 150times Per Minute
Chicken Cage Mesh Welding Machine Most High Speed to 150times Per Minute

Chicken Cage Mesh Welding Machine Most High Speed to 150times Per Minute

Customization: Available
Cooling Way: Water Cooling
Control: PLC
Send Inquiry

Product Description

Basic Specifications
Model NO.:DP-AW-1200H
Style:Vertical
Welding Way:Resistance Welding
Type:Pneumatic
Wire Diameter:2-3.5mm
Welding Speed:Max.140 Times/Min
Mesh Width:Max.1.2m/1.5m
Guarantee Time:2 Years
Certificate:CE
HS Code:8515809090
Product Overview

Automatic Layer Poultry Chicken Cage Livestock Machinery Wire Mesh Welding Making Machine

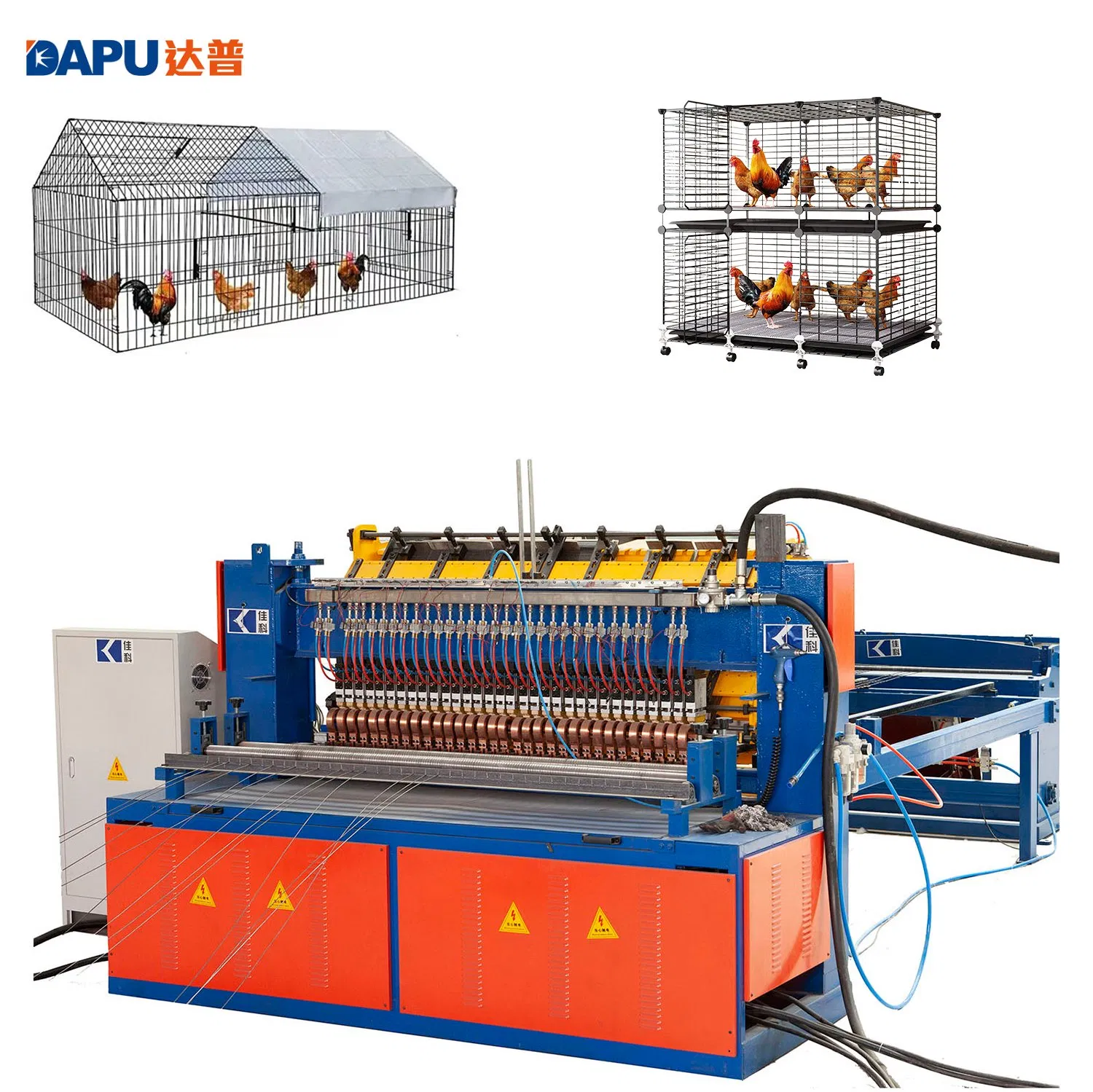

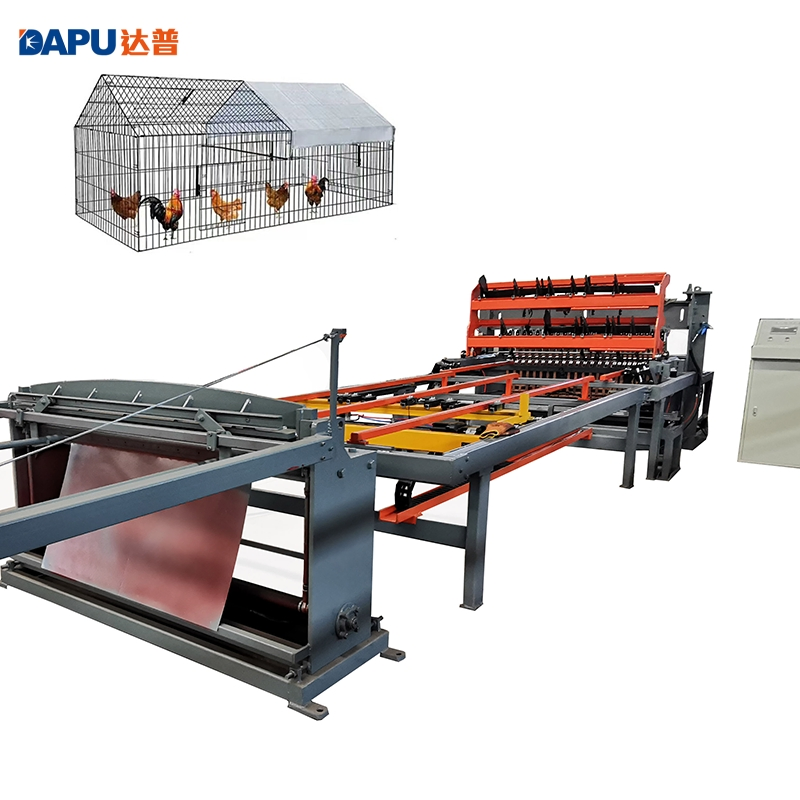

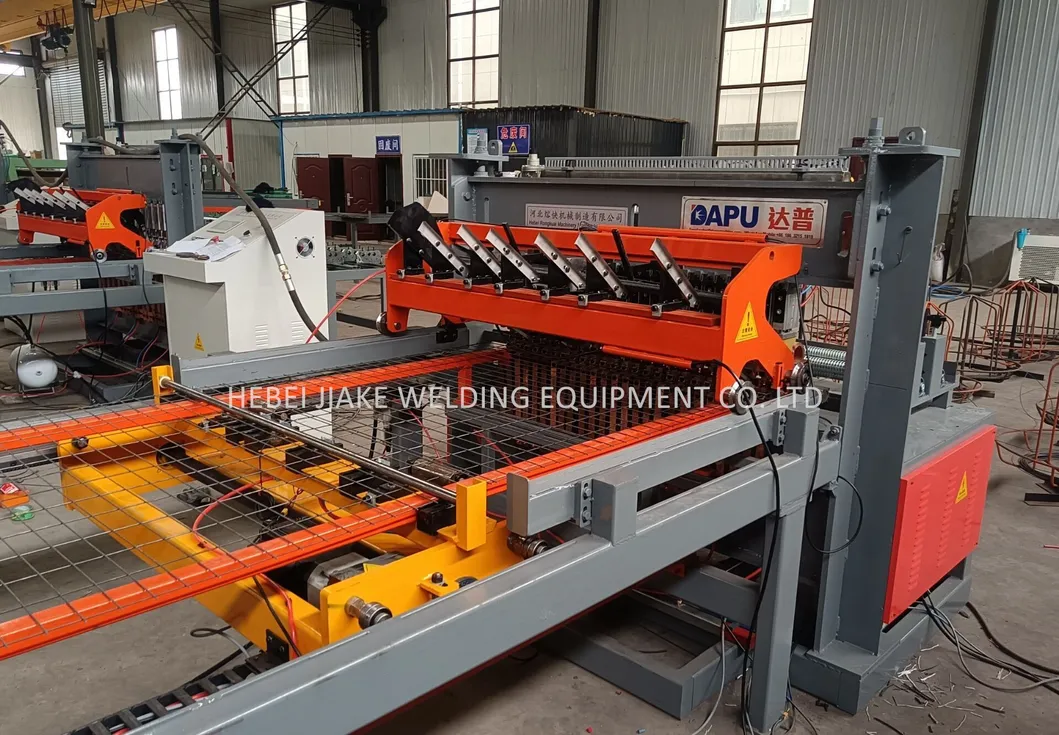

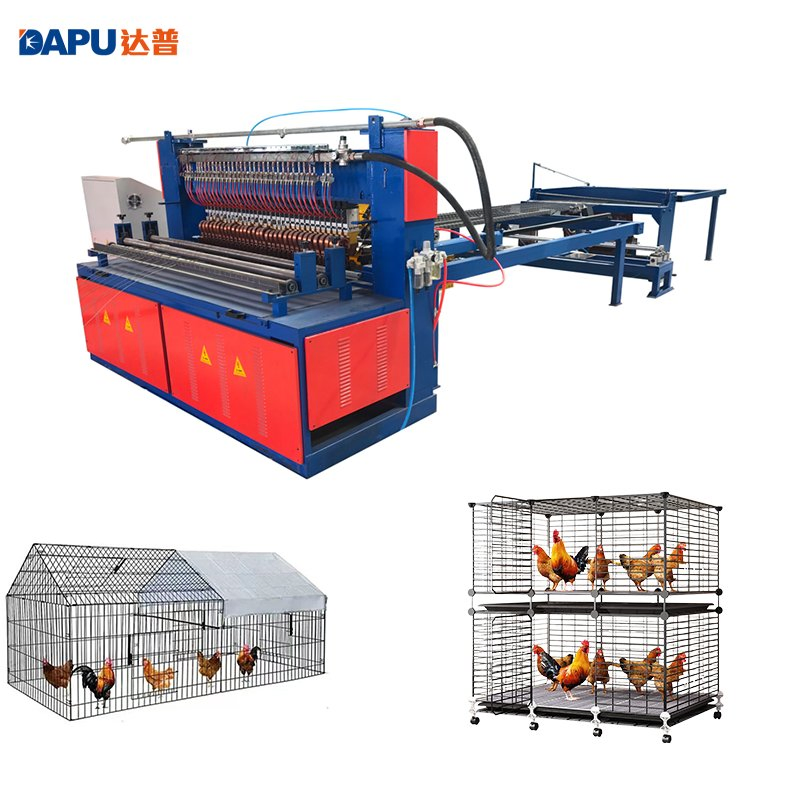

Chicken Cage Mesh Welding Machine
New developed chicken cage welding machine with pneumatic system.
Controlled by SMC (Japan) air cylinders, achieving speed of 120 times per minute.
Panasonic servo motor for mesh pulling, adjustable via PLC for custom sizes.
Cast water-cooling transformers for longer service life.
Automatic longitude wire feeding from coils and pre-cut cross wire feeding.
Technical Parameters
Model DP-AW-1200H DP-AW-1500H DP-AW-1600H
Wire diameter2-3.5mm/2-4mm
Longitude wire spaceMostly 50-200mm (Min 25*25mm customizable)
Cross wire spaceMin.25mm or smaller (PLC control)
Mesh widthMax.1200mmMax.1500mmMax.1600mm
Welding speedMax.130 times/min
Weight3100kg3600kg3840kg
Core Components & Parts

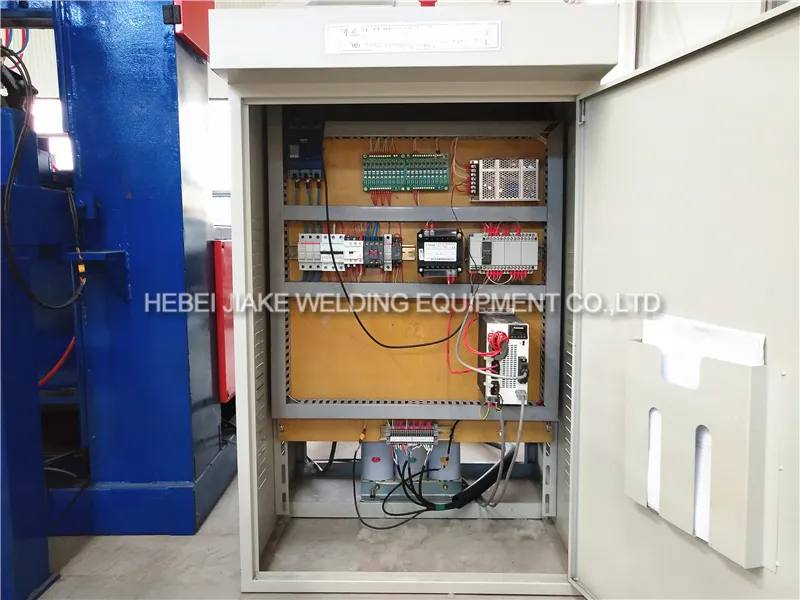

Control Cabinet Electric Control Cabinet:
- Panasonic (Japan) PLC & Servo Drive
- Weinview (Taiwan) Touch Screen
- ABB Switch & Omron Power Supply
- Infineon (Germany) SCR

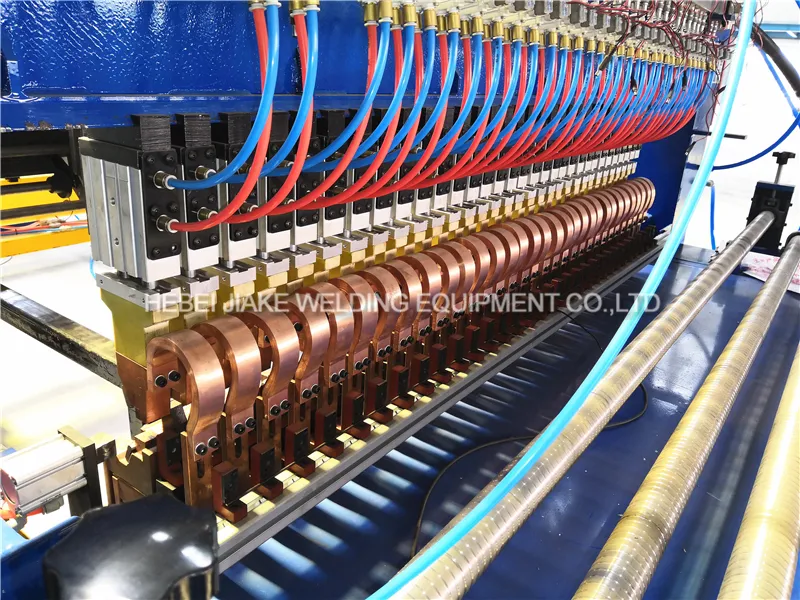

Welding Part 1

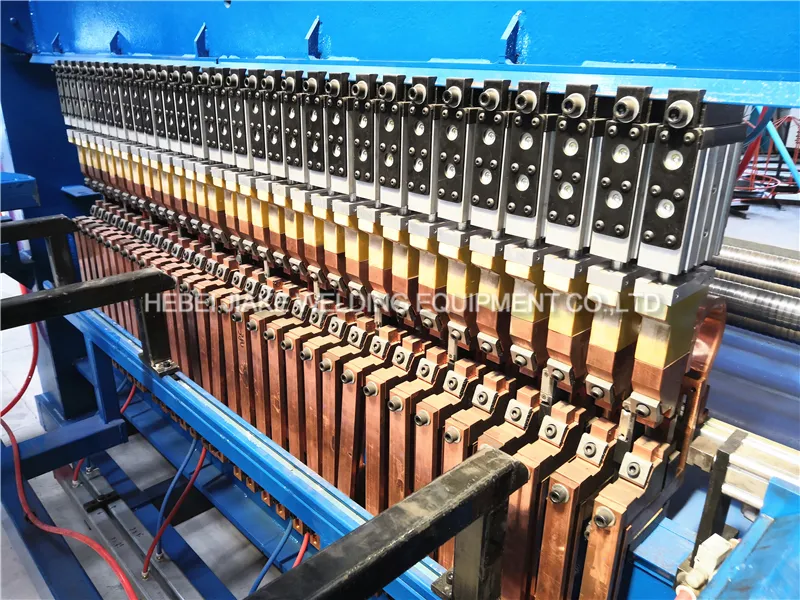

Welding Part 2

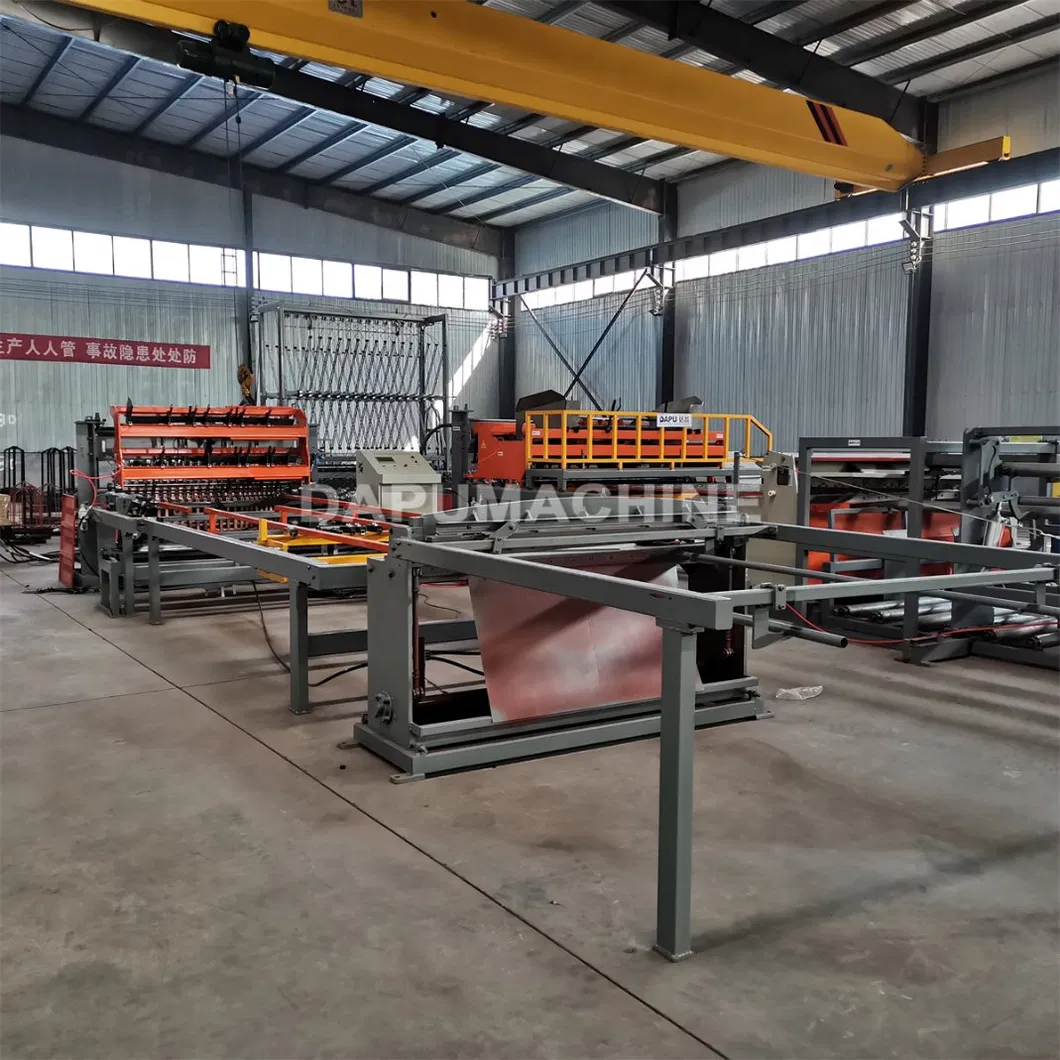

Finished Mesh

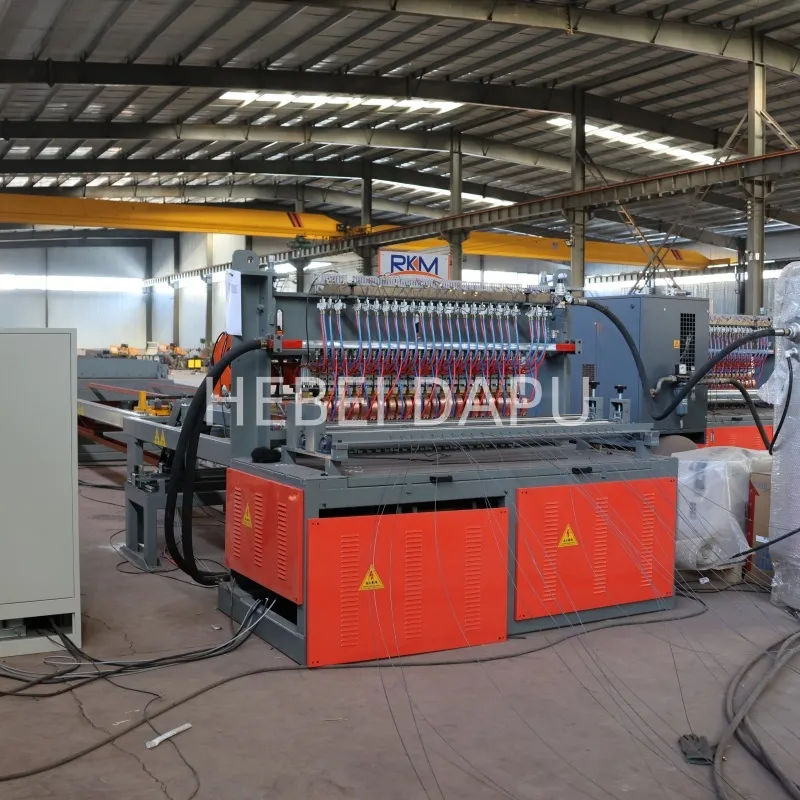

Machine Detail

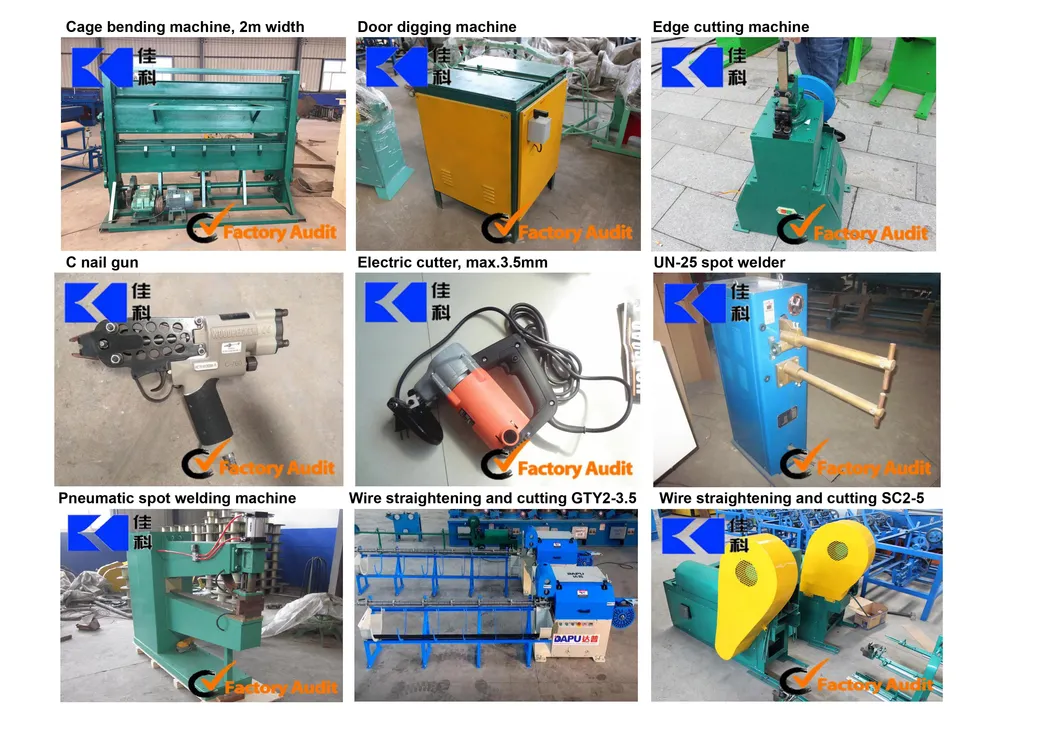

Auxiliary Equipment:

Auxiliary Equipment
Frequently Asked Questions
Q1: What is the maximum welding speed of this machine?
The machine can reach a maximum welding speed of 130 to 140 times per minute, depending on the specific model and wire configurations.
Q2: What types of wire materials can be used?
It is designed for wire diameters ranging from 2mm to 4mm, ideal for chicken cages and construction mesh.
Q3: How is the mesh size adjusted?
The cross wire space is controlled by a Panasonic servo motor and can be easily adjusted to any size needed via the PLC touch screen interface.
Q4: Does the machine require manual wire feeding?
The longitude wires are fed automatically from wire coils, while cross wires are fed via an automatic feeder after being pre-straightened and pre-cut.
Q5: What is the guarantee period for the equipment?
The machine comes with a 2-year guarantee time, ensuring reliable long-term production.
Q6: What certifications does the machine have?
The machine is fully CE certified, meeting international safety and quality standards for industrial machinery.
