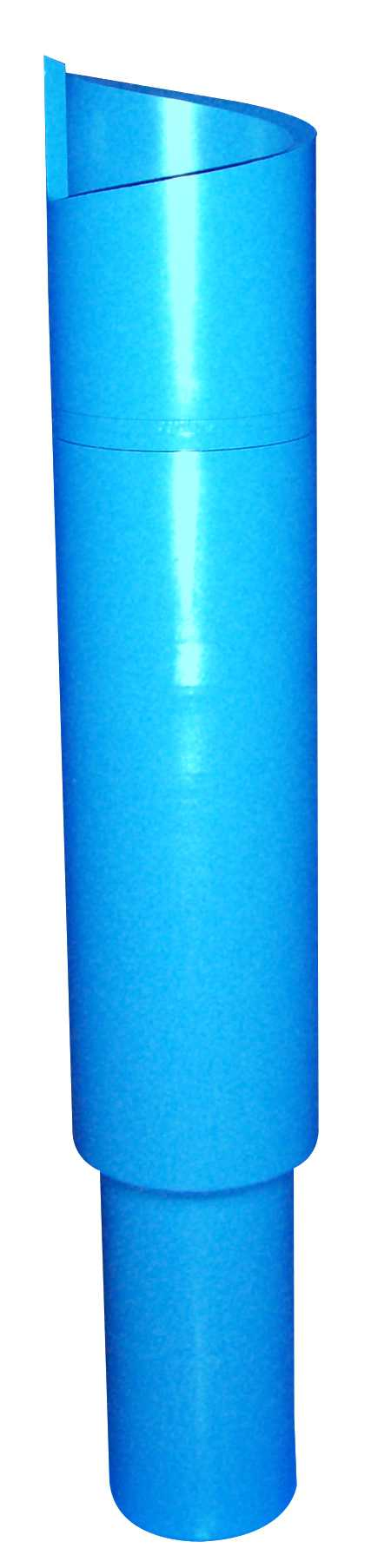

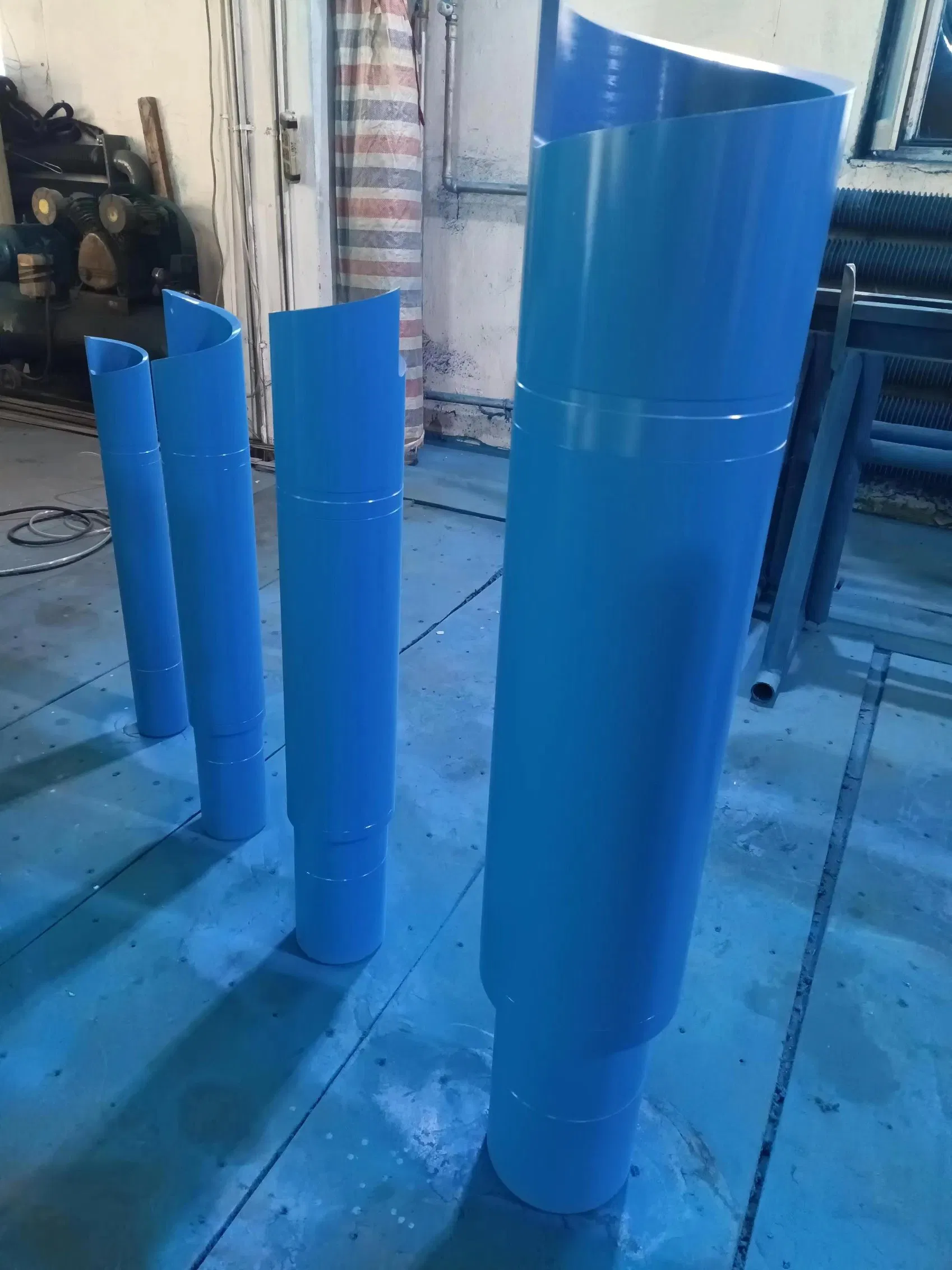

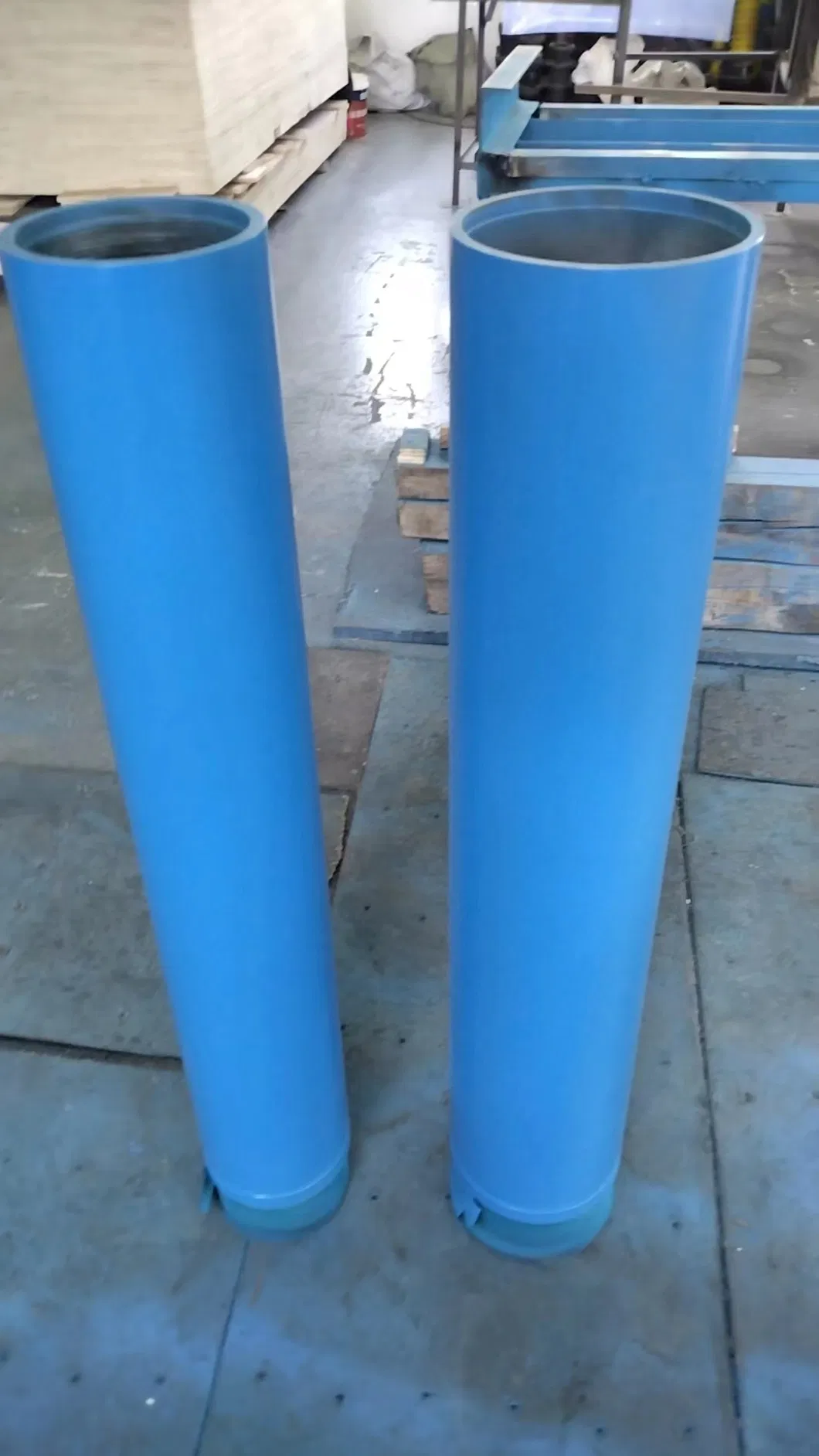

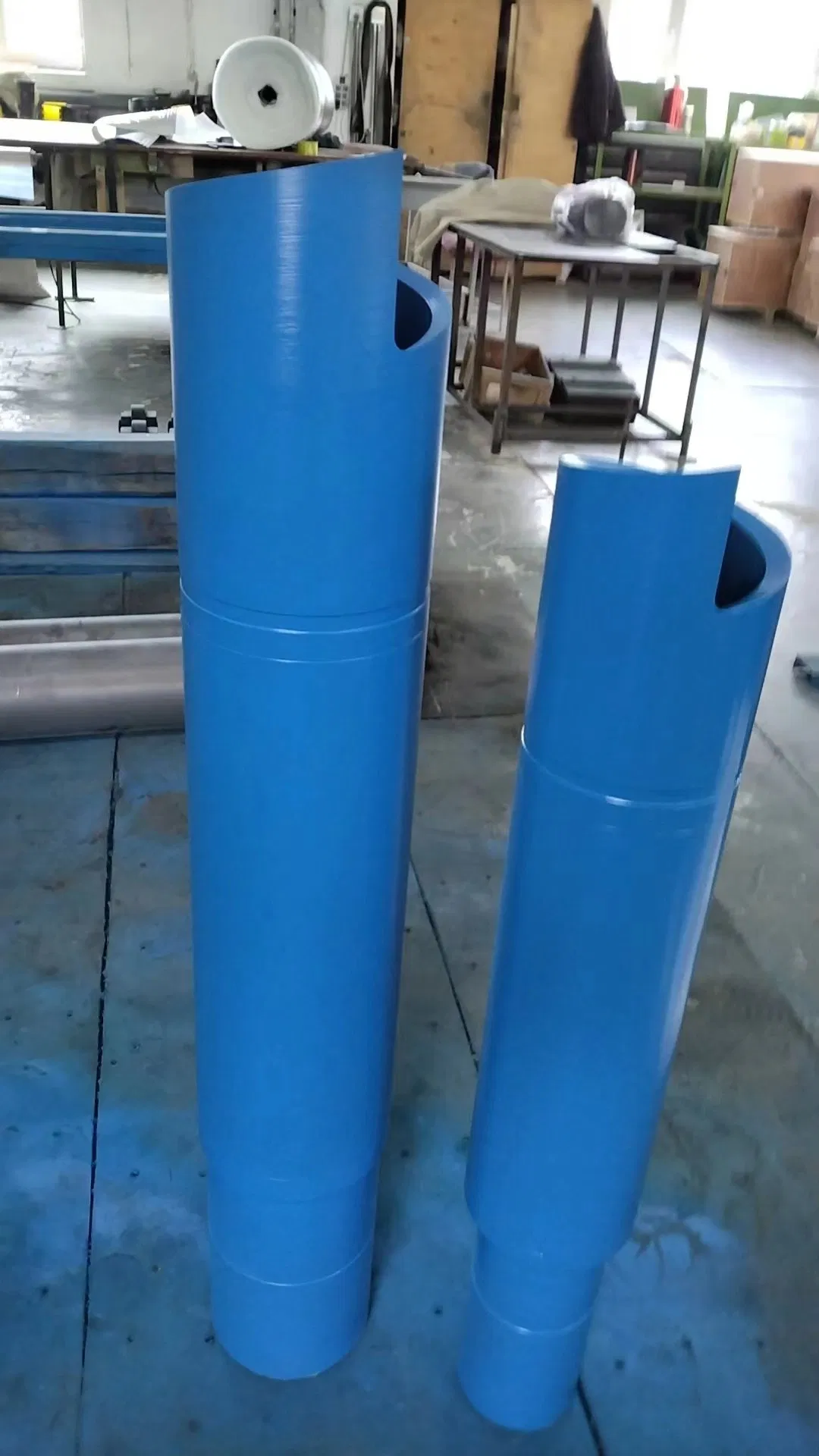

Series 10 Sucker Rod Overshot is a professional fishing tool, designed for engaging and retrieving sucker rods, couplings, and other tubular from inside tubing strings.

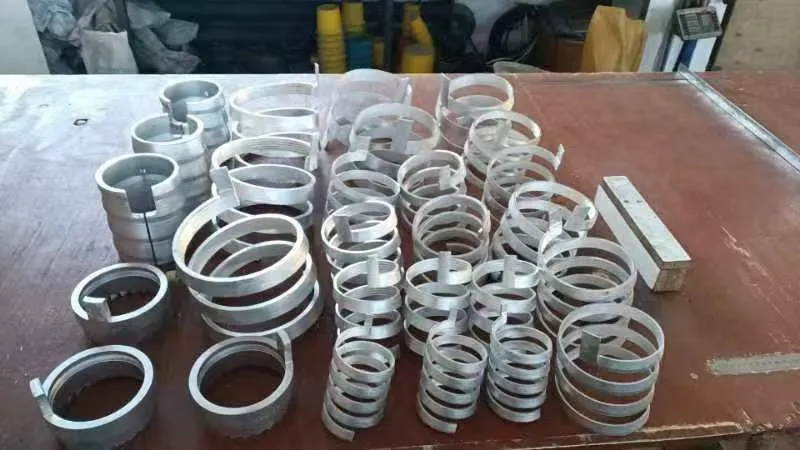

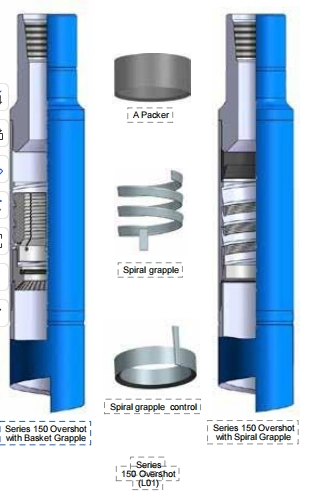

It consists of a Top Sub, Bowl, Grapple, and a Guide. According to the size of the fish, there are two types of grapples available: Basket Grapple or Spiral Grapple. Series 10 is a simple tool to use for both engaging or releasing operations by rotating the fishing string to the right.
Engaging a Fish: When overshot nears the top of the fish, slowly rotate to the right as the overshot is lowered over the fish. After the fish is engaged, allow right-hand torque to release from the fishing string. Then raise the fish by pulling upward on the fishing string.
Releasing a Fish: Bump down or drop the weight of the fishing string against the Overshot to break the hold of the grapple within the bowl. Elevate the fishing string while slowly rotating it to the right until the Overshot has cleared the fish.
| Model | O.D (mm) | Max. Fishing Size (mm) | Allowed Pull (KN) | Release Pull (KN) | Torque (N.m) | Connection (Box LH) |
|---|---|---|---|---|---|---|
| DLT-T95x48 | 95 | 48.3 | 250 | 120 | 3100 | 2 7/8 REG |
| DLT-T105X60 | 105 | 63.5 | 350 | 150 | 5750 | NC31 |
| DLT-T114X73 | 114 | 78.6 | 420 | 180 | 7750 | NC31 |
| DLT-T134X89 | 134 | 93.2 | 500 | 180 | 10250 | NC38 |
| DLT-T145x102 | 145 | 101.6 | 700 | 200 | 11020 | NC38 |
