Basic Info
Cooling Way
Water Cooled/Air Cooled
Application Fields
Aquatic Fishery
Transparent Ice Machine Direct Cooling

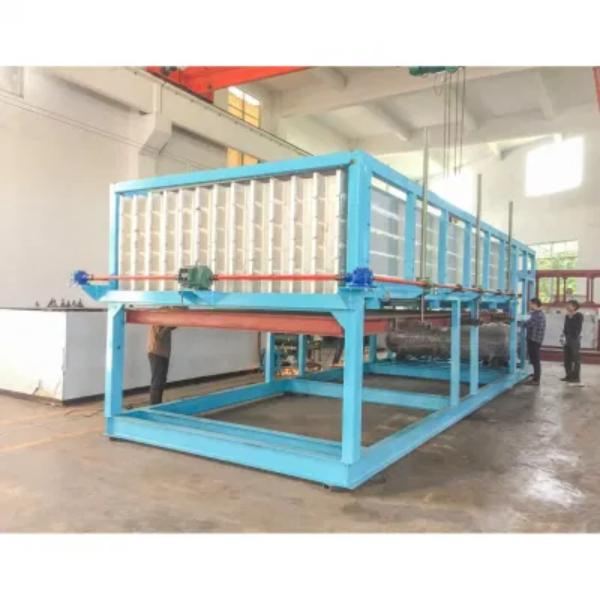

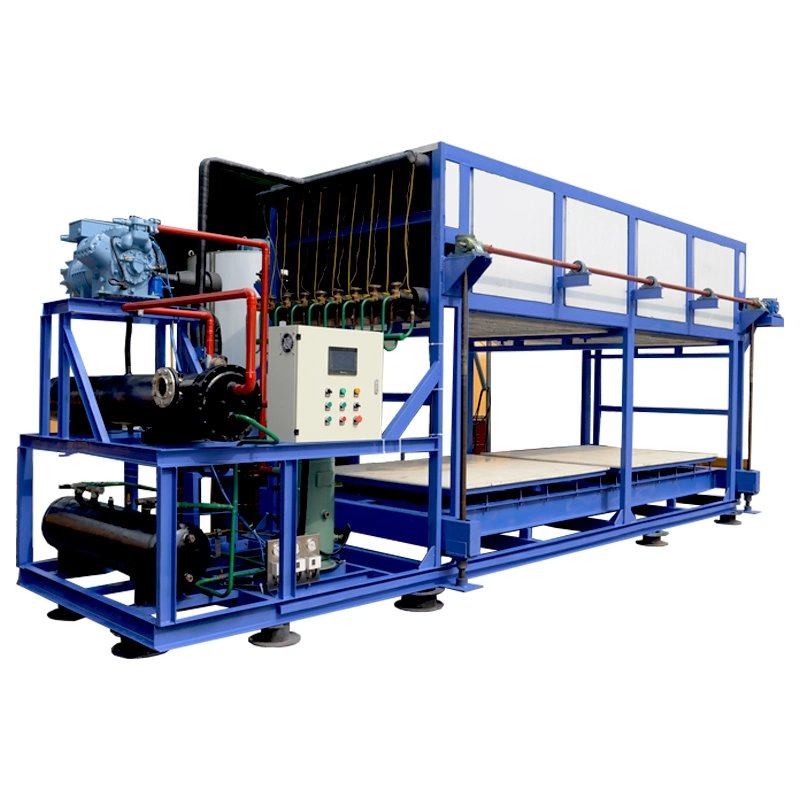

100% Clear Block Ice Machine for Drinking
i
What is Block Ice?
Block ice is ice made in an ice mold. It is hard, resistant to melting, offers long storage times, and is convenient for transport. It is widely used in food processing, fresh-keeping, cooling of aquatic products, and ice sculpture.

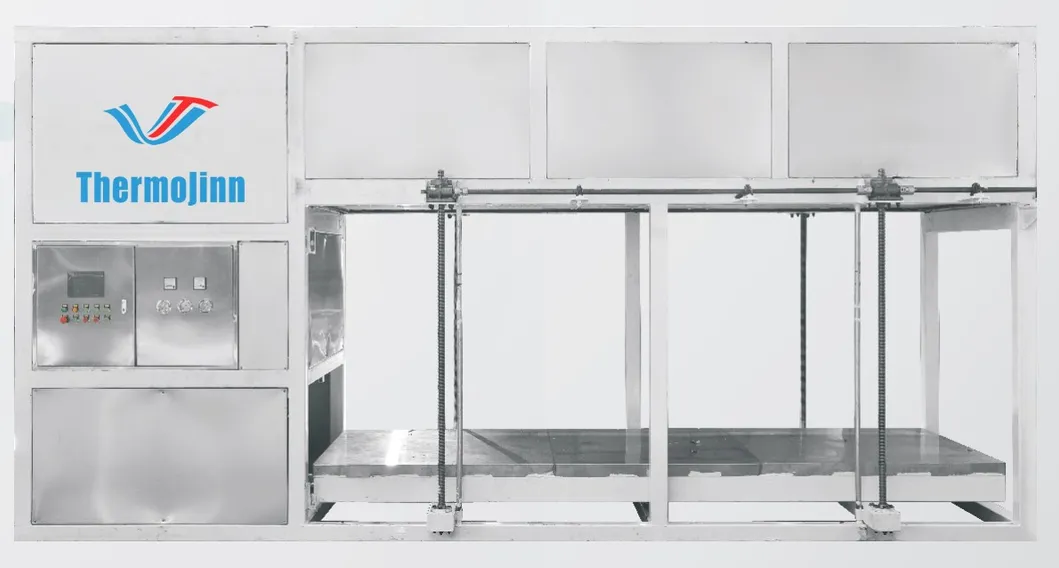

Key Features of Direct Cooling System
- Modular Design: Small footprint and simple on-site installation.
- PLC Control: Automatic water replenishment and deicing for low failure rates.
- High Efficiency: Supports designed ice storage and breaking systems to save manpower.
- Eco-Friendly: No coolant, no brine, and no strong corrosion issues.

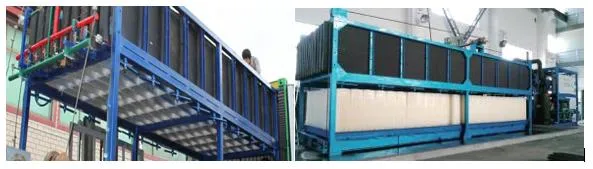

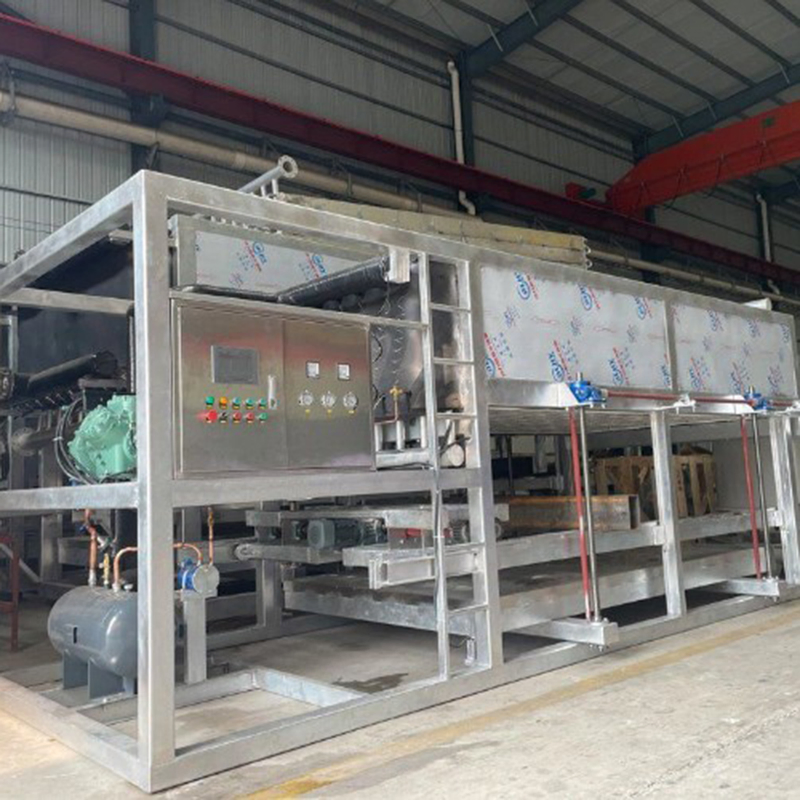

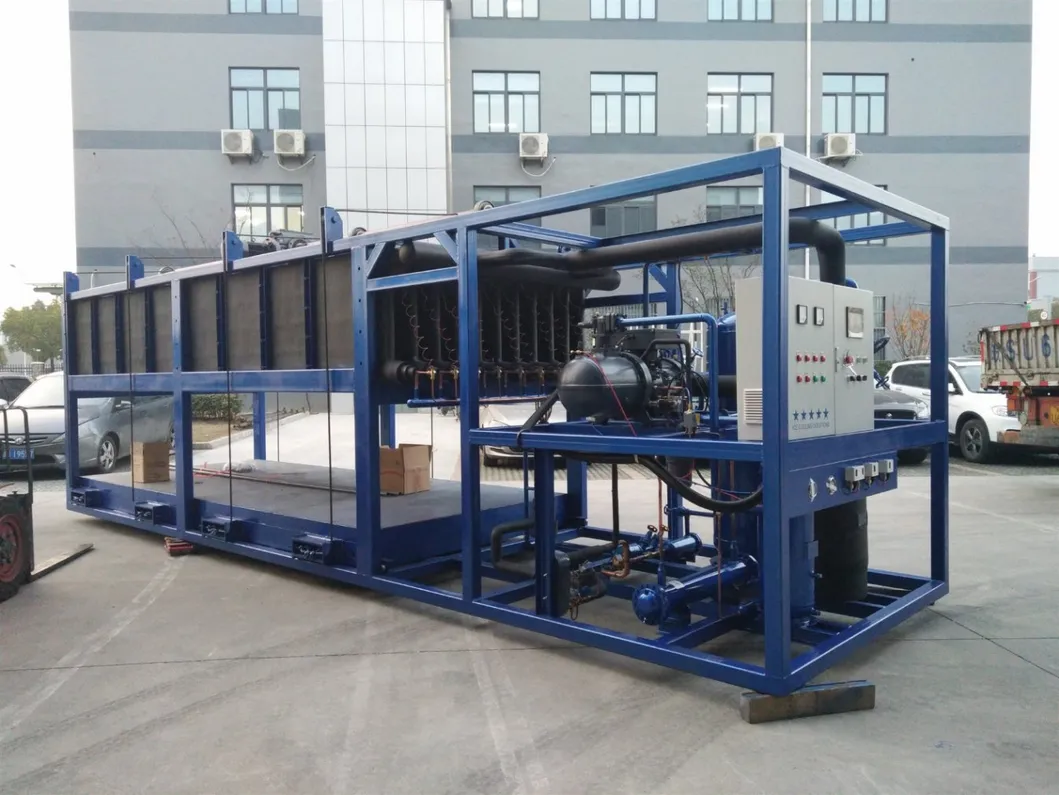

Main Components

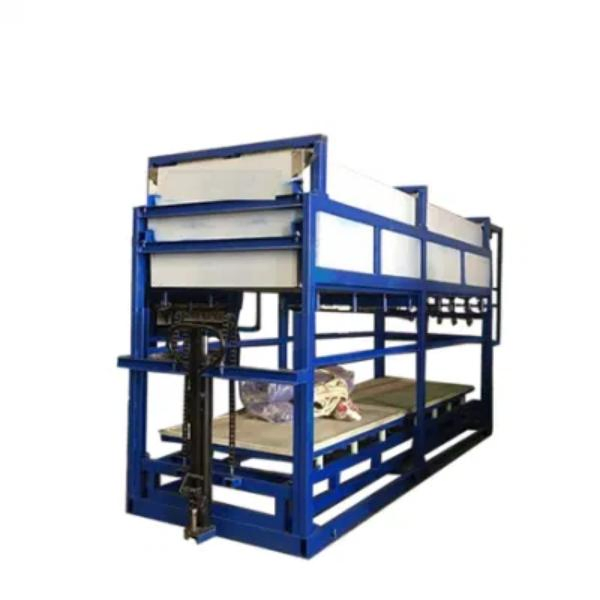

△ Ice Making Evaporator Module
Aluminum alloy ice cans with galvanized or stainless steel support frames ensure clean, sanitary ice blocks suitable for consumption. Features a specially designed water adding device to avoid waste.
△ Compressor Unit Module
Equipped with high-end compressors (Hanbell/Frascold/XM/Mycom), liquid receivers, oil separators, and professional control panels.
△ Condensing Module
Options for Water cooling towers, Evaporative condensers, or Air-cooled condensers.

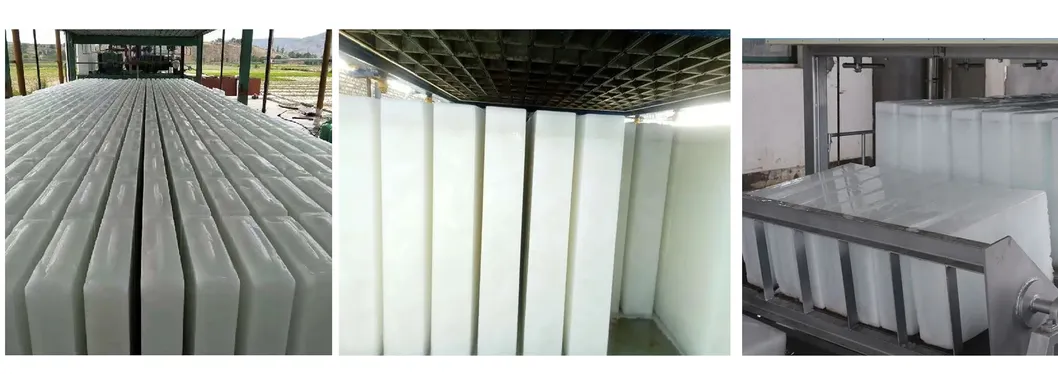

Ice Block Dimensions
| Weight (kg/block) |
Dimension (mm) |
Pro. Time (hr) |
Batches per Day |
| 5 | 120*100*600 | 4.5 | 4 |
| 10 | 230*100*600 | 4.5 | 4 |
| 20 | 300*125*800 | 6.5 | 3 |
| 30 | 280*170*800 | 9.5 | 2 |
| 50 | 450*170*800 | 9.5 | 2 |
| 100 | 550*220*1000 | 14 | 1.5 |
Technical Parameters
| Model |
Capacity (t/24h) |
Ice Weight (kg) |
Ref. Capacity (kw) |
Power (kw) |
Dimension (mm) |
| TJB-50DW | 5 | 50 | 38 | 30 | 4800x1800x2200 |
| TJB-100DW | 10 | 50 | 76 | 50 | 7000x2200x2550 |
| TJB-150DW | 15 | 50 | 114 | 75 | 10000x2200x2550 |
| TJB-200DW | 20 | 50 | 152 | 100 | 11800x2200x2550 |
Advanced System Features
- Energy Saving: Ice thawing tank utilizes exhaust heat from the compressor.
- Durability: Well-insulated brine tank with high-resistant epoxide coating and reinforced ice cans.
- Smart Control: Touch screen interface with 3G/4G remote monitoring and fault alarm capabilities.
- Fast Ice Making: Unique propeller blade technology accelerates saltwater flow for faster freezing.
Application & Global Reach
Certificates
Frequently Asked Questions
How long is the delivery time?
It typically takes within 1 month from the receipt of the deposit to have the goods prepared and ready for shipment.
How long is the quality guarantee period?
The warranty period is 1 year. We also provide after-sales service availability 24 hours a day to ensure your equipment runs smoothly.
What is included in your pricing?
Our FOB prices are based on the quantity, material, and size required. We offer competitive rates for CIF and CNF as well. Bulk orders are eligible for further discounts.
Can you customize the machine to specific requirements?
Yes, all materials and sizes are available for customization. We can tailor the equipment specifications to meet your specific project needs.
What cooling options are available for these machines?
We provide Water-cooled condensers (with cooling towers), Air-cooled condensers, or Evaporative condensers as optional configurations.
Is the ice produced safe for consumption?
Absolutely. By using high-quality aluminum alloy ice cans and a clean direct-cooling process, the machine produces clear ice blocks that can be directly eaten.
