| Technical Specifications | TGK2115 | TGK2125 |
| Boring Diameter Range / mm | 40-150 | 40-250 |
| Working Length / m | 2-12 | 2-12 |
| Spindle Speed Range / r/min | 50-1800 (Stepless) | 5-1000 (Two Gears) |
| Feed Speed Range / mm/min | 5-1000 | 5-1000 |
| Fine Boring Accuracy | IT8-IT9 | IT8-IT9 |
| Rolling Accuracy | IT6-IT9 | IT6-IT9 |
Application:

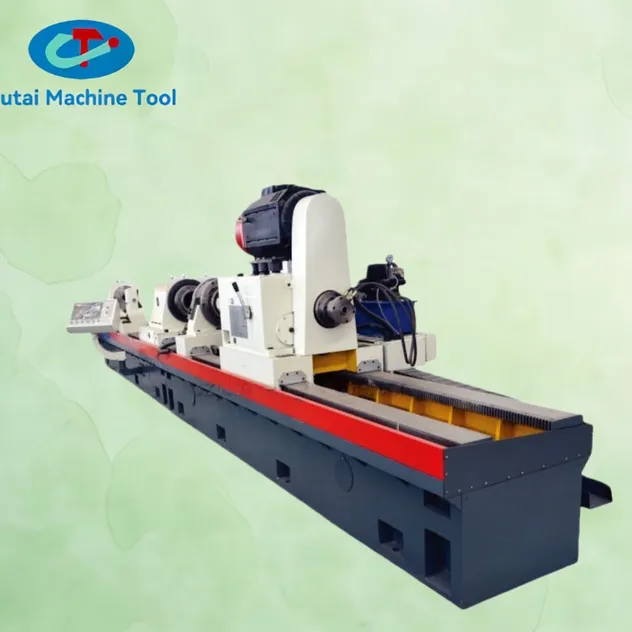

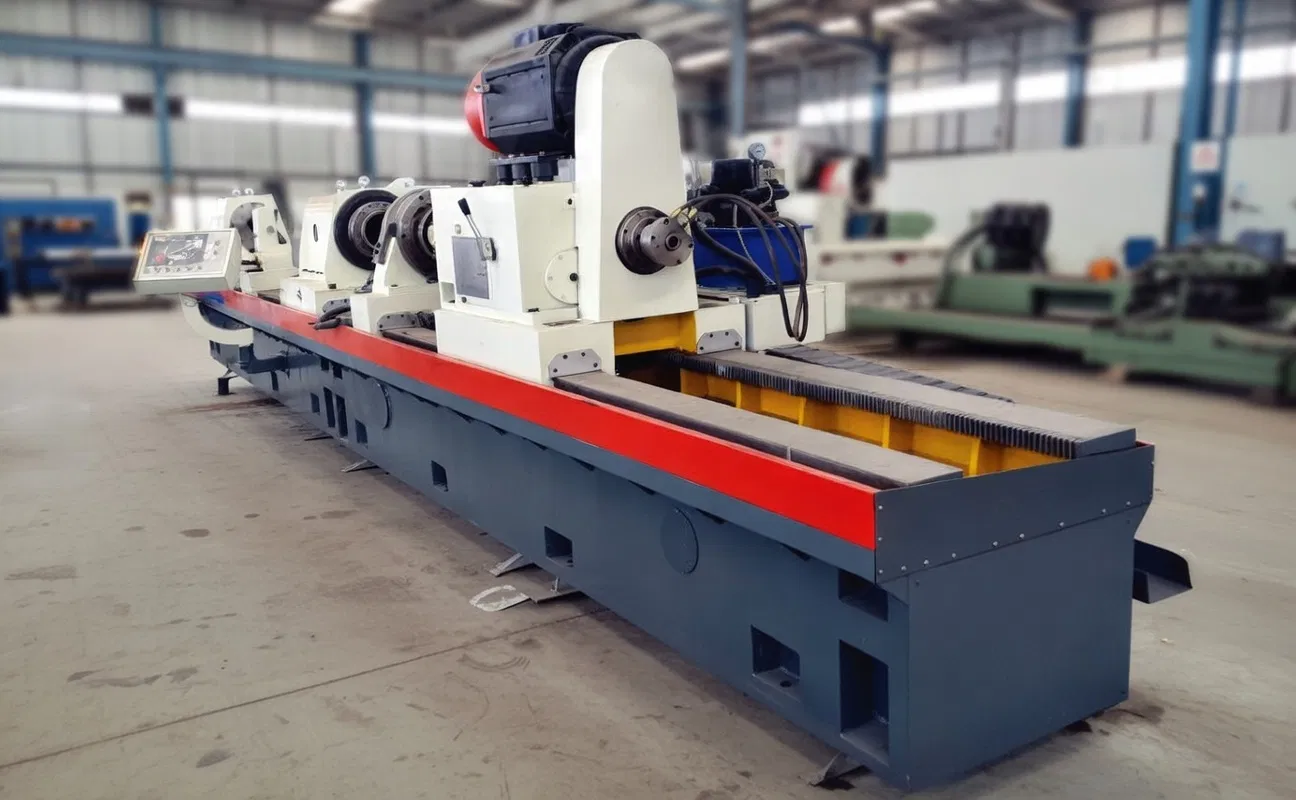

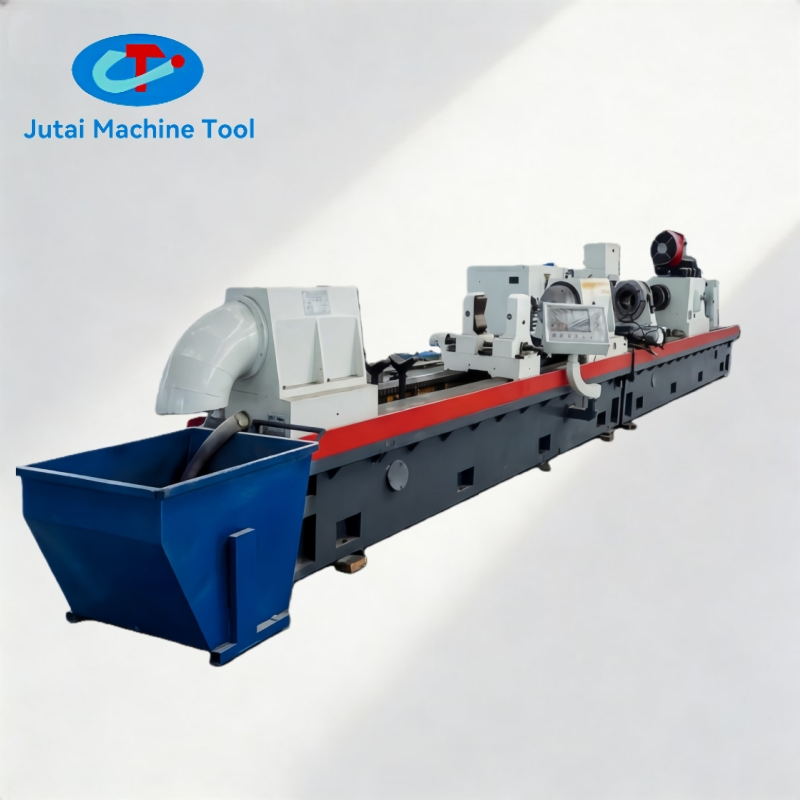

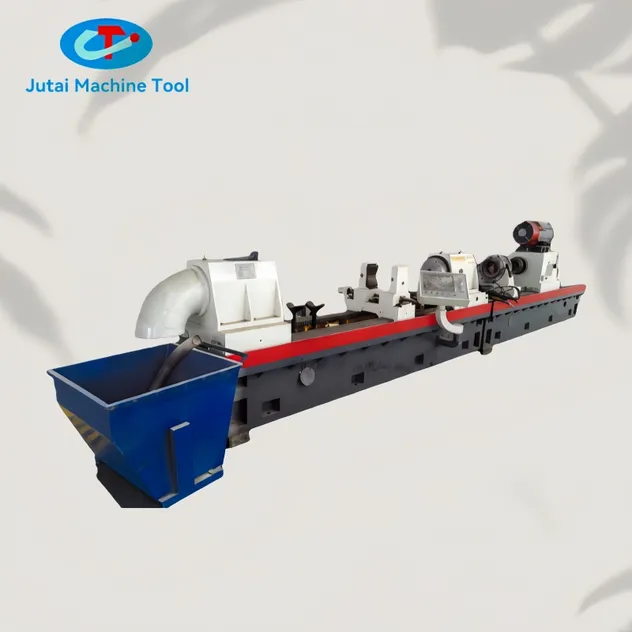

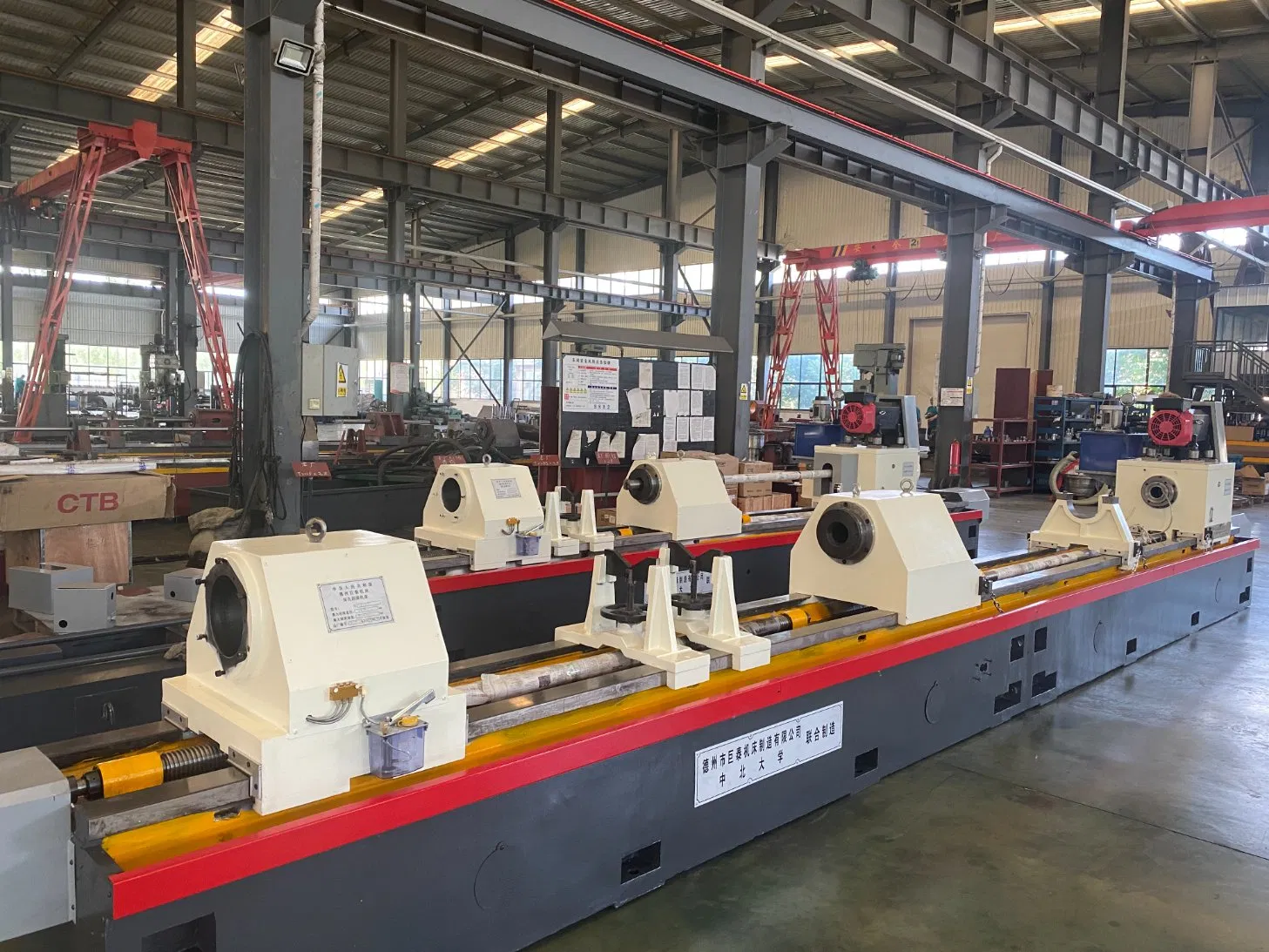

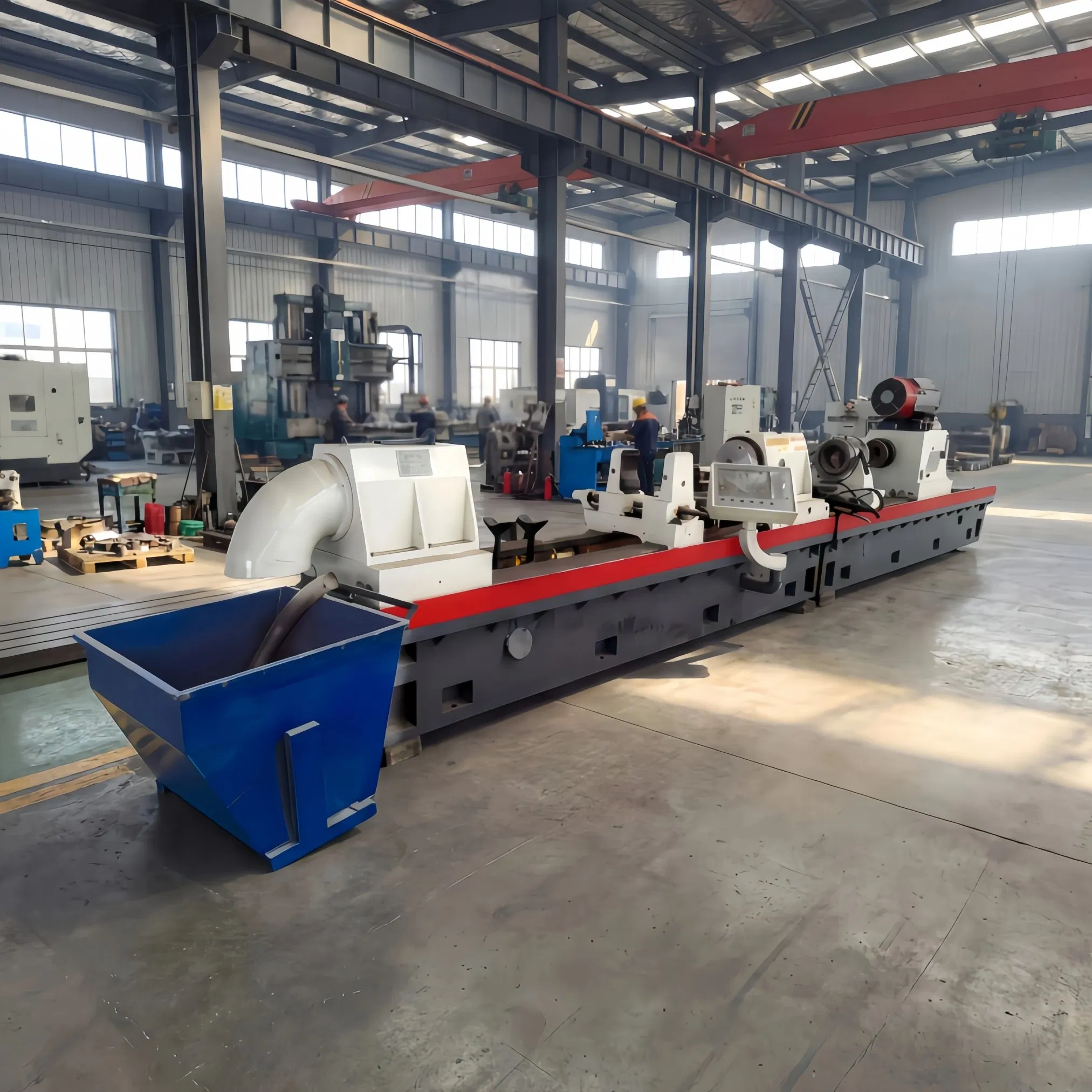

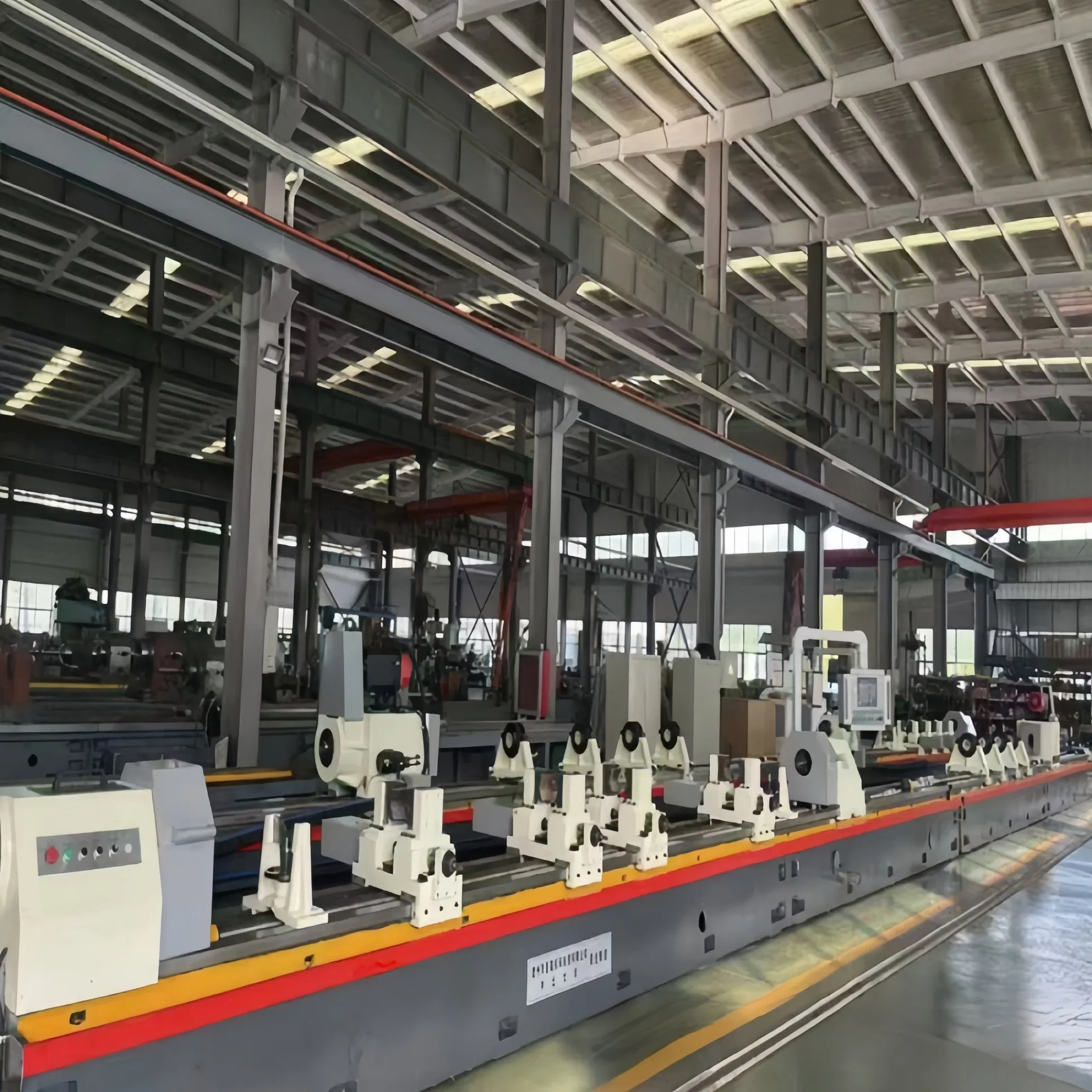

This machine tool is a high-efficiency model independently developed, drawing on advanced technology. It serves as an eco-friendly deep hole scraping and rolling machine that replaces traditional honing processes, increasing production efficiency by 5 to 6 times. The machine adopts a fixed workpiece and rotating boring head method.

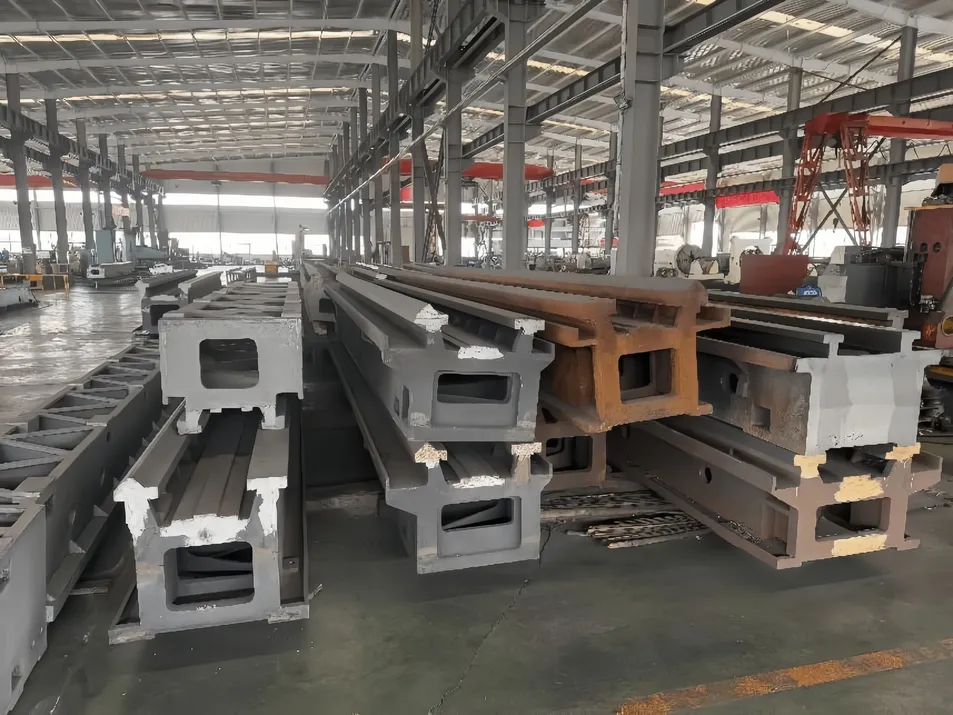

Machine Bed Body: Fabricated from high-strength cast iron with optimized reinforcing plates for superior rigidity.

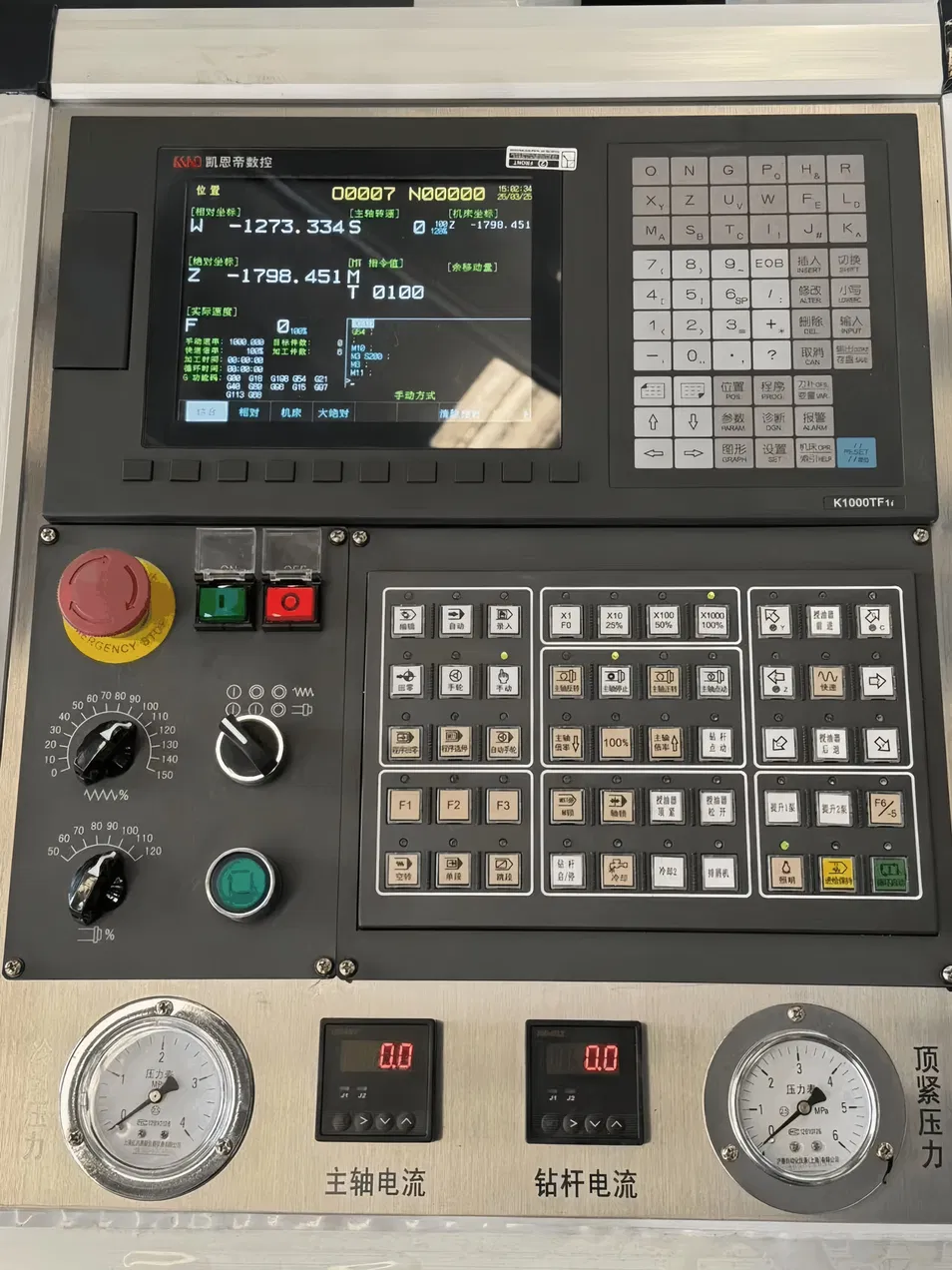

Control System: Equipped with a three-jaw chuck to firmly grasp the workpiece for high stability.
We provide free training at our facility. If necessary, our engineers are available for overseas machinery servicing.
The complete machine comes with a one-year warranty and lifetime maintenance support.
Each machine is rigorously tested before packing. We use internationally recognized brand spare parts to ensure reliability.
Small quantities typically ship within 7-15 days, while large orders take approximately 30 days.
Yes, sample orders can be arranged. Please reach out to discuss your specific requirements.
It replaces traditional honing with a process that is 5-6 times faster, offering significant cost and time savings in hydraulic cylinder production.
