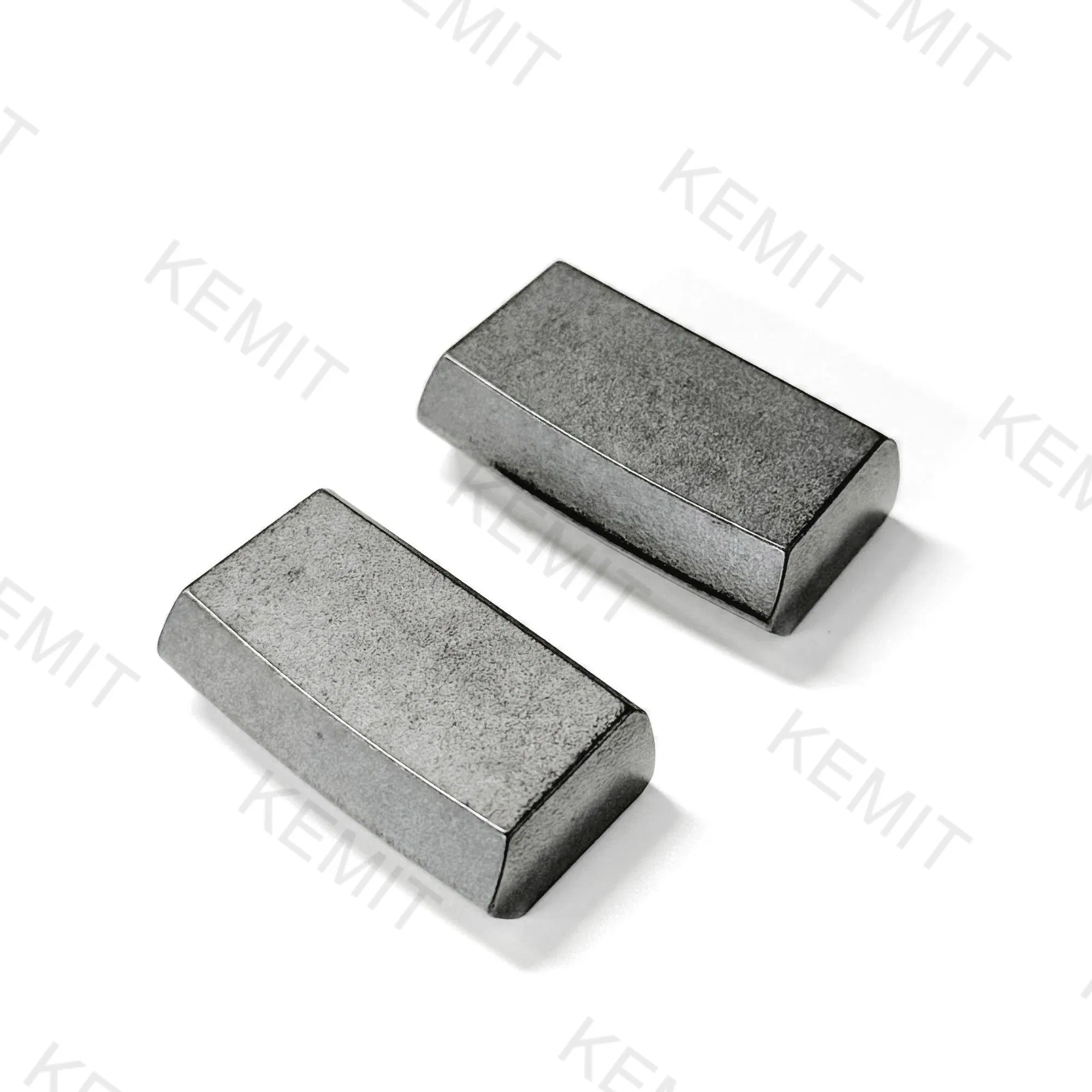

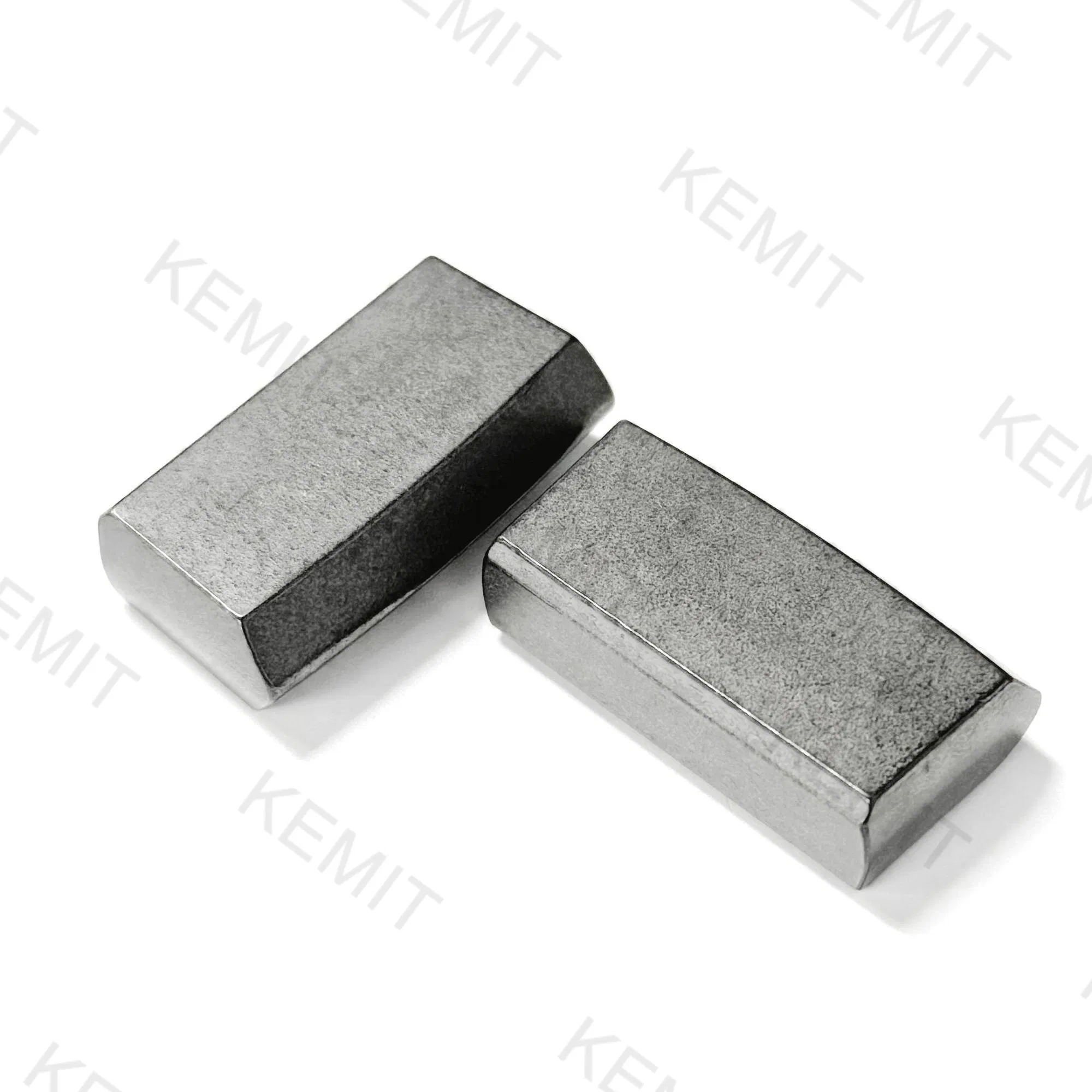

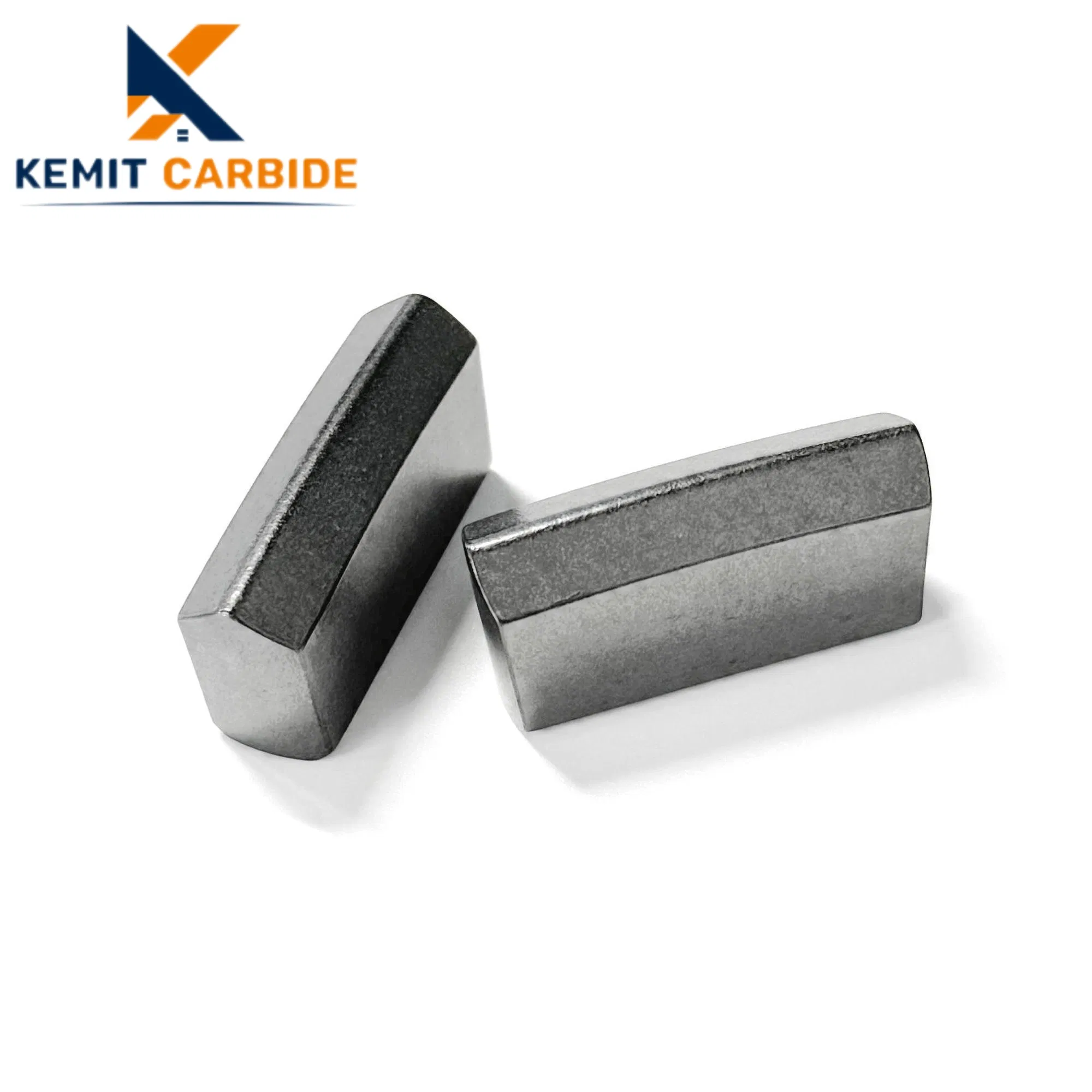

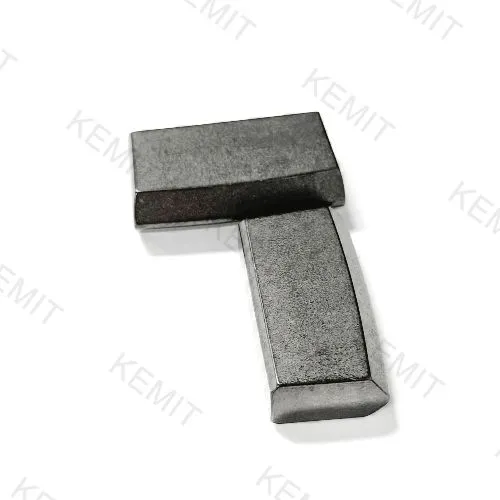

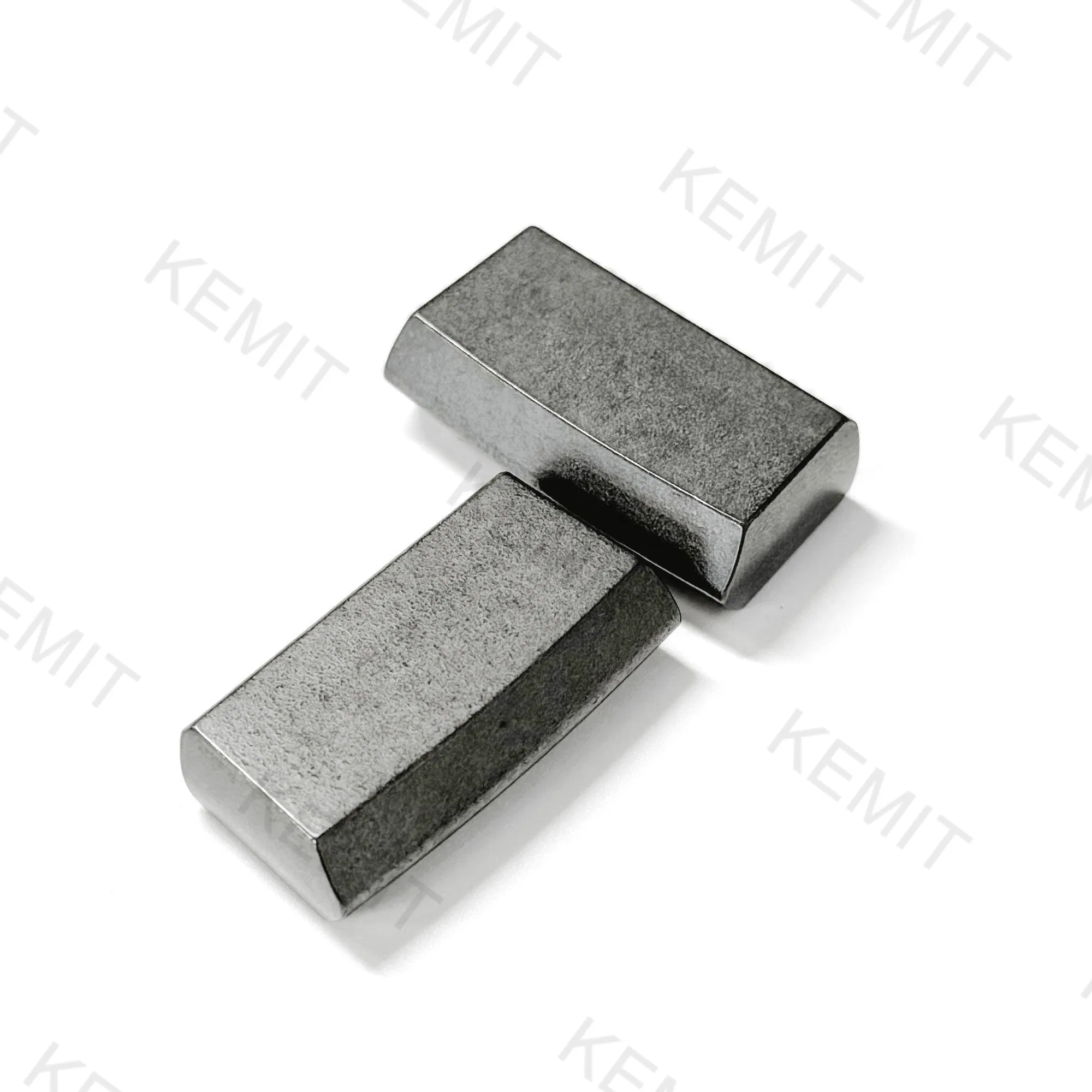

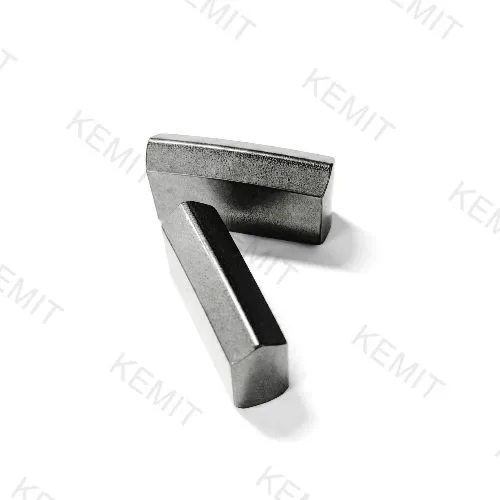

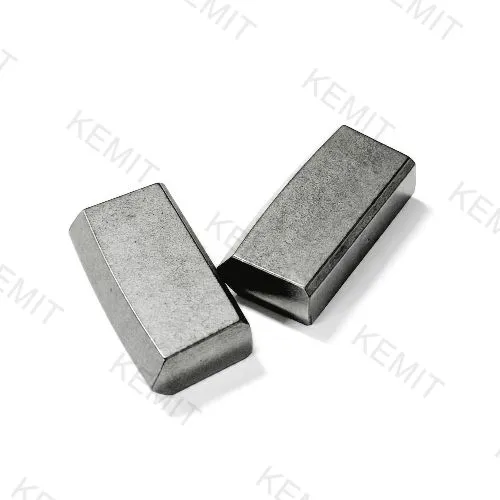

Our carbide drill bit mining teeth are specifically designed for harsh mining environments. Made from high-quality tungsten carbide and cobalt through special sintering processes, they have a hardness of over HRA90 and possess excellent wear resistance and impact resistance. The unique tooth shape design is tailored to different rock characteristics, and the crushing efficiency is 30% higher than that of ordinary mining teeth. Whether it is coal mining, iron mining, or gold mining, they can operate stably and efficiently, greatly reducing mining costs and extending the service life of equipment. They are the ideal choice for your mining operations.
| Type | Dimension (mm) | |||||
|---|---|---|---|---|---|---|
| L | H (A) | H (B) | H (C) | C | r | |
| K026 | 26 | 18 | 15 | 12.5 | 8 | 13.0 |
| K028 | 28 | 18 | 15 | 12.5 | 8 | 14.0 |
| K030 | 30 | 18 | 15 | 12.5 | 8 | 15.0 |
| K032 | 32 | 18 | 15 | 12.5 | 8 | 16.0 |
| K034 | 34 | 18 | 15 | 12.5 | 8 | 17.0 |
| K036 | 36 | 18 | 15 | 12.5 | 10 | 18.0 |
| K038 | 38 | 18 | 15 | 12.5 | 10 | 19.0 |
| Chinese Grade | ISO Category | Co % | Density g/cm³ | Hardness HRA | Application Details |
|---|---|---|---|---|---|
| YG3 | K01 | 3 | 14.9-15.3 | ≥92.0 | Finishing of cast iron, non-ferrous metals, and semi-finishing. |
| YG6X | K10 | 6 | 14.8-15.1 | ≥91 | Finishing of chilled hard alloy cast iron and heat resistant alloy steel. |
| YG8 | K20-K30 | 8 | 14.5-14.9 | ≥90 | Suitable for casting of cast iron, roughing, and drilling general holes. |
| YG10X | K20 | 10 | 14.3-14.7 | ≥89.5 | Suitable for small diameter micro drills and end mills. |
| YG15 | K40 | 15 | 13.9-14.2 | ≥87 | Forging and stamping tools for steel bars under large stresses. |
Used in mine mining, tunnel excavation, and geological exploration to drill through hard rock strata efficiently.
Manufacturing tricone drill bits and drilling tools that withstand high pressure and torque in diverse formations.
Installed on coal shearers and roadheaders for cutting coal seams with high impact resistance.
Bridge foundations, subway tunnels, and shield machine cutters for effective rock and soil removal.
