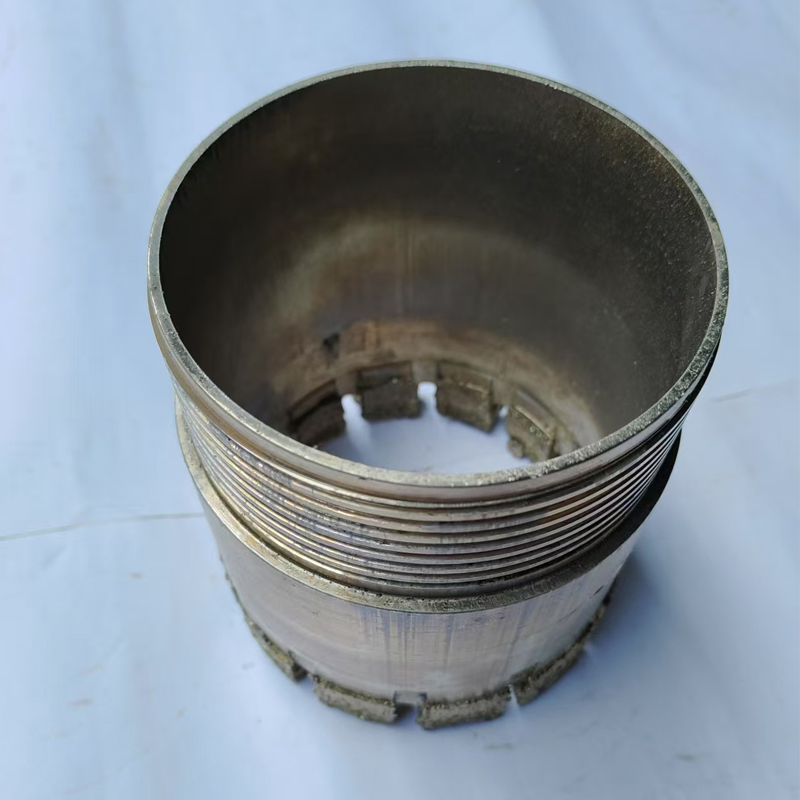

Outstanding Quality Impact Resistance Micro Impregnated Core Diamond Drill Bits

1 / 5

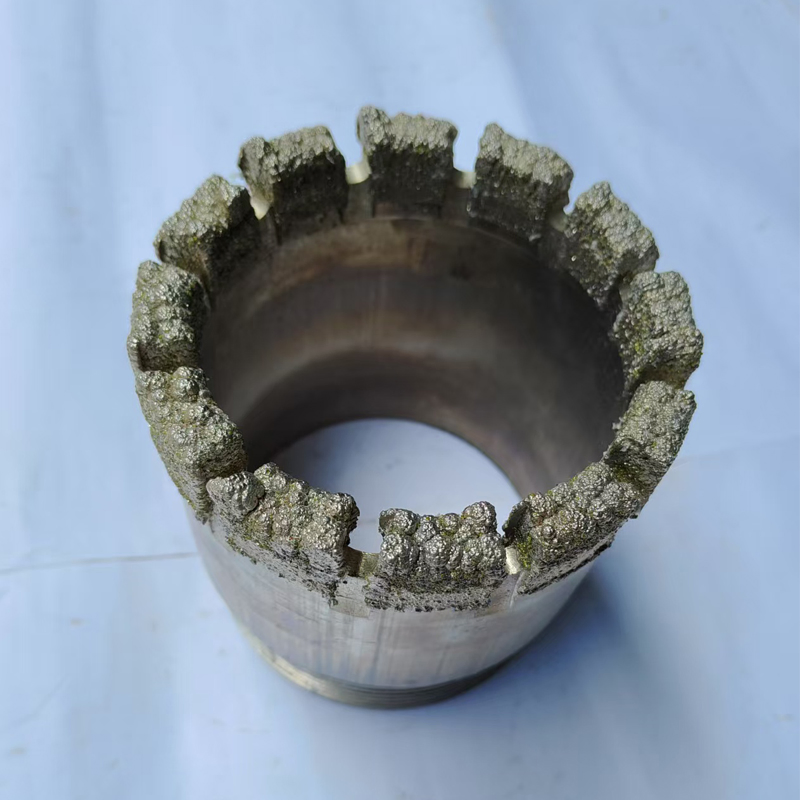

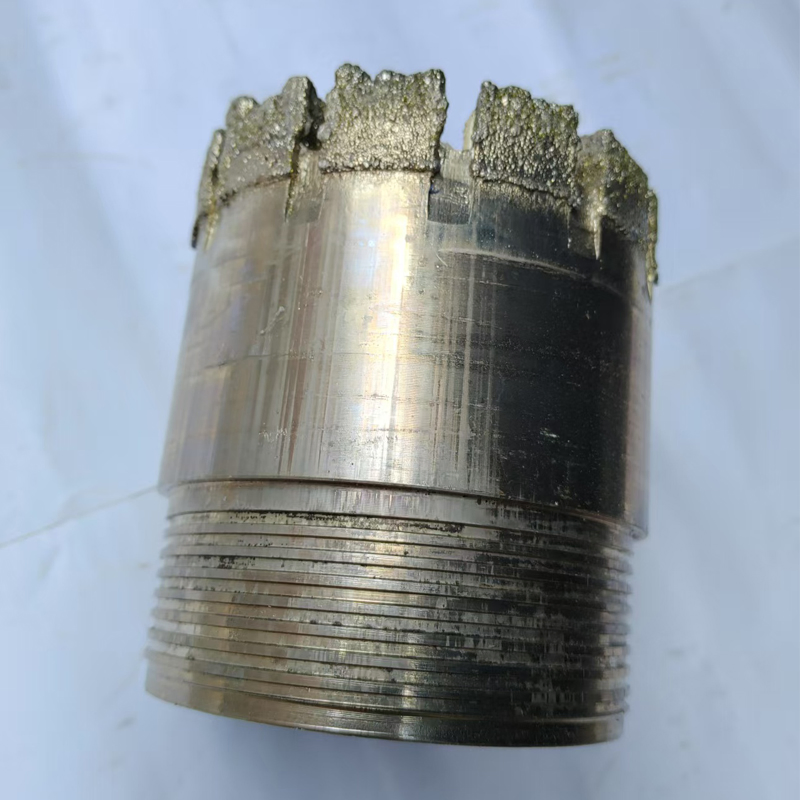

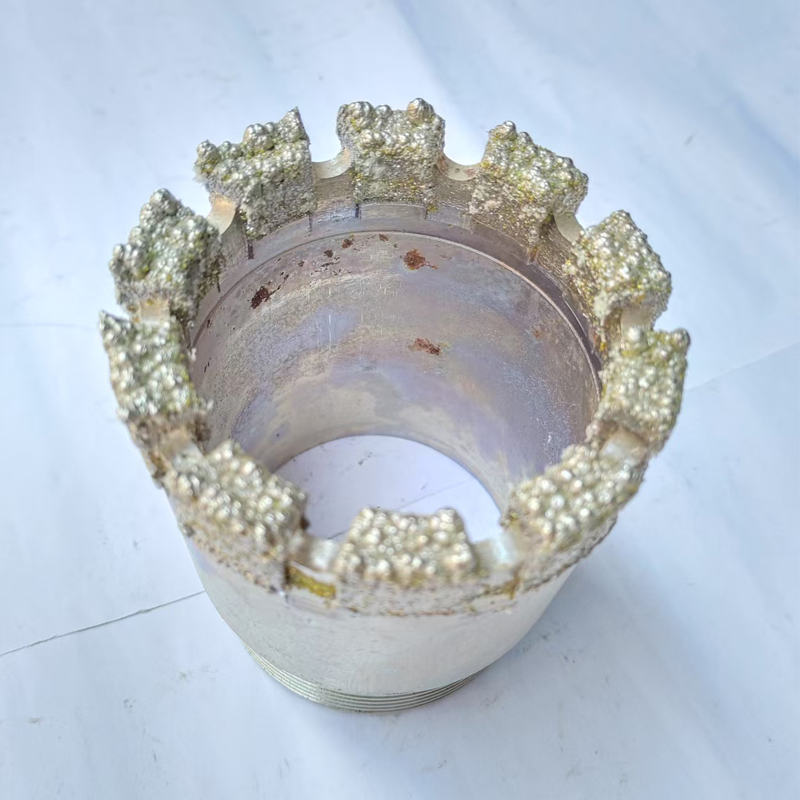

Outstanding Quality Impact Resistance Micro Impregnated Core Diamond Drill Bits

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Product Overview

Electroplated Diamond Drilling Bit is engineered for exceptional wear resistance and precision. It is ideally suited for drilling demanding materials such as granite, quartz, marble, basalt, gneiss, and other medium-to-hard formations. Its specialized design effectively prevents slipping even when operating in challenging fractured formations.

Model NO.

LH-DB

Type

Core Drill Bit

Material

Diamond

Manufacturing

Forging Process

Advantage

Wear Resistant

Usage

Well & Masonry Drilling

HS Code

8207191000

Capacity

50,000 Pcs/Year

Applications & Performance

Geological Exploration: Core drilling for coalfields and metallurgical mines.
Infrastructure Projects: Core engineering for highways, railways, bridges, and housing.
Foundation Treatment: Reinforcement drilling in riverbeds and fractured strata.
Hydrological Construction: Large caliber engineering for wells and building pile foundations.
Monitoring & Sampling: Precise concrete and rock mass sampling.

Technical Specifications

Core Barrel Specs	Outside Set Diameter (mm)		Inside Set Diameter (mm)
Core Barrel Specs	Maximum	Minimum	Maximum	Minimum
AQ	47.75	47.5	27.1	26.85
BQ	59.69	59.44	36.52	36.27
NQ	75.44	75.19	47.75	47.5
HQ	95.76	95.38	63.63	63.38
PQ	122.3	121.8	85.09	84.84
T2-101	101.12	100.8	83.92	83.57
T6-101	101.12	100.8	79.12	78.87

* Note: Non-standard sized bits can be produced according to specific requirements.

Detailed Product Views

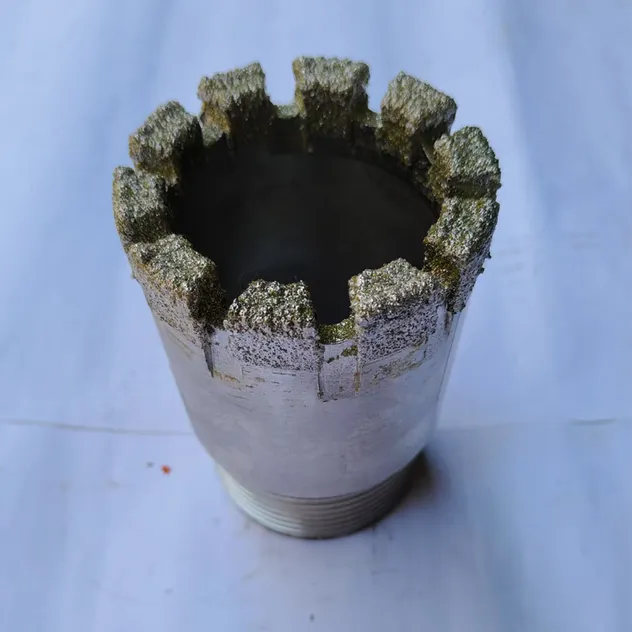

Top View

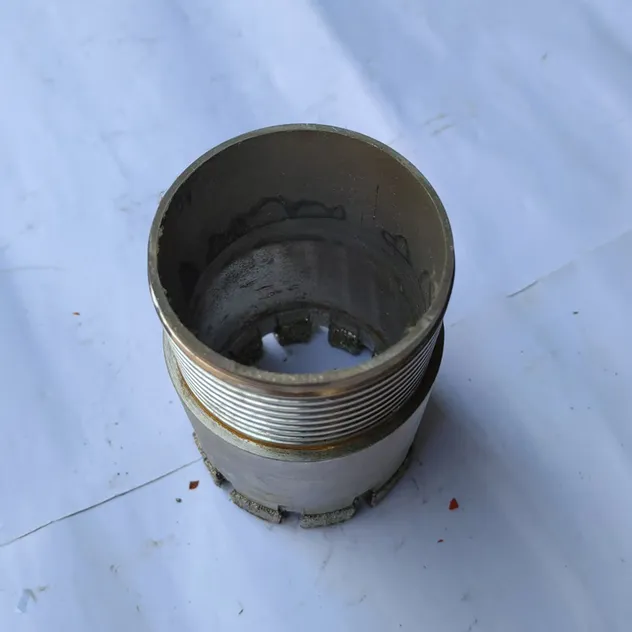

Bottom View

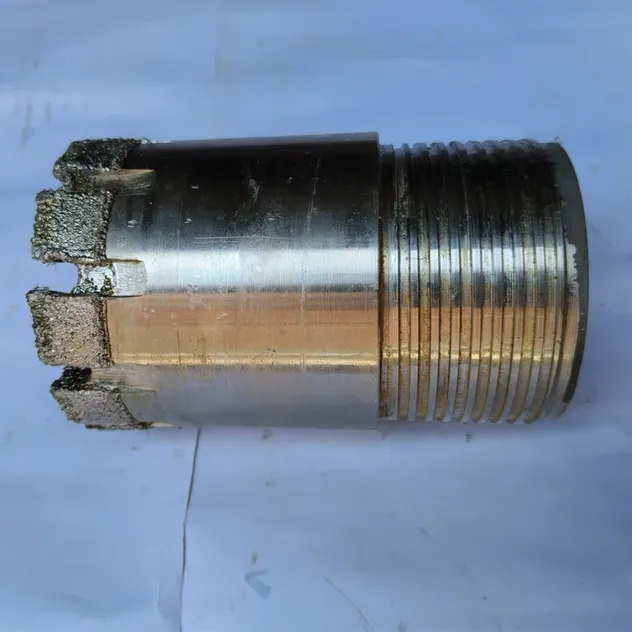

Whole Body

Key Advantages

Impregnated Diamond Bit: Special metal-coated diamonds to significantly extend working life.
Surface Set Technology: High-grade natural diamonds for fast drilling in soft and abrasive formations.
Versatile Matrix Height: Available from 7mm to 25mm to optimize drilling speed.
Diverse Designs: Standard V-ring, Turbo, Face discharge, Flat face, Stepped, and Vortex types available.

Service & Support

Warranty

12 Months Standard Warranty

Technical Support

24/7 Global Assistance

Training

On-site or Remote Maintenance Training

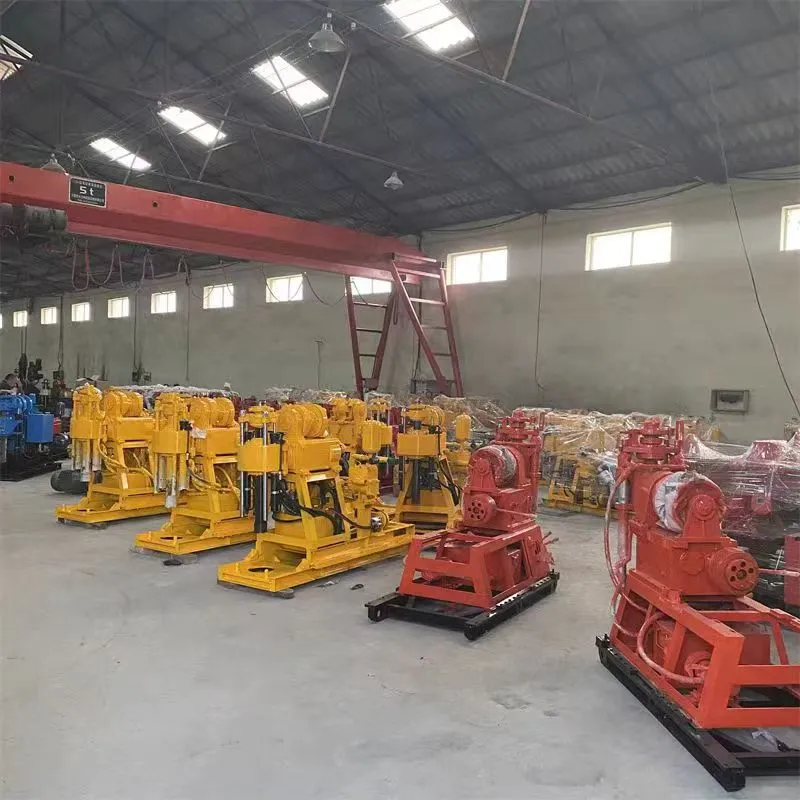

Production & Capability

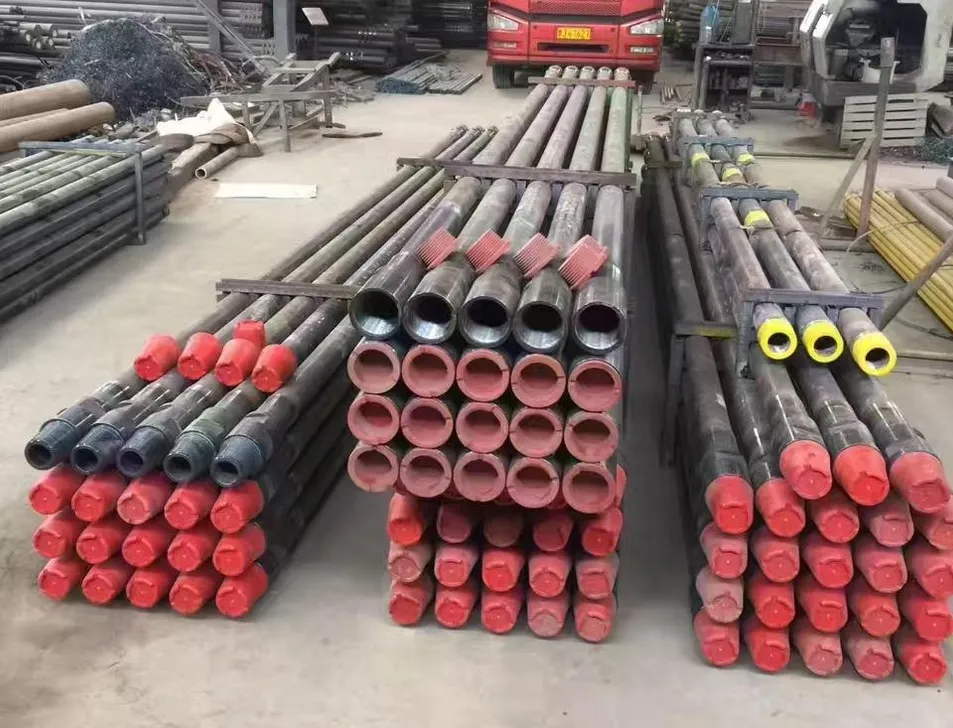

We specialize in the processing and sales of water well drill rigs, core drill rigs, and exploration equipment. Our expertise includes high-performance diamond drill bits and various crawler transporters used in national infrastructure, water conservancy, and port construction projects.
