Basic Specifications
Card Dimension
86*54*(0.5-1.5)mm
Power Supply
~220V 50/60Hz

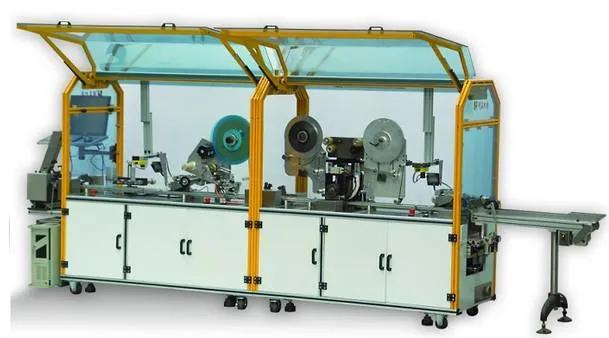

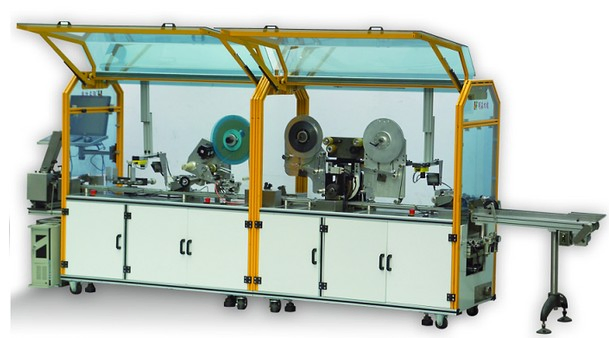

Product Workflow
Feeder ➔ Double card inspector ➔ Inkjet printing ➔ Printing inspection ➔ Rotary hot stamping ➔ Card collector
Key Features
- Safety & Reliability: Well secure the coded info from disclosure and minimize accidental errors.
- Filming Accuracy: Longitudinal < ± 0.8mm; Transverse ± 0.2mm.
- High Speed: System speed up to 25,000pcs/h depending on card condition.
- Patented Technique: Latest rotary hot stamping technique applies multi strips at the same line.
- Intelligent Control: Central control with touch screen operation and free mould combination.
- Quality Inspection: Automatic inspection for inkjet printing and filming quality to reject defective cards.
Main Stations
1 Card feeder; 1 Double card detector; 2 Imaje 9030 printers; 1 OCR inspector; 1 Rotary hot stamping (4 lines); 1 Card collector.
Technical Parameters
| Technical Data Sheet |
| Speed | 25,000 cards/h |
| Card Dimension | 86×54mm or smaller |
| Card Thickness | 0.5mm - 2mm |
| Accuracy | Length ±0.8mm; Width ±0.2mm |
| Ambient Temperature | 0-40ºC |
| Humidity | 15~90% |
| Machine Dimension | 1900×850×1550mm |

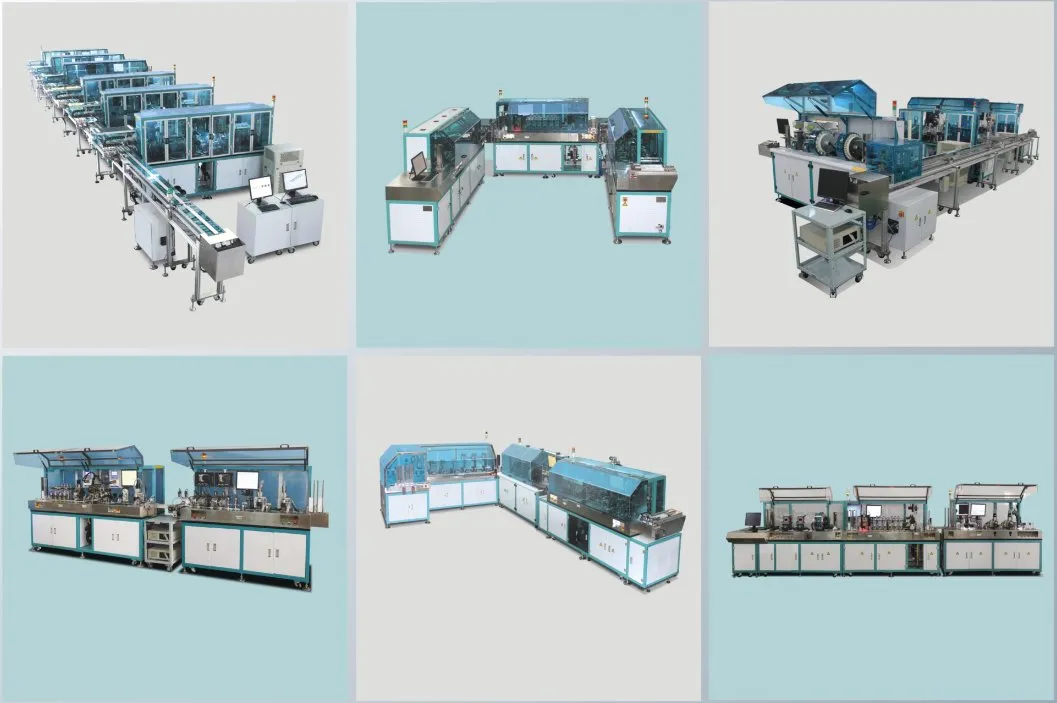

Production Line Showcase
Certificates & Global Presence
Frequently Asked Questions
What is the maximum production speed of the HDR500?
The system can achieve a high-speed throughput of up to 25,000 pieces per hour, depending on the card type and printing requirements.
What card sizes and thicknesses are compatible?
It supports standard 86×54mm cards with a thickness range of 0.5mm to 2mm.
How does the machine handle defective cards?
The machine is equipped with an OCR inspector and filming quality inspection system that automatically detects and rejects wrongly printed or improperly labeled cards.
What kind of hot stamping technology is used?
It utilizes a patented rotary hot stamping technique that allows for multi-strip application in normal or economical modes.
Is after-sales support available for this equipment?
Yes, we provide engineer on-site service to ensure the smooth operation and maintenance of the production line.
