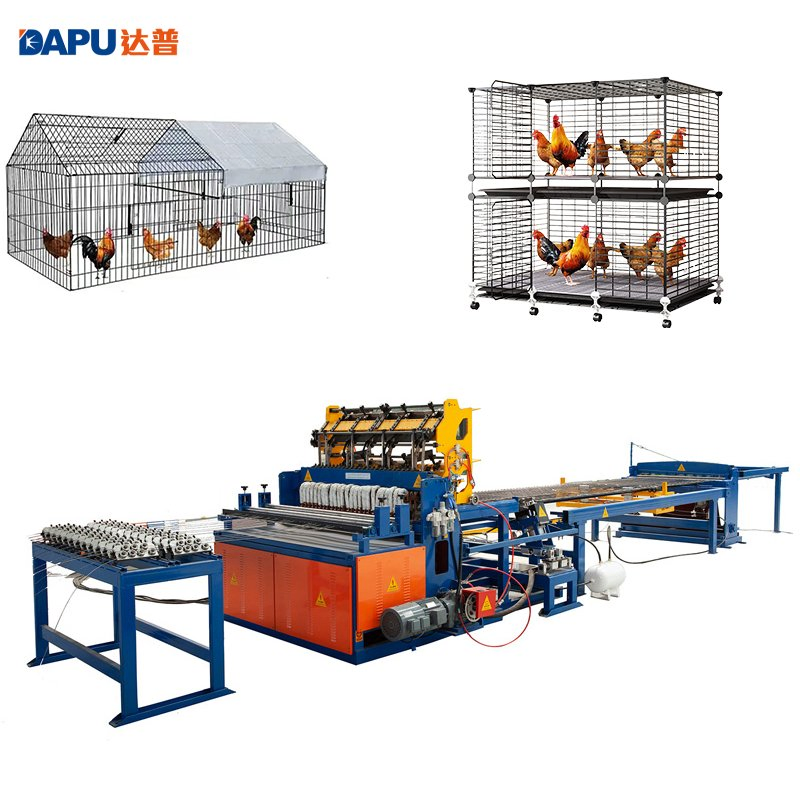

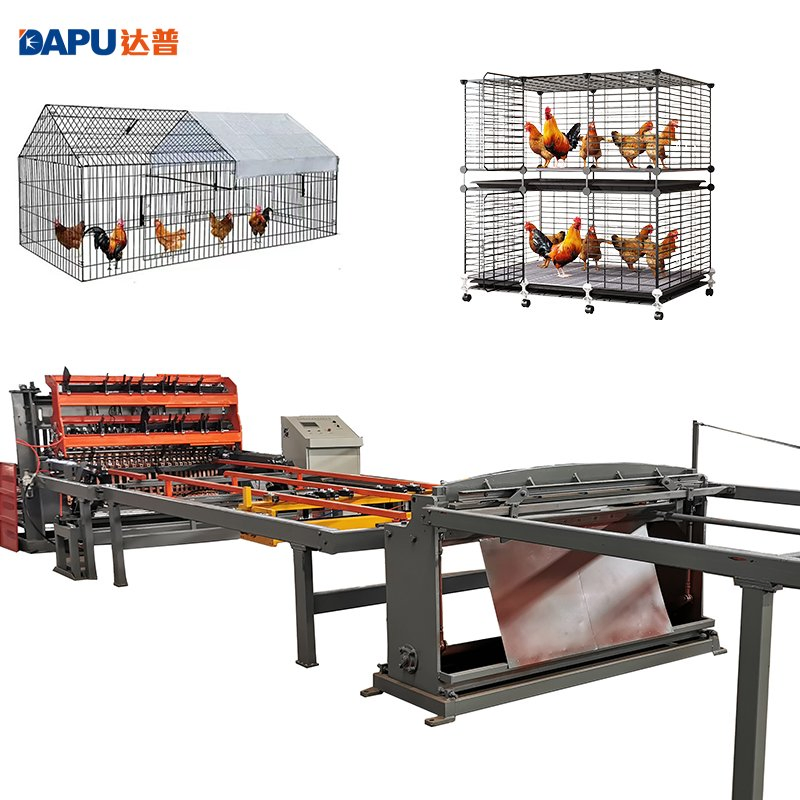

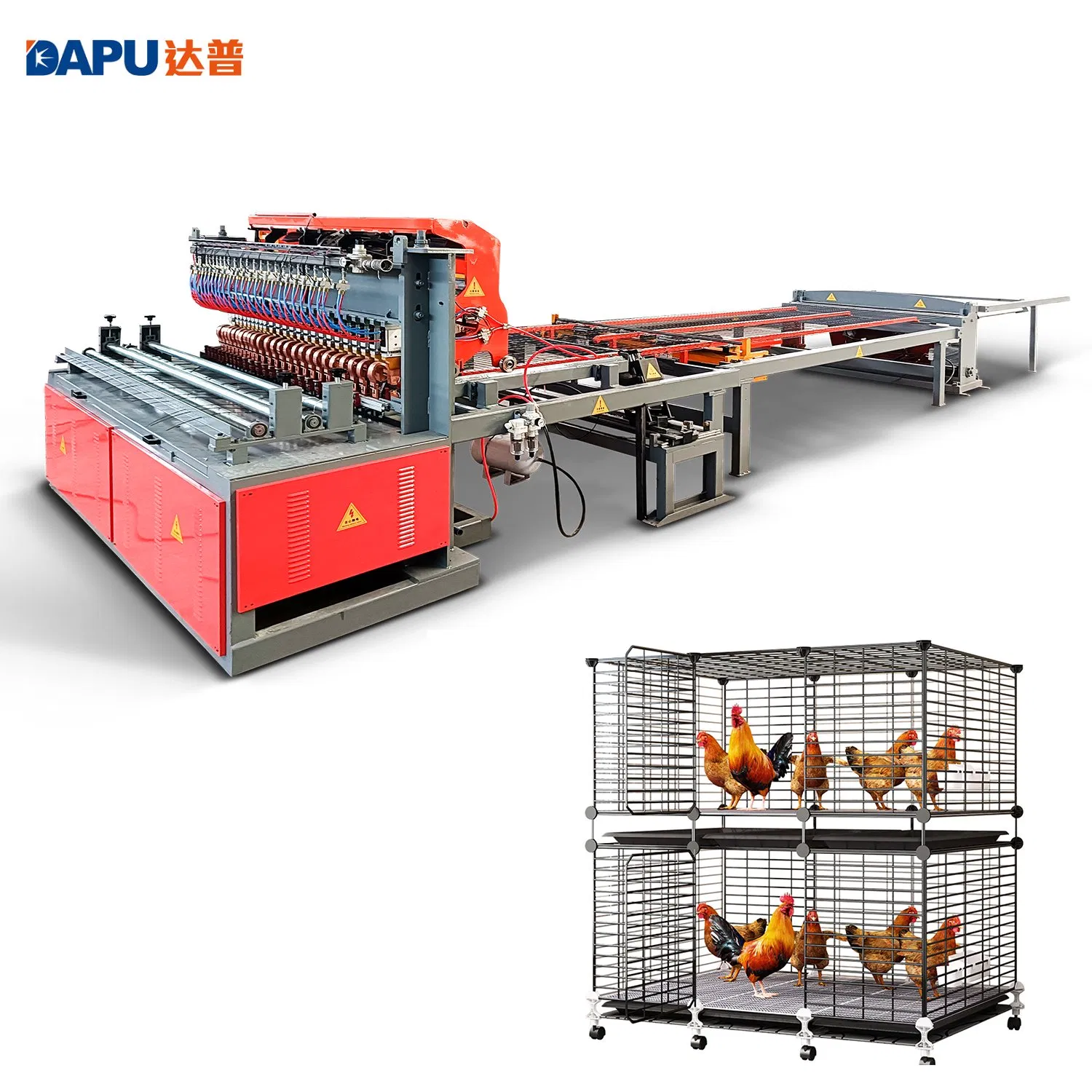

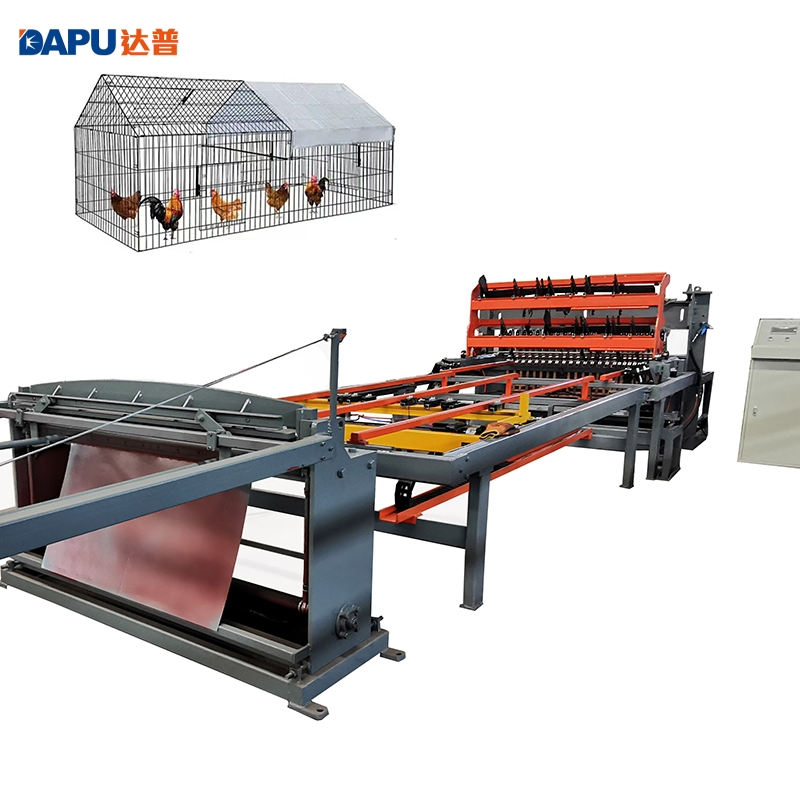

Cage Mesh Panel Welding Machine for Feeding Chicken
Cage Mesh Panel Welding Machine for Feeding Chicken
Cage Mesh Panel Welding Machine for Feeding Chicken
Cage Mesh Panel Welding Machine for Feeding Chicken
Cage Mesh Panel Welding Machine for Feeding Chicken
1 / 5
Cage Mesh Panel Welding Machine for Feeding Chicken
Cage Mesh Panel Welding Machine for Feeding Chicken
Cage Mesh Panel Welding Machine for Feeding Chicken
Cage Mesh Panel Welding Machine for Feeding Chicken
Cage Mesh Panel Welding Machine for Feeding Chicken

Cage Mesh Panel Welding Machine for Feeding Chicken

Customization: Available
Cooling Way: Water Cooling
Control: PLC
Send Inquiry

Product Description

Automatic Layer Poultry Chicken Cage Livestock Machinery Wire Mesh Welding Making Machine

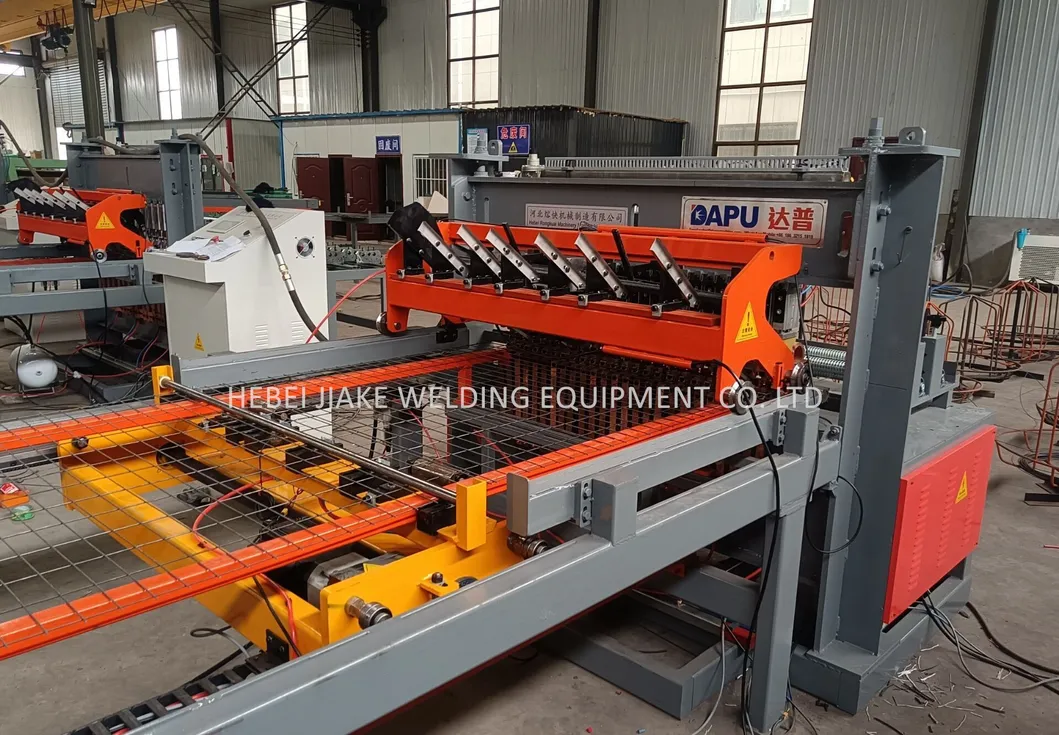

Cage Mesh Panel Welding Machine
  • This is our new developed chicken cage welding machine.
  • Pneumatic welding, controlled by SMC (Japan) air cylinders, speed 120 times per minute.
  • Panasonic servo motor for pulling mesh, cross wire space can be adjusted by PLC. Change whatever size you need easily.
  • Cast water-cooling transformers, longer service life.
  • The longitude wires are fed from wire coils automatically. The cross wires are pre-straightened & pre-cut, then fed automatically.
Basic Information
Model NO.
DP-AW-1200H
Style
Vertical
Welding Way
Resistance Welding
Type
Pneumatic
Wire Diameter
2-3.5mm
Longitude Wire Space
50-200mm
Cross Wire Space
25-200mm or Smaller
Mesh Width
Max.1.2m/1.5m
Welding Speed
Max.140 Times/Min
Welding Transformers
125kVA*3PCS
Guarantee Time
2 Years
Certificate
CE
Usage
Chicken Cage or Construction Mesh
HS Code
8515809090
Technical Parameters
Model DP-AW-1200H DP-AW-1500H DP-AW-1600H
Wire diameter2-3.5mm/2-4mm
Longitude wire spaceMostly 50-200mm (Min. 25*25mm customizable)
Cross wire spaceMin. 25mm or smaller (PLC control)
Mesh widthMax. 1200mmMax. 1500mmMax. 1600mm
Welding electrodes25pcs32pcs32pcs
Welding transformer125kva*3pcs125kva*4pcs125kva*4pcs
Welding speedMax. 130 times/min
Weight3100kg3600kg3840kg
Electric Control System

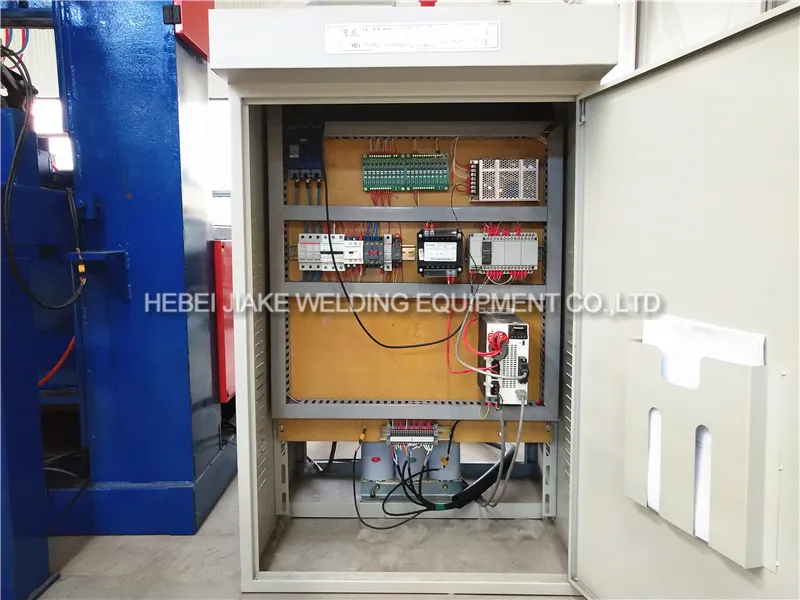

Electric control cabinet
  • Panasonic (Japan) PLC
  • Weinview (Taiwan) touch screen
  • France low-voltage apparatus
  • ABB (Switzerland Sweden) switch
  • Omron (Japan) power supply
  • Panasonic (Japan) servo drive
  • Infineon (Germany) SCR
Welding & Product Details

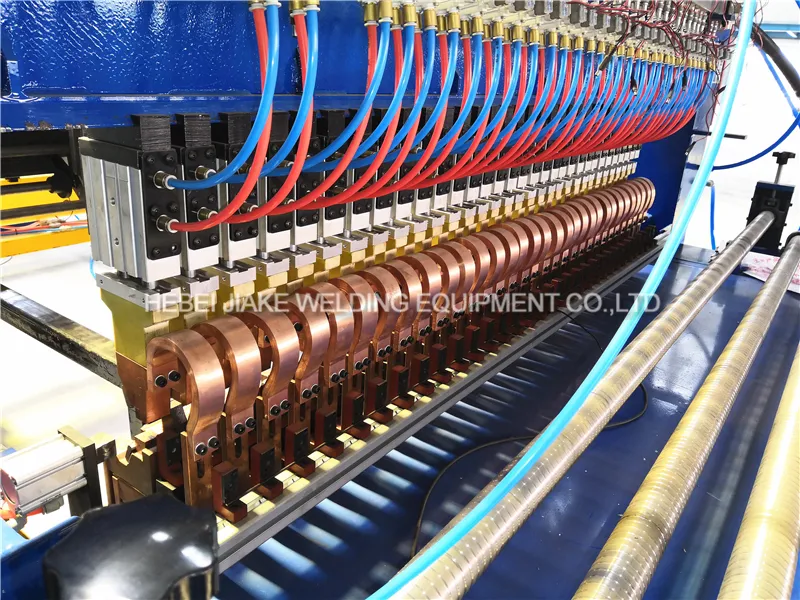

Welding Part 1

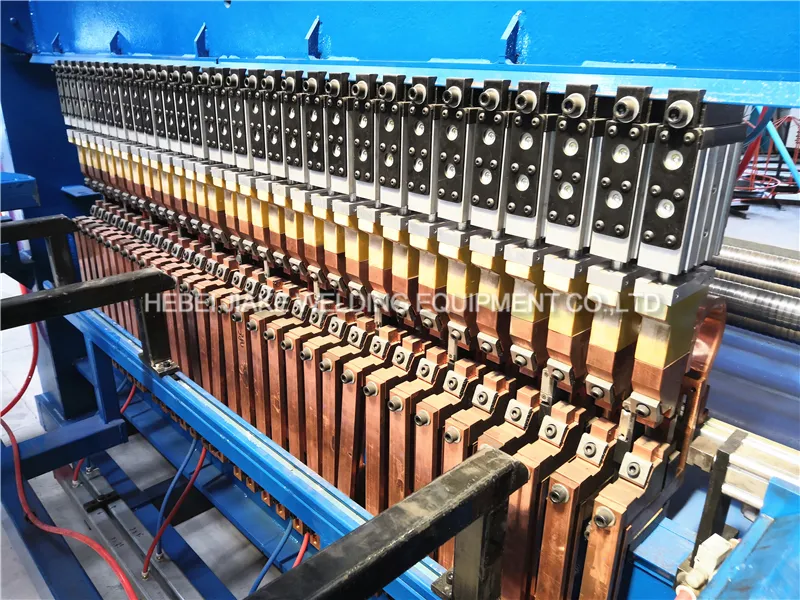

Welding Part 2

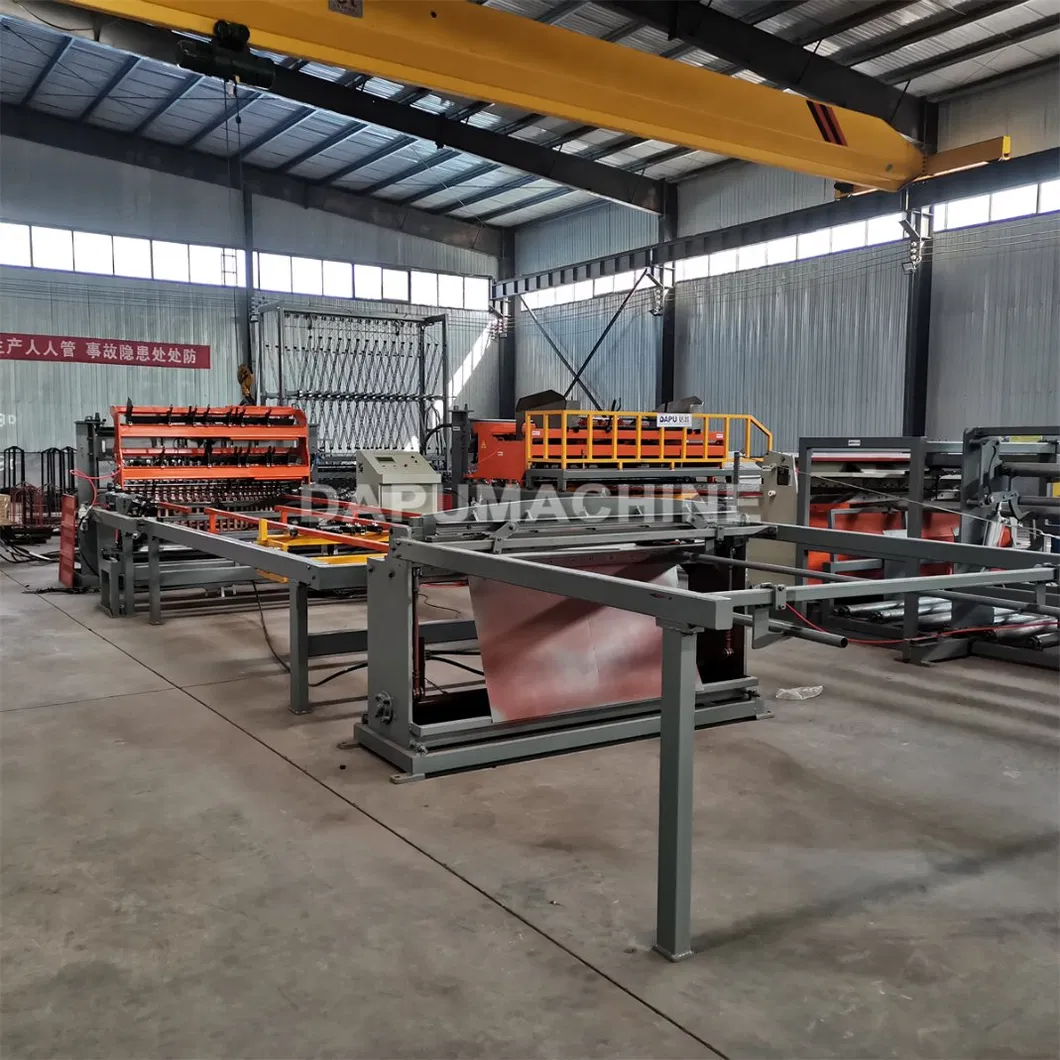

Mesh Output 1

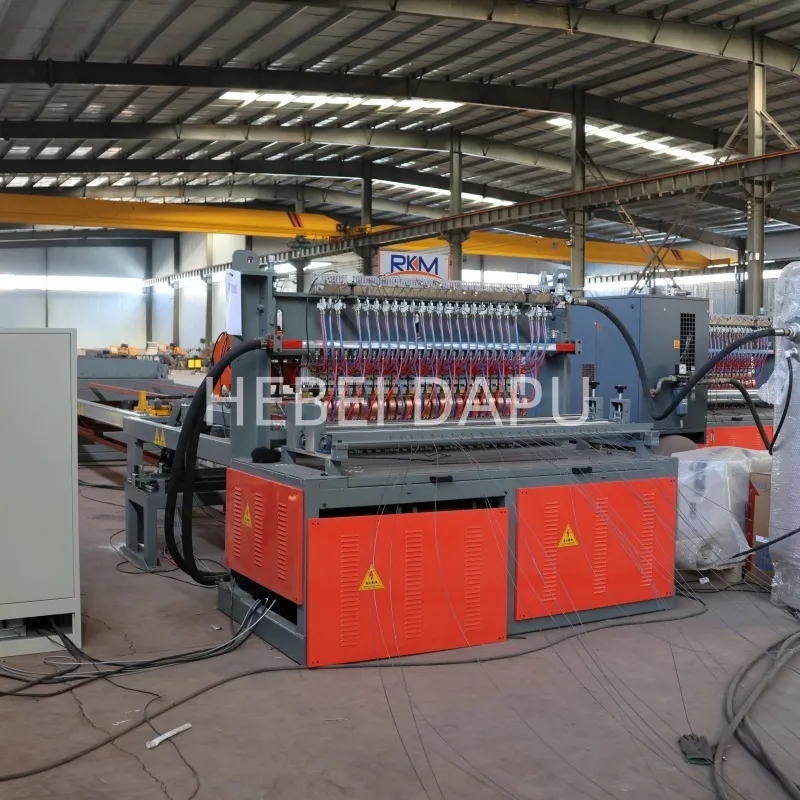

Mesh Output 2

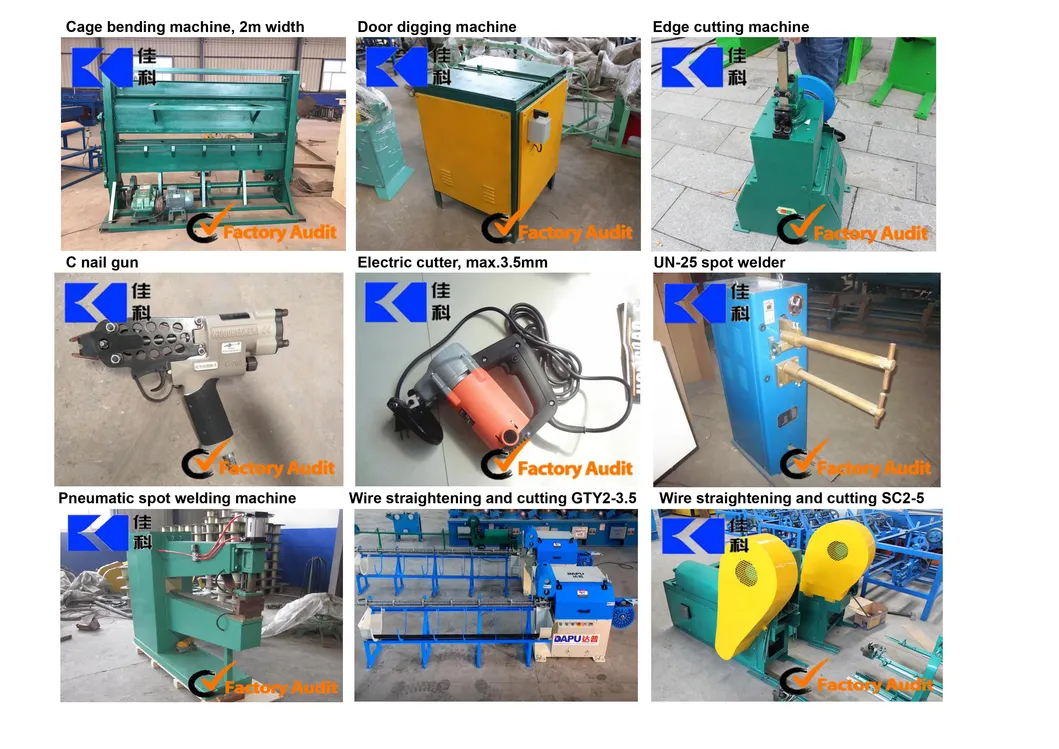

Auxiliary Equipment
Auxiliary Equipment
Frequently Asked Questions (FAQ)
Q1: What is the maximum welding speed of this machine?
The machine features a high-speed pneumatic system capable of reaching up to 140 times per minute, ensuring high production efficiency.
Q2: Can I adjust the wire spacing for different mesh sizes?
Yes, the cross wire space is controlled by a Panasonic PLC system, allowing you to easily adjust and set the specific sizes you need via the touch screen.
Q3: What range of wire diameters can this equipment handle?
The machine is specifically designed to handle wire diameters ranging from 2mm to 3.5mm, and up to 4mm on certain models.
Q4: What are the main electrical components used?
We use high-quality international brands including Panasonic PLC and servo drives, SMC air cylinders, ABB switches, and Weinview touch screens for stability.
Q5: How are the longitudinal and cross wires fed into the machine?
Longitudinal wires are fed automatically from wire coils, while cross wires should be pre-straightened and pre-cut, then fed automatically by the cross wire feeder.
Q6: What is the warranty period for this livestock machinery?
The machine comes with a 2-year guarantee time, providing long-term reliability for your production line.
