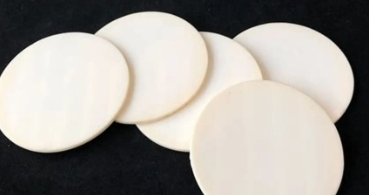

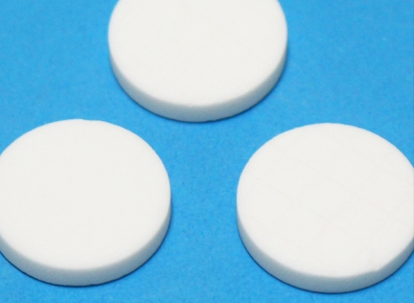

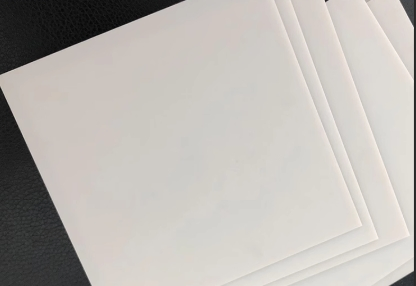

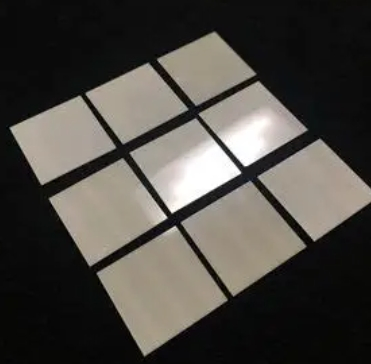

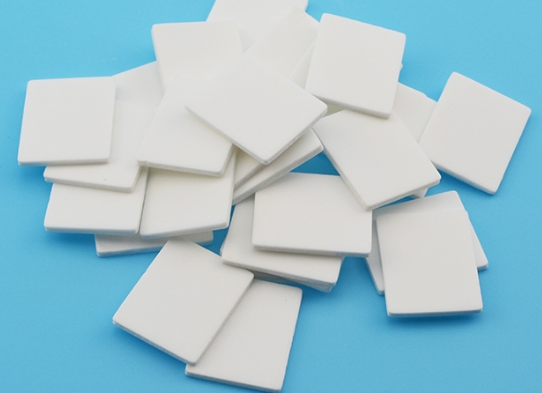

Bio-Inert 99% Alumina Component for Surgical Instruments

1 / 5

Bio-Inert 99% Alumina Component for Surgical Instruments

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

100*100*3.5 140*140*3.5

Purity

99%

Type

Ceramic Plate

Main Material

Andalusite, Alumina

Working Temperature

1400 - 1800°C

Flatness

<0.5mm

Colour

White, Ivory, Cream

HS Code

8547100000

Advanced Ceramic Solution

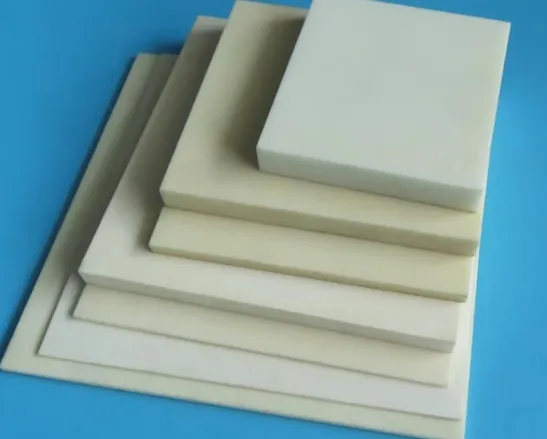

The Ultra-Pure 99% Alumina Ceramic Plate is a high-performance engineered ceramic component designed for extreme environments. Manufactured with 99% purity alumina (Al₂O₃), it delivers superior performance in temperatures up to 1600°C (2912°F), making it ideal for semiconductor processing and high-temperature furnaces.

Key Features & Benefits

⚡ Exceptional Electrical Insulation: Dielectric Strength ≥15 kV/mm; Volume Resistivity >10¹⁴ Ω·cm at 500°C.
🔥 Extreme Thermal Stability: Continuous operation at 1600°C with low thermal expansion and high thermal cycle resistance.
🛠️ Superior Mechanical Properties: Vickers Hardness ≥1500 HV; Compressive Strength >2200 MPa.
🧪 Chemical Inertness: High resistance to acids, alkalis, and molten metals with zero outgassing.

Technical Specifications

Property	Value
Al₂O₃ Purity	99%
Density	3.89 g/cm³
Flexural Strength	380 MPa
Surface Roughness (Polished)	Ra ≤0.1 μm
CTE (25-800°C)	7.2 × 10⁻⁶/°C

Applications & Customization

Common Applications: Semiconductor wafer processing trays, CVD fixtures, wear-resistant liners, and insulating substrates for RF windows.

Customization Options: Available in sizes from 10mm to 500mm, thicknesses from 0.5mm to 30mm, and finishes including polished or laser-engraved surfaces.

Frequently Asked Questions

What is the maximum working temperature of these plates?

The 99% alumina ceramic plates can withstand continuous operating temperatures up to 1600°C, with some grades reaching up to 1800°C depending on the specific application environment.

Can the ceramic plates be customized to specific sizes?

Yes, we offer full customization. Sizes range from 10x10mm up to 500x500mm, with thicknesses varying from 0.5mm to 30mm. Custom holes and grooves can also be added.

Is the material suitable for vacuum environments?

Absolutely. Our alumina ceramics feature zero outgassing in vacuum environments (up to <10⁻⁹ Torr), making them ideal for semiconductor and cleanroom applications.

How does alumina compare to steel in terms of wear resistance?

99% Alumina has a Vickers Hardness of ≥1500 HV, providing a lifespan that is often 10 times longer than steel in highly abrasive industrial environments.

What quality standards do these products meet?

Our products are compliant with ASTM F2880 and ISO 6474-1 standards. Each batch undergoes XRF purity verification and ultrasonic flaw detection to ensure maximum reliability.
