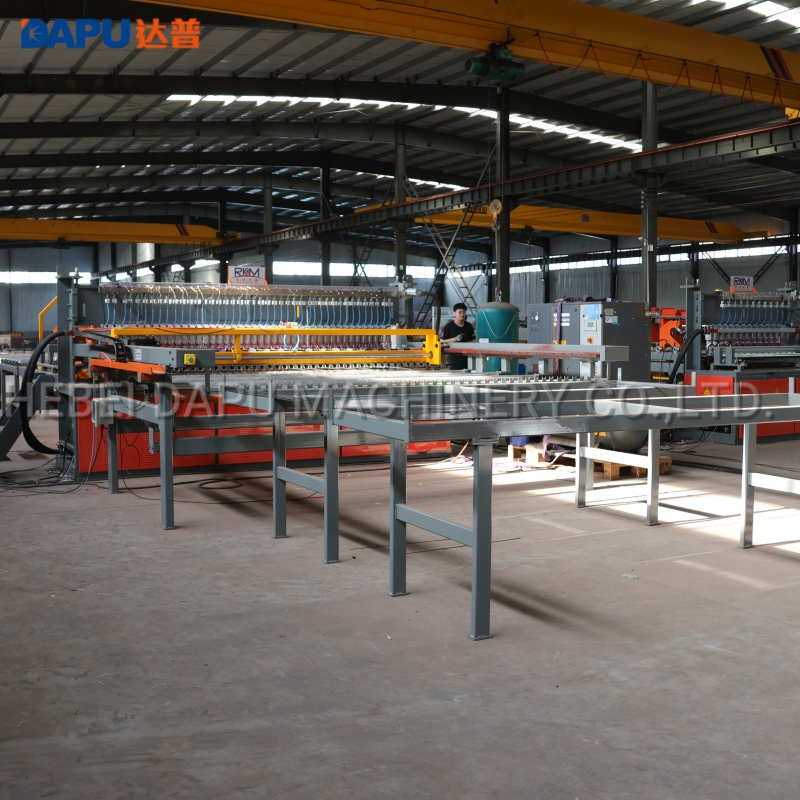

Layer Cage Mesh Panel Welding Machine Fully Automatic and High Speed

Customization:	Available
Cooling Way:	Water Cooling
Control:	PLC

ℹ️

Basic Information

Model NO.

DP-AW-1200H

Style

Vertical

Welding Way

Resistance Welding

Type

Pneumatic

Wire Diameter

2-3.5mm

Longitude Wire Space

50-200mm

Cross Wire Space

25-200mm or Smaller

Mesh Width

Max.1.2m/1.5m

Welding Speed

Max.140 Times/Min

Guarantee Time

2 Years

Color

Blue & Yellow

Certificate

CE

Usage

Chicken Cage or Construction Mesh

Production Capacity

200 Sets Per Year

⚙️

Product Description

Automatic Layer Poultry Chicken Cage Livestock Machinery Wire Mesh Welding Making Machine

1

New developed chicken cage welding machine with optimized performance.

2

Pneumatic Welding: Controlled by SMC (Japan) air cylinders, achieving speeds up to 120 times per minute.

3

Panasonic Servo Motor: High precision mesh pulling; cross wire space is PLC-adjustable for easy size changes.

4

Water-Cooling Transformers: Cast construction ensures a longer service life.

5

Automatic Feeding: Longitude wires fed from coils automatically; cross wires pre-straightened and fed by automatic feeder.

📊

Technical Parameters

Model	DP-AW-1200H	DP-AW-1500H	DP-AW-1600H
Wire diameter	2-3.5mm / 2-4mm
Longitude wire space	Mostly 50-200mm (Min. 25*25mm customizable)
Cross wire space	Min. 25mm or smaller (PLC control)
Mesh width	Max. 1200mm	Max. 1500mm	Max. 1600mm
Welding electrodes	25pcs	32pcs	32pcs
Welding transformer	125kva*3pcs	125kva*4pcs	125kva*4pcs
Longitude feeding	From wire coils
Cross wire feeding	Pre-straightened & pre-cut
Welding speed	Max. 130 times/min
Weight	3100kg	3600kg	3840kg

📸

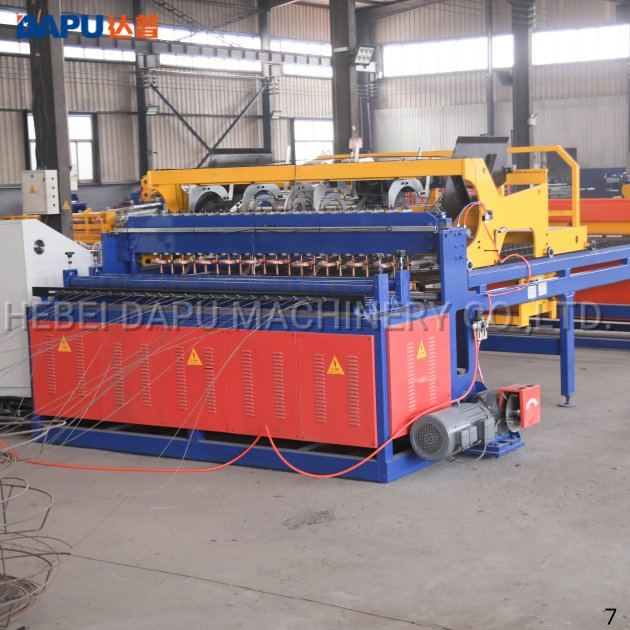

Detailed Photos

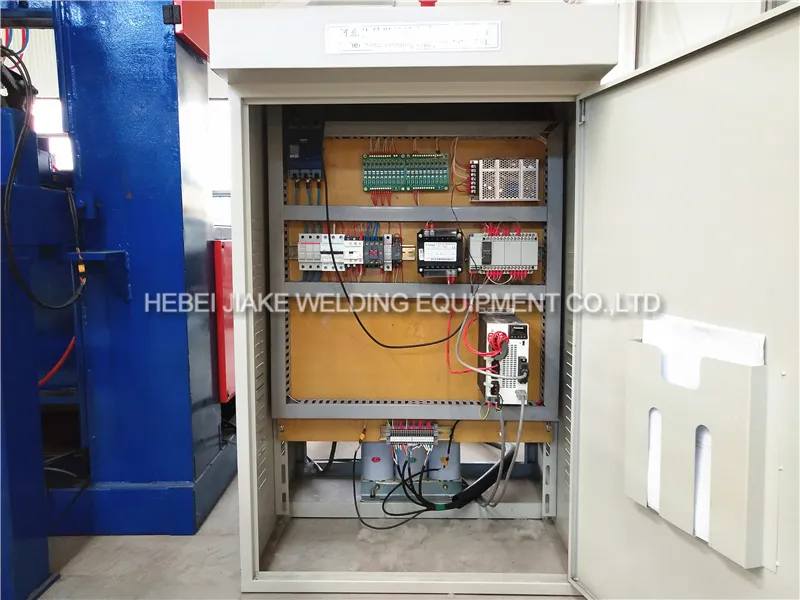

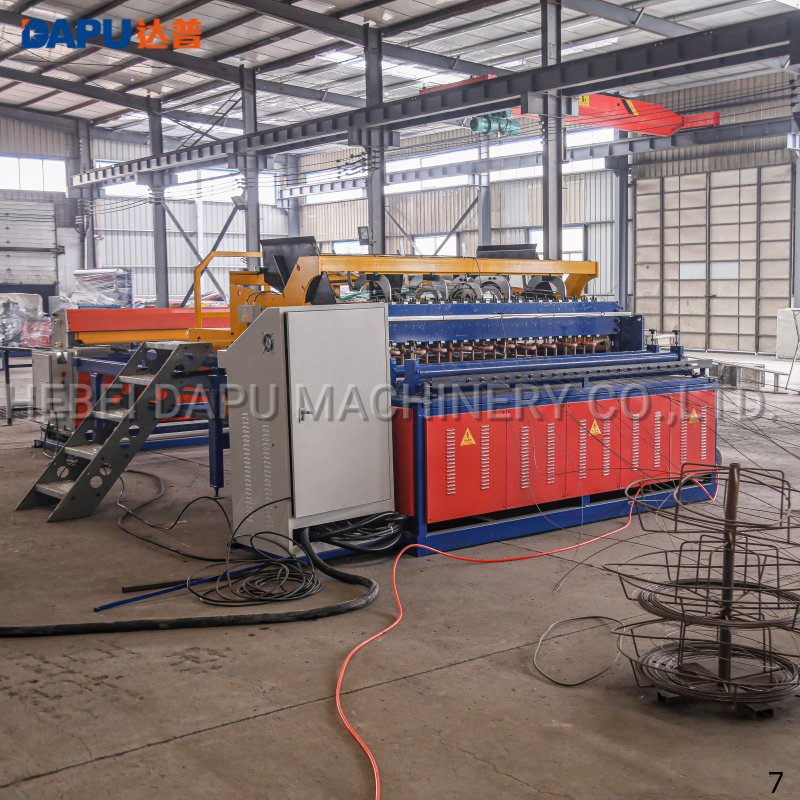

Electric Control Cabinet Components:

Panasonic (Japan) PLC & Servo Drive
Weinview (Taiwan) Touch Screen
ABB (Switzerland Sweden) Switch
Omron (Japan) Power Supply
Phoenix (Germany) Wire Terminal
Infineon (Germany) SCR

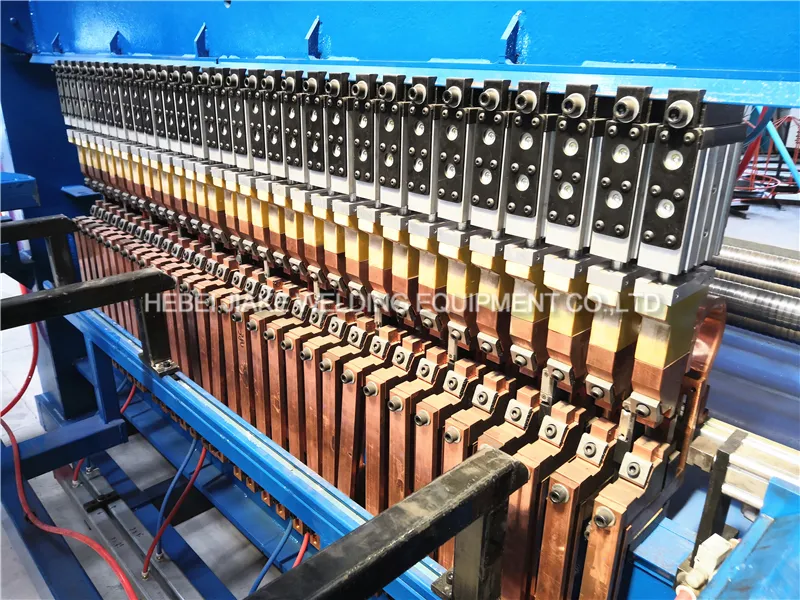

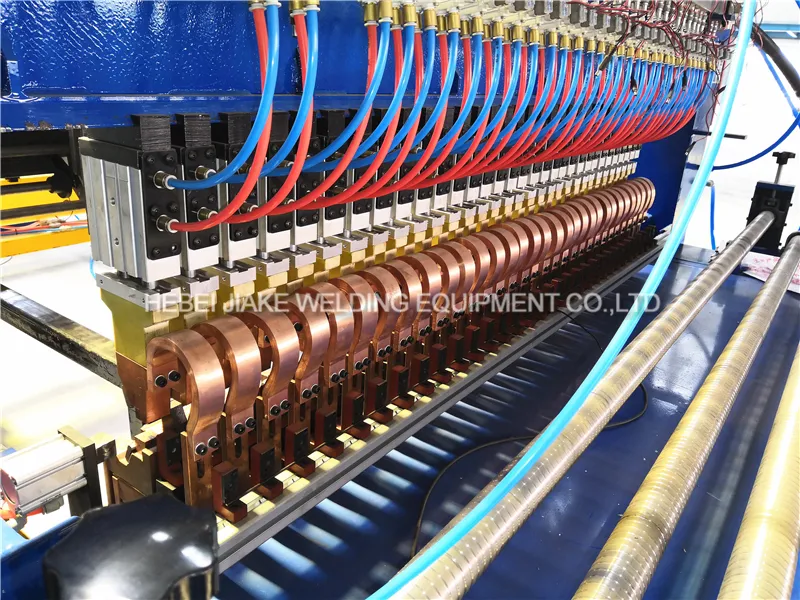

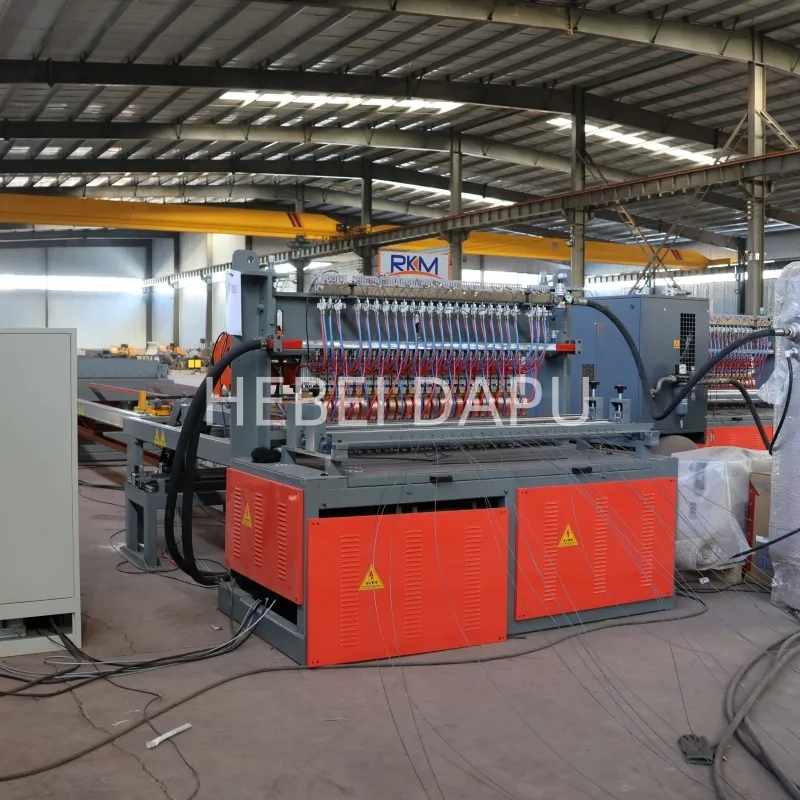

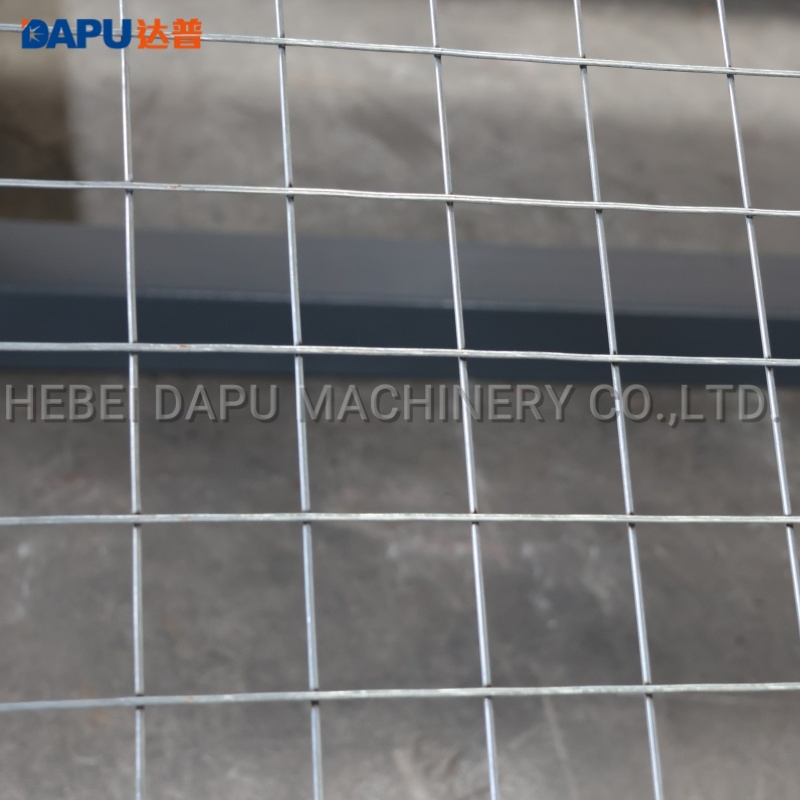

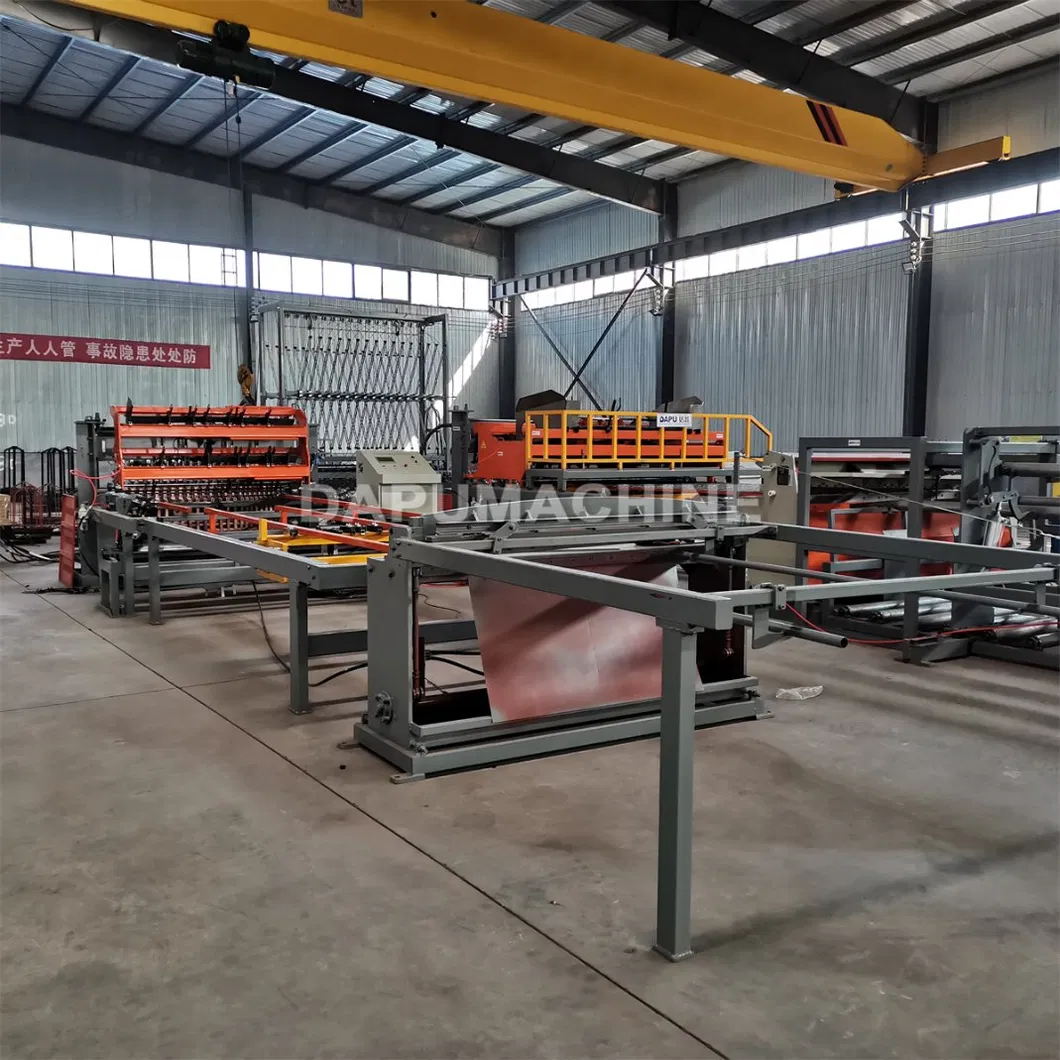

Welding Part Details:

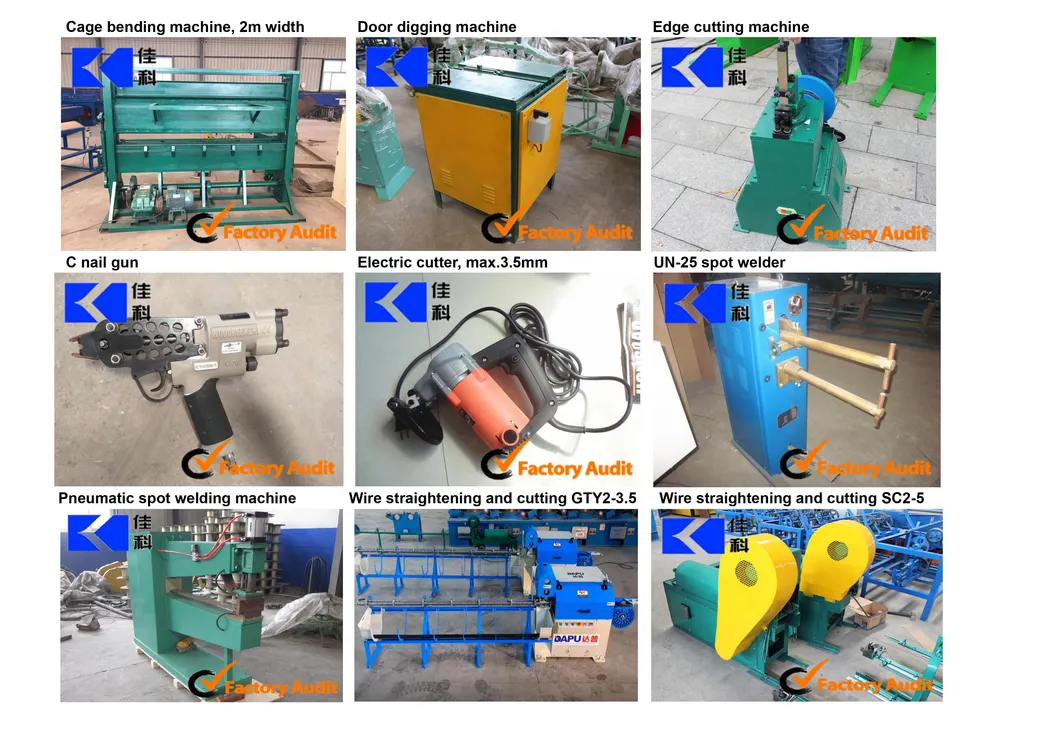

Auxiliary Equipment:

❓

Frequently Asked Questions

What is the welding speed of this machine?

The machine features high-speed pneumatic welding, reaching up to 140 times per minute, with a standard operating speed of approximately 120 times per minute.

Can I adjust the mesh size easily?

Yes, the cross wire space is controlled by a Panasonic servo motor and can be adjusted easily through the PLC touch screen to any size you require.

What wire diameters are compatible?

This machine is specifically designed for wire diameters ranging from 2.0mm to 3.5mm, and up to 4.0mm depending on the specific model configuration.

What brands are used for the electronic components?

We use world-renowned brands including Panasonic (PLC and Servo), SMC (Pneumatics), ABB (Switches), and Omron (Power Supply) to ensure stability and durability.

What is the guarantee period for the machine?

The machine comes with a 2-year guarantee, providing long-term reliability for your production line.

How are the wires fed into the machine?

Longitude wires are fed automatically from wire coils, while cross wires are pre-straightened and pre-cut, then fed automatically by a specialized cross wire feeder.
