Automated Vehicle Moving Equipment for Compact Motorized Car Mover

Customization: Available
After-sales Service: Online
Warranty: Online

Product Description

Basic Info.
Model NO.
ZM Series Car Pushing
Transmission Type
Automatic
Power
Electric Energy
Load Capacity
1-10t
Emission Standard
Zero Emission
Drive Wheel
4×2
Seats
≤5
Horsepower
150-250hp
Propulsion Capacity
Vehicles 20000 Kg
Machine Weight
38.5 Kg
Main Body Structure
Stainless Steel/Coupling Welding
Noise
Noise ≤ 65dB
Product Description

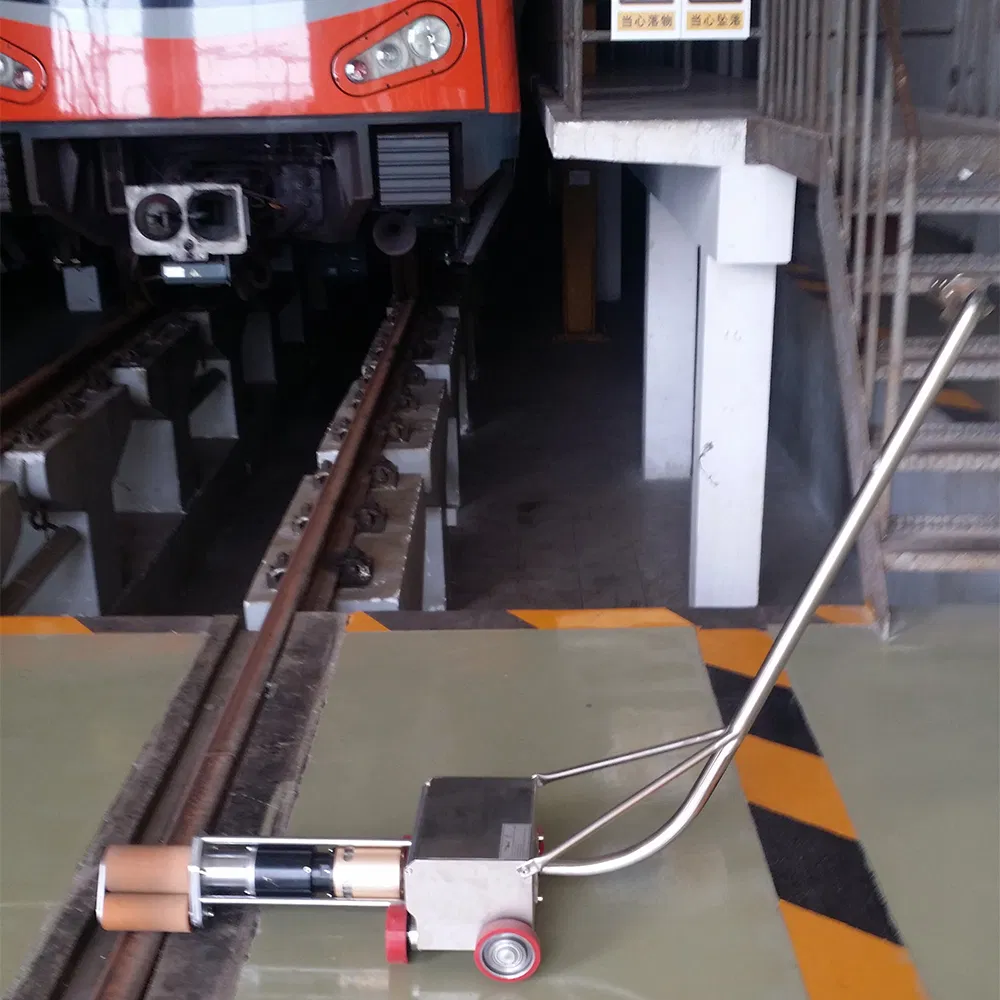

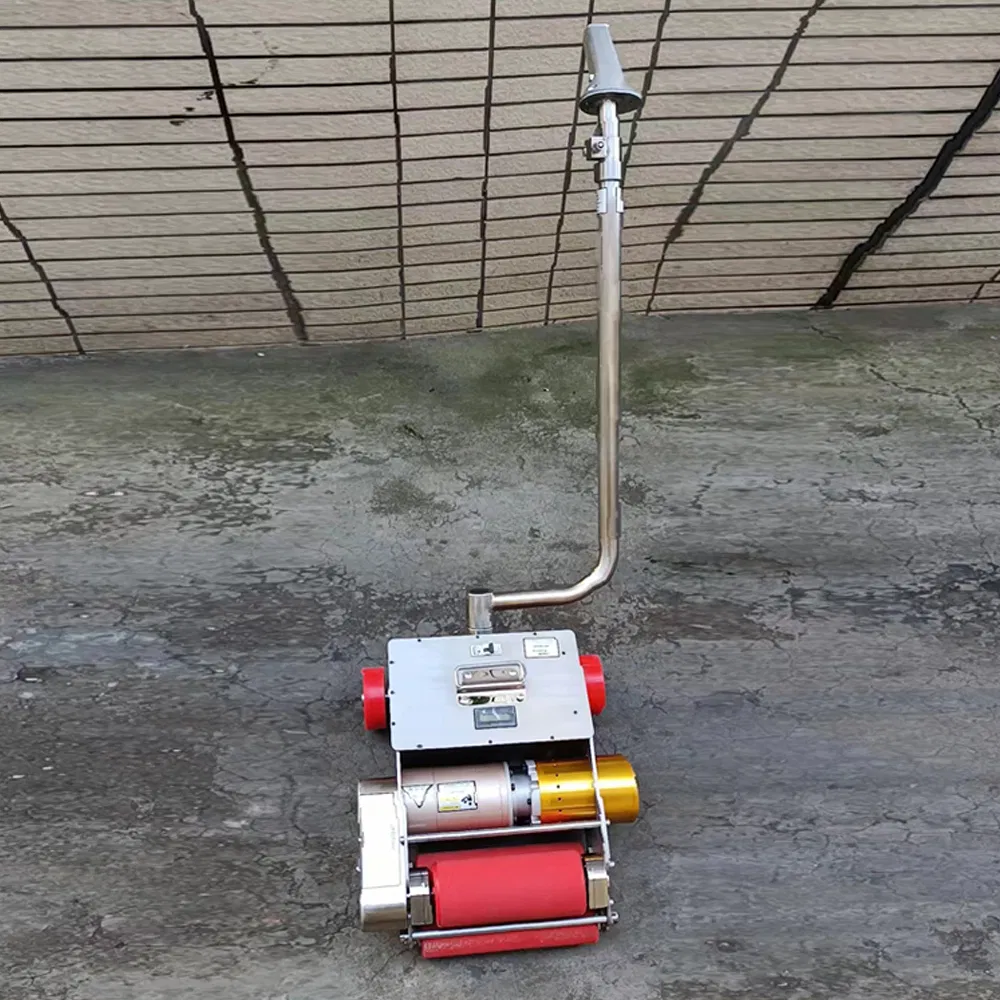

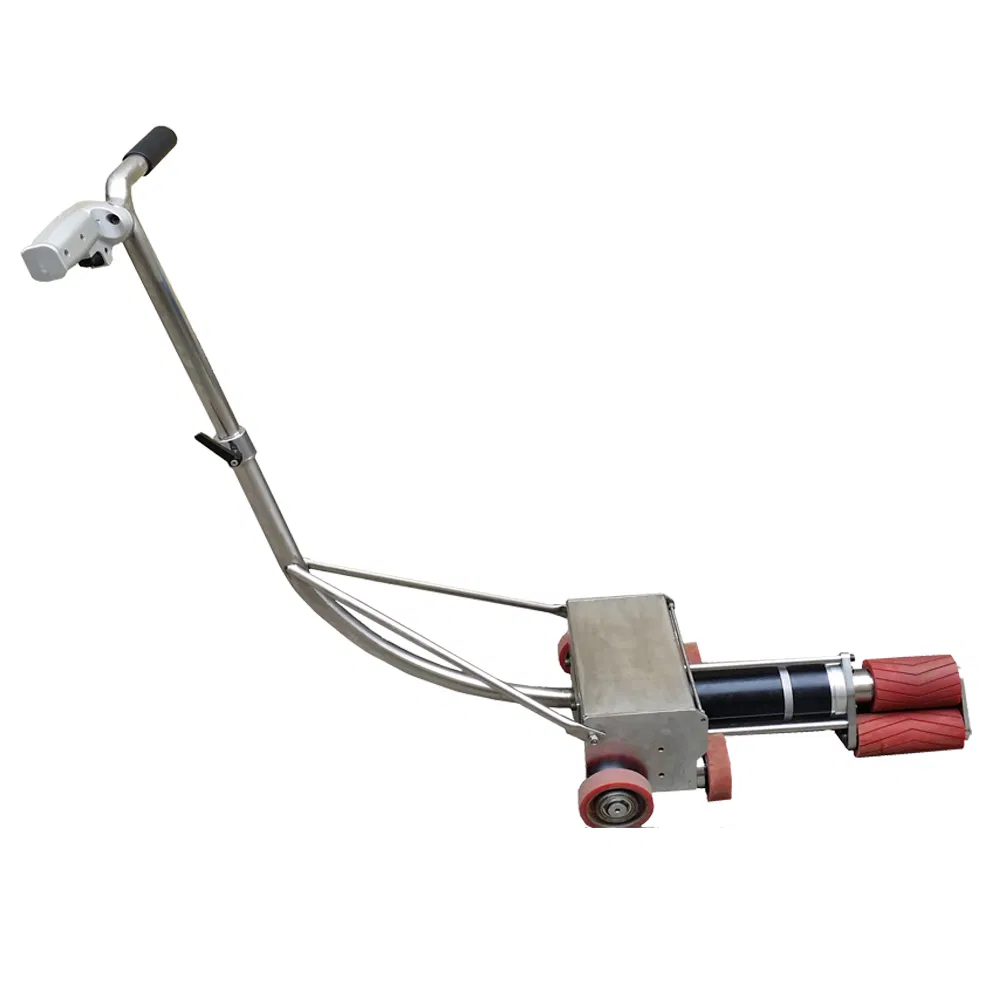

Automated Vehicle Moving Equipment
Motorized Car Mover Header

Discover the future of effortless transportation with our electric handheld vehicle pusher. This ingenious device can smoothly maneuver vehicles ranging from 50 to an impressive 80,000 kg, provided the wheel diameter is at least 450mm. Whether dealing with hefty rolled goods such as paper rolls, cable reels, or various carts, this equipment stands ready to make light work of heavy loads.

Vehicle Mover Application

Pushing capacity is the cornerstone of efficient heavy load management. Our cutting-edge technology harnesses the workpiece's innate weight, ingeniously converting either a portion or its entirety into the necessary load for optimal performance. This transformation is seamlessly transmitted to the drive wheel, thus achieving the desired pushing force with precision and ease.

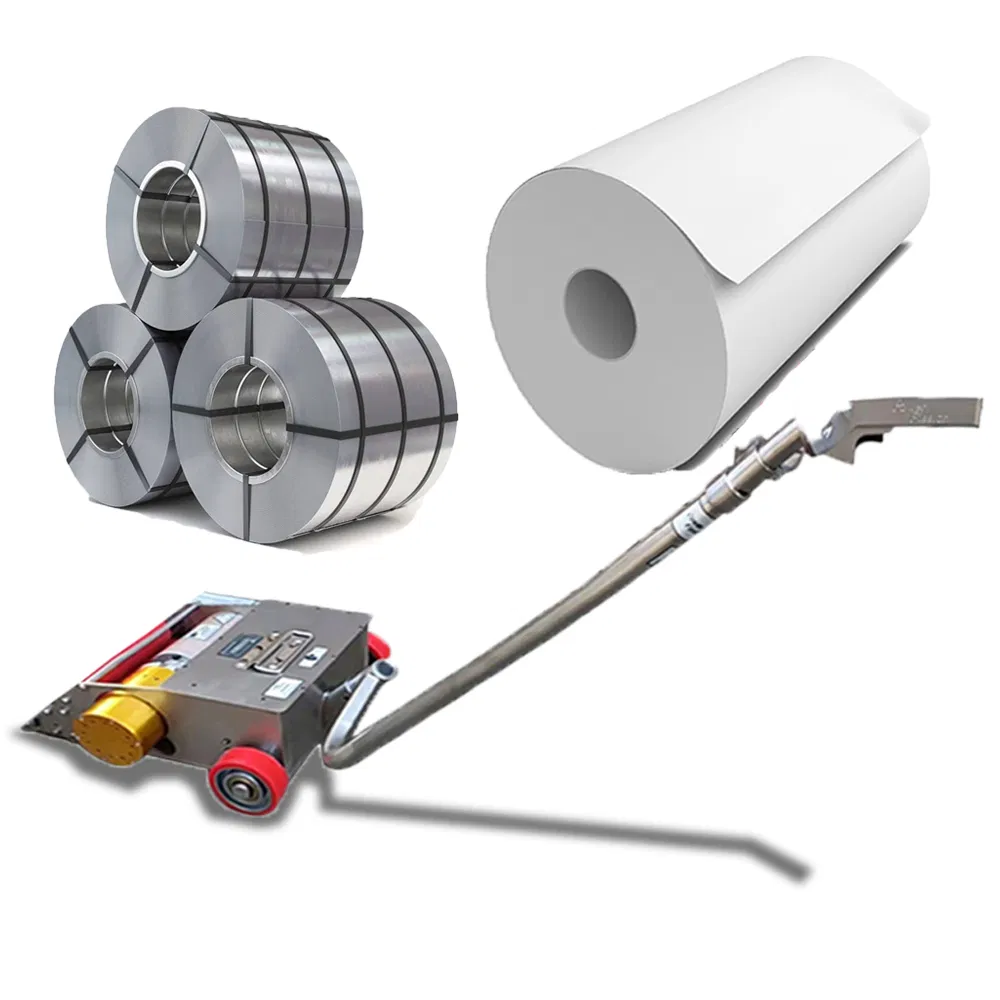

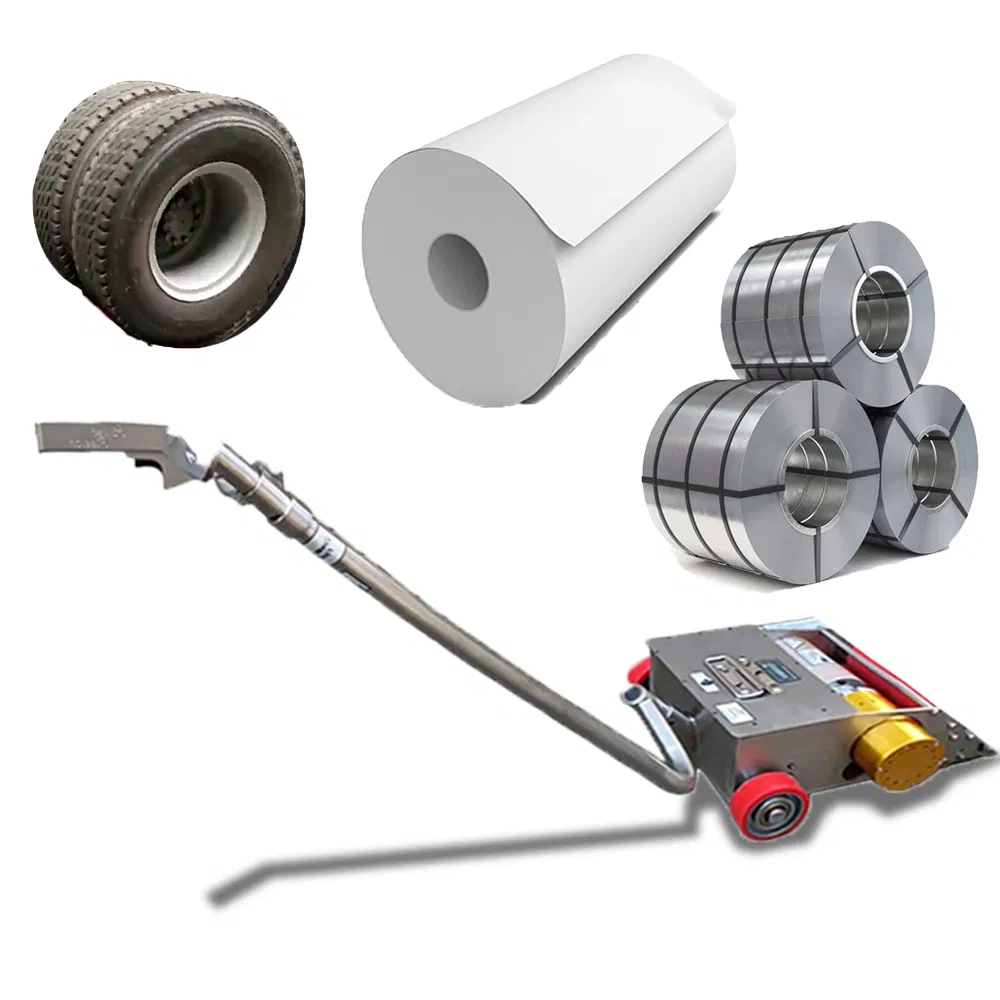

Workpiece Handling

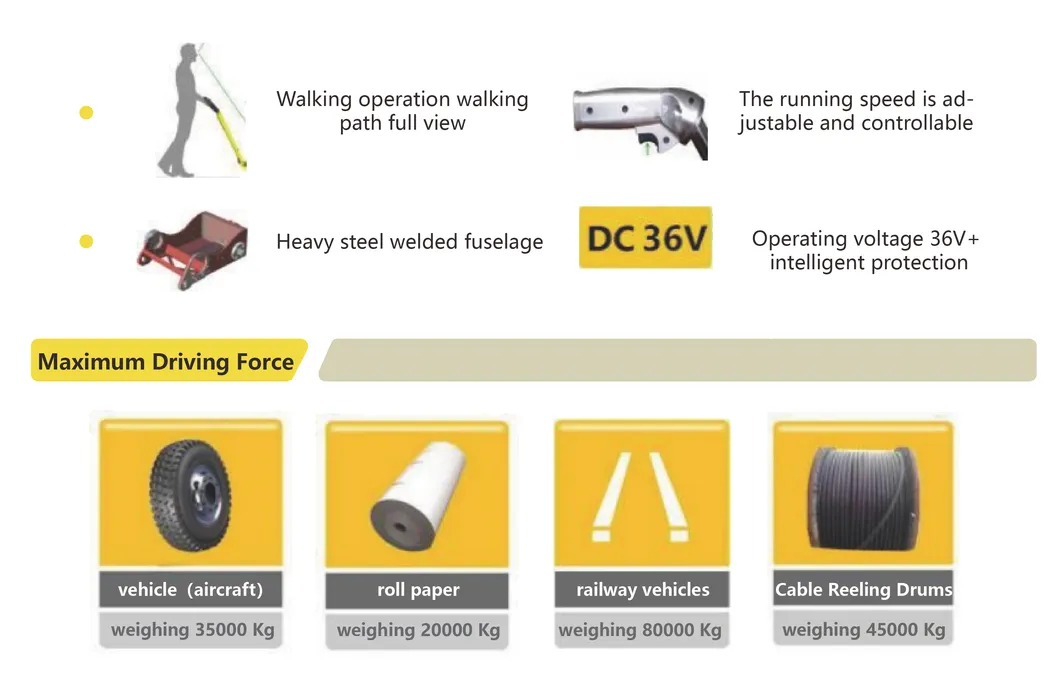

Industrial Pusher Design

Experience unparalleled operational efficiency with our equipment, which is not only easy to operate but requires absolutely no training or maintenance. Imagine moving tons of workpieces single-handedly; it's a reality with our equipment! Perfectly designed for industrial settings, it excels in various applications including vehicle and paper roll manufacturing, as well as cable production.

Core Advantages
  • Compact and nimble design ensures flexibility and agility.
  • Significantly diminishes the need for manual handling, boosting labor productivity by over 50%.
  • Stepless speed control handle for precise management of workpiece inertia.
  • Lowers failure rates and mitigates risks of work injuries and physical strain.
  • Robust heavy-duty steel structure with 36V working voltage and smart protection.
  • Built for endurance, capable of continuous 24-hour operation cycles.
  • User-friendly design requiring no specialized training or maintenance.
Product Parameters
Feature PF25B Specifications RM25B Specifications
Propulsion Capacity Vehicles 20000 KG / Paper roll 10000 KG / Cable 25000 KG / Rail vehicles 40000 KG Tank wheel trolley 20000 KG / Tail vehicle/trolley 25000 KG
Machine Weight ≤ 38.5 KG ≤ 40.5 KG

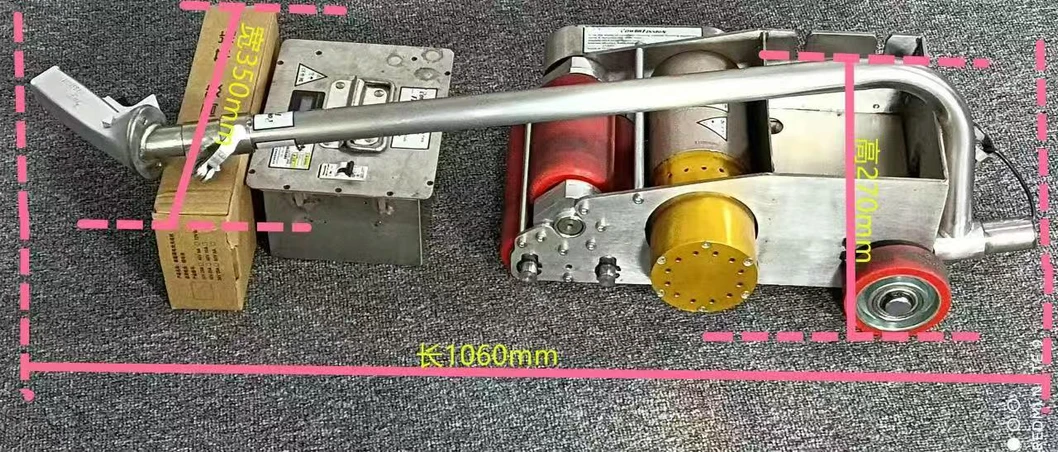

Dimensions (mm) Main: 415*335*188 | Max: 1100*390*1200 Main: 430*350*Customized | Max: 1100*395*1100
Battery Power lithium battery 36V/13Ah (optional 18Ah), LED display, Charge time <90 mins
Transmission Sprocket/Double Row Chain
Control Handle Unibody alloy casting, single-handed grip, integrated smooth control + trigger
Drive Wheel 80*285*1, FKM rubber 82*319*1 (Custom), fen rubber
Walking Speed Infinitely variable, Forward/Reverse, 0.1 m/min - 23 m/min
Ambient Temp -15℃ to 50℃
Detailed Gallery

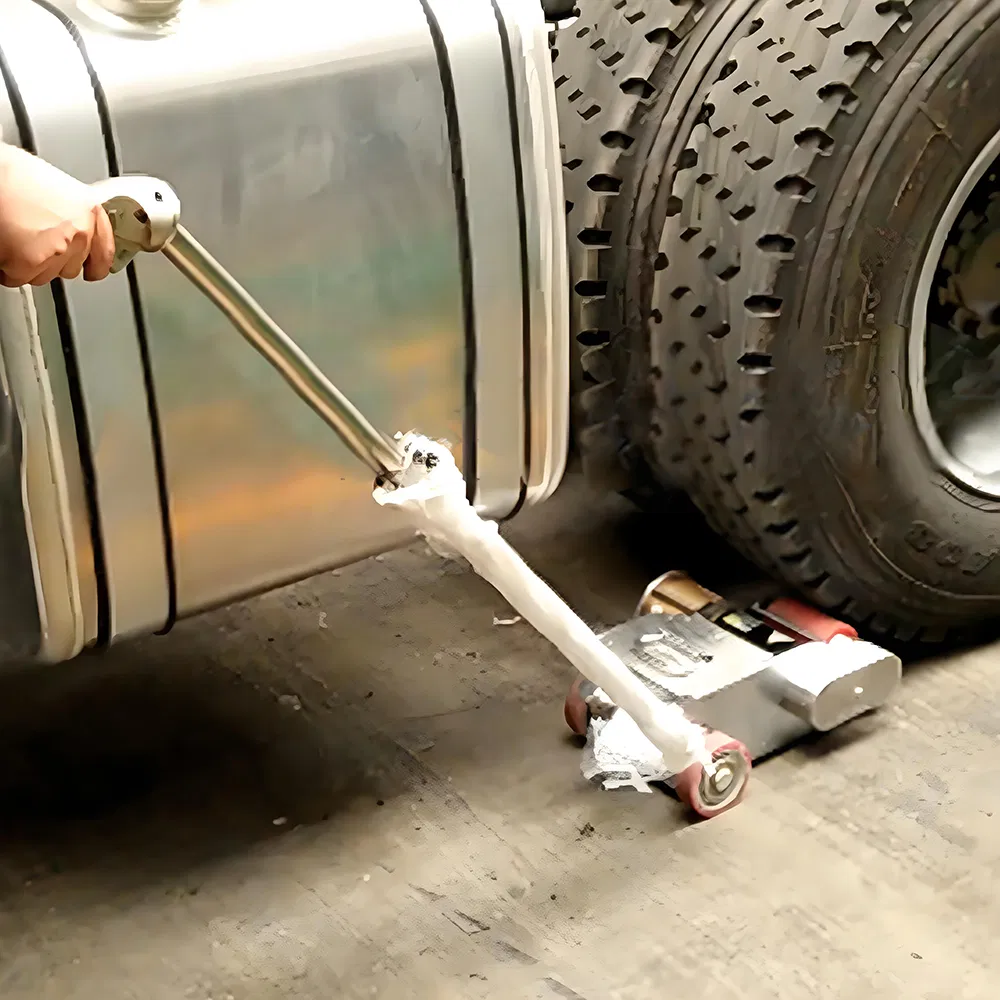

Detail View 1

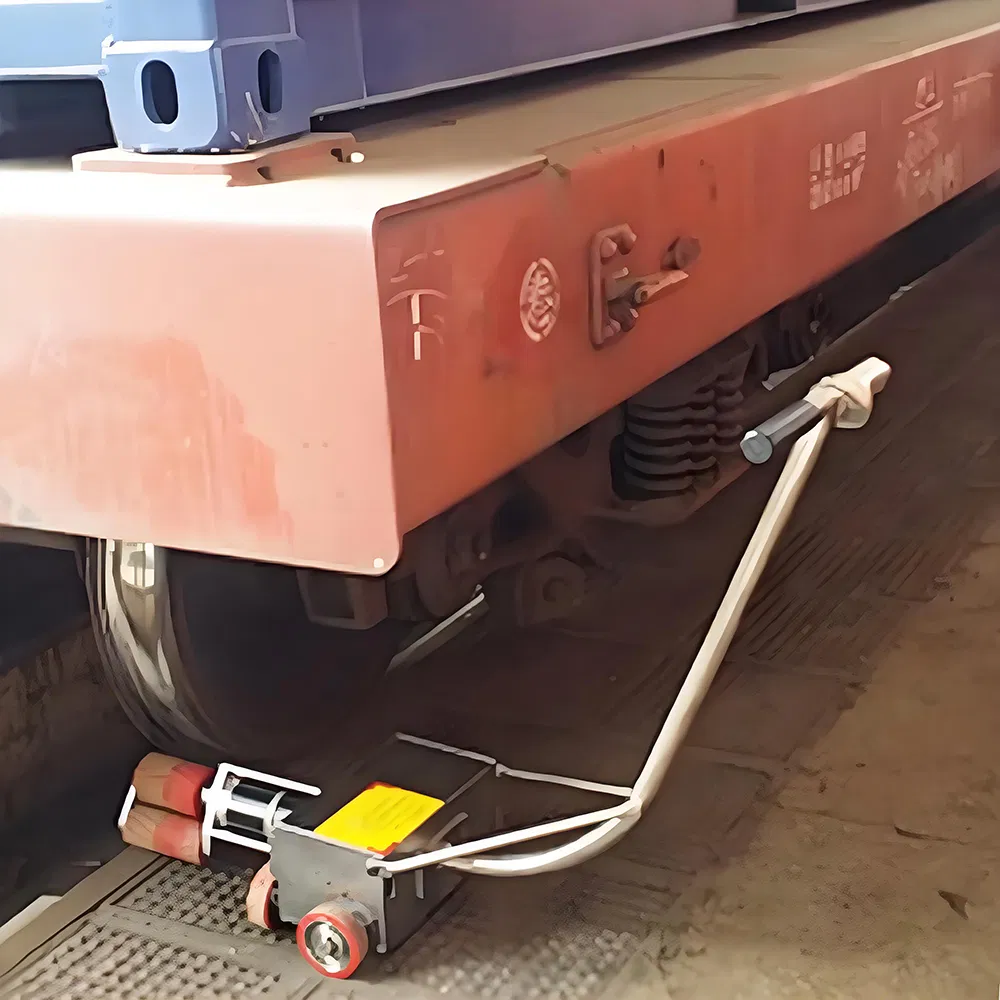

Detail View 2

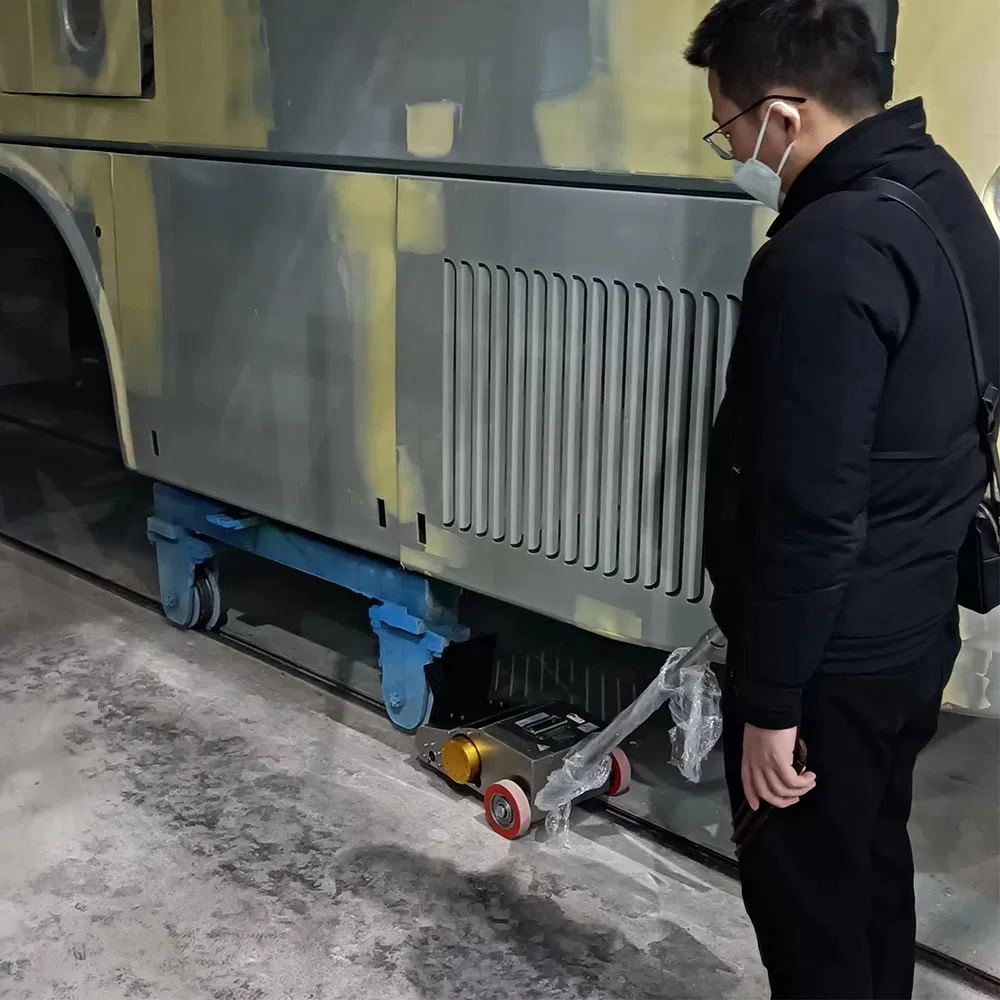

Detail View 3
Detail View 4

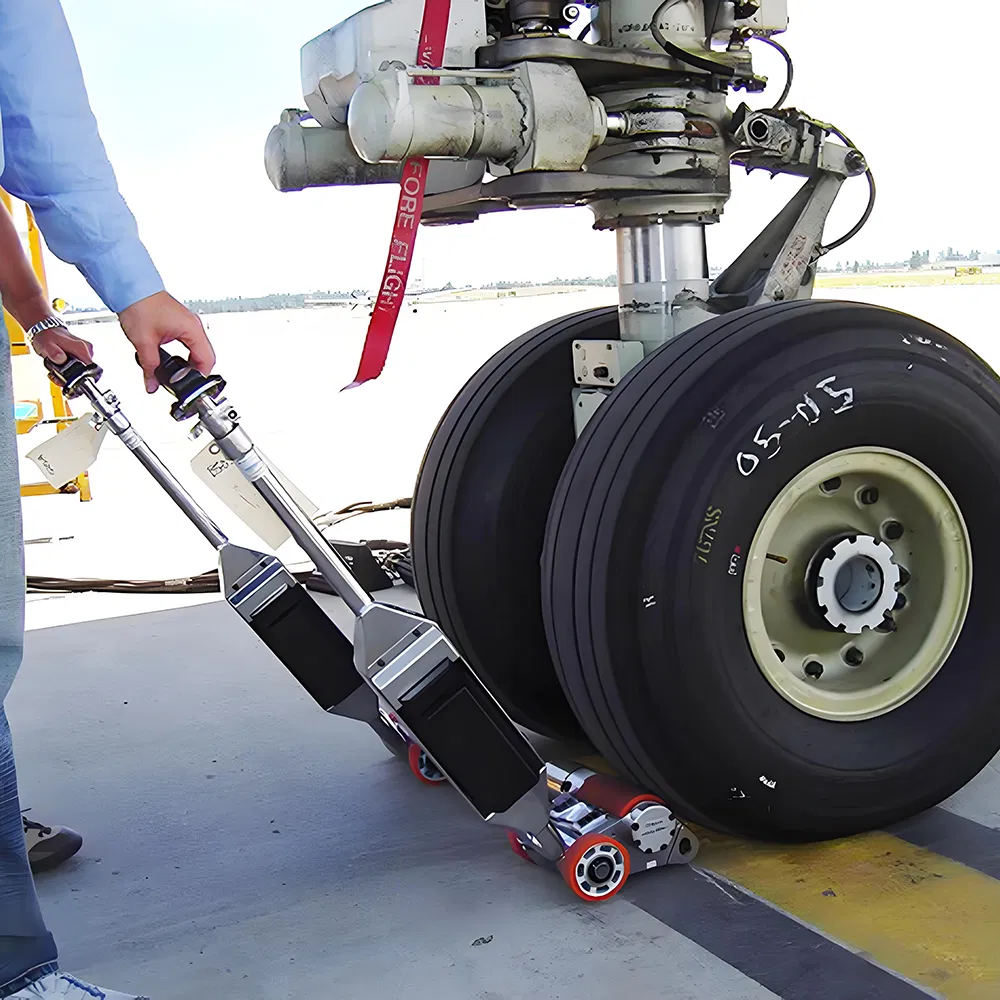

Detail View 5

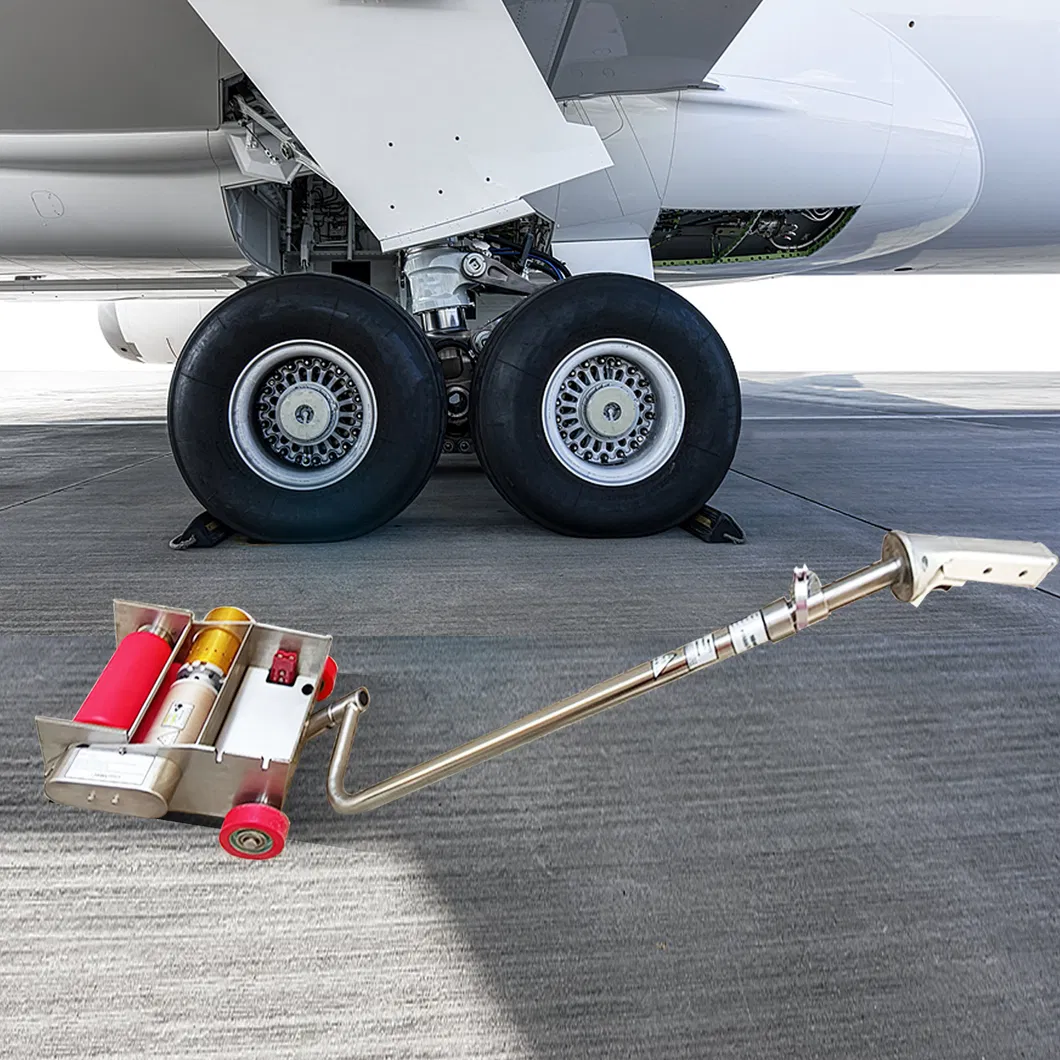

Detail View 6
Operation & Logistics
Customer Usage
Customer Support

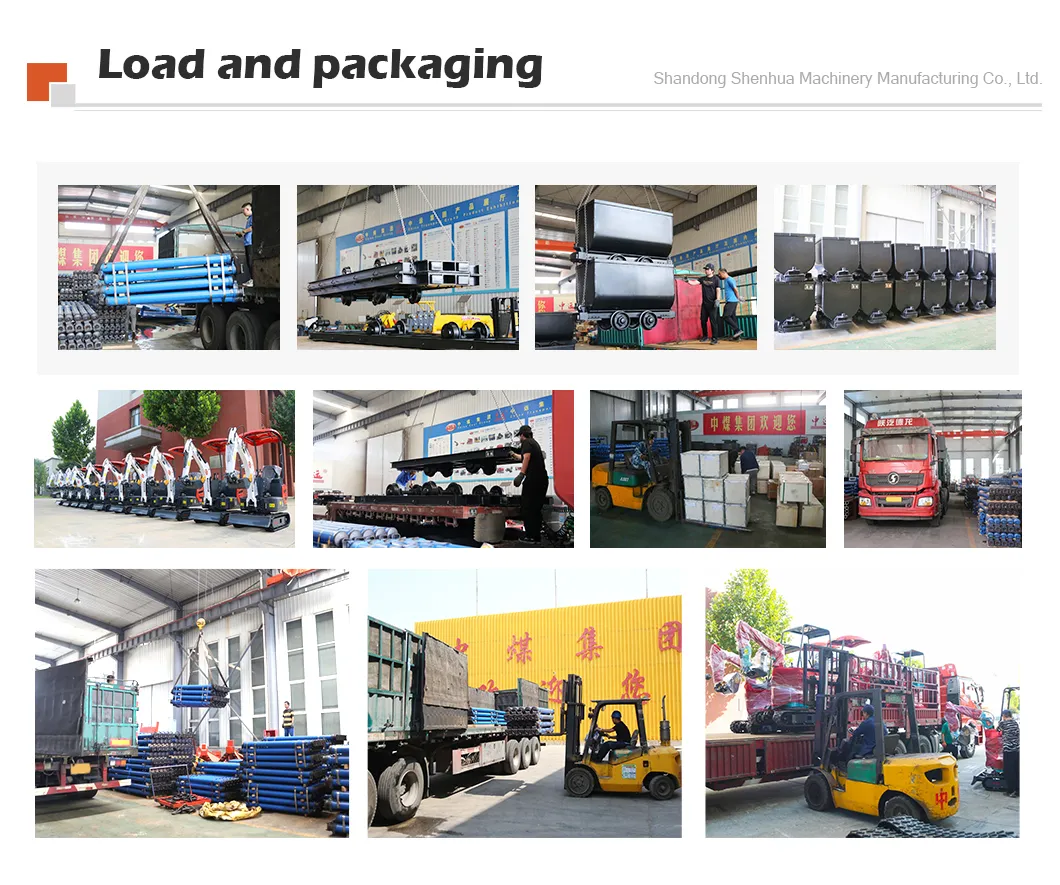

Load and Packing
Manufacturing & Certification
Our Exhibition

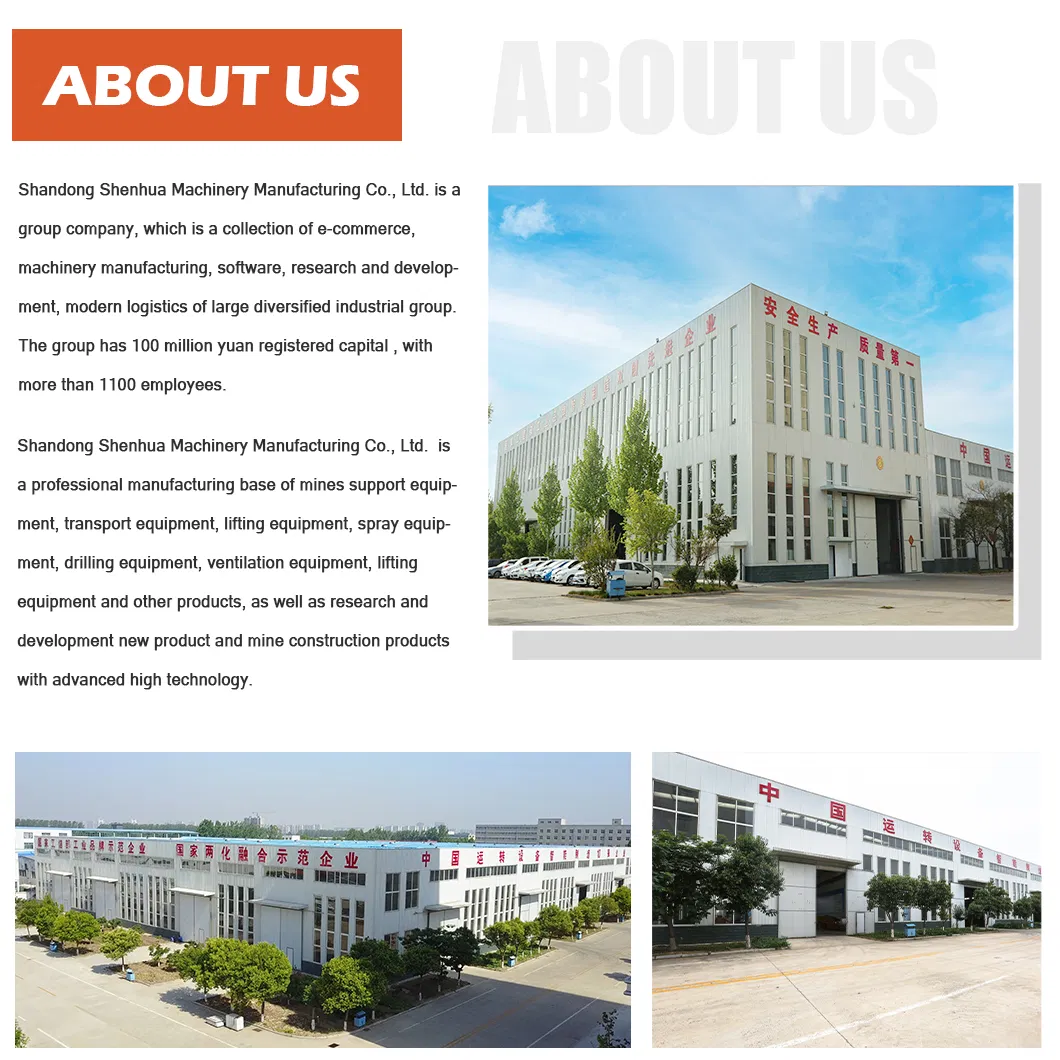

Facility View 1

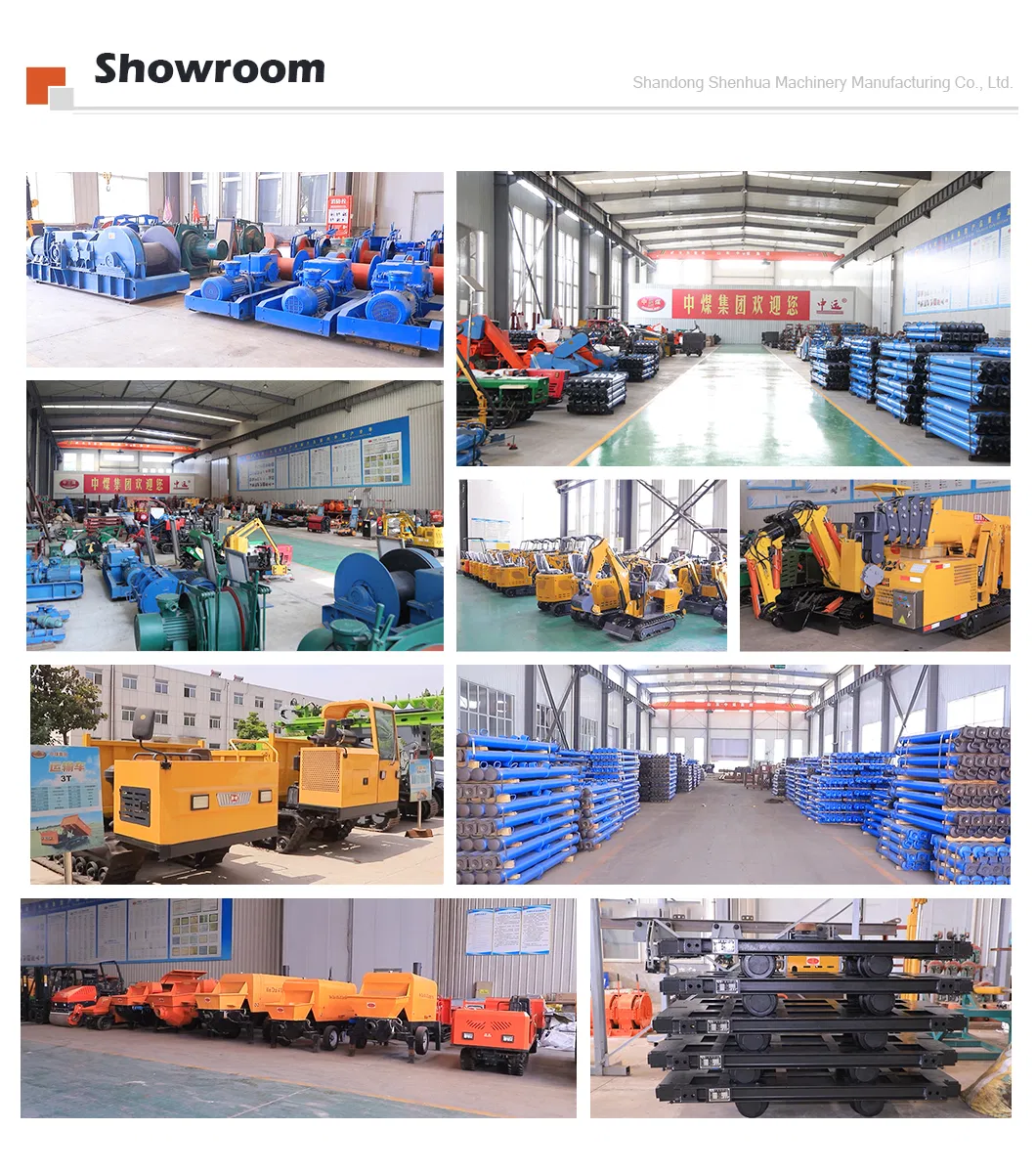

Facility View 2

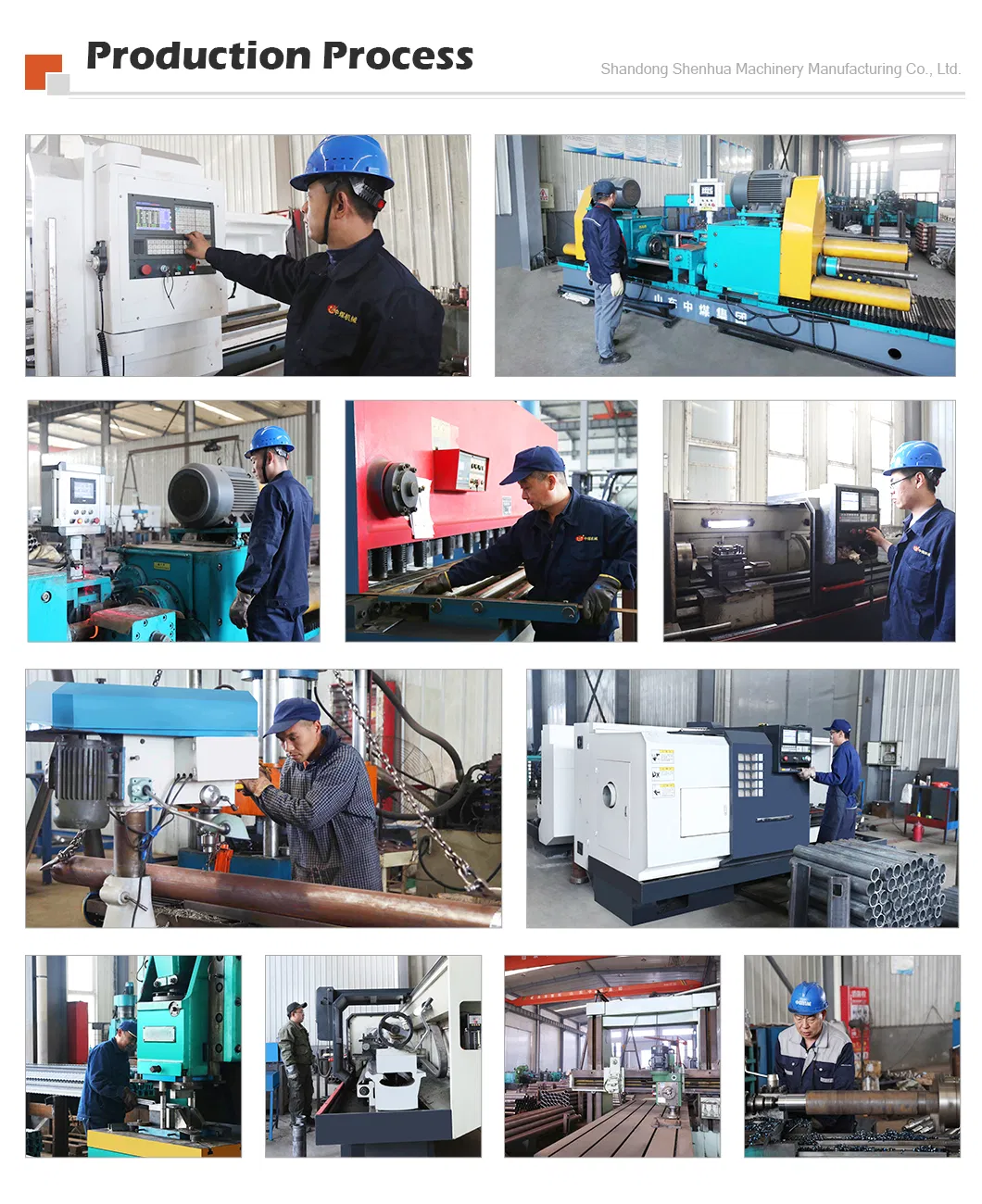

Production Line
Certifications
Frequently Asked Questions
What is the maximum weight this electric pusher can move?
The device is capable of maneuvering heavy loads ranging from 50 kg up to an impressive 80,000 kg, depending on the specific model and application (e.g., rail vehicles up to 40,000 kg).
Does the operator require special training?
No. The equipment is designed for simplicity and efficiency, requiring absolutely no specialized training or maintenance for single-person operation.
How long does the battery last and what is the charging time?
The equipment is built for endurance and can operate continuously for a full 24-hour cycle. The high-performance lithium battery features a charging time of less than 90 to 120 minutes.
Can the speed be adjusted during operation?
Yes, it features a stepless (infinitely variable) speed control handle that supports both forward and reverse rotation, with a range from 0.1 m/min to 23 m/min.
What types of industrial environments is it suitable for?
It is ideal for vehicle manufacturing, paper roll production, cable manufacturing, and any industrial setting requiring the movement of heavy carts, reels, or rolled goods. It operates in temperatures from -15℃ to 50℃.
What are the safety and durability features?
The unit is constructed with a robust heavy-duty steel welded body, operates on a safe 36V voltage, and includes smart protection features to minimize risks of work injury and equipment damage.
