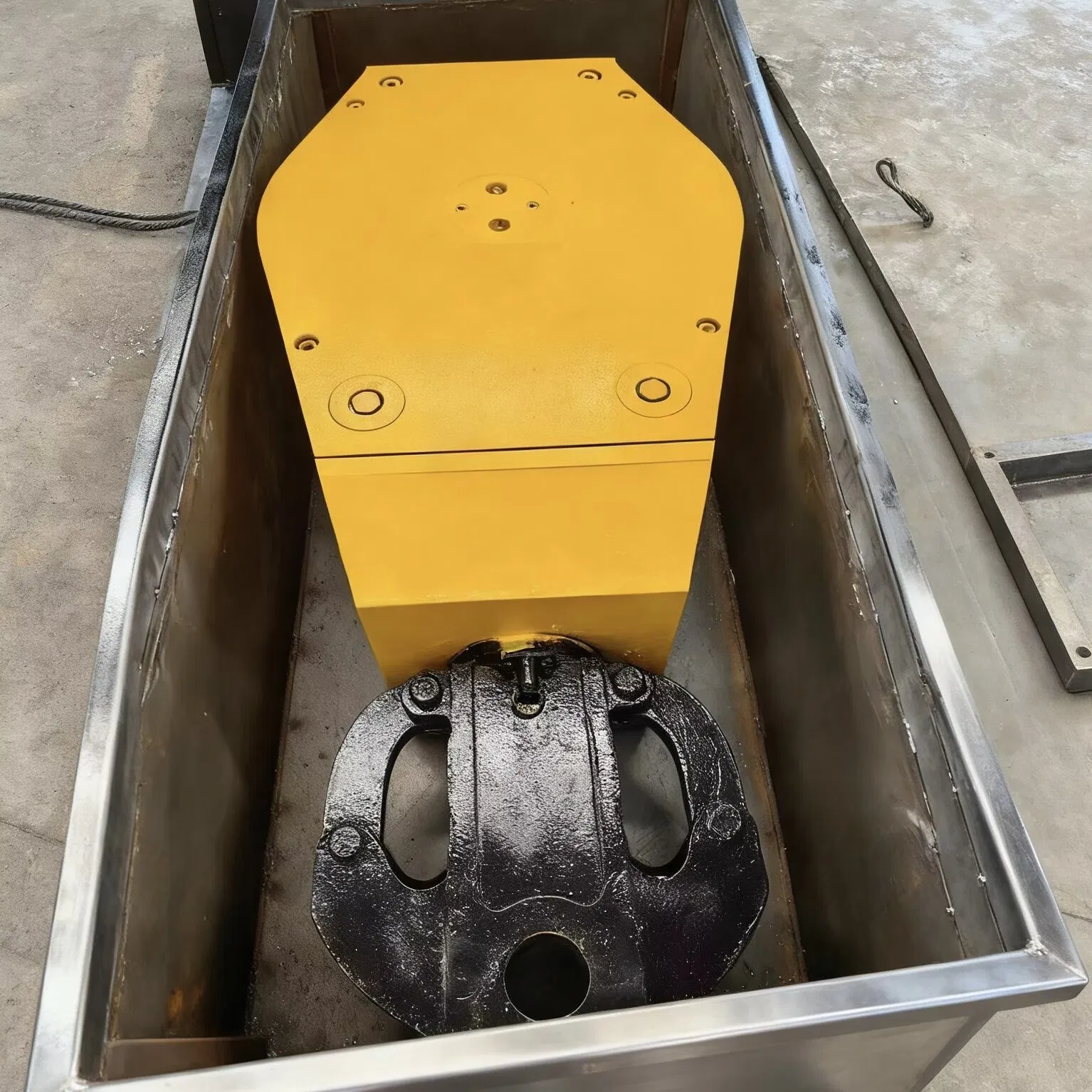

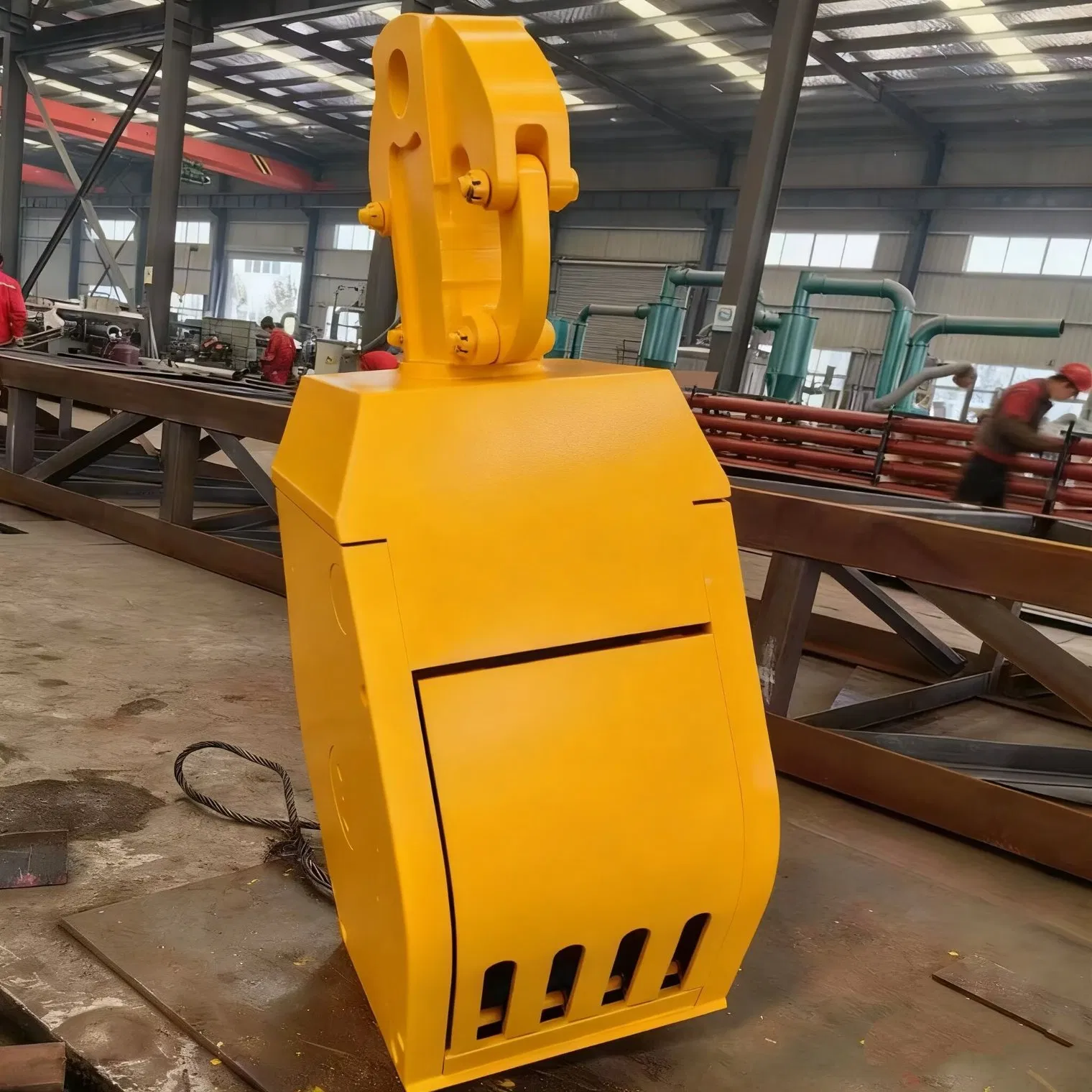

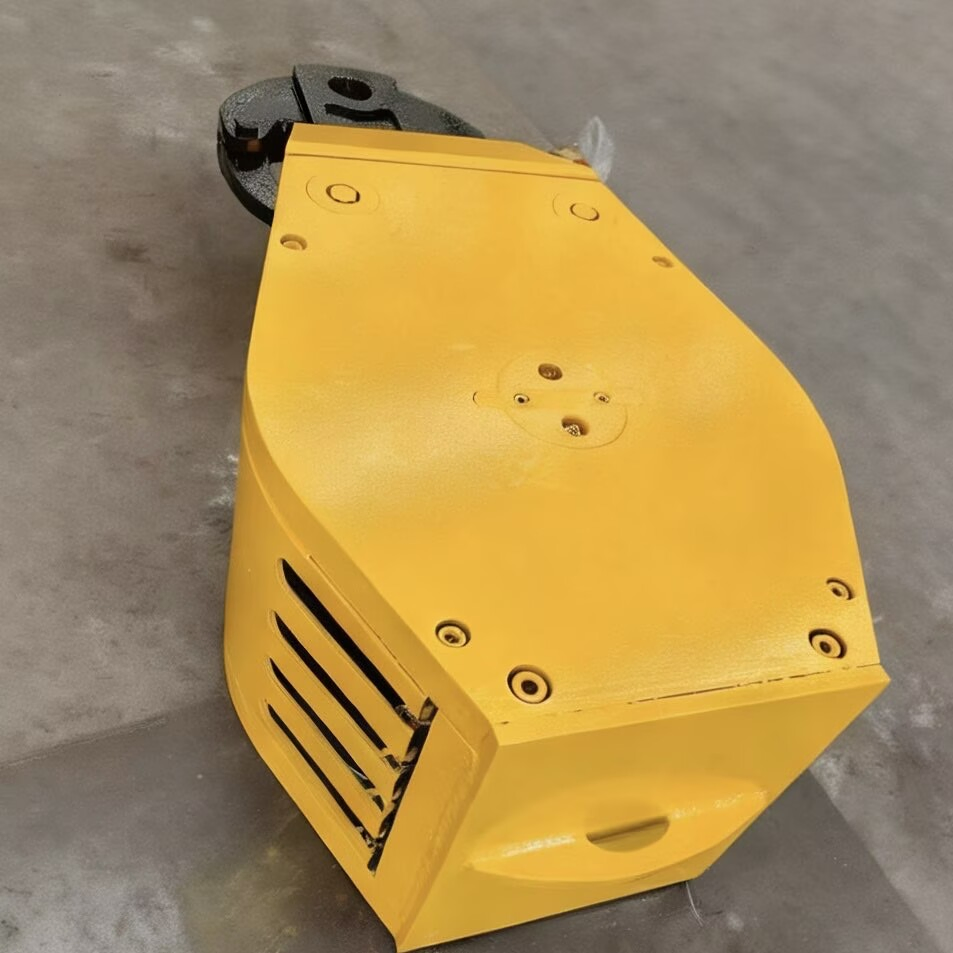

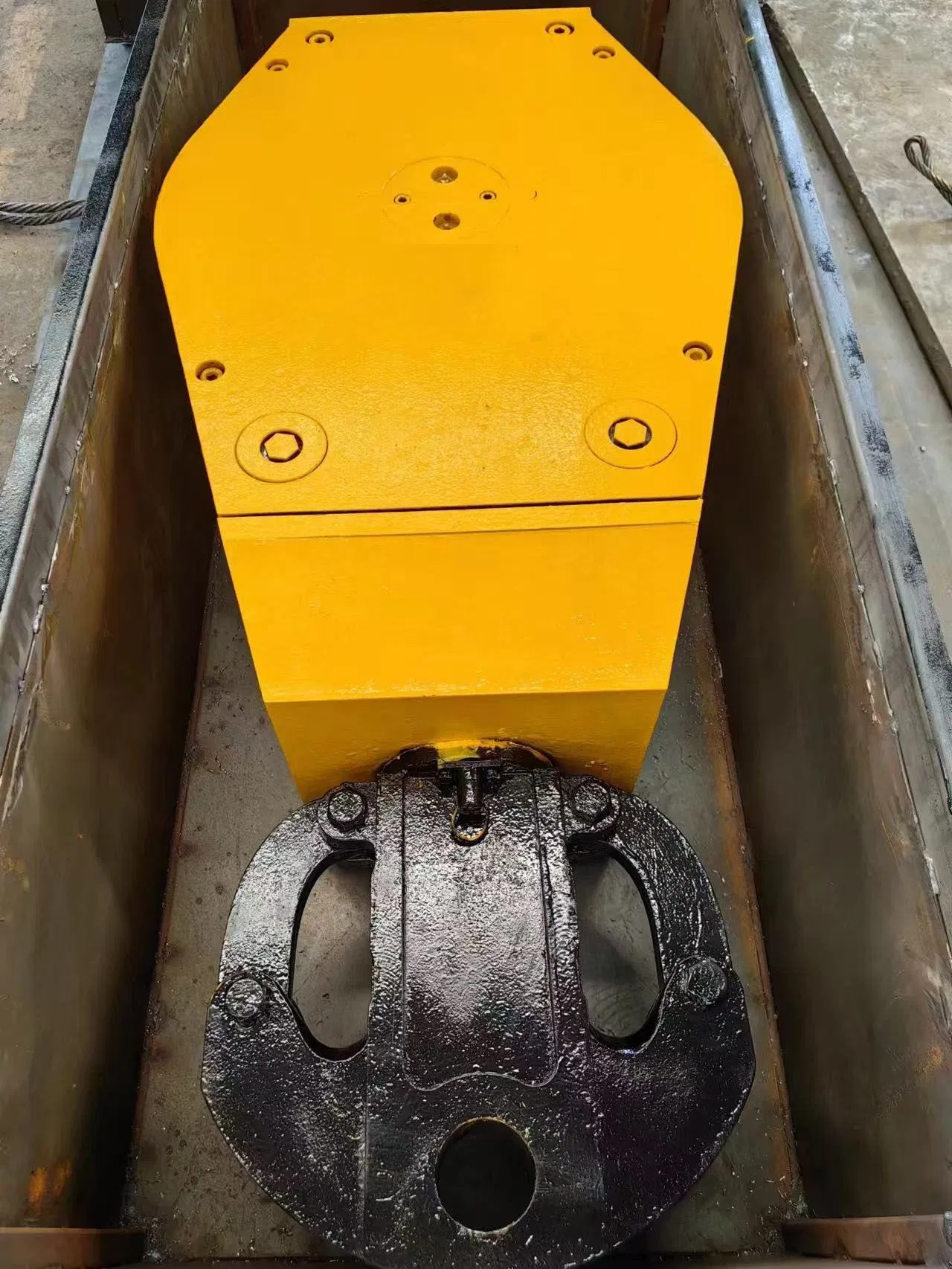

Alloy Steel Hook Adapter for Yg100 Oilfield Drilling Equipment
Alloy Steel Hook Adapter for Yg100 Oilfield Drilling Equipment
Alloy Steel Hook Adapter for Yg100 Oilfield Drilling Equipment
Alloy Steel Hook Adapter for Yg100 Oilfield Drilling Equipment
Alloy Steel Hook Adapter for Yg100 Oilfield Drilling Equipment
1 / 5
Alloy Steel Hook Adapter for Yg100 Oilfield Drilling Equipment
Alloy Steel Hook Adapter for Yg100 Oilfield Drilling Equipment
Alloy Steel Hook Adapter for Yg100 Oilfield Drilling Equipment
Alloy Steel Hook Adapter for Yg100 Oilfield Drilling Equipment
Alloy Steel Hook Adapter for Yg100 Oilfield Drilling Equipment

Alloy Steel Hook Adapter for Yg100 Oilfield Drilling Equipment

After-sales Service: Yes
Warranty: Yes
Manufacturing Process: Forging
Send Inquiry

Product Description

i

Basic Information

Model NO.
YG100
Material
Stainless Steel
Surface Treatment
Spray-Paint
Core Material
High-Strength Alloy Steel
Operation Pressure
Atmospheric Pressure
HS Code
8431431000
Origin
China
Package Size
80.00cm * 80.00cm * 106.00cm
!

Product Description

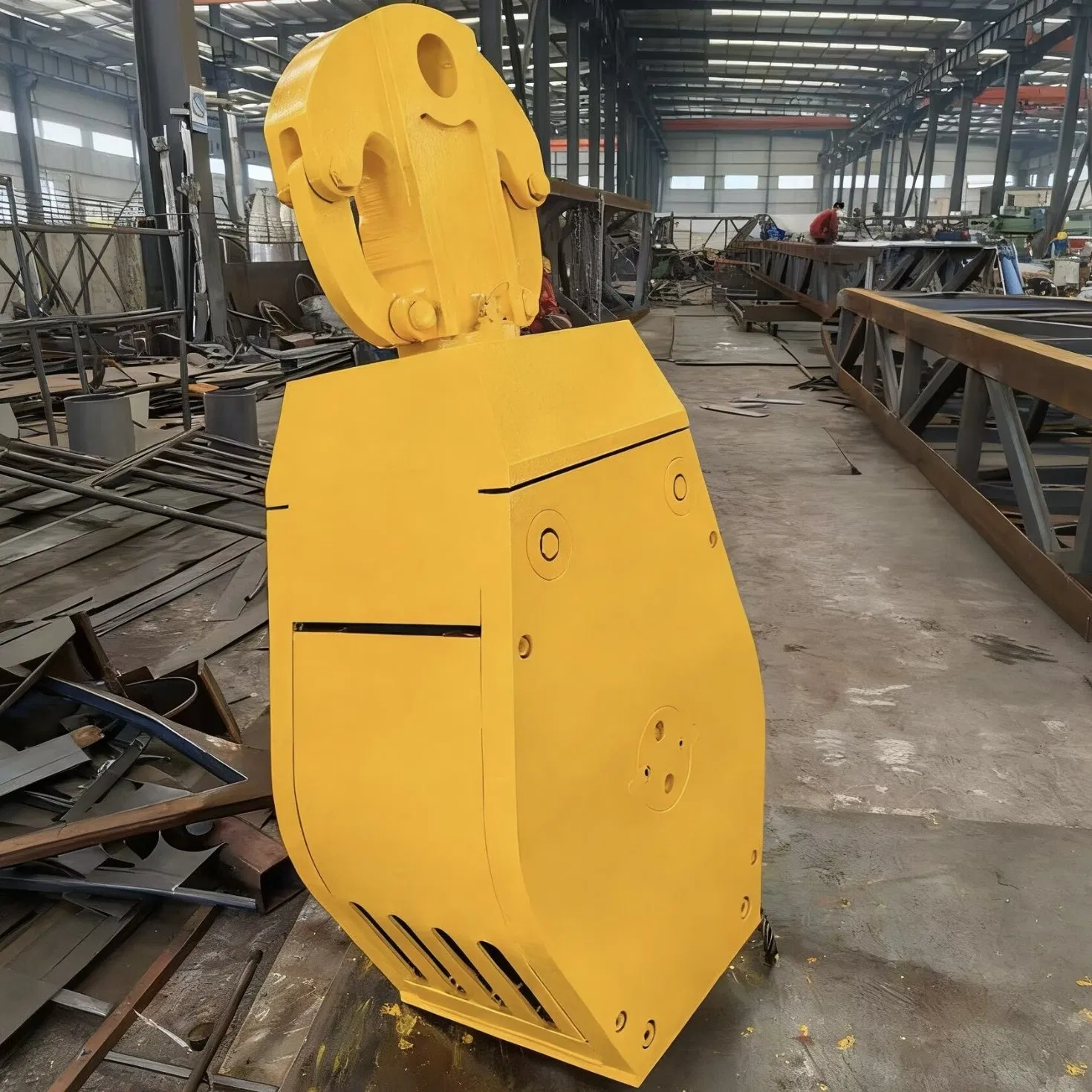

8C/8A YG series traveling block and hook for oil well drilling rig. Hooks is one of the lifting equipments for petroleum drilling rig and workover rig with the integral design, which can shorten the length between traveling block and hook, perfectly meeting the traveling space for lifting system. Hooks can be in accordance with Spec 8C PSL1.

The advanced heat treatment processes such as carburetion, etc. is used on some crucial driving components with high strength and long service life. The sheave grooves are intermediate frequency quenched so as to provide surface hardness and extend service life of sheaves.
★

Key Features & Applications

  • Application Scenarios: Petroleum exploration, oilfield drilling, drilling & production operations.
  • Load-Bearing Performance: High-load design suitable for hanging/connecting heavy drilling equipment.
  • Safety Features: Anti-drop buckle design, compliant with oilfield operation safety standards.
  • Durability: Acid-alkali resistant and high-temperature resistant for harsh environments.
  • Installation: Modular quick installation, compatible with mainstream drilling equipment interfaces.
T

Technical Specifications

Specification YG100 YG150 YG170 YG250
Rated Capacity(kN) 890 1350 1700 2250
Sheave Qty/Dia(mm) 3/609.6 4/915 5/915 5/915
Wire Line OD(mm) 25.4 26/29 29 32
Dimension(mm) 1685×675×510 3195×960×616 3307×960×616 3450×970×850
Weight(kg) 1010 3590 4585 4732
P

Product Gallery

Alloy Steel Hook Adapter

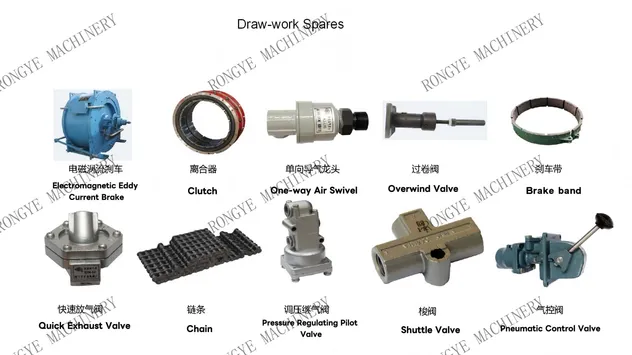

Equipment Detail 1

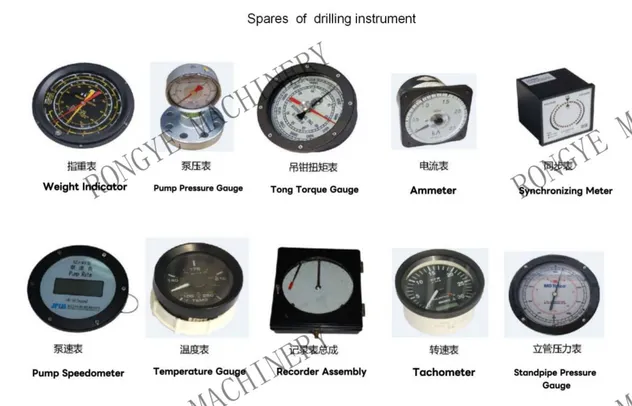

Equipment Detail 2

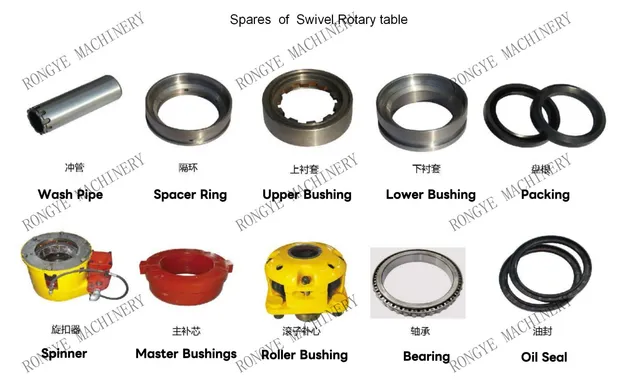

Equipment Detail 3

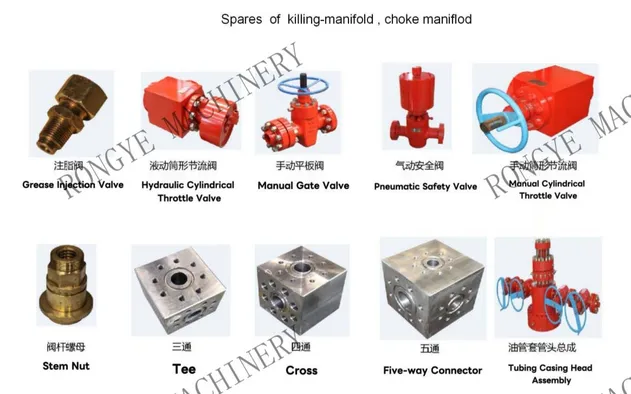

Equipment Detail 4

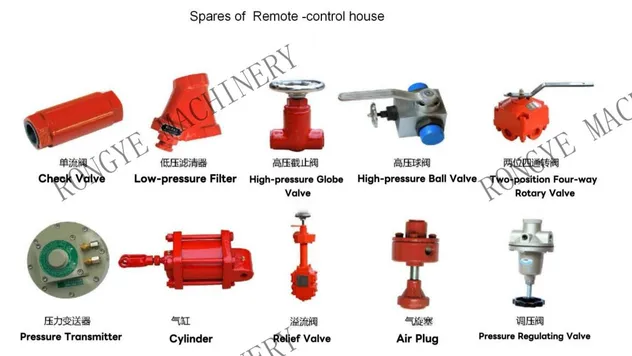

Equipment Detail 5

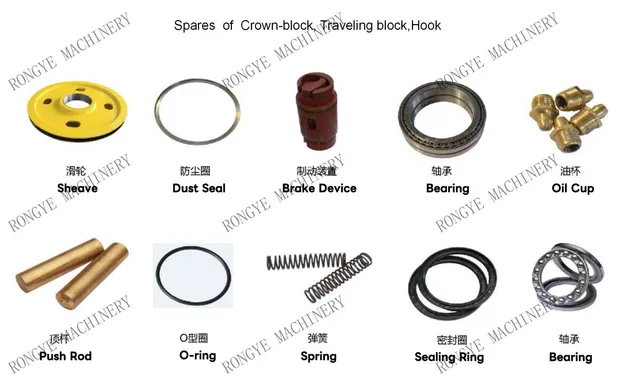

Equipment Detail 6

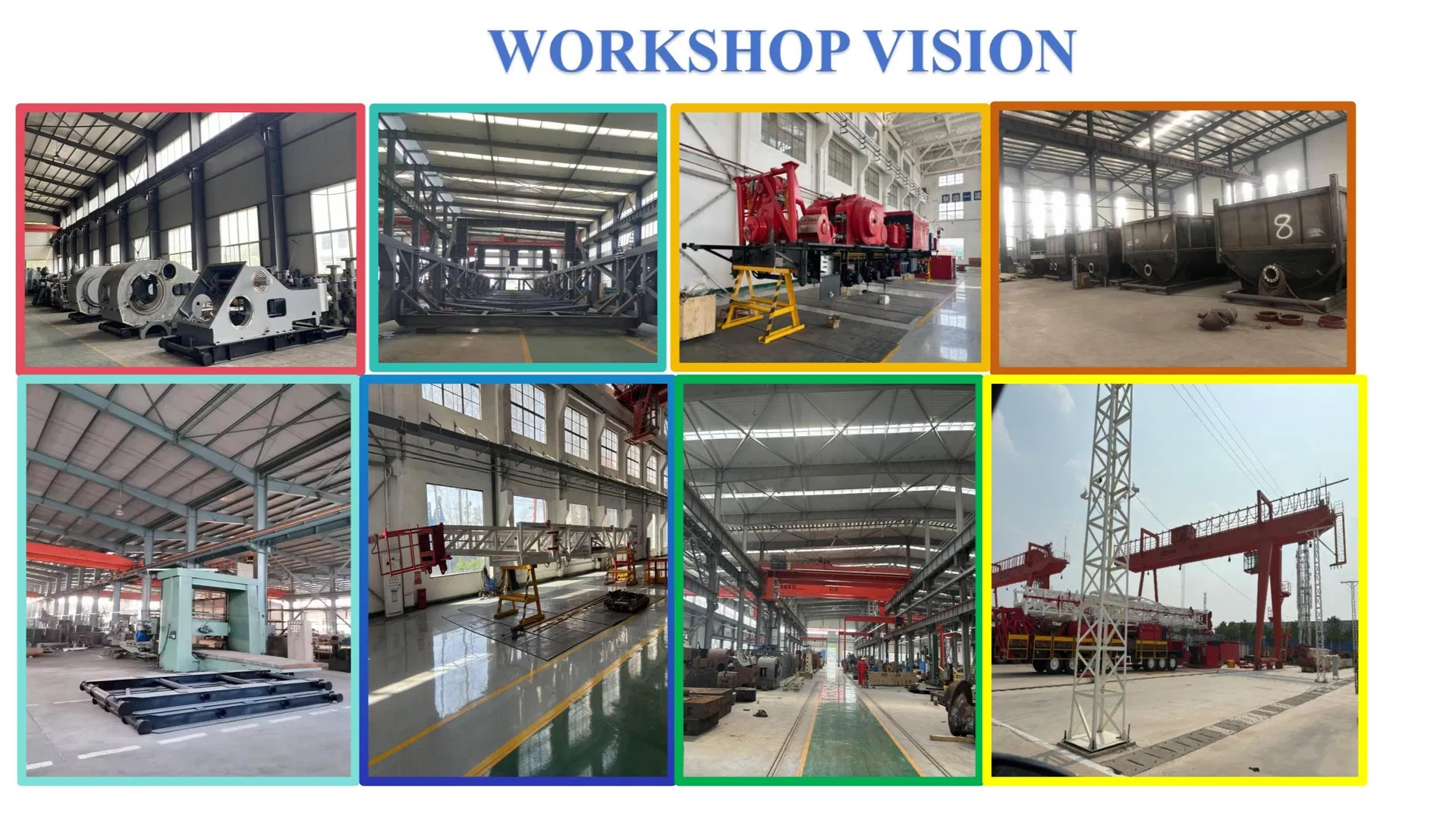

Product View Structural Display Technical View
?

Frequently Asked Questions

What standards do the YG series hooks comply with?
The YG series traveling blocks and hooks are designed and manufactured in accordance with API Spec 8C PSL1 standards.
What materials are used for the core components?
Crucial components are made from high-strength alloy steel, which undergoes advanced heat treatment processes like carburetion for enhanced durability.
Are these hooks suitable for offshore or harsh environments?
Yes, the equipment is acid-alkali resistant and high-temperature resistant, making it adaptive to harsh oilfield working conditions.
How is the service life of the sheaves extended?
The sheave grooves undergo intermediate frequency quenching to increase surface hardness and reduce wear during operation.
Does the installation require modifications to existing equipment?
No, these units feature a modular quick installation design that is compatible with mainstream drilling equipment interfaces without core structural modifications.
What safety features are included for drilling operations?
They include an anti-drop buckle design to ensure secure connection and fixation of drilling equipment components during high-load operations.
