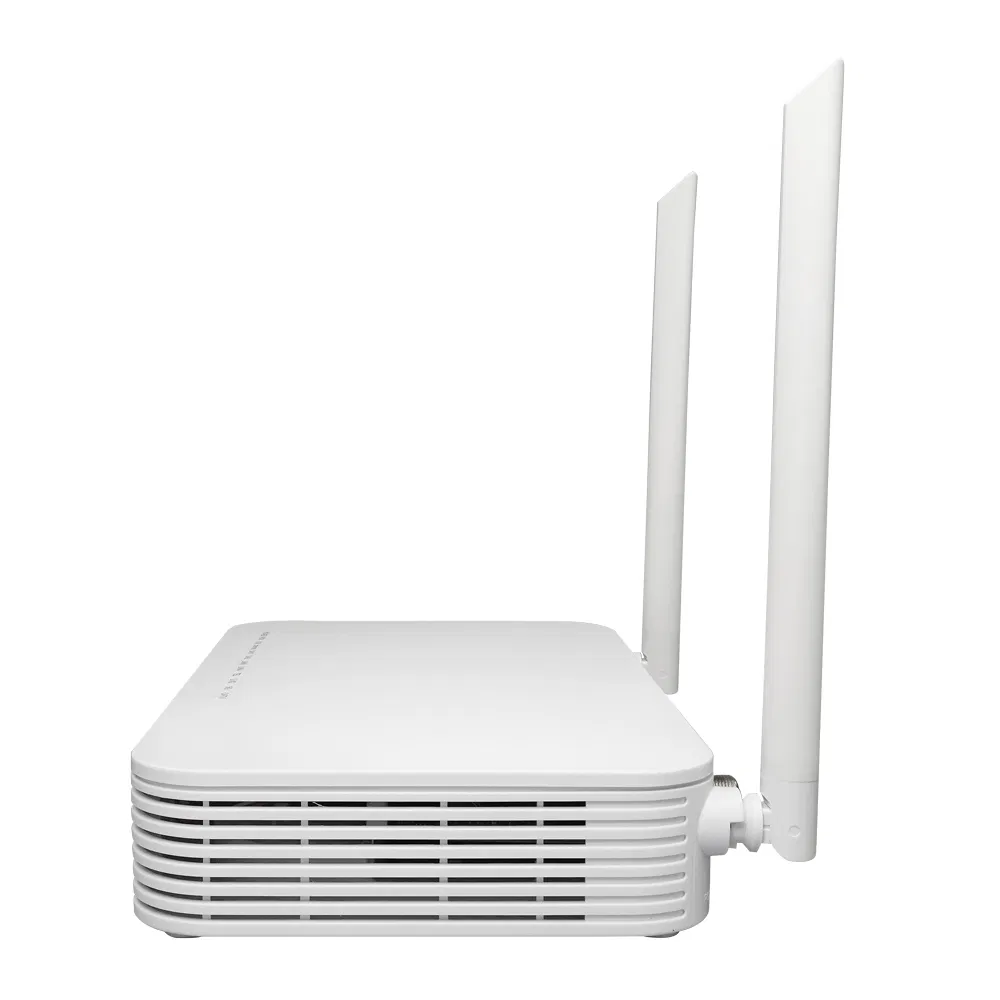

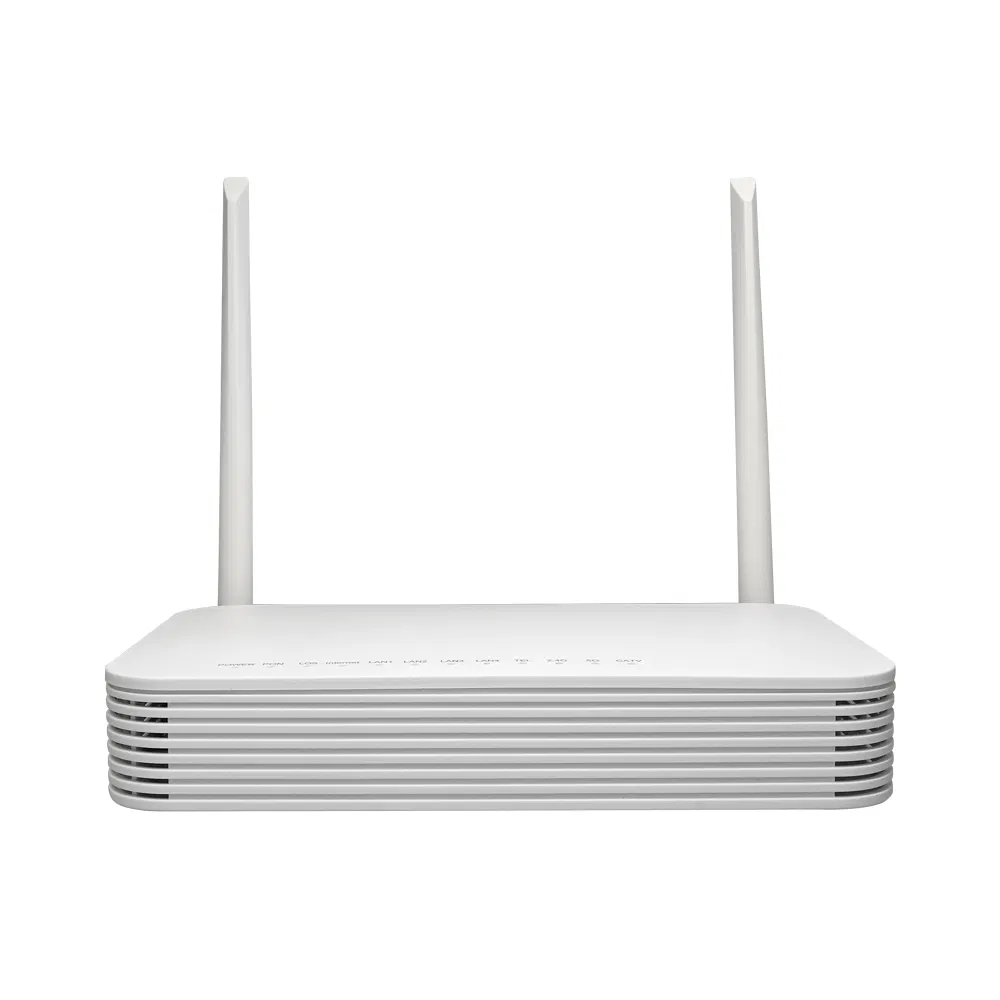

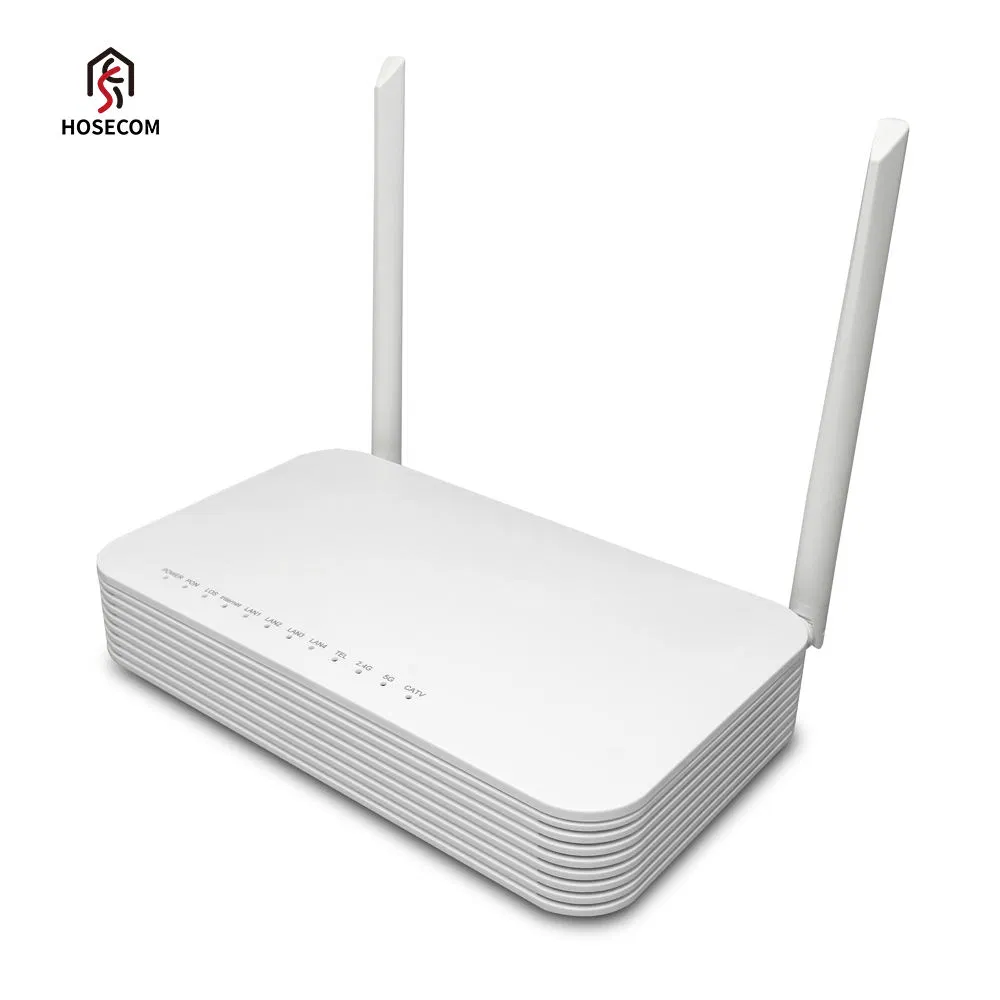

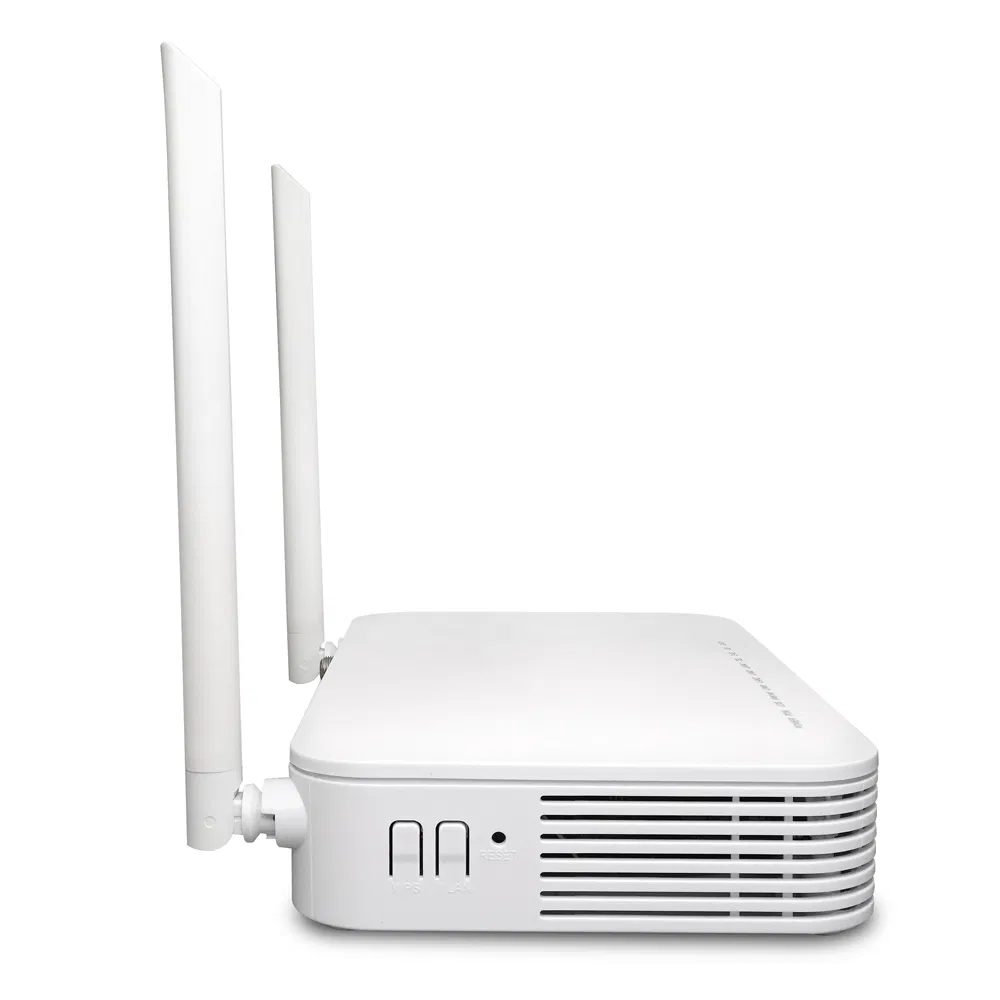

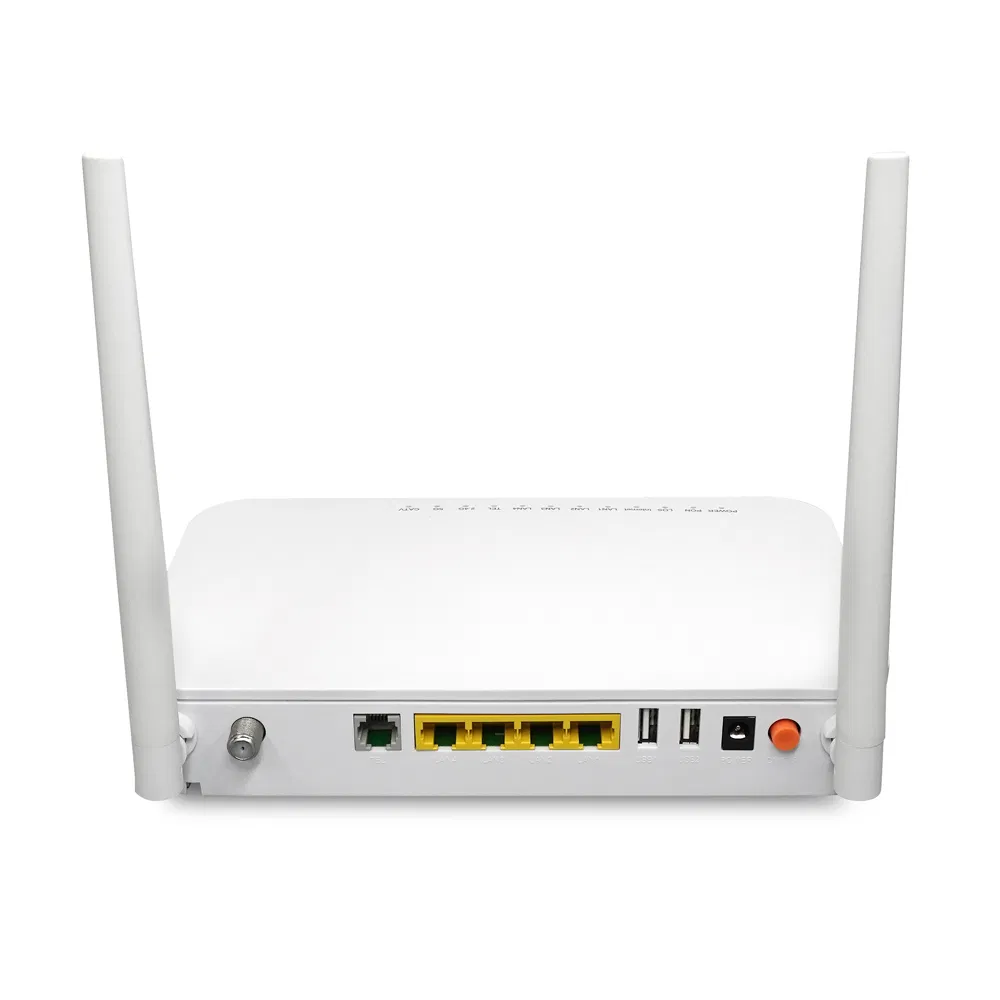

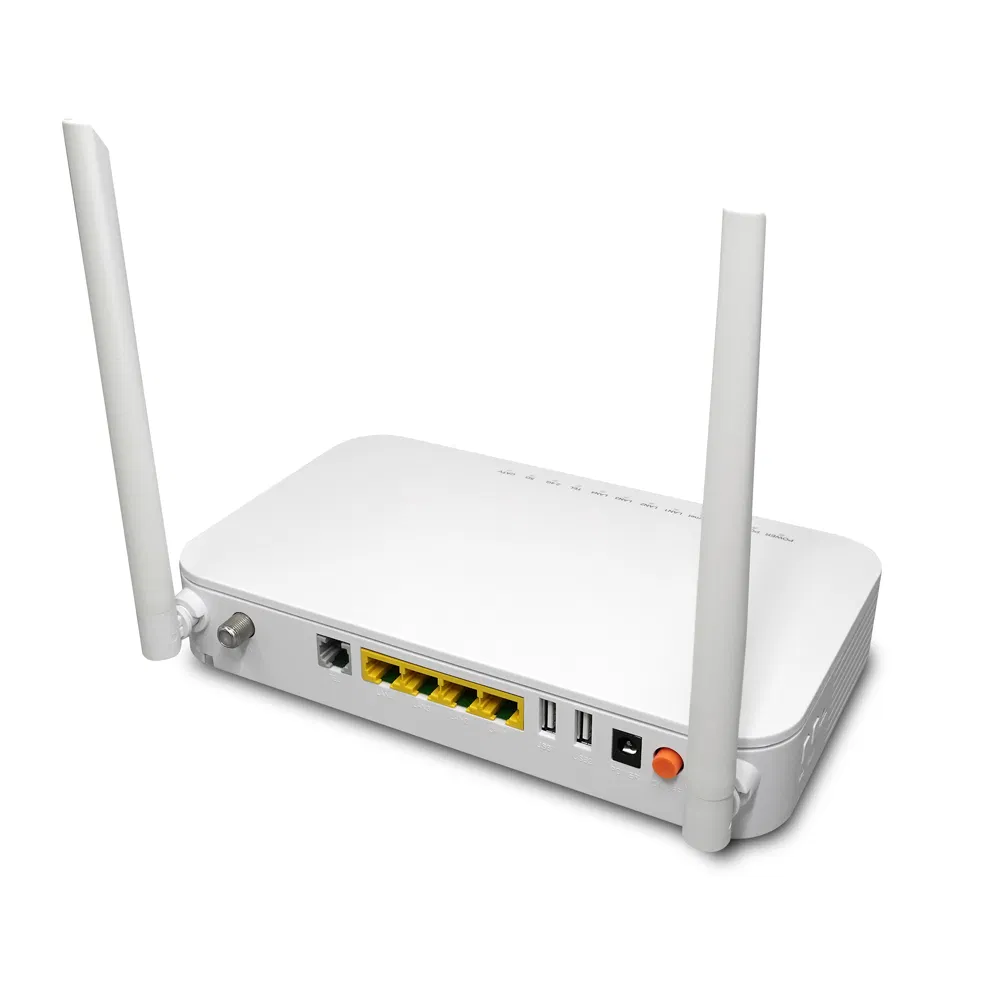

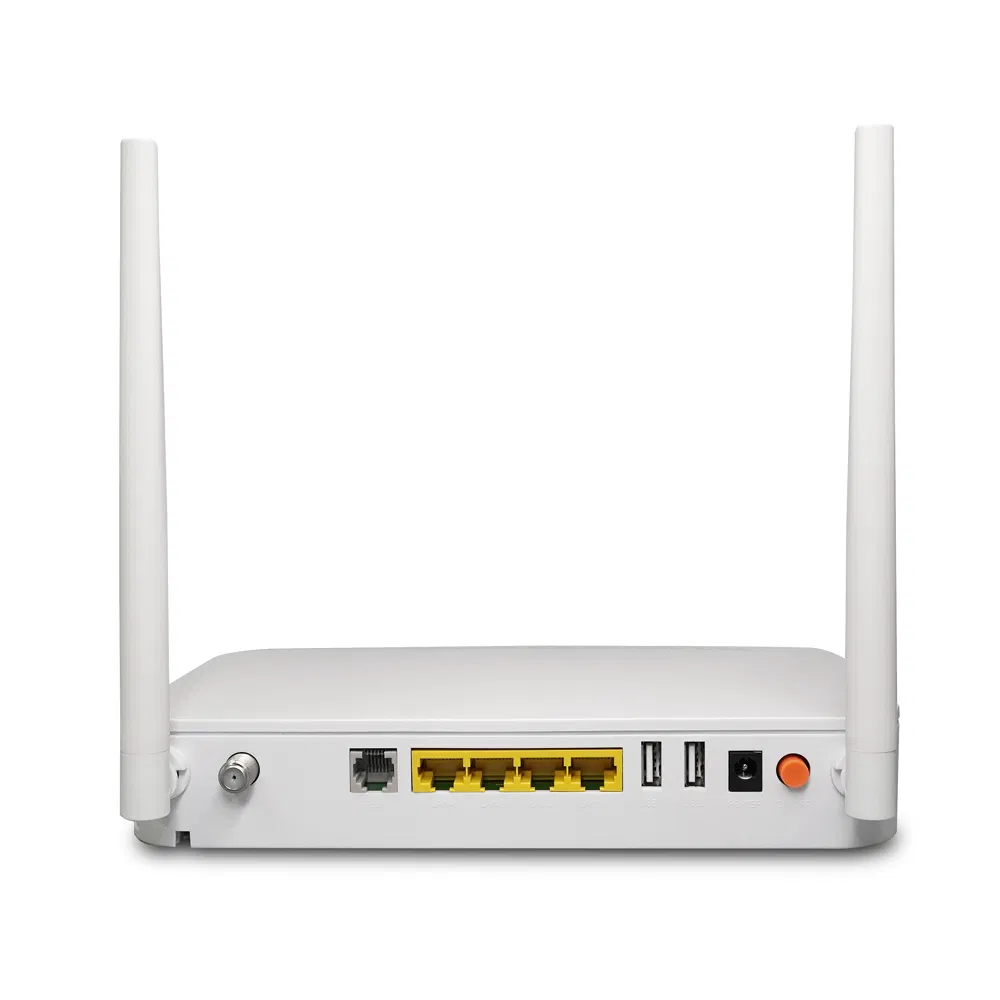

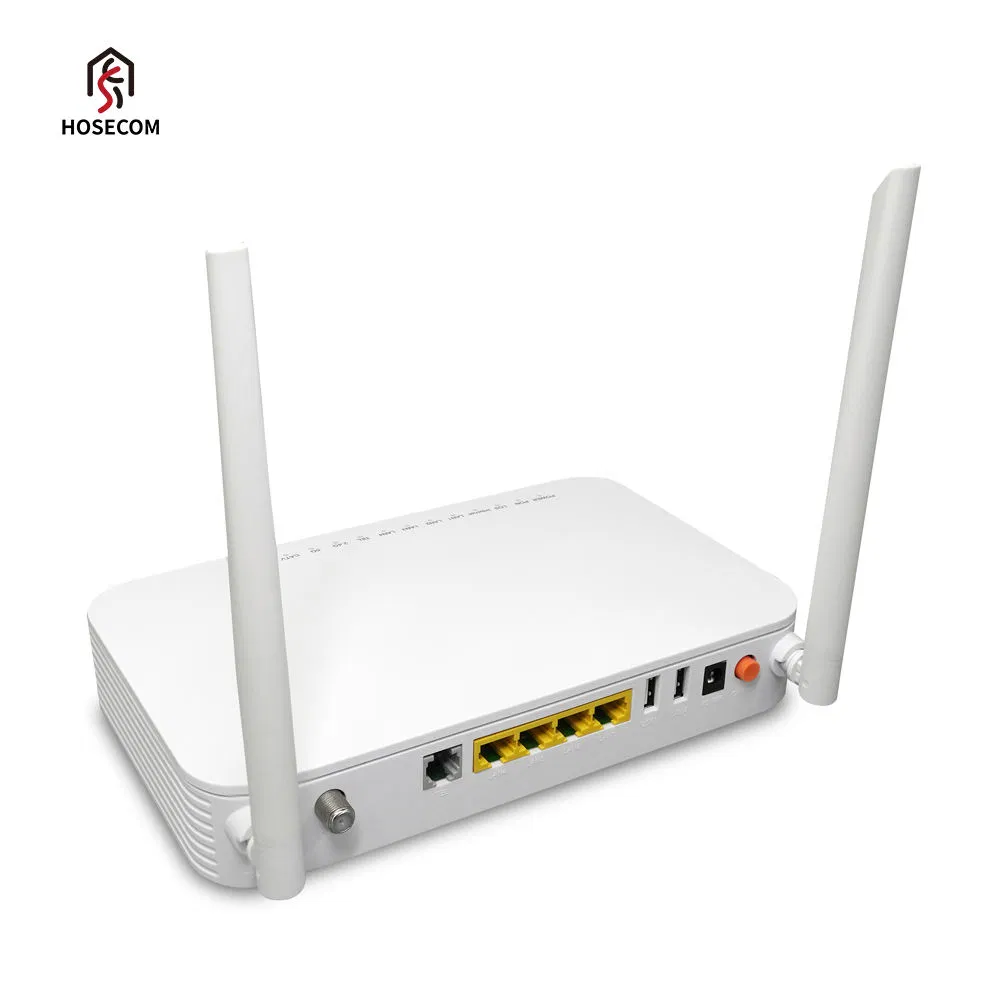

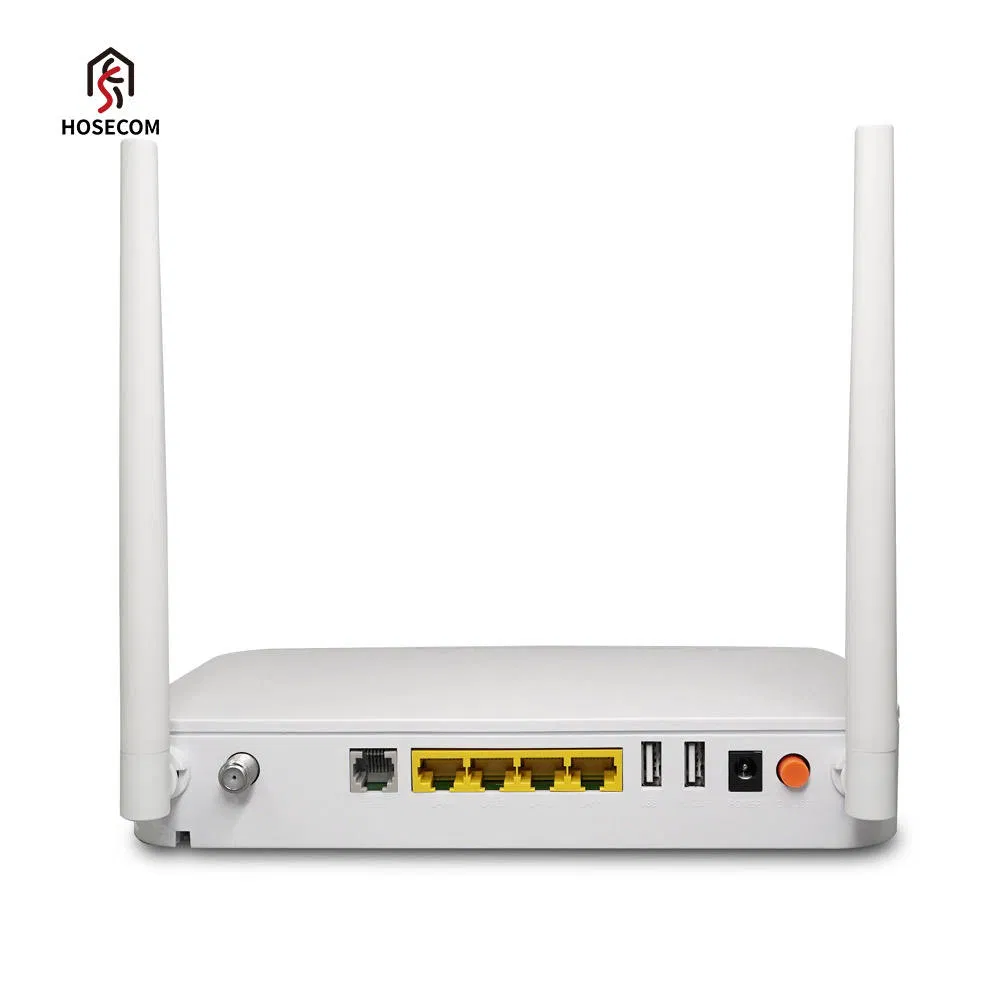

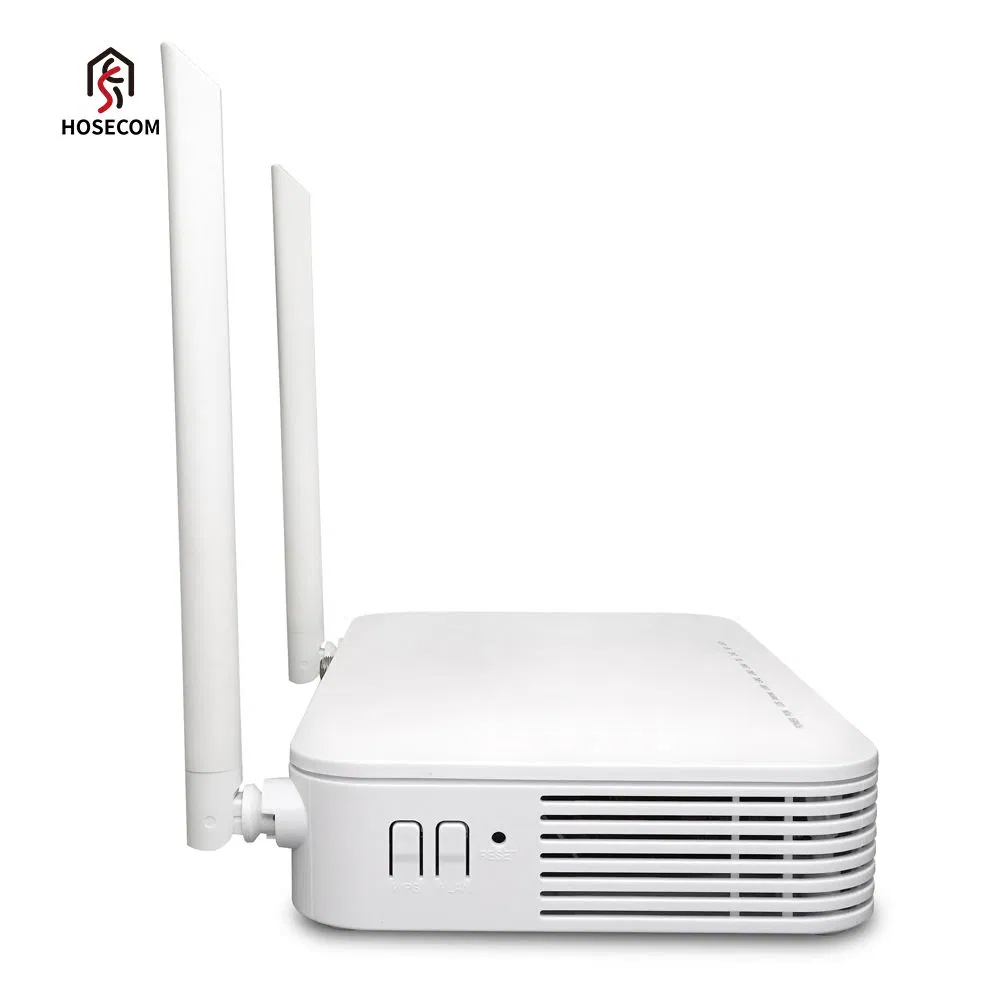

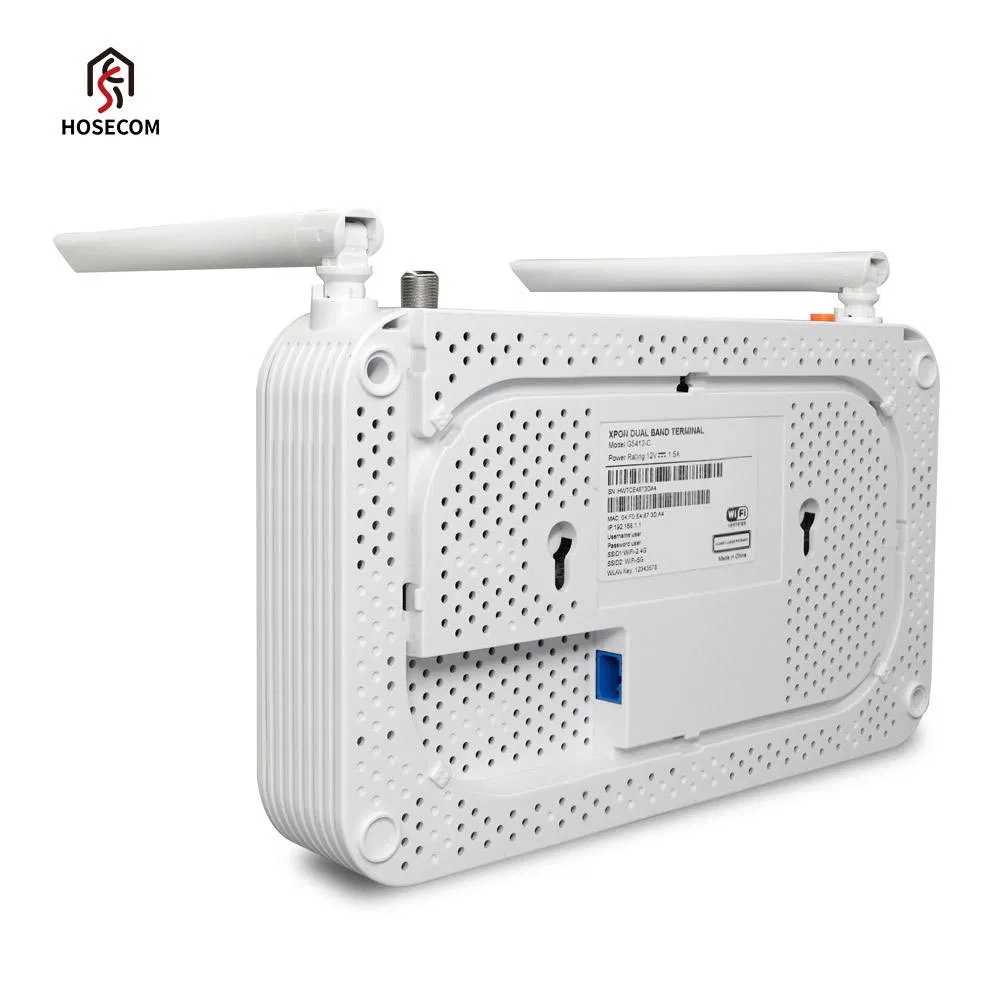

G5412C is a XPon CATV ONU Wifi GPON EPON dual-mode adaptive XPon ONU. The upstream speed is 1.25Gbps, the downstream speed is 2.5Gbps, and the transmission distance can reach 20Km. This product provides two USB 2.0 interfaces, 4 Gigabit Ethernet ports, 1 VoIP port, and 1 CATV interface. G5412C adopts dual-band AC1200 Wifi solution, providing a maximum wifi connection speed of 1200Mbps. G5412C can adapt to mainstream brands of OLT equipment on the market.
| General Parameters | |
|---|---|
| Equipment name | Dual band WiFi5 XPON ONU |
| Device mode | G5412 |
| Standard user ports | 4*GE LAN+1*POTS+1*WLANDual band 802.11AC+2*USB2.0 |
| CPU Chipset | ZTE ZX279128S |
| WiFi Chipset (2.4G) | MTK MT7603EN |
| WiFi Chipset (5G) | MTK MT7613AEN |
| RAM / FLASH | 512MByte / 256MByte |
| Max Distance | 20Km |
| Data Rates | Upstream: 1.25Gbps, Downstream: 2.5Gbps |
| Wireless Standards | IEEE802.11a/n/ac, 5GHz 867Mbps; IEEE802.11b/g/n, 2.4GHz 300Mbps |
| Interfaces | 1 x SC/APC XPON, 4 x GE LAN, 1 x FXS, 2 x USB 2.0 |
| Power Supply | DC 12V 1.5A |
| Dimensions | 205mm*135mm*37mm |

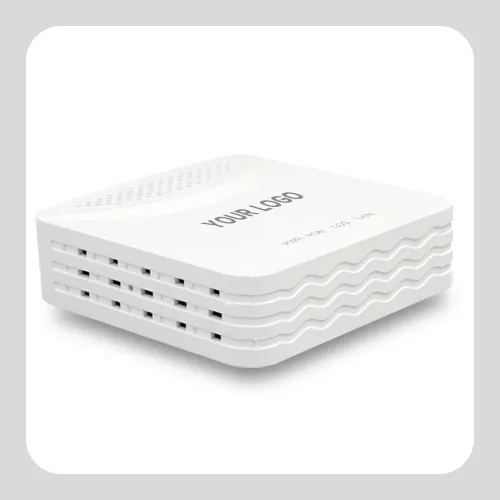

No purchase quantity limit for logo customization. Minimum of 1 product can be customized.

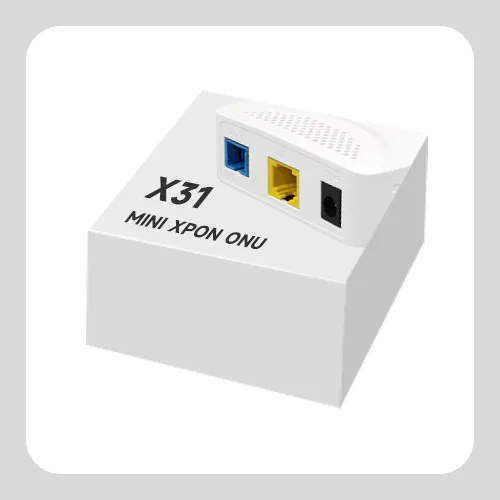

Minimum MOQ for packaging customization is 500pcs. We provide low MOQ service for small quantity customers.
Hardware: Program development and hardware customization. Our engineering team can provide solutions according to requirements.
Software: Our veteran software engineers have more than 12 years of design experience to provide special function customization.
We are committed to 100% quality inspection during production and 100% inspection before products are shipped.

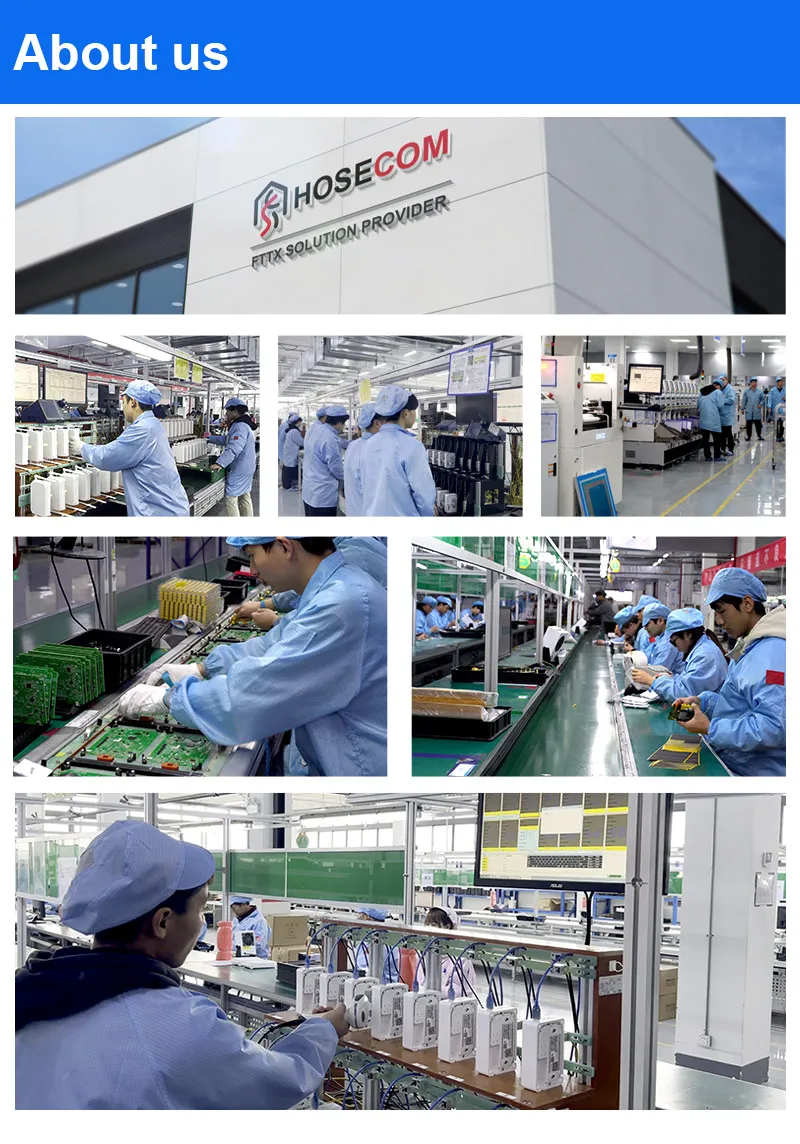

We are an equipment manufacturer and supply chain service provider engaged in the research and development, production, and sales of network communication equipment. Since 2012, we have over 12 years of industry experience, covering a wide range of global customers. We provide OEM/ODM/JDM/SKD/CKD services.
